- Radio/Range
- 2.4 to 2.5 GHz (ISM Band), Adaptive Frequency Hopping, Bluetooth v2.1; Class 2: 10 m (33’) line of sight
- Data Rate
- Up to 3 Mbps
- Battery
- 1800 mAh Lithium-ion (minimum)
- Number of Scans per Charge
- Up to 45,000 scans
- Expected Hours of Operation
- 12 hours
- Expected Charge Time
- 4 hours
- Dimensions (LxWxH)
- 180 mm x 66 mm x 92 mm
- 200 mm x 67 mm x 97 mm
- Weight
- 180 g (includes battery)
- 185 g
- Operating Power (Charging)
- N/A
- 5 W (1 A @ 5 V with power supply); 2.5 W (0.5 A @ 5 V with USB)
- Non-Charging Power
- N/A
- 0.625 W (0.125 A @ 5 V)
- Host System Interfaces
- N/A
- USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
- Operating Temperature
- 5°C to 40°C (41°F to 104°F)
- Charging: 5°C to 40°C (41°F to 104°F);
- Non-Charging
- 0°C to 50°C (32°F to 122°F)
- Storage Temperature with Battery
- -5°C to 35°C (23°F to 95°F)
- -5°C to 35°C (23°F to 95°F)
- Humidity
- 0% to 95% relative humidity, non-condensing
- 0% to 95% relative humidity, non-condensing
- Drop
- Designed to withstand 30 drops from 1.5 m (5’)
- Designed to withstand 30 drops from 1 m (3.3’)
- Light Levels
- 0 to 70,000 lux (6,500 foot-candles)
- N/A
- Scan Pattern
- Single scan line
- Scan Speed (Laser Only)
- 100 scan lines per second
- Scan Angle
- Horizontal: 30°
- Print Contrast
- 10% minimum reflectance difference
- Pitch / Skew
- 60°, 60°
- Decode Capabilities
- Reads standard 1D and GS1 DataBar symbologies
- (Decode capabilities dependent on kit configuration)
- Factory Warranty
- 3 years (Battery warranty is 1 year)

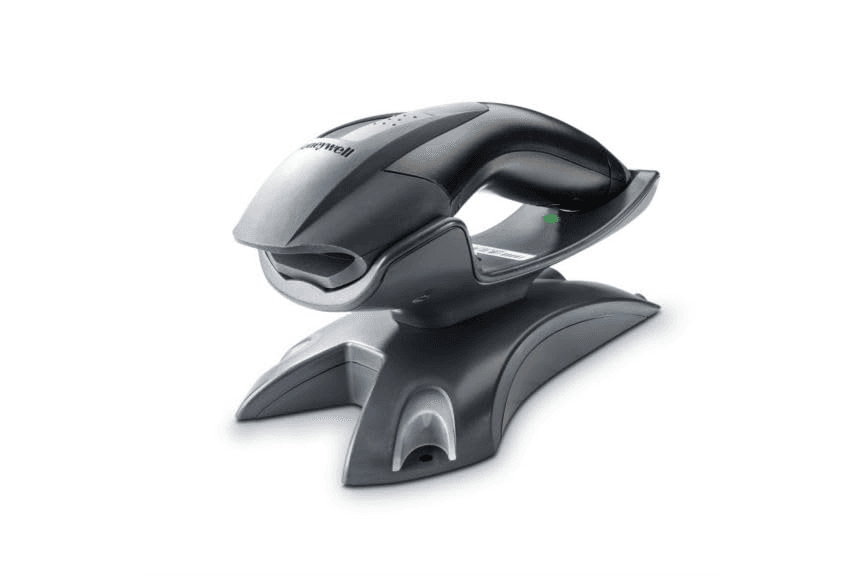

- รหัสสินค้า (SKU)
- 1202G-2USB-5
- หมวดหมู่
- เครื่องอ่านบาร์โค้ด
- ประเภทการจัดส่ง
- จัดส่งสินค้าจริง
