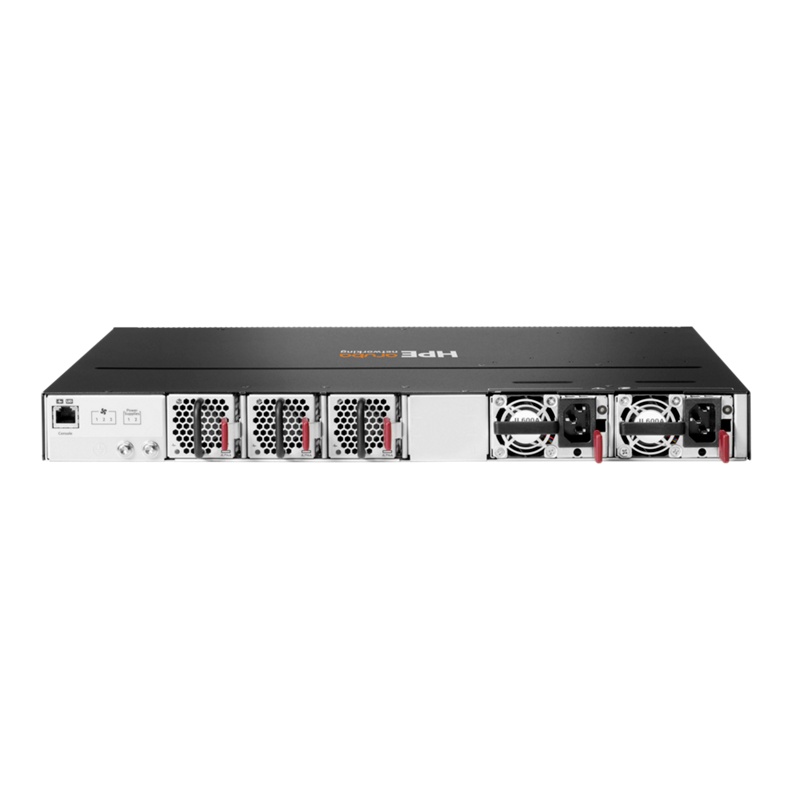

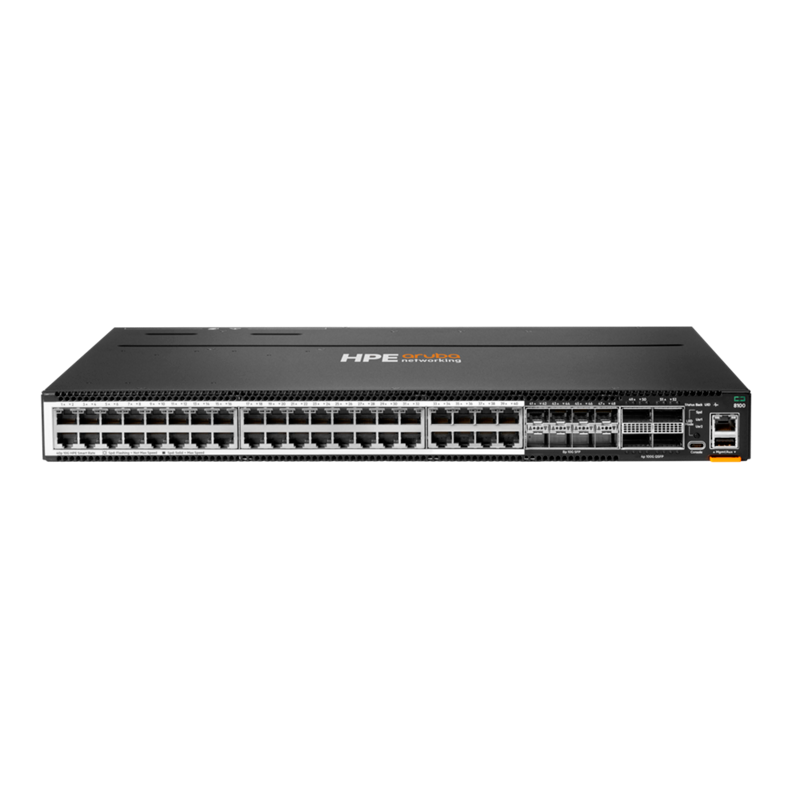

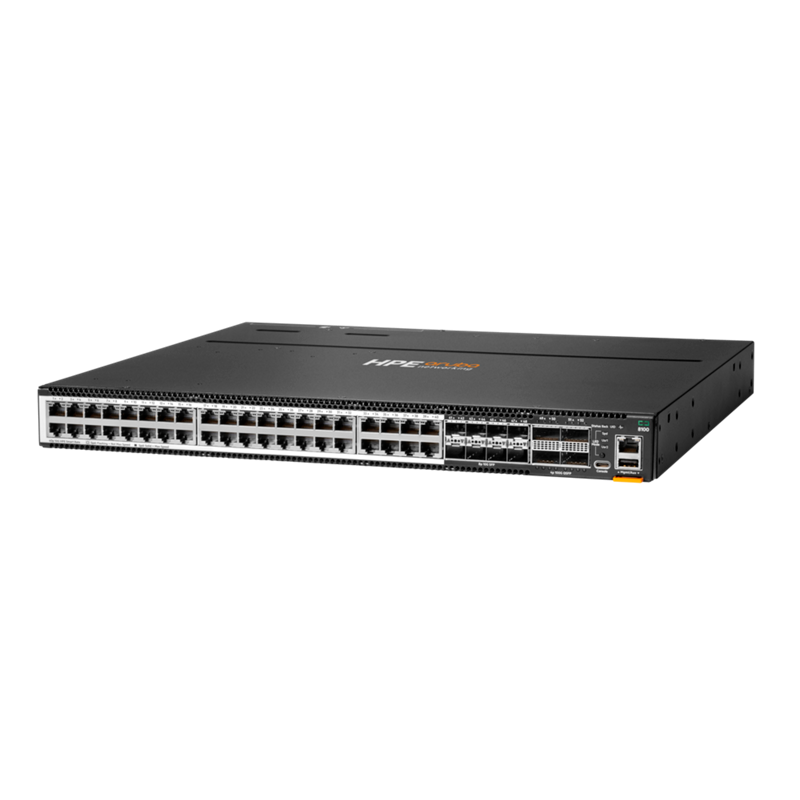

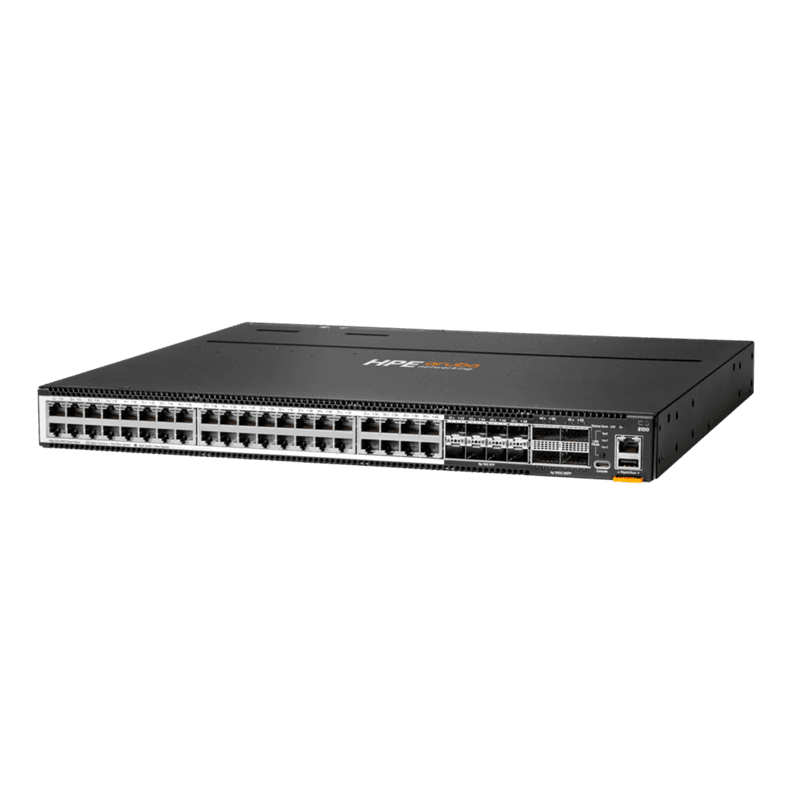

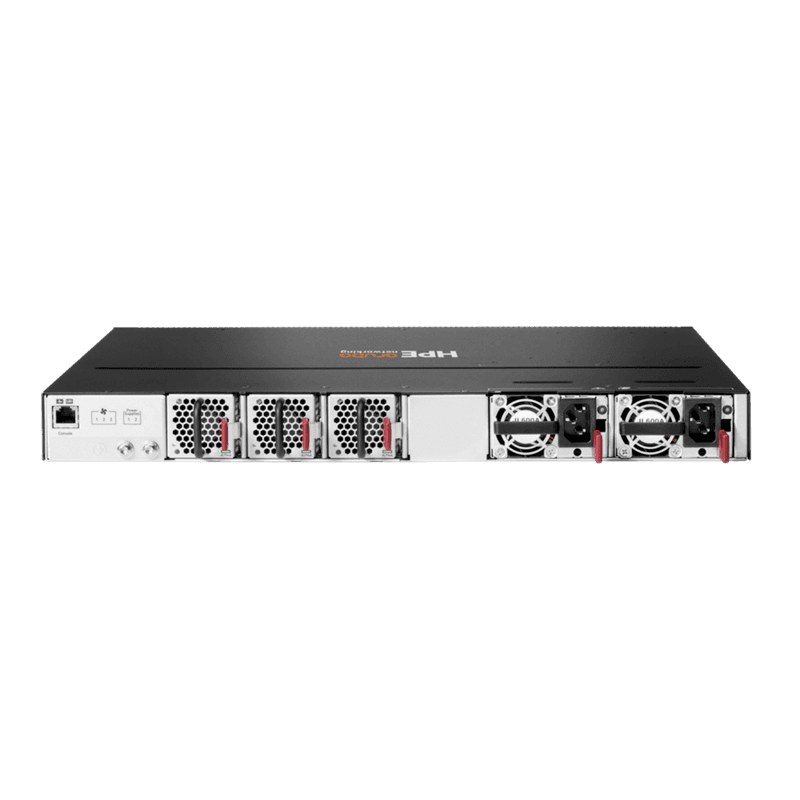

HPE Aruba [R9W92A] CX 8100 40x10GBase-T 8x10G SFP+ 4×40/100G QSFP28 FB 3F 2AC PSU Switch Bundle

Differentiator 40 ports of 100M/1/2.5/5/10 GbE

8 ports of 1 GbE/10 GbE (SFP/SFP+)

4 ports of 40 GbE/100 GbE (QSFP+/QSFP28

Includes 2 Power Supplies with No open PS slots

Includes 3 Fan Tray with No open FT Slots

Includes 1 2-Post Rack Kit

Min=0 \ Max= 8 SFP/SFP+ 1/10 G Transceivers

Min=0 \ Max = 4 QSFP+/QSFP28 40/100 G Transceiver

QSA28 Adapter Min=0 \ Max=6

1U – Height

Power consumption 120 W Idle Power / 500W Max Power

Heat dissipation 1705 BTU/hr

Input voltage 100-127V 7.1A for 100-127 VAC

200-240V 3.4A for 200-240 VAC

Ports 40 ports of 100M/1/2.5/5/10 GbE

8 ports of 1 GbE/10 GbE (SFP/SFP+)

4 ports of 40 GbE/100 GbE (QSFP+/QSFP28

Switching capacity 1.76 Tbps

Memory and processor Quad Core ARM Cortex™ A72 @ 1.8 GHz

Power supply name Bundles include the 2 power supplies (2xJL600A in R9W86A, R9W88A, R9W90A & R9W92A)

Operating temperature Up to 32°F to 113°F (0°C to 45°C) up to 5000 ft depending on the model

Management features RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

Warranty Limited lifetime warranty

Detailed product description The HPE Aruba Networking CX 8100 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of AOS-CX provide a unique set of differentiators for campus and data center switching.
