- CPU
- Realtek RTD1619B
- Memory
- 2 GB DDR4
- Compatible drive types
- 4 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included)
- Synology guarantee
- Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
- Hot swappable drives
- Yes

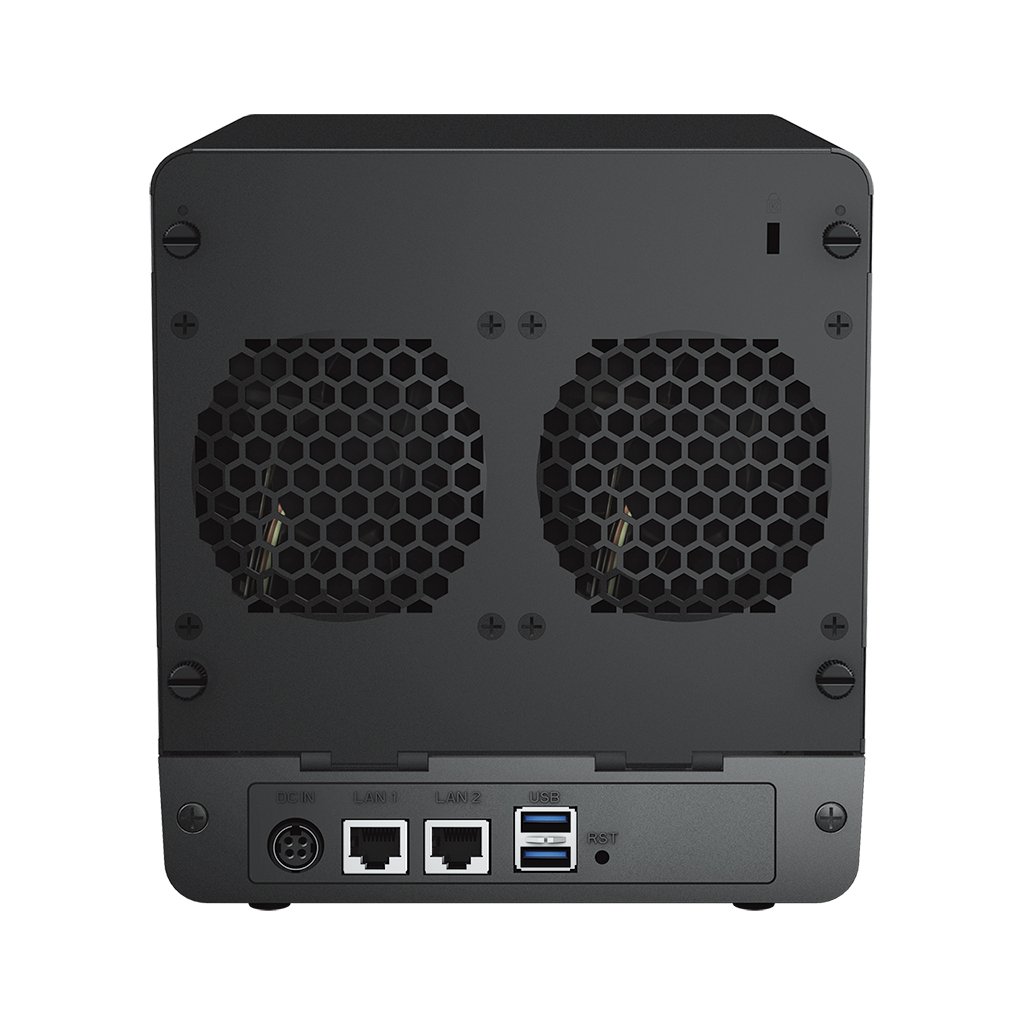

- External ports
- 2 x USB 3.2 Gen 1 ports
- Form factor
- Desktop
- Size (HxWxD)
- 184 x 168 x 230 mm
- Weight
- 2.21 kg
- LAN ports
- 2 x 1GbE RJ-45
- Wake on LAN/WAN
- Yes
- Scheduled power on/off
- Yes
- System fans
- 1 x (80 x 80 mm)
- AC input power voltage
- 100 V to 240 V AC
- Power frequency
- 50/60 Hz, single phase
- Operating environment
- • Temperature: 0°C to 35°C (32°F to 95°F)
- Relative humidity
- 8% to 80% RH
- Storage environment
- • Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative humidity
- 5% to 95% RH
- Maximum operating altitude
- 5,000 m (16,400 ft)
- Networking protocols
- SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)
- File systems
- • Internal: Btrfs, ext4
- External
- Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
- Supported RAID types
- Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Storage management
- • Max. single volume size: 108 TB
- Max. number of system snapshots
- 4,0965
- Max. number of internal volumes
- 64
- File sharing capabilities
- • Max. number of local user accounts: 1,024
- Max. number of local groups
- 256
- Max. number of shared folders
- 256
- Max. number of concurrent SMB/NFS/AFP/FTP connections
- 200
- Privileges
- Windows® Access Control List (ACL) and application privileges
- Directory services
- Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials
- Security
- Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, and HTTPS (customizable cipher suite)
- Supported browsers
- Google Chrome®, Firefox®, Microsoft Edge®, Safari® 14 and later, and Safari (iOS 14.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets
- Environmental safety
- RoHS compliant
- Package contents
- • 1 x DS423 main unit
- 1 x Quick Installation Guide
- 1 x Accessory pack
- 1 x AC power cord
- 1 x AC power adapter
- 2 x RJ-45 LAN cables
- Optional accessories
- • 2.5″ SATA SSD: SAT5200 Series
- 3.5″ SATA HDD
- HAT5300 Series
- Surveillance Device License Pack
- Extended Warranty
- Extended Warranty Plus
