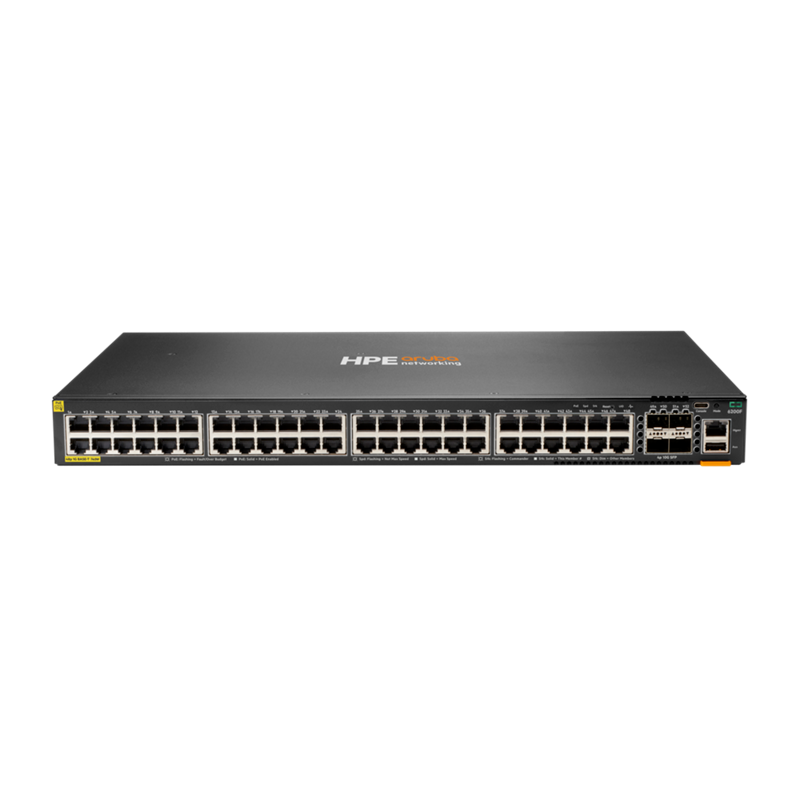

HPE Aruba 6200F 48G CL4 4SFP+740W [JL728A]

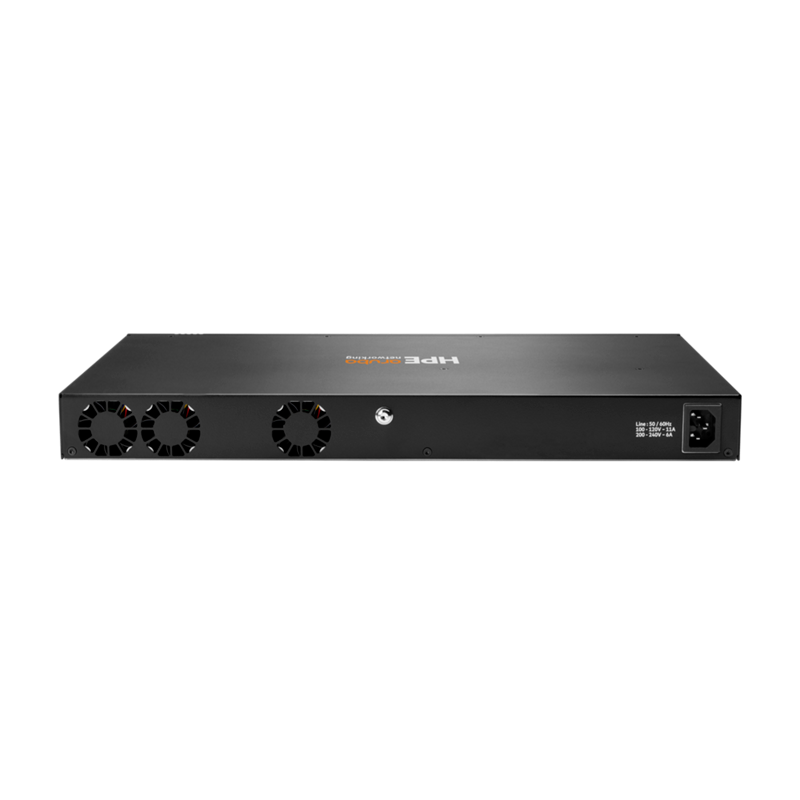

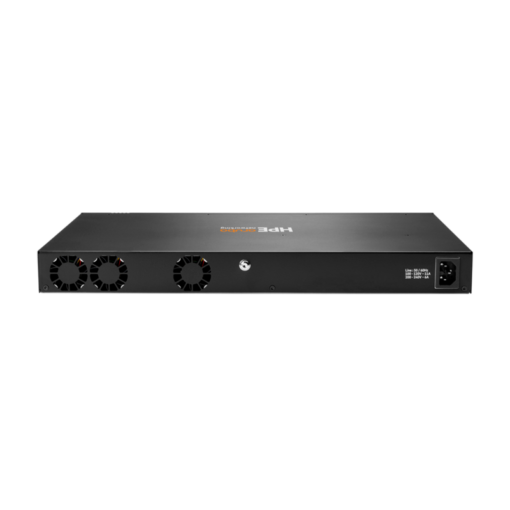

HPE Aruba 6200F 48G CL4 4SFP+740W [JL728A] - Image 2

HPE Aruba 6200F 48G CL4 4SFP+740W [JL728A]

  • Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
  • Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
  • Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10  GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
  • Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
  • Dynamic Segmentation enables secure access for users and IoT.
  • Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

รบกวนติดต่อสอบถามก่อนสั่งซื้อ

฿239,000.00*ราคายังไม่รวม VAT
฿255,730.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา

Differentiator48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1/10G SFP ports; PHY-less
Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x RJ-45 Console Port
Fixed power supply Up to 740W of Class 4 PoE Power
Fixed fans

Power consumption76W at 230 VAC

Input voltage100V-120V/200V-240V

Ports48x 10/100/1000BASE-T Class 4 PoE ports
4x 1/10G SFP ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with CX mobile app

Latency1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec

Routing/switching capacity176 Gbps

Stacking capabilities8 members

ThroughputUp to 130.9 Mpps

Memory and processorCPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC

Power supply nameFixed power supply (950W)
Up to 740W of Class 4 PoE Power

PoE capability740W

WarrantyLimited lifetime warranty. See the warranty duration.

Detailed product descriptionThe HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.

Weight5.10 kg (11.24 lbs)

Dimensions4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)

SKU: JL728A Category:
