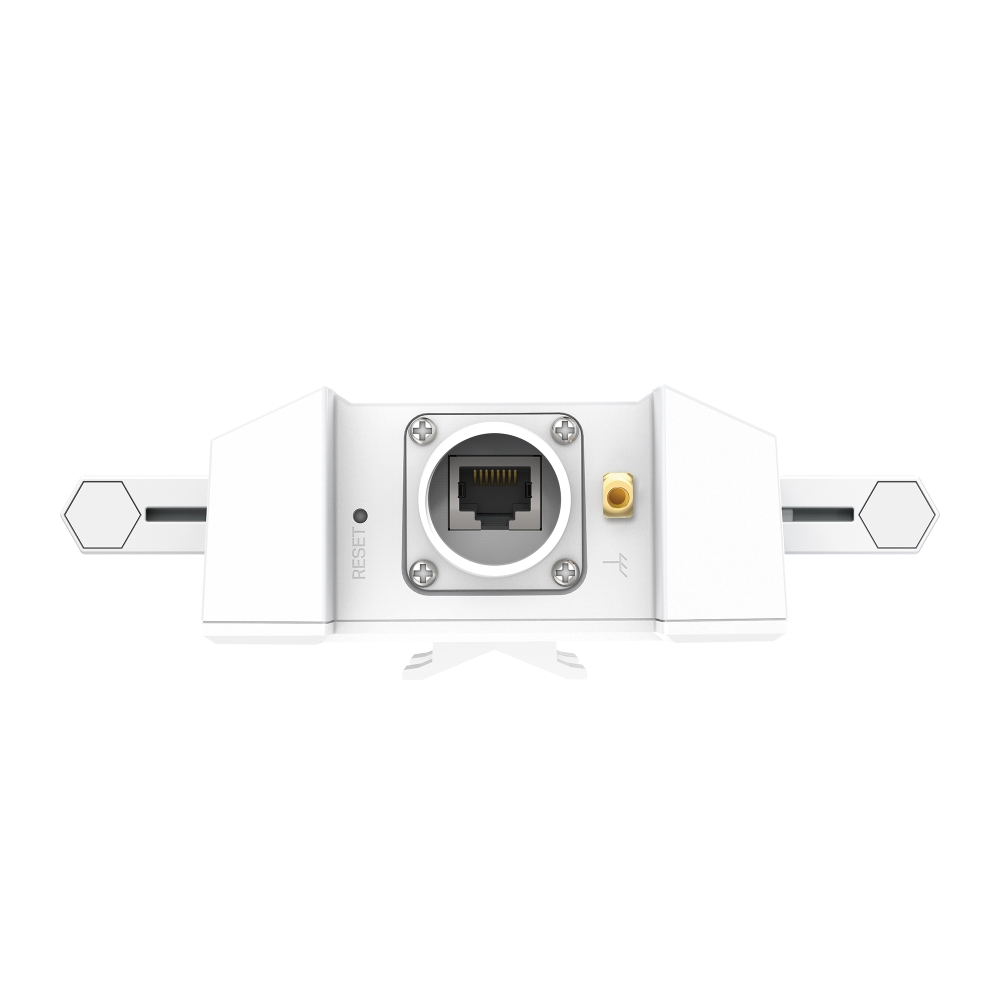

- Interface
- 1x Gigabit Ethernet Port
- Button
- Reset
- Power Supply
- • 802.3at PoE
- 48V Passive PoENote
- PoE adapter is not included.
- Power Consumption
- • EU: 12.5W (802.3at PoE or Passive PoE)
- US
- 14.7W (802.3at PoE or Passive PoE)
- Dimensions ( W x D x H )
- 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm) *5
- Antenna Type
- 2× External Dual-Band Omni Antennas
- 2.4 GHz
- 3.0 dBi;
- 5 GHz
- 5.0 dBi
- Bluetooth
- V5.2
- Weatherproof Enclosure
- IP67
- Mounting
- Pole/Wall Mounting (Kits included)
- Concurrent Clients
- 1,020+ 3
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax
- Frequency
- 5 GHz, and 2.4 GHz
- Signal Rate
- • 5 GHz: Up to 1201 Mbps
- 2.4 GHz
- Up to 574 Mbps
- Wireless Functions
- • Mesh *4
- Seamless Roaming(802.11k/v/r) *4
- Automatic Channel Assignment
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDs
- 16 (8 for each band)
- MU-MIMO (2×2 MU-MIMO DL)
- Wireless Statistics
- Wireless Schedule
- Reboot Schedule
- RADIUS Accounting
- MAC Authentication
- Static IP/Dynamic IP
- Wireless Security
- • VLAN
- Access Control
- Rogue AP Detection
- Captive Portal Authentication *4
- Maximum number of MAC Filter
- 4,000
- Wireless Isolation between Clients
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- 802.1X Support
- Transmission Power
- • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
- Omada App
- Yes
- Restore & Backup
- Yes
- Firmware update via Web
- Yes
- NTP
- Yes
- Centralized Management
- • Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- SSH
- Yes
- Web-based Management
- Yes
- Certification
- CE, RoHS
- Package Contents
- • EAP625-Outdoor HD
- 2× Detachable Antennas
- Installation Guide
- Mounting Kit
- Waterproof Kit
- Environment
- • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
- Storage Temperature
- -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity
- 10%–90% non-condensing;
- Storage Humidity
- 5%–90% non-condensing
