- Interface
- • Uplink: 1× 10/100/1000 Mbps Ethernet Port

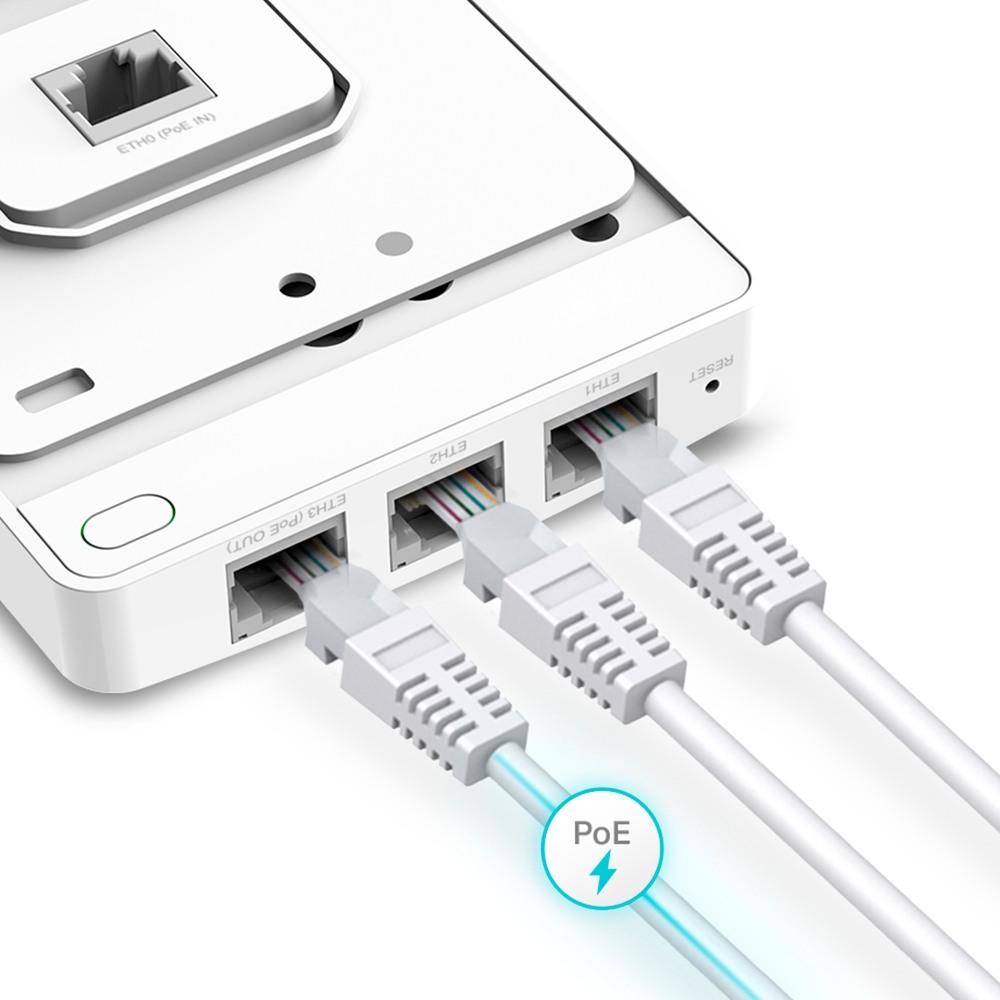

- Downlink
- 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
- Physical Security Lock
- Yes
- Button
- Reset
- Power Supply
- 802.3af/at PoE
- Power Consumption
- EU: 10W (802.3at PoE, PoE Out off)
- US
- 11.5W (802.3at PoE, PoE Out off)
- Dimensions ( W x D x H )
- 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
- Dimensions
- 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
- Antenna
- 2 Dual-Band Antennas
- 2.4 GHz
- 2× 3 dBi
- 5 GHz
- 2× 4 dBi
- Mounting
- Wall Plate Mounting
- Coverage
- 50㎡(600 ft²) △
- Wireless Client Capacity
- 100+ △
- Concurrent Clients
- 120+ △
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- • 5 GHz: Up to 1201 Mbps
- 2.4 GHz
- Up to 574 Mbps
- Wireless Security
- • Captive Portal Authentication †
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- • CE:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, EIRP)• FCC
- < 21 dBm (2.4 GHz)
- < 21 dBm (5 GHz)
- Omada App
- Yes
- Centralized Management
- • Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes (Through OC300, OC200, or Omada Software Controller)
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH
- Yes
- Web-based Management
- HTTP/HTTPS
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Certification
- CE, FCC, RoHS
- Package Contents

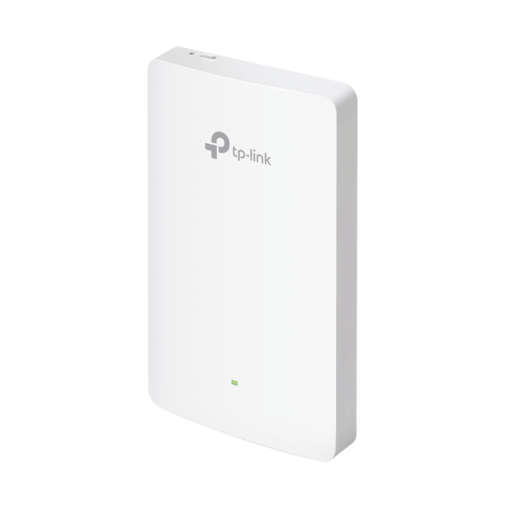

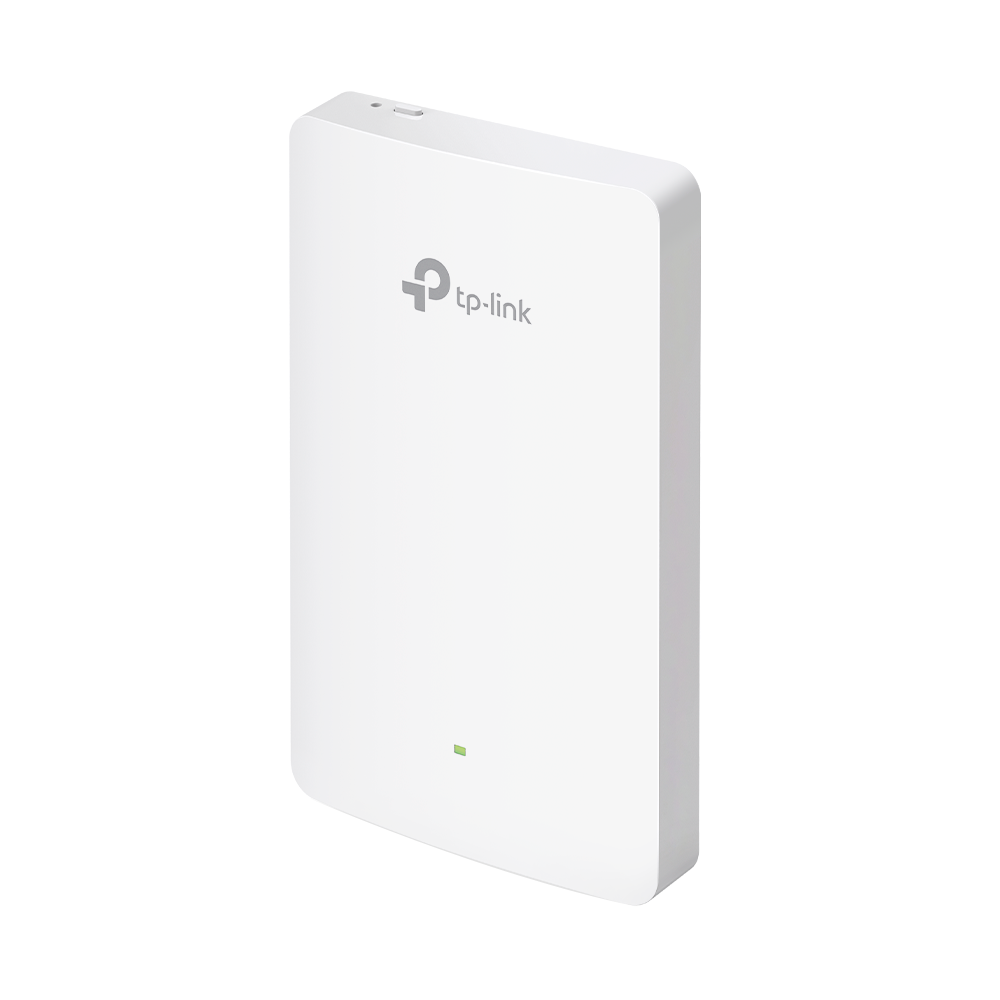

- • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
- Installation Guide
- Mounting Kits
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment
- • Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature
- -40–70 ℃ (-40–158 ℉)
- Operating Humidity
- 10–90% RH non-condensing
- Storage Humidity
- 5–90% RH non-condensing
