- Interface

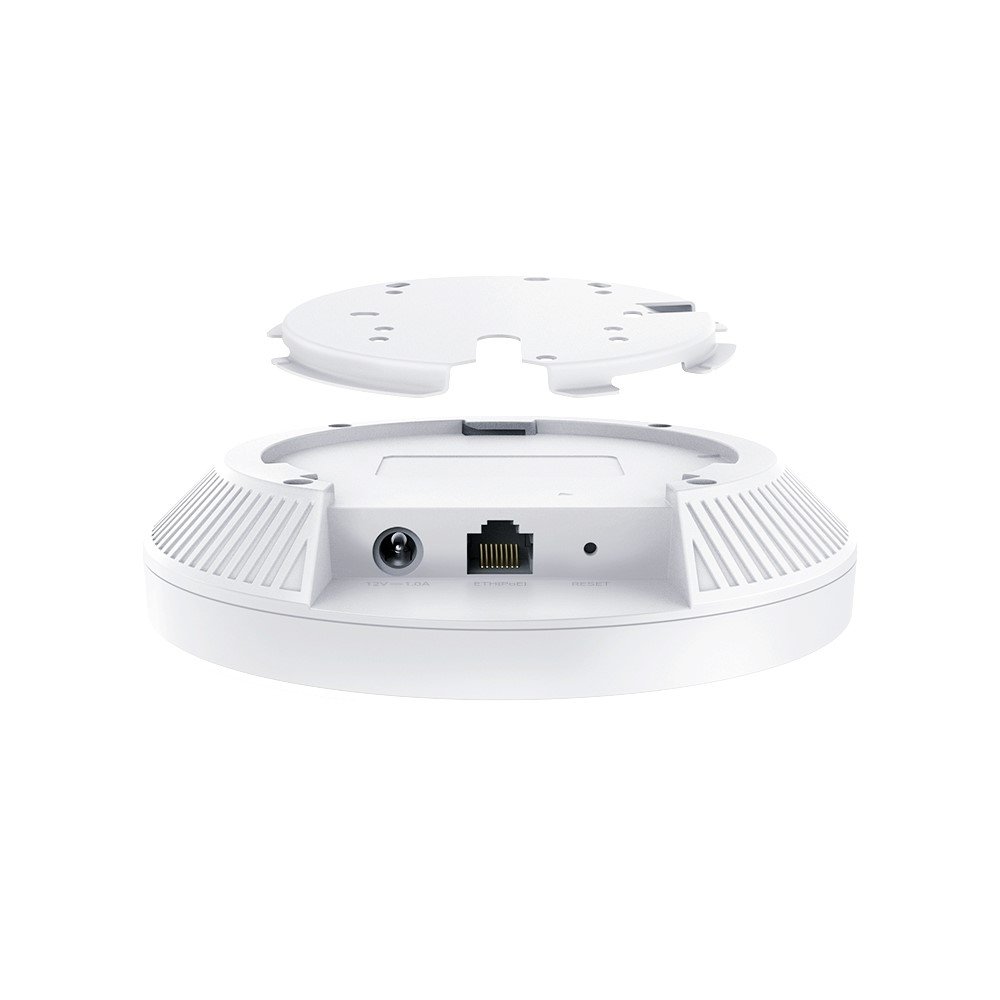

- 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button
- Reset
- (EU Version
- 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
- Note
- DC adapter is not included in the package, and is sold separately
- 48V Passive PoE
- Power Consumption
- • EU: 13.07 W
- US
- 13.98 W
- Dimensions ( W x D x H )
- 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type
- Internal Omni
- 2.4 GHz
- 2× 4 dBi
- 5 GHz
- 2× 5 dBi
- Mounting
- • Ceiling /Wall Mounting (Kits included)
- Junction Box Mounting
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- • 5 GHz: Up to 2402 Mbps †
- 2.4 GHz
- Up to 574 Mbps †
- Wireless Security
- • Captive Portal Authentication §
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- • CE:
- <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, Band1 & Band2, EIRP)
- <27 dBm(5 GHz, Band3, EIRP)• FCC
- <22 dBm (2.4 GHz)
- <22 dBm (5 GHz)
- Omada App
- Yes
- Centralized Management
- • Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH
- Yes
- Web-based Management
- HTTP/HTTPS
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Certification
- CE, FCC, RoHS
- Package Contents
- • EAP653
- Ceiling/Wall Mounting Kits
- Installation GuideNote
- DC adapter is not included in the package, and is sold separately.
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment
- • Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature
- -40–70 ℃ (-40–158 ℉)
- Operating Humidity
- 10–90% RH non-condensing
- Storage Humidity
- 5–90% RH non-condensing
