- Interface

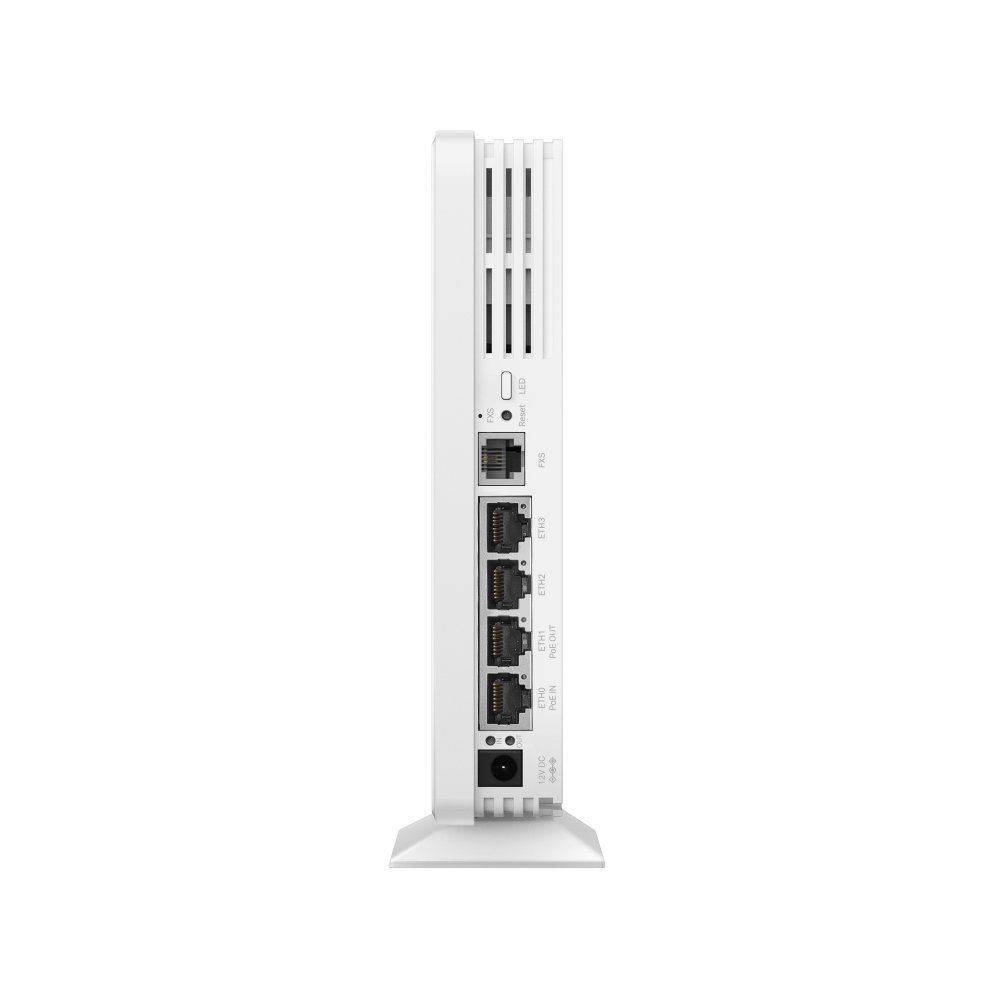

- 4× 1Gbps Ethernet Ports + 1× FXS Port
- (One Ethernet port supports PoE Out
- 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
- Power Supply
- 802.3 af/at/bt PoE or 12V/1.5A DC
- *PoE Out requires 802.3at/bt PoE power supply
- Power Consumption
- 17.3W (PoE Out Off)
- Weight
- 452g (excluding mounting base)
- Dimensions ( W x D x H )
- 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
- Antenna Type
- Internal Omni
- 2.4 GHz
- 2× 5 dBi
- 5 GHz
- 3× 4.7 dBi
- Range
- 140㎡(1500 ft²)*
- Mounting

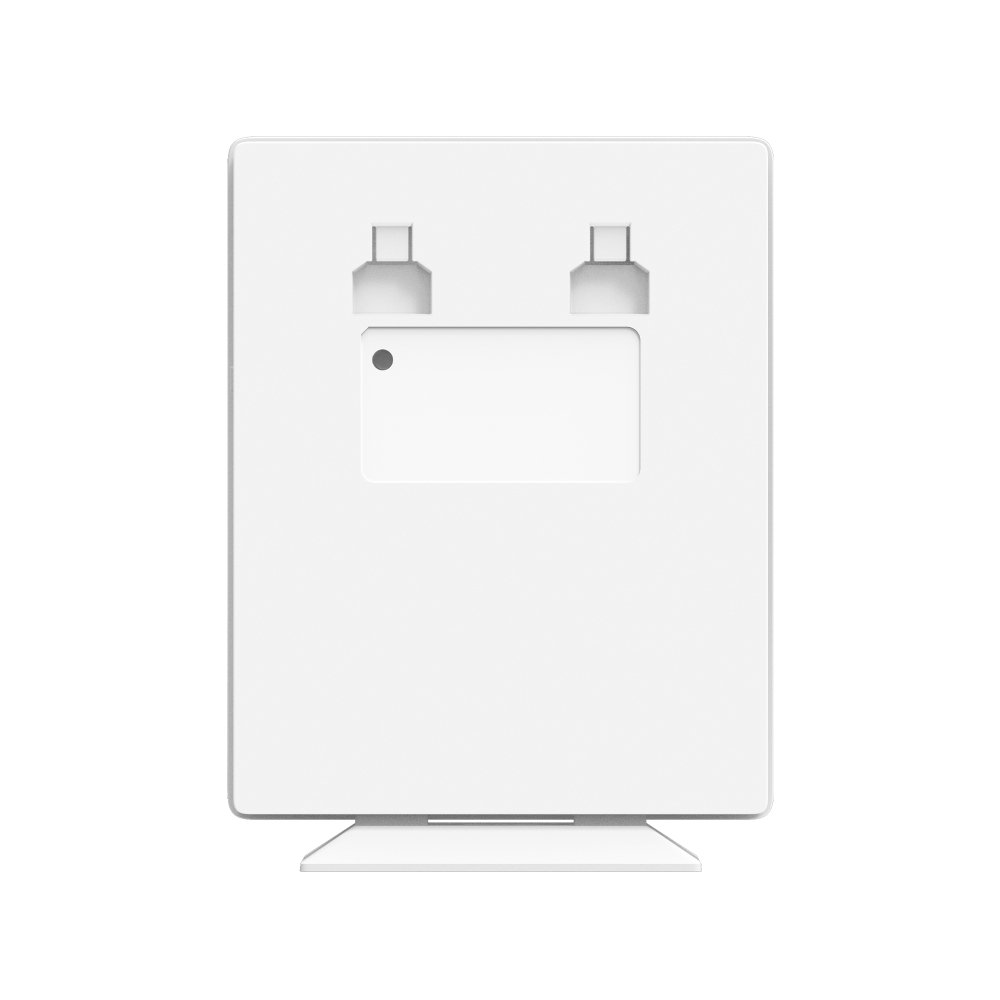

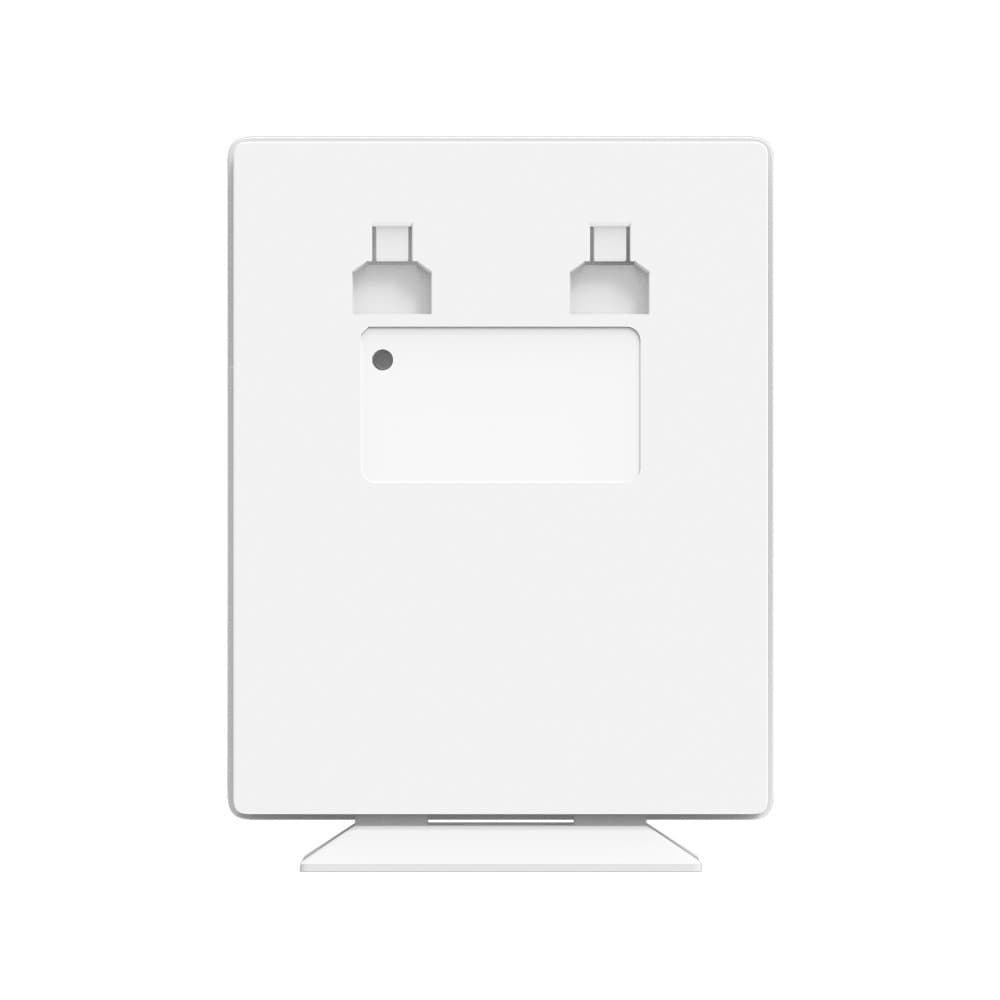

- Desktop / Wall mouting (Kits included)
- Concurrent Clients
- 250+ *
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- • 5 GHz: 2402 Mbps †
- 2.4 GHz
- 574 Mbps
- Wireless Security
- • Captive Portal Authentication §
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- • CE:
- <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, band1 & band2, EIRP)
- <29 dBm(5 GHz, band3, EIRP)• FCC
- <26 dBm (2.4 GHz)
- <27 dBm (5 GHz)
- Omada App
- Yes
- Centralized Management
- • Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- System Log
- SSH
- Yes
- Web-based Management
- Yes
- Zero-Touch Provisioning
- Yes.Reauire the use of Omada Cloud-Based controller
- Certification
- CE, FCC, RoHS, IC
- Package Contents

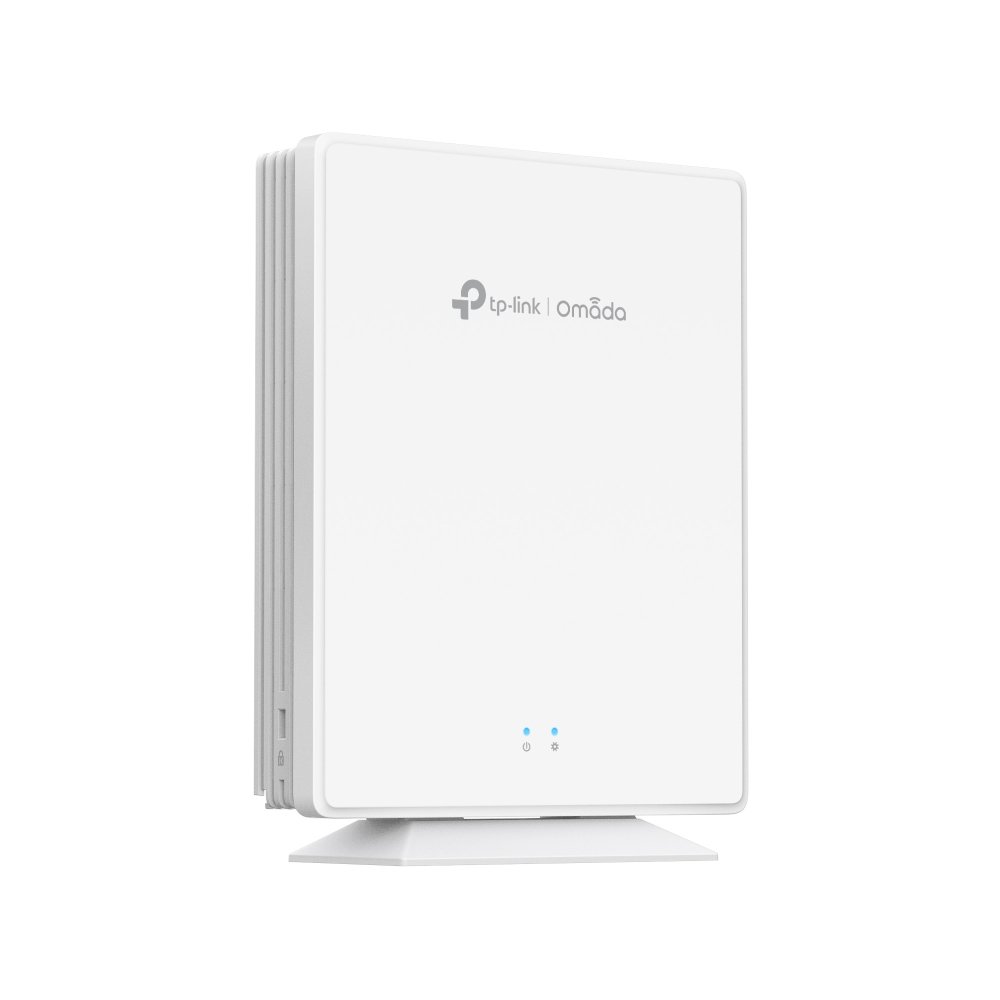

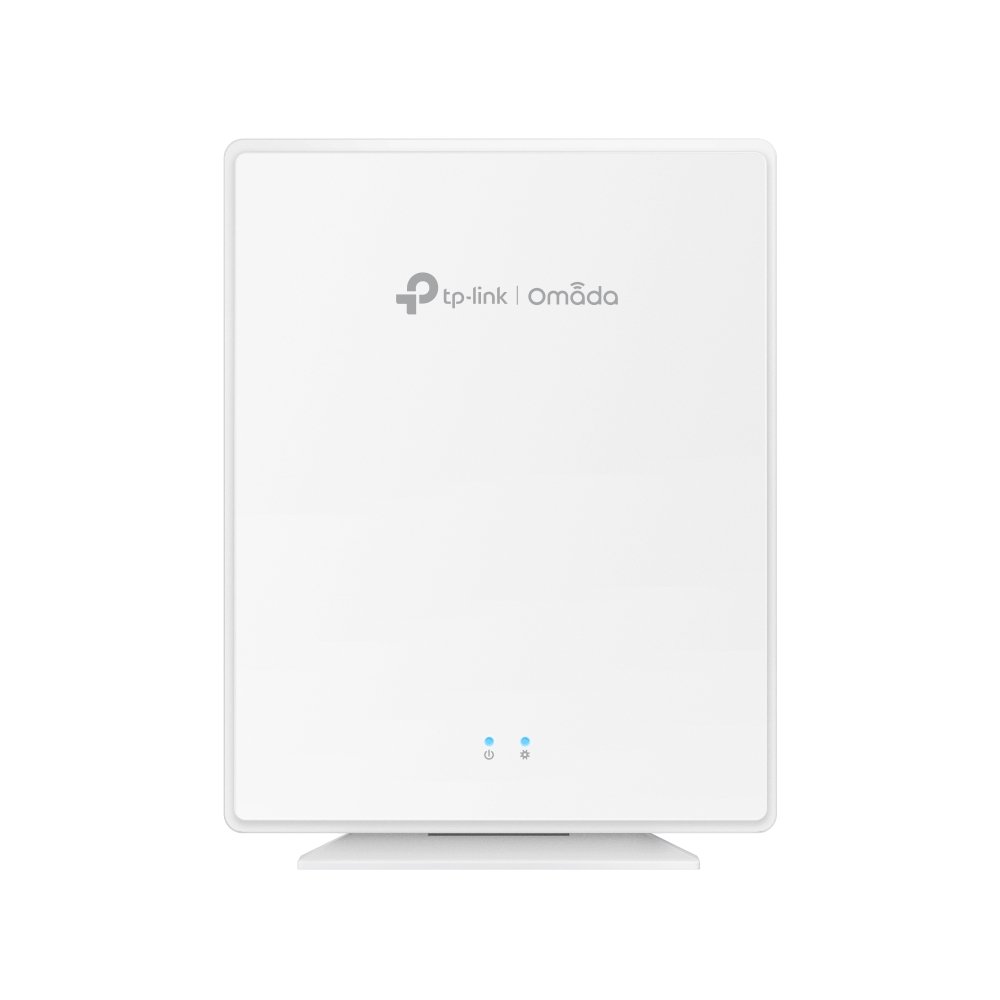

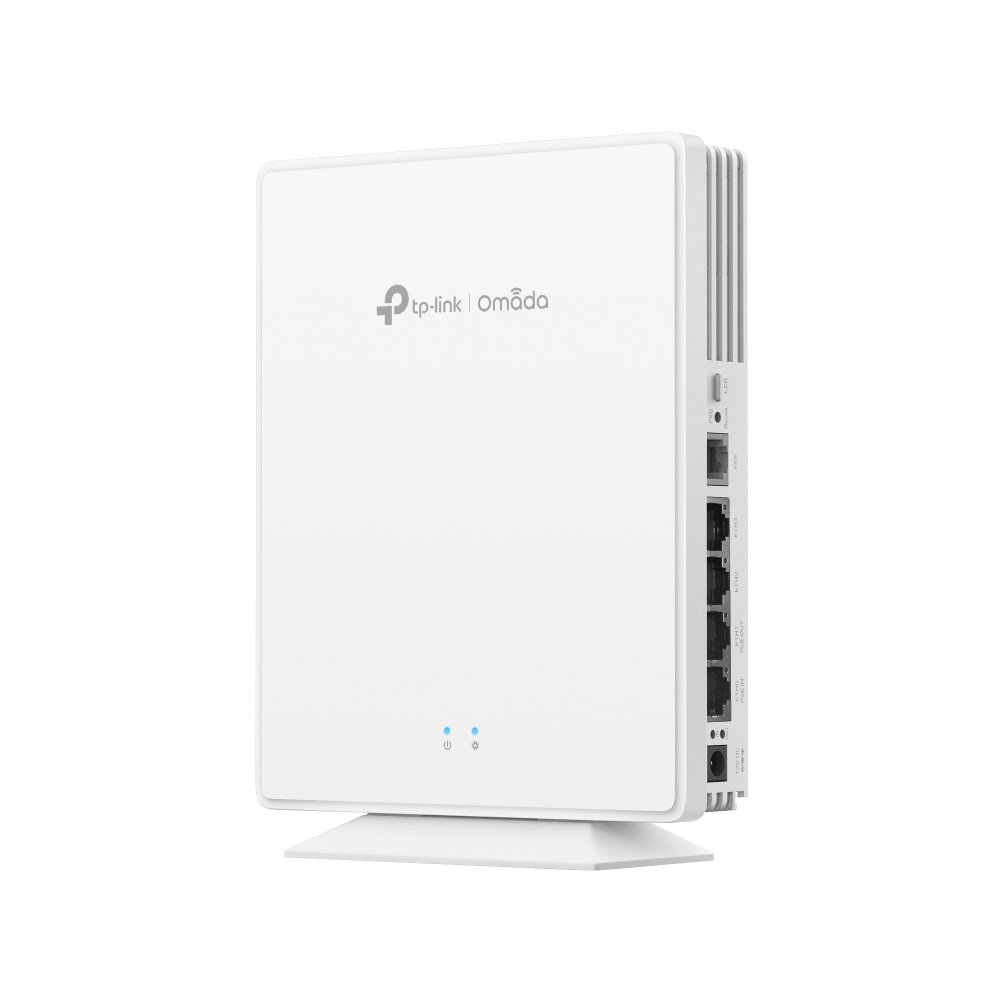

- • EAP650-Desktop
- Desktop/Wall Mounting Kit
- Installation Guide
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
- • Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature
- -40–70 ℃ (-40–158 ℉)
- Operating Humidity
- 10–90% RH non-condensing
- Storage Humidity
- 5–90% RH non-condensing
- รหัสสินค้า (SKU)
- EAP650-DESKTOP
