- Interface

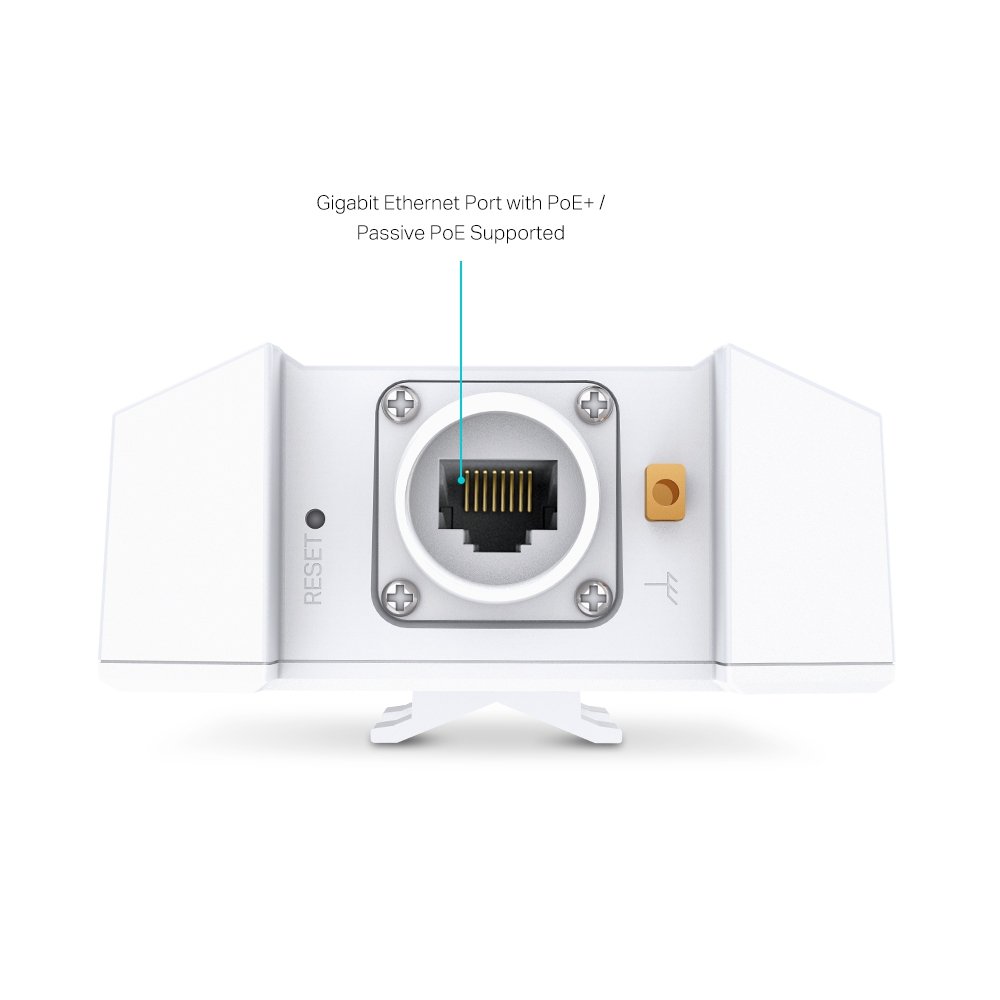

- 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
- Button
- Reset
- Power Supply
- 802.3at PoE
- 48V Passive PoE (PoE Adapter Included)
- Power Consumption
- EU: 12.5W (802.3at PoE or Passive PoE)
- US: 14.7W (802.3at PoE or Passive PoE)
- Dimensions ( W x D x H )
- 106.5 × 57 × 281 mm (without antenna & mounting kit)
- Antenna
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 5 dBi
- Weatherproof Enclosure
- IP67
- Mounting
- Pole/Wall Mounting (Kits included)
- Wireless Client Capacity
- 250+
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz, 5 GHz
- Signal Rate
- 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2, HE20/40/80/160)
- 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2, VHT20/40/80)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Transmit Power
- CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
- FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
- Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Omada App
- Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes, through
- Omada Cloud-Based Controller
- OC300
- OC200
- Omada Software Controller
- Email Alerts
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c
- System Logging Local/Remote Syslog
- Yes
- SSH
- Yes
- Web-based Management
- Yes
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller
- Certification
- CE, FCC, RoHS
- Package Contents
- Access Point EAP650-Outdoor
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
- Operating Temperature: -30–70 ℃ (-22–158 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
