| รุ่น / SKU | EAP655-WALL |
|---|---|
| Omada App | Yes |
| Centralized Management |
|
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Management MAC Access Control | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| Storage Humidity | 5–90% RH non-condensing |
| Antenna | 2 Dual-Band Antennas |
| 2.4 GHz | 2× 3 dBi |
| 5 GHz | 2× 5 dBi |
| Maximum Number of Wireless Clients | 100+ △ |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| 2.4 GHz | Up to 574 Mbps |
| Wireless Security |
|
| <26 dBm (5GHz band3, EIRP)• FCC |
|
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port |
| Power Supply | 802.3af/at PoE |
| Power Consumption | • EU: 12W (802.3at PoE, PoE Out off) |
| Transmission Power |
|
| Physical Security Lock | No |
| Button | Reset, LED |
| Dimensions | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
| Mounting | Wall Plate Mounting (Kits included) |
| Certification | FCC, RoHS |
| Package Contents |
|
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Operating Humidity | 10–90% RH non-condensing |

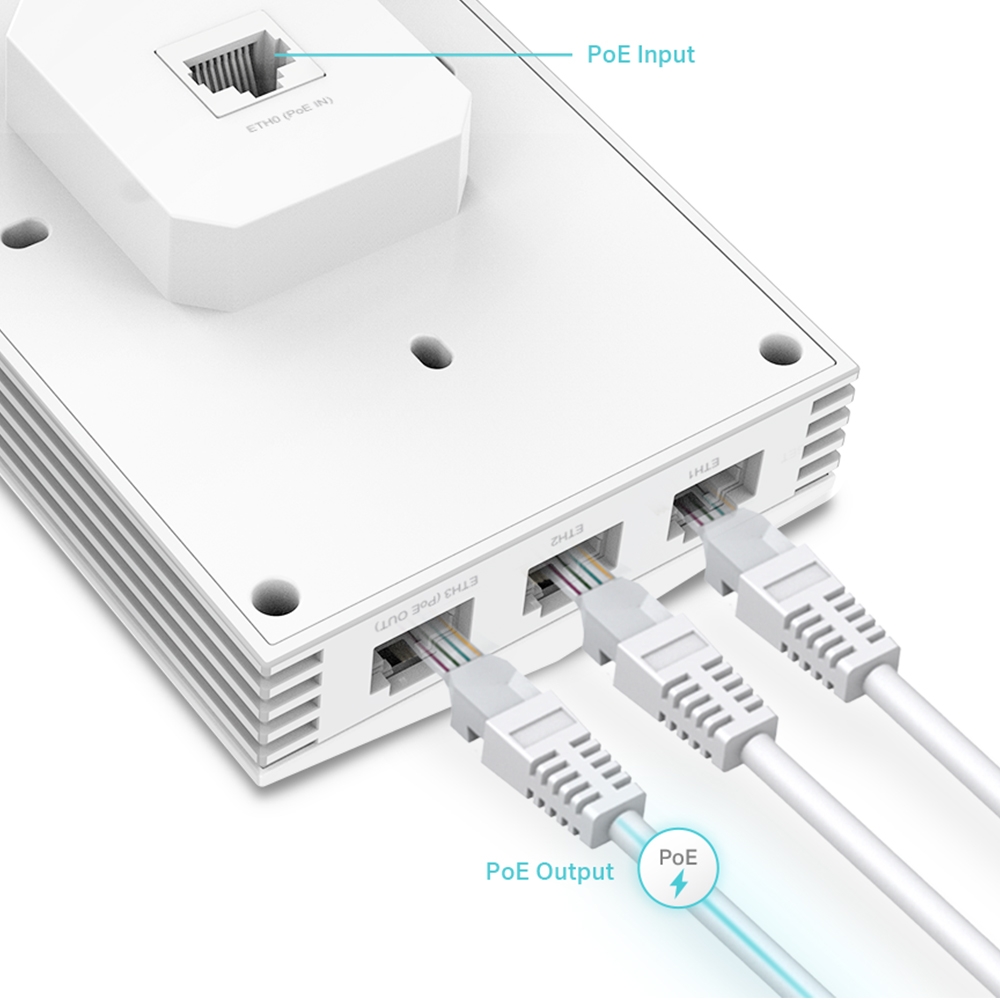

| Downlink | 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.) |
| US | 12.6W (802.3at PoE, PoE Out off) |
| Signal Rate | • 5 GHz: Up to 2402 Mbps |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
