- Interface
- 2× 10G Ethernet Port
- Button
- Reset
- Power Supply
- • 802.3bt PoE++
- 12V DCNote：Power adapter is not included.
- Power Consumption
- 39W
- Dimensions ( W x D x H )
- 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)
- Antenna Type
- Internal Omni
- 2.4 GHz
- 4× 4 dBi
- 5 GHz
- 4× 5.5 dBi
- 6 GHz
- 4× 5 dBi
- Bluetooth
- Yes
- Mounting

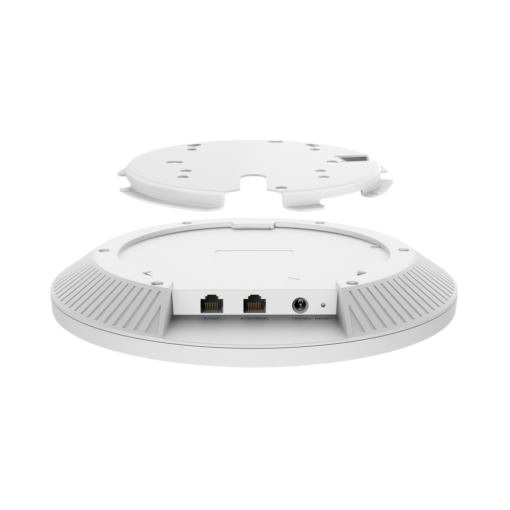

- Ceiling / Wall Mounting (Kits Included)
- Coverage
- 200㎡ (2150 ft²) §
- Concurrent Clients
- 640 **
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency
- 6 GHz, 5 GHz, and 2.4 GHz
- Signal Rate
- • 6 GHz: Up to 11520 Mbps
- 5 GHz
- Up to 8640 Mbps
- 2.4 GHz
- Up to 1376 Mbps
- Wireless Functions
- • MLO
- 4K-QAM
- MU-MIMO
- HE320
- Mesh
- Automatic Channel Selection and Power Adjustment
- BBS Coloring
- OFDMA
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS
- Wireless Schedule
- Reboot Schedule
- Wireless Security
- • PPSK
- Captive Portal Authentication
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise
- Transmission Power
- CE:
- <20 dBm(2.4 GHz, EIRP)
- <30 dBm(5 GHz, EIRP)FCC
- <24 dBm (6 GHz)
- Omada App
- Yes
- Restore & Backup
- Yes
- Firmware update via Web
- Yes
- NTP
- Yes
- Centralized Management
- • Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- SSH
- Yes
- Web-based Management
- Yes
- Weight
- Net Weight:1384.6g
- Certification
- CE, FCC, RoHS, IC
- Package Contents
- • EAP783
- Installation Guide
- Ceiling/Wall Mounting Kits
- Environment
- • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- Storage Temperature
- -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity
- 10%–90% non-condensing;
- Storage Humidity
- 5%–90% non-condensing
- รหัสสินค้า (SKU)
- EAP783
