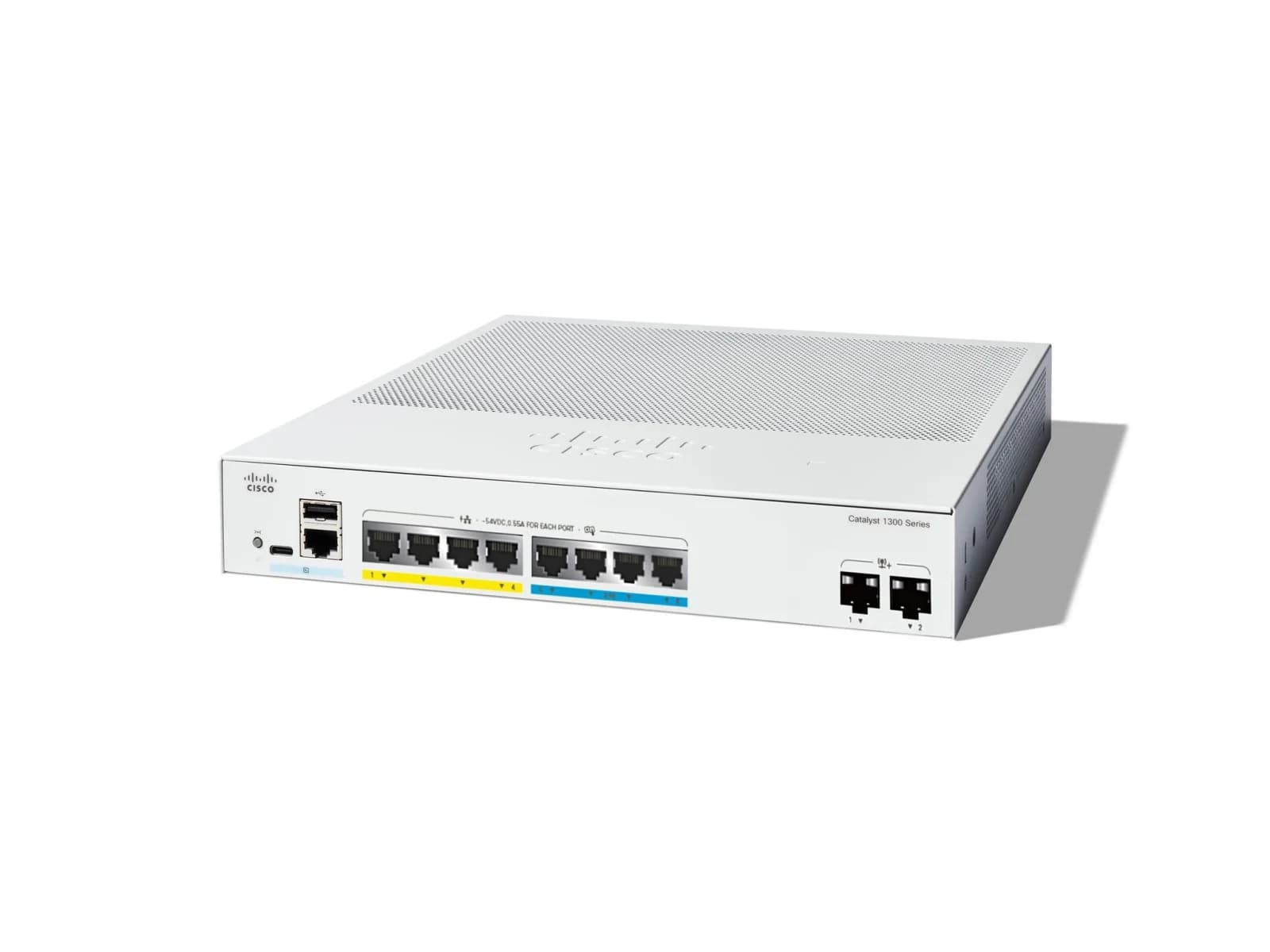

| รุ่น / SKU | C1300-8MGP-2X |
|---|
| พอร์ต Gigabit (RJ45) | 4 x 10/100/1000 30W PoE+ports |
|---|
| พอร์ต mGig (Multigigabit) | 4 x 2.5G 30W PoE+ ports (2.5G mGig) |
|---|
| พอร์ต SFP+ | 2 x 10 Gigabit SFP+ |
|---|
| พอร์ต Console | Cisco standard RJ-45 console port and USB Type C port |
|---|
| พอร์ต USB | USB Type C on the front panel — file and image management, console, external Bluetooth dongle for CLI/GUI |
|---|
| CPU | ARM dual-core at 1.5 GHz |
|---|
| หน่วยความจำ (RAM) | 1 GB DDR4 |
|---|
| Packet Buffer | 1.5 MB (aggregate across all ports, dynamically shared) |
|---|
| Switching Capacity | 68 Gbps (wire speed, nonblocking) |
|---|
| Forwarding Rate | 50.60 Mpps (64-byte packets) |
|---|
| Stacking | - Up to 8 switches in a stack (up to 400 ports managed as a single system, hardware failover)
- Front Panel Stacking over 10G interfaces
- stacks only with C1300 Family 1 models (-4X and MGP); no cross-family stacking
|
|---|
| Jumbo Frame | Frame sizes up to 9000 bytes (default MTU 2000 bytes) |
|---|
| พอร์ต PoE | - 8 ports — 802.3at PoE+, 802.3af PoE and Cisco pre-standard (legacy) PoE
- Time-based PoE
- Persistent PoE (power kept while the switch reboots)
|
|---|
| กำลังไฟ PoE รวม (PoE Budget) | 120 W |
|---|
| กำลังไฟ PoE สูงสุดต่อพอร์ต | 30 W (802.3at PoE+) |
|---|
| ระบบปฏิบัติการ | Customized Linux OS software (fixed, managed, enterprise-class Layer 3 switch) |
|---|
| ช่องทางการจัดการ | - Cisco Business Dashboard (embedded probe)
- Cisco Business mobile app
- Web UI (HTTP/HTTPS, wizards, dashboard)
- Full CLI (text view)
- SNMP v1/v2c/v3
- Cisco Network Plug and Play (PnP) agent
|
|---|
| ฟีเจอร์การจัดการ | - Dual images for resilient firmware upgrades
- firmware upgrade via web, TFTP, SCP over SSH
- RMON (4 groups)
- sFlow agent
- Smartports / Auto Smartports
- text-editable configuration files
- auto-configuration with SCP
- cable diagnostics
- syslog, SNTP
|
|---|
| VLAN | - Up to 4094 VLANs simultaneously (4078–4094 for internal usage)
- port/802.1Q tag-based, MAC-based, protocol-based, IP subnet-based VLAN
- Private VLAN, Guest VLAN, Voice VLAN, Auto surveillance VLAN, Multicast TV VLAN (MVR)
- Q-in-Q, Selective Q-in-Q, VLAN translation
- GVRP/GARP
|
|---|
| Spanning Tree | - 802.1d STP
- 802.1w RSTP (enabled by default)
- 802.1s MSTP, 16 instances
- PVST+ and Rapid PVST+, 126 instances
|
|---|
| Link Aggregation | - IEEE 802.3ad LACP
- up to 8 groups
- up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
|
|---|
| IGMP / Multicast | - IGMP v1/v2/v3 snooping
- source-specific multicast
- IGMP querier
- IGMP proxy
- MLD v1/v2 snooping
- MLD proxy
|
|---|
| Port Mirroring | - Port mirroring (up to 8 source ports to one destination port)
- VLAN mirroring (up to 8 source VLANs)
- flow-based redirection and mirroring
- RSPAN
|
|---|
| LLDP | - IEEE 802.1AB LLDP with LLDP-MED extensions
- Cisco Discovery Protocol
- Bonjour
- UDLD
- loopback detection
|
|---|
| Static Route | - Wire-speed IPv4 routing
- Layer 3 interface on a physical port, LAG, VLAN interface or loopback interface
- CIDR
- IPv4 DHCP server (multiple pools)
- DHCP relay at Layer 3
- UDP relay
|
|---|
| Dynamic Routing | - RIP v2
- Policy-Based Routing (PBR, IPv4/IPv6 ACL based)
- OSPF is not supported on C1300 (OSPF v2/v3 is in C1300X SKUs only)
|
|---|
| IPv6 | - Wire-speed IPv6 routing
- IPv4/IPv6 dual stack
- neighbor and router discovery, stateless address auto-configuration, path MTU discovery
- DHCPv6 stateful client
- ISATAP tunnel
|
|---|
| QoS | - 8 hardware queues
- strict priority and WRR scheduling
- port-based, 802.1p, DSCP/IP precedence/ToS-based CoS, DiffServ
- ingress policer, egress shaping, 2R3C policing
- iSCSI traffic optimization
- IPv6 QoS
|
|---|
| ACL | - MAC, VLAN ID, IPv4/IPv6 address, IPv6 flow label, protocol, port, DSCP/IP precedence, TCP/UDP ports, 802.1p, Ethernet type, ICMP, IGMP, TCP flag
- ingress and egress
- time-based ACLs
|
|---|
| 802.1X / Authentication | - IEEE 802.1X authenticator (RADIUS, guest VLAN, dynamic VLAN, time-based 802.1X, MAC authentication)
- 802.1X supplicant
- web-based authentication
- RADIUS/TACACS+ client
- RADIUS accounting
|
|---|
| ความปลอดภัย | - SSH v1/v2, SSL (HTTPS), SCP
- DHCP snooping, IP Source Guard, Dynamic ARP Inspection (IP/MAC/port binding)
- IPv6 First Hop Security
- BPDU Guard, Root Guard, STP loopback guard
- port security
- storm control
- DoS prevention
- Secure Core Technology
- Secure Sensitive Data
- chip guard, boot integrity
|
|---|
| ไฟเลี้ยง (Power Supply) | Internal, universal, 100-240V 50-60 Hz |
|---|
| กำลังไฟสูงสุด | - Worst case: system 110V=21.4W / 220V=21.3W
- with PoE 110V=145.1W / 220V=143.4W
- idle 110V=10.4W / 220V=10.3W
|
|---|
| การระบายความร้อน | - Fanless
- heat dissipation 494.79 BTU/hr
|
|---|
| ขนาด (สูง x กว้าง x ลึก) | 268 x 298 x 43.94 mm (W x D x H) (10.55 x 11.73 x 1.73 in) |
|---|
| น้ำหนัก | 2.64 kg (5.83 lb) |
|---|
| การติดตั้ง | - Rack-mountable
- mounting kit included, but 19-in rack-mount brackets ship only with 24/48-port models (for 8/12/16-port models the 19-in bracket is RCKMNT-CMPCT-1K=)
|
|---|
| อุณหภูมิใช้งาน | 23° to 122°F (-5° to 50°C); minimum ambient temperature for cold start is 32°F (0°C) |
|---|
| ความชื้นใช้งาน | 10% to 90%, relative, noncondensing (storage temperature -13° to 158°F / -25° to 70°C) |
|---|
| MTBF | 561,618 hours at 25°C |
|---|
| มาตรฐานรับรอง | - UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
- IEEE 802.3az Energy Efficient Ethernet
|
|---|
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (เฉพาะผู้ใช้รายแรก · สิ้นสุด 5 ปีหลังผู้ผลิตประกาศเลิกผลิต) |
|---|
