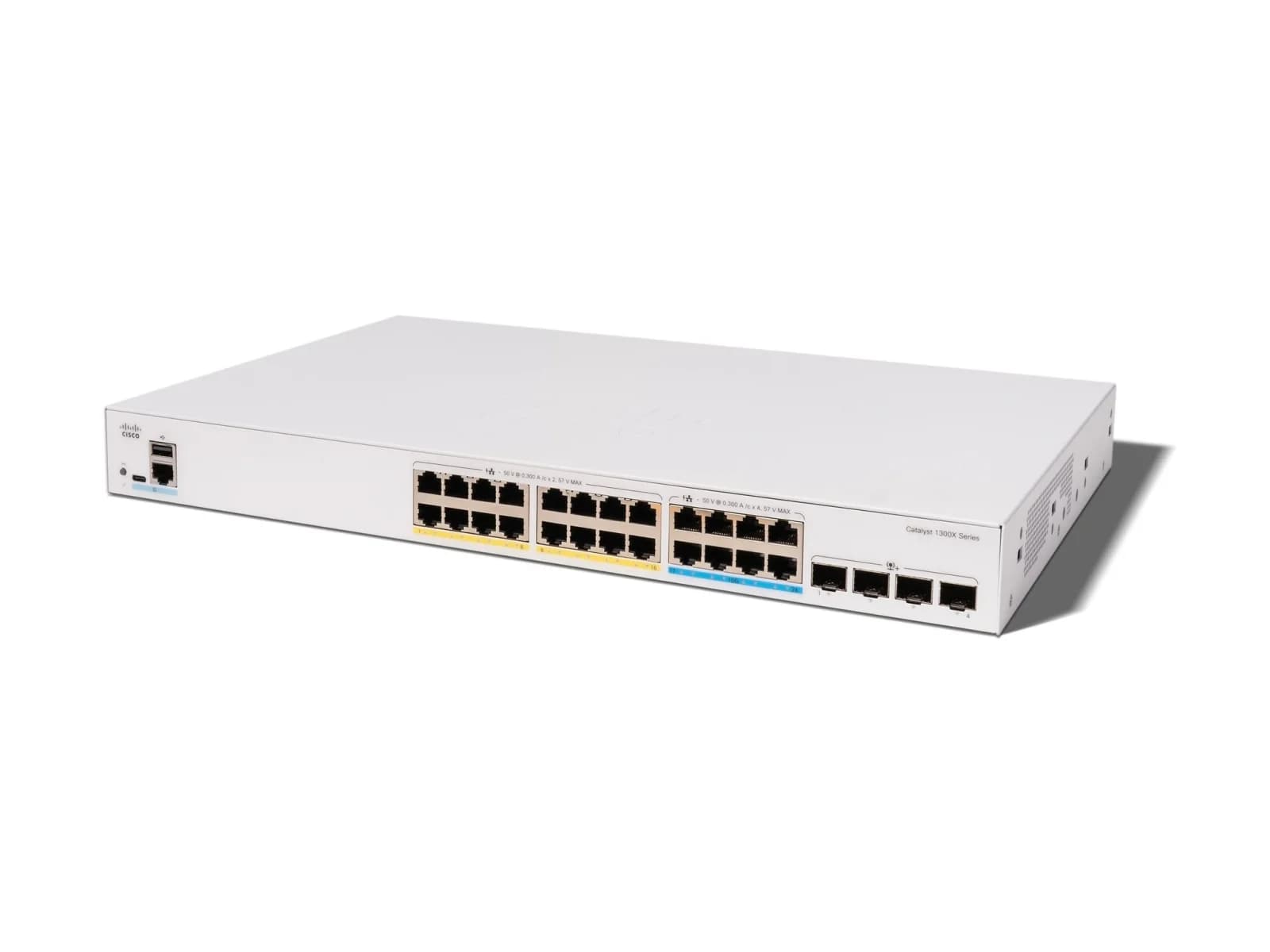

| รุ่น / SKU | C1300X-24NGU-4X |
|---|
| พอร์ต Gigabit (RJ45) | 16 x 10/100/1000 30W PoE+ ports |
|---|
| พอร์ต mGig (Multigigabit) | 8 x 5G mGig 60W PoE++ ports |
|---|
| พอร์ต SFP28 | 4 x SFP28 (10G Uplink, 25G available for stacking only) |
|---|
| พอร์ต Console | Cisco standard RJ-45 console port and USB Type C port (the front-panel USB Type C port is also used for easy file and image management) |
|---|
| CPU | ARM dual-core at 1.5 GHz |
|---|
| หน่วยความจำ (RAM) | 2 GB DDR4 |
|---|
| Flash | 1GB SLC |
|---|
| Packet Buffer | 3 MB (aggregate across all ports; buffers are dynamically shared) |
|---|
| Switching Capacity | 192 Gbps (wire speed and nonblocking) |
|---|
| Forwarding Rate | 142.85 mpps (64-byte packets) |
|---|
| Stacking | - Front Panel Stacking: up to 8 switches, up to 400 ports managed as a single system with hardware failover
- stacks only with other Catalyst 1300X Family models (no cross-stacking with C1300)
- active/standby, hot swap, ring and chain
- SFP28 ports: 25G available for stacking only
|
|---|
| MAC Address Table | Up to 32,000 (Catalyst 1300X SKUs) |
|---|
| Jumbo Frame | Frame sizes up to 9000 bytes (default MTU is 2000 bytes) |
|---|
| พอร์ต PoE | 24 ports: 16 x 30W PoE+ (802.3at) + 8 x 60W PoE++ (802.3bt Type 3) |
|---|
| กำลังไฟ PoE รวม (PoE Budget) | 740W |
|---|
| กำลังไฟ PoE สูงสุดต่อพอร์ต | - 60W PoE++ on the 8 x 5G ports
- 30W PoE+ on the 16 x 1G ports
|
|---|
| ระบบปฏิบัติการ | Customized Linux OS software |
|---|
| การจัดการ (Management) | - Cisco Business Dashboard (embedded probe on the switch)
- Cisco Business mobile app
- Web UI (HTTP/HTTPS, simple and advanced mode)
- Cisco Network Plug and Play (PnP) agent
- Text view CLI
- SNMP v1, v2c, v3
|
|---|
| ฟีเจอร์การจัดการ | - sFlow agent
- RSPAN
- Flow-based redirection and mirroring
- RMON (4 groups)
- Dual images (HTTP/HTTPS, TFTP, SCP over SSH)
- DHCP options 12, 59, 60, 66, 67, 82, 125, 129, 150
- Auto-configuration with SCP
- Smartports / Auto Smartports
- Cable diagnostics
- Bluetooth dongle access via USB
|
|---|
| VLAN | - Up to 4094 VLANs (4078–4094 for internal usage)
- Port, 802.1Q, MAC, protocol and IP subnet-based VLANs
- Private VLAN
- PVE
- Guest / unauthenticated VLAN
- Dynamic VLAN via RADIUS
- Voice VLAN
- Auto Surveillance VLAN
- Multicast TV VLAN (MVR)
- Q-in-Q / Selective Q-in-Q
- VLAN translation
- GVRP/GARP
|
|---|
| Spanning Tree | - 802.1D STP
- 802.1w RSTP (enabled by default)
- 802.1s MSTP (16 instances)
- PVST+ and Rapid PVST+ (126 instances)
- BPDU Guard
- Root Guard
- STP loopback guard
- UDLD
- Loopback detection
- HOL blocking prevention
- DHCP relay at Layer 2 (Option 82)
|
|---|
| Link Aggregation | - IEEE 802.3ad LACP
- Up to 8 groups
- Up to 8 ports per group with 16 candidate ports for each dynamic link aggregation
- LAG across multiple units in a stack
|
|---|
| IGMP / Multicast | - IGMP v1, v2, v3 snooping (4000 multicast groups on C1300X SKUs; source-specific multicasting supported)
- IGMP querier
- IGMP proxy
- MLD v1/2 snooping
- MLD proxy
|
|---|
| Port Mirroring | - Up to 8 source ports to one destination port
- VLAN mirroring: up to 8 source VLANs
- RSPAN
- Flow-based mirroring
|
|---|
| LLDP | - LLDP (802.1ab) with LLDP-MED extensions
- Cisco Discovery Protocol
- Bonjour
|
|---|
| Static Route | - Wire-speed routing of IPv4 packets
- Up to 7168 (Dynamic + Static) IPv4 routes and up to 256 IP interfaces
- IPv4 DHCP server (multiple pools)
- DHCP relay at Layer 3
- UDP relay
- CIDR
|
|---|
| Dynamic Routing | - OSPF v2 and v3 (C1300X SKUs only)
- RIP v2
- Policy-Based Routing (PBR, IPv4/IPv6 ACL based)
|
|---|
| IPv6 | - Wire-speed routing of IPv6 packets
- Dual IPv6/IPv4 stack
- Neighbor and router discovery
- Stateless auto-configuration
- DHCPv6 stateful client
- IPv6 DHCP relay
- ISATAP
- IPv6 QoS and ACL in hardware
- IPv6 First Hop Security
|
|---|
| QoS | - 8 hardware queues
- Strict priority and WRR
- Class of service: port-based, 802.1p, IP precedence/ToS/DSCP, DiffServ, classification and remarking ACLs, trusted QoS
- Rate limiting: ingress policer, egress shaping per VLAN/port/flow, 2R3C policing
- iSCSI traffic optimization
|
|---|
| ACL | - Up to 3072 rules (Catalyst 1300X SKUs)
- Drop or rate limit on MAC, VLAN ID, IPv4/IPv6 address, IPv6 flow label, protocol, port, DSCP/IP precedence, TCP/UDP ports, 802.1p, Ethernet type, ICMP, IGMP, TCP flag
- Ingress and egress
- Time-based ACLs
|
|---|
| 802.1X / Authentication | - 802.1X authenticator: RADIUS authentication and accounting, MD5, guest/unauthenticated VLAN, single/multiple host and sessions, time-based 802.1X, dynamic VLAN assignment, MAC authentication
- 802.1X supplicant
- Web-based authentication
- RADIUS / TACACS+
|
|---|
| ความปลอดภัย | - DHCP snooping
- IP Source Guard
- Dynamic ARP Inspection
- IP/MAC/port binding
- IPv6 First Hop Security (RA guard, ND inspection, DHCPv6 guard, neighbor binding integrity check)
- Port security
- Storm control
- DoS prevention
- SCT
- SSD
- SSH / SSL
- Chip guard
- Boot integrity
|
|---|
| ไฟเลี้ยง (Power Supply) | 100-240V 50-60 Hz, internal, universal |
|---|
| กำลังไฟสูงสุด | - System (worst case): 110V=104.2W, 220V=103.9W
- With PoE: 110V=909.8W, 220V=870.8W
- Idle: 110V=25.5W, 220V=26.8W
- Heat dissipation: 3104.3 BTU/hr
|
|---|
| การระบายความร้อน | - 1 fan
- Acoustic noise 25°C: 49.5 dBA
|
|---|
| ขนาด (สูง x กว้าง x ลึก) | 444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in) — Cisco lists W x D x H |
|---|
| น้ำหนัก | 4.23kg (9.33lb) |
|---|
| การติดตั้ง | - Rack-mountable
- 19-in mounting brackets included
|
|---|
| อุณหภูมิใช้งาน | - 23° to 122°F (-5° to 50°C)
- minimum ambient temperature for cold start is 32°F (0°C)
|
|---|
| ความชื้นใช้งาน | 10% to 90%, relative, noncondensing |
|---|
| MTBF | 343,272 hours at 25°C |
|---|
| มาตรฐานรับรอง | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|---|
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (เฉพาะผู้ใช้รายแรก · สิ้นสุด 5 ปีหลังผู้ผลิตประกาศเลิกผลิต) |
|---|
