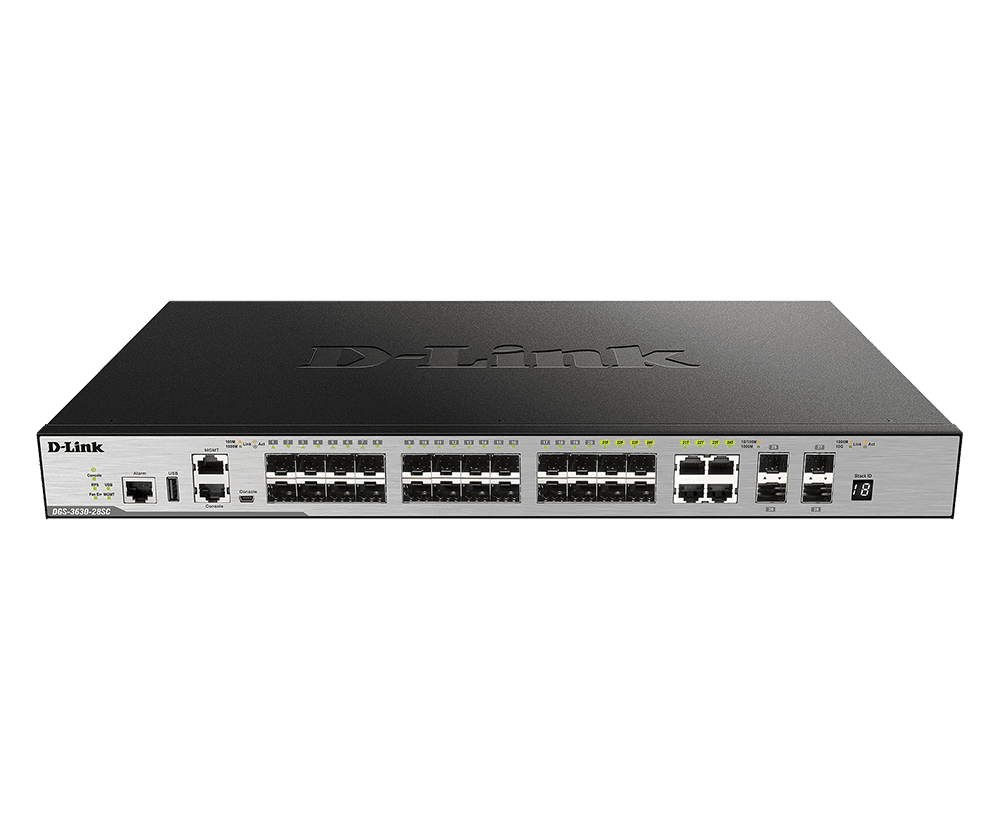

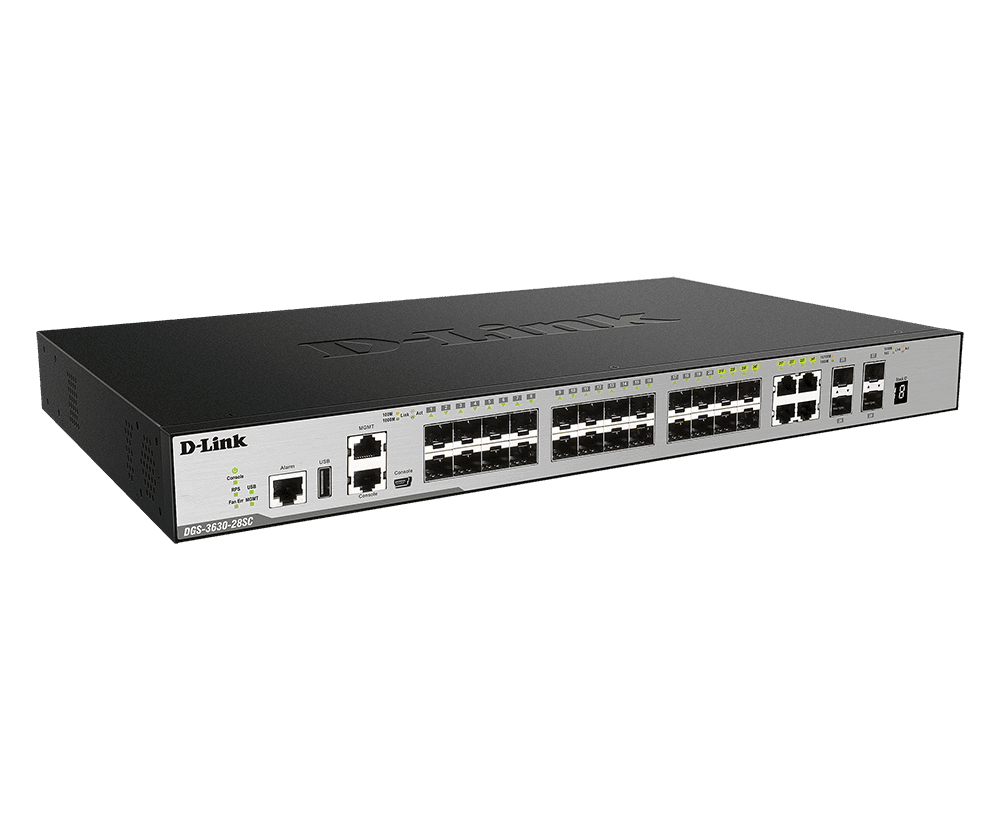

| รุ่น / SKU | DGS-3630-28SC/SI |
|---|
| พอร์ต SFP | 20 x SFP ports (Gigabit) |
|---|
| พอร์ต Combo | 4 x Combo 10/100/1000BASE-T/SFP ports |
|---|
| พอร์ต SFP+ | 4 x 10 GbE SFP+ ports |
|---|
| พอร์ต Console | RJ-45 and Mini-USB console ports for out-of-band CLI management |
|---|
| พอร์ตจัดการ (Management Port) | 1 x 10/100/1000BASE-T RJ-45 Ethernet port for out-of-band IP management |
|---|
| พอร์ตแจ้งเตือน (Alarm Port) | 1 x RJ-45 port |
|---|
| พอร์ต USB | 1 x USB 2.0 Type A port (storage for logs, configuration files and firmware images) |
|---|
| Packet Buffer | 4 MBytes |
|---|
| Switching Capacity | 128 Gbps |
|---|
| Forwarding Rate | 95.24 Mpps |
|---|
| MAC Address Table | 68K entries (maximum, via Switch Resource Management – SRM) |
|---|
| Jumbo Frame | 12 KBytes |
|---|
| Stacking | - Physical stacking of up to 9 units (ring/chain topology, up to 80 Gbps stacking bandwidth, long-distance stacking over fiber)
- Virtual stacking/clustering of up to 32 units (D-Link Single IP Management)
|
|---|
| การจัดการ (Management) | Layer 3 Stackable Managed – Standard Image (SI); upgradable to Enhanced Image (EI) or MPLS Image (MI) by license |
|---|
| ช่องทางการจัดการ | - Web-based GUI (IPv4/IPv6, HTTPS)
- CLI (console, Telnet, SSH v2)
- SNMP v1/v2c/v3
- RMONv1/v2
- D-Link Network Assistant (DNA)
- sFlow
- OpenFlow 1.3 (essential features)
|
|---|
| ฟีเจอร์การจัดการ | - DHCP Auto-configuration / Auto-image
- Multiple images / configurations
- DHCP Server & Relay
- NTPv3/v4
- PTP (one-step, boundary & transparent clock)
- LLDP/LLDP-MED
- Switch Resource Management (SRM)
- D-Link License Management System (DLMS)
|
|---|
| OAM | - 802.3ah Ethernet Link OAM
- 802.1ag Connectivity Fault Management (CFM)
- Y.1731 OAM
- D-Link Unidirectional Link Detection (DULD)
- Dying Gasp
- Optical transceiver DDM
|
|---|
| VLAN | - 802.1Q
- Max. 4K VLAN groups / 4094 VIDs
- Q-in-Q (port-based / selective)
- 802.1v Protocol-based, MAC-based, Subnet-based VLAN
- Private VLAN
- Voice VLAN
- Auto Surveillance VLAN
- Asymmetric VLAN
- Multicast VLAN
- GVRP (up to 4K dynamic VLANs)
|
|---|
| Spanning Tree | - 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- Root Guard
- Loop Guard
|
|---|
| Link Aggregation | - 802.1AX
- Max. 32 groups per device, 12 ports per group
|
|---|
| IGMP / Multicast | - IGMP Snooping v1/v2/v3 (up to 8K groups)
- MLD Snooping v1/v2 (up to 4K groups)
- Snooping Querier
- Host-based Fast Leave
- Per-VLAN snooping
- PIM Snooping
- IGMP/MLD Filtering
|
|---|
| Port Mirroring | - One-to-One, Many-to-One
- Tx/Rx/Both
- 4 mirroring groups
- Flow Mirroring
- VLAN Mirroring
- RSPAN
|
|---|
| LLDP | LLDP / LLDP-MED |
|---|
| Cable Diagnostics | Supported |
|---|
| ฟีเจอร์ L2 อื่น ๆ | - ERPS v2 (Ethernet Ring Protection Switching)
- FlexLink
- MLAG (firmware R2.10; L2/LACP only)
- L2 Protocol Tunneling
- 802.3x Flow Control
- HOL Blocking Prevention
|
|---|
| Static Route | - Max. 512 IPv4 entries
- Max. 256 IPv6 entries
- IPv4/IPv6 default route
- Null route
|
|---|
| Dynamic Routing | - Standard Image: RIPv1/v2/ng
- VRRP v2/v3
- Policy-based Route (PBR)
- BFD
- Route redistribution
- Graceful Restart Helper. OSPF, BGP, VRF-Lite and PIM/DVMRP need the Enhanced Image license; IS-IS/MPLS need the MPLS Image
|
|---|
| ตาราง Routing (Routing Table) | - IPv4: 16K entries
- IPv6: 7K entries
- L3 forwarding table: 32K IPv4 / 16K IPv6 entries (SRM maximum)
|
|---|
| IPv6 | - IPv6 Ready Logo Phase-2
- IPv4/IPv6 dual stack
- IPv6 tunneling (static, ISATAP, GRE, 6to4)
- DHCPv6 Prefix Delegation
- DHCP/DHCPv6 local relay
|
|---|
| ฟีเจอร์ L3 อื่น ๆ | - Up to 256 IP interfaces
- Loopback interface
- ARP up to 32K / IPv6 ND up to 16K (512 static ARP)
- Proxy ARP
- Gratuitous ARP
- IP Helper
- Unicast Reverse Path Forwarding (URPF)
|
|---|
| QoS | - 802.1p
- 8 queues per port
- SP / WRR / SP+WRR / WDRR
- WRED congestion control
- 802.1Qbb PFC (10GbE ports)
- Bandwidth control per port / flow / queue (min. 8 Kb/s)
- trTCM / srTCM
- Time-based QoS
|
|---|
| ACL | - L2/L3/L4 ACL (MAC, VLAN, 802.1p, EtherType, IPv4/IPv6, DSCP, TCP/UDP port)
- Ingress 4K / Egress 1K hardware entries
- VLAN Access Map 3K
- Time-based ACL
|
|---|
| 802.1X / Authentication | - 802.1X (port/host-based)
- MAC-based Access Control
- Web-based Access Control (WAC)
- Compound Authentication
- Guest VLAN
- Dynamic VLAN / ACL assignment
- RADIUS & TACACS+ authentication and accounting
|
|---|
| ความปลอดภัย | - Port Security (up to 12K MAC addresses)
- D-Link Safeguard Engine
- DHCP Snooping
- DHCP Server Screening
- Dynamic ARP Inspection
- IP Source Guard
- ARP Spoofing Prevention
- IPv6 RA Guard / DHCPv6 Guard / ND Inspection
- BPDU & DoS Attack Prevention
- Traffic Segmentation
- SSL (TLS 1.2) / SSH v2
|
|---|
| Storm Control | Broadcast / Multicast / Unicast Storm Control |
|---|

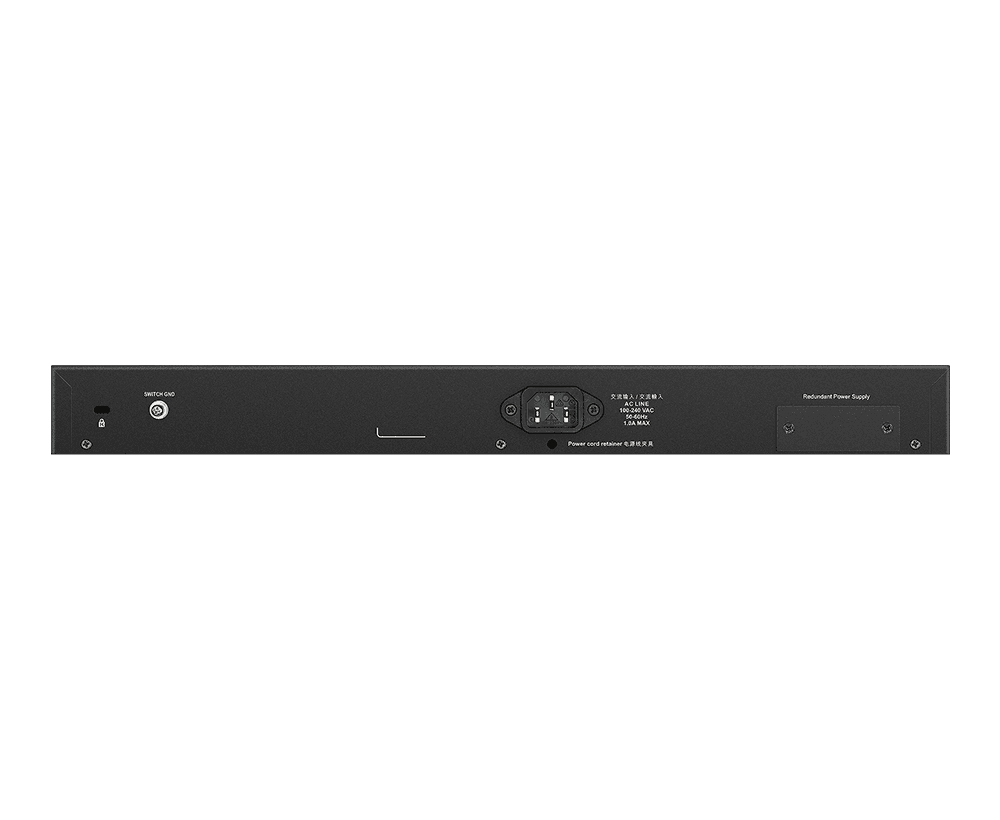

| ไฟเลี้ยง | - 100 to 240 VAC 50/60 Hz internal power
- optional redundant power supply DPS-500A (AC) / DPS-500DC (DC)
|
|---|
| กำลังไฟสูงสุด | 63.58 W (standby 30.1 W) |
|---|
| ค่าความร้อน (Heat Dissipation) | 216.81 BTU/h |
|---|
| การระบายความร้อน | 2 x smart fans |
|---|
| ระดับเสียง | 56 dB(A) |
|---|
| ขนาด (กว้าง x ลึก x สูง) | 441 x 259.8 x 44 mm |
|---|
| น้ำหนัก | 3.79 kg |
|---|
| การติดตั้ง | 19-inch, 1U rack-mount |
|---|
| ประหยัดพลังงาน (Green Ethernet) | - IEEE 802.3az EEE
- Power saving by link status, cable length, LED shut-off, port shut-off and system hibernation
|
|---|
| อุณหภูมิใช้งาน | -5 to 50 °C |
|---|
| อุณหภูมิเก็บรักษา | -40 to 70 °C |
|---|
| ความชื้นใช้งาน | 10% to 95% RH (storage 5% to 95% RH) |
|---|
| ความสูงใช้งานสูงสุด (Operating Altitude) | Up to 2000 m |
|---|
| ป้องกันไฟกระชาก | 6 kV surge protection on all Ethernet access ports |
|---|
| MTBF | 280,612.09 hours |
|---|
| มาตรฐานรับรอง | - Safety: cUL, CB, CE, CCC, BSMI
- EMI/EMC: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
- IPv6 Ready Logo Phase-2
|
|---|
| ระยะเวลารับประกัน | 5 ปี |
|---|
