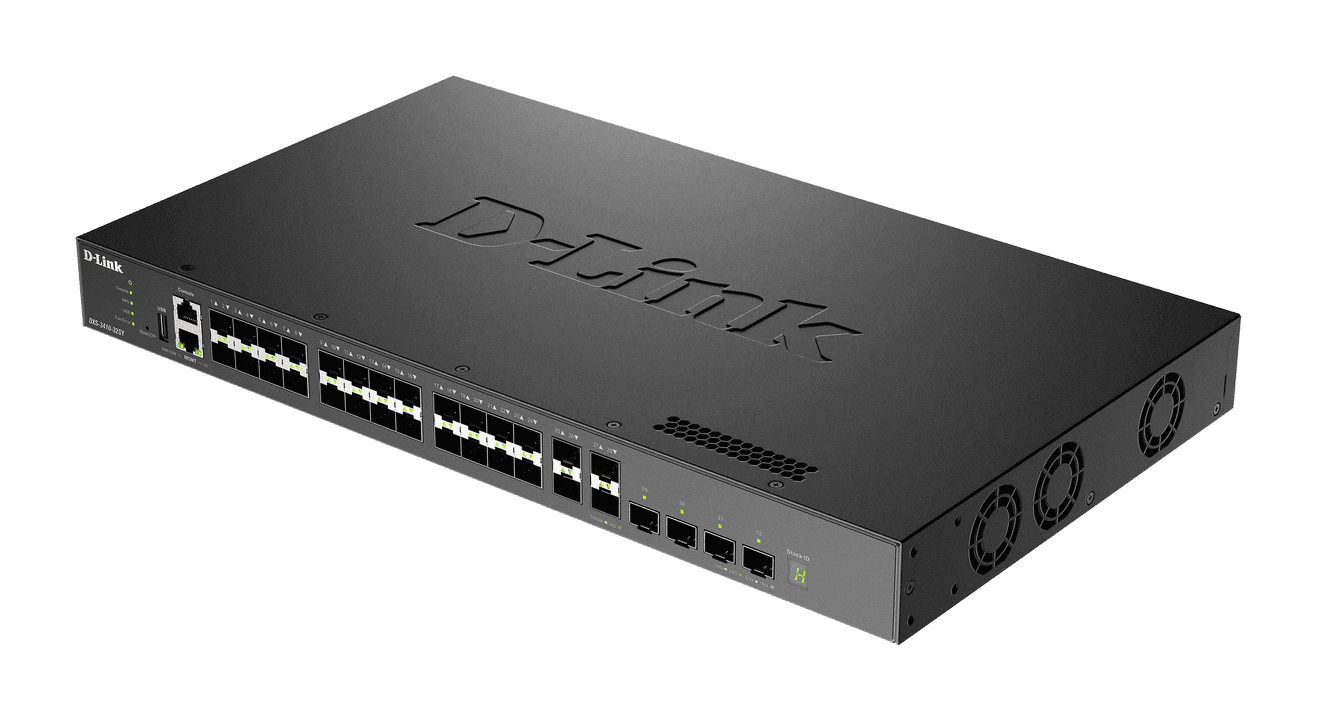

| รุ่น / SKU | DXS-3410-32SY/E |
|---|
| พอร์ต SFP+ | 28 x 10G SFP+ ports |
|---|
| พอร์ต SFP28 | 4 x 10/25G SFP28 ports (also used as physical stacking ports) |
|---|
| พอร์ต Console | RJ-45 port for out-of-band CLI management |
|---|
| พอร์ตจัดการ (Management Port) | 10/100/1000BASE-T RJ-45 port for out-of-band IP management |
|---|
| พอร์ต USB | 1 x USB 2.0 Type A port (boot images, upload configuration files, save syslog) |
|---|
| Packet Buffer | 4 MB |
|---|
| Switching Capacity | 760 Gbps |
|---|
| Forwarding Rate | 565.44 Mpps (64-byte packet) |
|---|
| MAC Address Table | 32K entries |
|---|
| Jumbo Frame | Up to 10 Kbytes |
|---|
| Stacking | - Physical stacking up to 9 units via four 25G ports (ring/chain, long-distance over fiber)
- Up to 200 Gbps stacking bandwidth per device
- Virtual stacking (D-Link SIM) up to 32 units
|
|---|
| การจัดการ (Management) | Layer 3 Stackable Managed |
|---|
| ช่องทางการจัดการ | - Web-based GUI (HTTPS, IPv4/IPv6)
- CLI (console / Telnet / SSH v2)
- SNMP v1/v2c/v3 + Traps
- RMON v1/v2
- sFlow
- Out-of-band management port
|
|---|
| ฟีเจอร์การจัดการ | - Zero Touch Provisioning (ZTP)
- Multiple images / configurations
- DHCP auto-configuration
- DHCP server
- DHCP relay Option 60/61/82/125
- NTPv3/v4
- SNTP server
- Secure FTP server
- SMTP
- Syslog
- Command logging
- D-Link Discover Protocol (DDP)
|
|---|
| VLAN | - 802.1Q
- Max. 4K VLAN groups (VID 1~4094)
- GVRP (4K dynamic)
- Q-in-Q (port-based / selective)
- 802.1v protocol-based
- MAC-based VLAN
- Voice VLAN
- Auto Surveillance VLAN
- Private VLAN
- Super VLAN
- VLAN translation
- ISM VLAN
- Asymmetric VLAN
|
|---|
| Spanning Tree | - 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- BPDU Filtering
- Root Guard
- Loop Guard
|
|---|
| Link Aggregation | - 802.1AX/802.3ad
- Max. 32 groups per device, 8 ports per group
- Multi-Chassis Link Aggregation (MLAG)
|
|---|
| IGMP / Multicast | - IGMP v1/v2/v3 Snooping (1024 groups, 1024 static)
- Fast Leave
- Querier
- Per-VLAN
- MLD v1/v2 Snooping (1024 groups)
- MLD Querier
- L3 multicast: IGMP v1/v2/v3, PIM-SM for IPv4
|
|---|
| Port Mirroring | - One-to-One / Many-to-One
- Tx/Rx
- 4 mirroring groups
- Flow mirroring
- VLAN mirroring
- RSPAN
|
|---|
| LLDP | |
|---|
| Loopback Detection | Loopback Detection (LBD) |
|---|
| ฟีเจอร์ L2 อื่น ๆ | - ERPS v1/v2 (G.8032)
- L2 Protocol Tunneling
- iSCSI Awareness
- 802.3x Flow Control
- HOL Blocking Prevention
- 802.1Qbb Priority-based Flow Control (DCB)
|
|---|
| OAM | - 802.3ah Ethernet Link OAM
- 802.1ag CFM
- ITU-T Y.1731 OAM
- D-Link Unidirectional Link Detection (DULD)
- Dying Gasp
- Optical transceiver DDM
|
|---|
| Static Route | - Max. 256 IPv4 entries
- Max. 128 IPv6 entries
- IPv4/IPv6 default route
- ECMP
|
|---|
| Dynamic Routing | - RIPv1/v2/RIPng
- OSPF v2/v3 (passive interface, stub/NSSA area, ECMP, Text/MD5)
- Route redistribution
- Route preference
- PBR (policy-based route)
|
|---|
| IPv6 | - IPv4/IPv6 dual stack
- 7680 IPv6 ND entries (256 static)
- DHCPv6 Prefix Delegation
- IPv6 RA Guard
- ND Inspection
- DHCPv6 Guard
|
|---|
| ฟีเจอร์ L3 อื่น ๆ | - 12K hardware routing entries shared by IPv4/IPv6
- Up to 16K IPv4 / 8K IPv6 hardware L3 forwarding entries
- 256 IP interfaces
- 16128 IPv4 ARP entries (512 static)
- VRRP v2/v3
- Proxy ARP
- IP Helper
- Null route
|
|---|
| QoS | - 802.1p
- 8 queues per port
- Strict / WRR / Strict+WRR / WDRR
- WRED
- Policy map (remark 802.1p, IP precedence/DSCP)
- Port/flow/per-queue bandwidth control (64 Kbps granularity)
- Three Color Marker (trTCM/srTCM)
|
|---|
| ACL | - Ingress: IPv4 2560 / IPv6 640 entries
- Egress: IPv4 1024 / IPv6 512
- 2048 VLAN access map
- Time-based ACL
- CPU interface filtering
- Based on 802.1p, VID, MAC, EtherType, LLC, IP, ToS, DSCP, protocol, TCP/UDP port, IPv6 traffic class/flow label
|
|---|
| 802.1X / Authentication | - 802.1X (port/host-based)
- Web-based Access Control (WAC)
- MAC-based Access Control
- Compound authentication
- Guest VLAN
- Identity-driven policy (VLAN/ACL/bandwidth)
- RADIUS/TACACS+ authentication & accounting
- Authentication database failover
|
|---|
| ความปลอดภัย | - Port Security (up to 12K MAC per port)
- D-Link Safeguard Engine
- DHCP Snooping
- IP Source Guard
- Dynamic ARP Inspection
- ARP Spoofing Prevention
- IP-MAC-Port Binding
- DHCP Server Screening
- BPDU Attack Protection
- DoS Attack Prevention
- SSH v2
- SSL (TLS 1.0/1.1/1.2)
|
|---|
| Storm Control | Broadcast / Multicast / Unicast Storm Control |
|---|

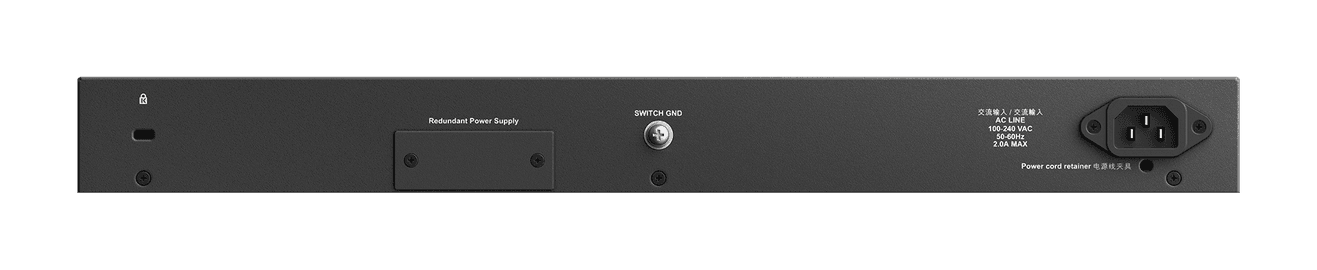

| ไฟเลี้ยง | 100 to 240 VAC, 50 to 60 Hz (internal power supply) |
|---|
| ไฟสำรอง (Redundant Power Supply) | Optional external RPS: DPS-500A (AC) or DPS-500DC (DC) |
|---|
| กำลังไฟสูงสุด | - Max. 104.0 W
- Standby 29.3 W
|
|---|
| ความร้อนที่ปล่อยออก (Heat Dissipation) | 354.86 BTU/h |
|---|
| การระบายความร้อน | 3 x smart fans (Quiet mode) |
|---|
| ระดับเสียง | |
|---|
| ขนาด (กว้าง x ลึก x สูง) | 441.0 x 250 x 44.0 mm (17.36 x 9.84 x 1.73 in) |
|---|
| น้ำหนัก | 3.88 kg (8.55 lbs) |
|---|
| การติดตั้ง | Rackmount |
|---|
| ประหยัดพลังงาน (Green Technology) | - IEEE 802.3az EEE
- Power saving by link status, LED shut-off, port shut-off and system hibernation
|
|---|
| อุณหภูมิใช้งาน | 0 to 50 °C (32 to 122 °F) |
|---|
| อุณหภูมิเก็บรักษา | -40 to 70 °C (-40 to 158 °F) |
|---|
| ความชื้นใช้งาน | 10% to 90% RH |
|---|
| ความชื้นเก็บรักษา | 5% to 90% RH |
|---|
| MTBF | 437,675.04 hours |
|---|
| มาตรฐานรับรอง | - EMI: FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI
- Safety: CB, cUL, BSMI
|
|---|
| ระยะเวลารับประกัน | 5 ปี |
|---|
