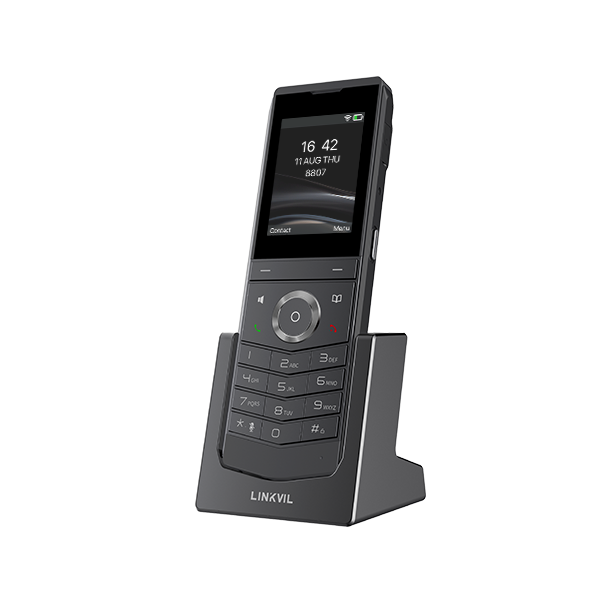

Fanvil W611W โทรศัพท์ IP Phone

Generic

• 2.4-inch 240*320 color high-definition LCD display

• 4 SIP lines

• Caller ID

• Handset/Hands-free/Headset Mode

• Support custom DSS keys

• HD Voice

• Belt clip

• Desktop charging base

• Standard type-c interface

• Rechargeable Lithium Battery

• Support Wi-Fi 6

• Support Bluetooth 5.0

• Support multi language: English/Chinese/German/French/Italian/Portuguese/Russia /Spanish

Phone Functions

• Network time synchronization

• Local contacts

• Remote Phonebook (XML/LDAP, 1000 entries)

• Multi-language optional

• Call logs

• Blocked List/Allowed List

• Screen saver

• Personalized ringtone settings

• Screen backlight adjustment

• Memorandum

• SMS service

• Voicemail (MWI)

• Menu encryption settings

• Keypad lock/ backlight adjustment

• Volume adiustment

Call Functions

• Auto-Answering

• Call out/Answer/Reject

• Call waiting/Switch

• Call forwarding

• Speed Dial

• Intercom

• Anonymous calls

• 3-way Conference

• Restrict outgoing calls

• IP direct dial

• Speed Dial

• Emergency call

• Caller ID Display

• Inquiry (dialing, incoming and outgoing calls)

• Do-Not-Disturb

• PTT one-key call

• Self-adaptive light-sensing screen off (during a call on the handset)

Audio

• Narrowband Codec: G.711a/u, G.729AB,iLBC

• Wideband Codec: G.722, Opus

• Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation

• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)

• Packet Loss Concealment

• Dynamic adaptive jitter cache up to 300ms

• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol:

• 2.4GHz IEEE 802.11 b/g/n/ax

• 5GHz IEEE 802.11a/n/ac/ax

• Encryption: WPA /WPA2-PSK, 802.1X EAP

• Built-in Bluetooth 5.0 module

Power Management

• Reminder when charging

• Full reminder

• Low battery prompt

• After abnormal shutdown, the charging will automatically star

• Real-time statistics/display of system power

Protocols

• RTP/RTCP/SRTP

• STUN

• DHCP

• SNTP

• FTP/TFTP

• HTTP/HTTPS

• TR-069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069

• Webmanagement interface

• Web-based Packet-dump

• Configuration export/import

• Firmware upgrade

• Syslog

Physical Specifications

• Protection class: IP67

• Drop height: 1.8m

• Shel material: plastic she l, two-color injection molding

• Charging Base x1

• Belt Clip x1

• Rechargeable Battery x1 1900mAh

• DCinput: 5V/2A

• Charging port: Type-c

• Headphone jack: 3.5mm standard jack

• Insta lation method: Belt Clip /Desktop

• Operating temperature: 0℃~ 45℃

• Storage temperature:-20℃~ 60℃

• Relative humidity:10~95%

• Product size:160*53*16mm

• Product weight：:156g

• Certificates：CE/FCC/UKCA/RoHS/SRRC

• Box size: 196x84x89mm

• Outer box size: 354*280*213mm (12PCS)
