| รุ่น | iDS-2CD7A46G2-IZHS |
|---|
| ซีรีส์ (Series) | DeepinView Series / 7 Series |
|---|

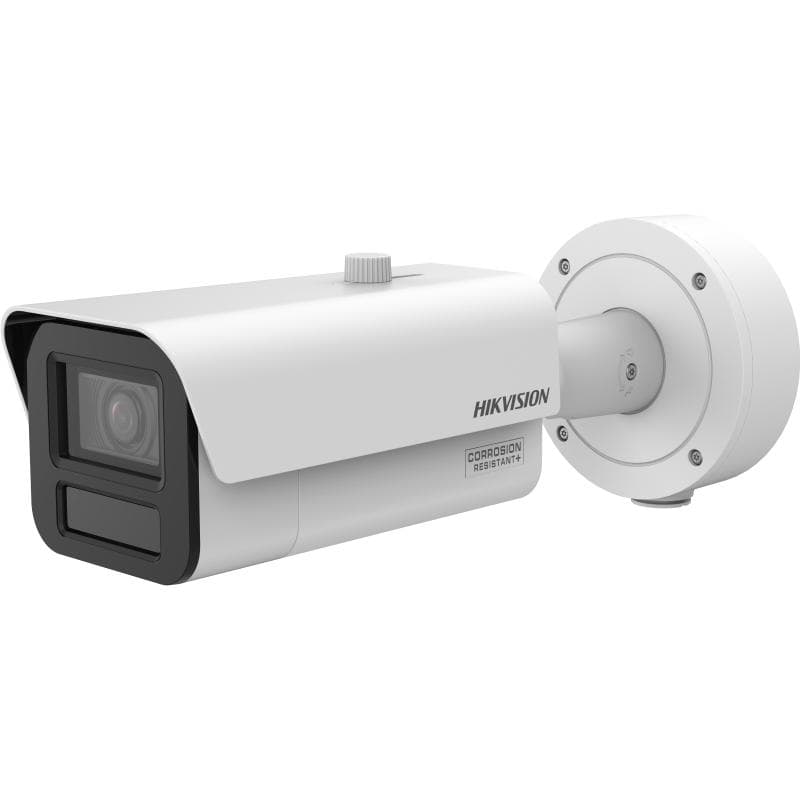

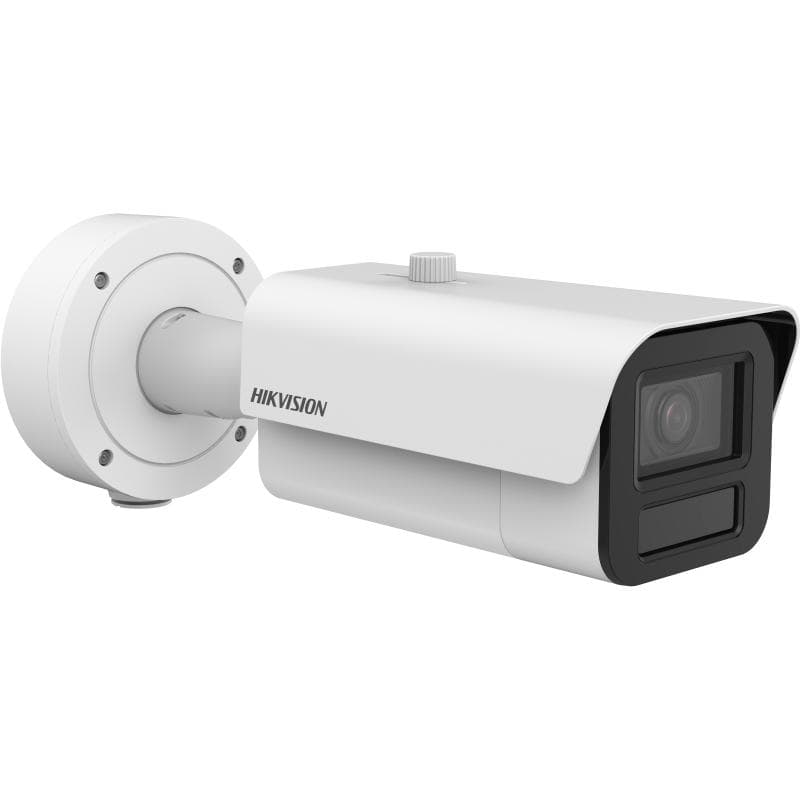

| ประเภทกล้อง (Camera Type) | Motorized Varifocal Bullet Camera (DeepinView) |
|---|
| เทคโนโลยี (Technology) | - DeepinView multi-AI
- DarkFighter 2.0
- HEOP 2.0
- AI Open Platform
- AcuSeek
|
|---|
| ระบบ (System) | IP (Network Camera) |
|---|
| เซนเซอร์ภาพ (Image Sensor) | 1/1.8" Progressive Scan CMOS |
|---|
| ความละเอียดสูงสุด (Max. Resolution) | 2688 × 1520 |
|---|
| ความไวแสงต่ำสุด (Min. Illumination) | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
|---|
| ความเร็วชัตเตอร์ (Shutter Time) | 1 s to 1/100,000 s |
|---|
| กลางวัน/กลางคืน (Day & Night) | - IR cut filter
- Blue glass module (less ghost phenomenon)
|
|---|
| ชนิดไฟเสริม (Supplement Light Type) | IR |
|---|
| ระยะไฟเสริม (Supplement Light Range) | Monitoring: 60 m |
|---|
| ไฟเสริมอัจฉริยะ (Smart Supplement Light) | Yes |
|---|
| ความยาวคลื่น IR (IR Wavelength) | 850 nm |
|---|
| สลับชุดค่าภาพ (Image Parameters Switch) | Yes |
|---|
| ตั้งค่าภาพ (Image Settings) | Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
|---|
| โหมดกลางวัน/กลางคืน (Day/Night Switch) | Day, Night, Auto, Schedule, Alarm Trigger |
|---|
| ชดเชยแสงย้อน (WDR) | 150 dB |
|---|
| ปรับปรุงภาพ (Image Enhancement) | BLC, HLC, 3D DNR, Distortion Correction, Defog |
|---|
| บังพื้นที่ส่วนตัว (Privacy Mask) | 8 programmable polygon privacy masks |
|---|
| อัตราส่วนสัญญาณต่อสัญญาณรบกวน (SNR) | ≥ 52 dB |
|---|
| ซ้อนภาพโลโก้ (Picture Overlay) | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
|---|
| กันภาพสั่น (Image Stabilization) | EIS |
|---|
| การโฟกัส (Focus) | Auto, Semi-auto, Manual |
|---|
| ชนิดไอริส (Iris Type) | P-iris |
|---|
| รูรับแสง (Aperture) | F1.38 to F2.53 |
|---|
| สตรีมหลัก (Main Stream) | - Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)
- 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)
- *High frame rate is supported under monitoring mode only.
- smart mode: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
|---|
| สตรีมย่อย (Sub-Stream) | - 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)
- 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
|
|---|
| สตรีมที่ 3 (Third Stream) | - 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
|
|---|
| สตรีมที่ 4 (Fourth Stream) | - 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
|
|---|
| สตรีมที่ 5 (Fifth Stream) | - 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
|
|---|
| การบีบอัดวิดีโอ (Video Compression) | - Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Fourth stream: H.265/H.264/MJPEG
- Fifth stream: H.265/H.264/MJPEG
|
|---|
| บิตเรตวิดีโอ (Video Bit Rate) | 32 Kbps to 8 Mbps |
|---|
| ชนิด H.264 (H.264 Type) | Baseline Profile, Main Profile, High Profile |
|---|
| ชนิด H.265 (H.265 Type) | Main Profile |
|---|
| ควบคุมบิตเรต (Bit Rate Control) | CBR, VBR |
|---|
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
|---|
| พื้นที่สนใจ (ROI) | 4 fixed regions for each stream |
|---|
| ครอปเป้าหมาย (Target Cropping) | Yes |
|---|
| แพน/ซูมดิจิทัล (e-PTZ) | Support Patrol and Auto Tracking settings |
|---|
| เข้ารหัสวิดีโอด้วย AI (Guanlan AI Encoding) | Yes |
|---|
| ชนิดเสียง (Audio Type) | Mono sound |
|---|
| การบีบอัดเสียง (Audio Compression) | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|---|
| บิตเรตเสียง (Audio Bit Rate) | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| อัตราสุ่มเสียง (Audio Sampling Rate) | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| กรองเสียงรบกวน (Environment Noise Filtering) | Yes |
|---|
| อินพุต/เอาต์พุตเสียง (Audio I/O) | - 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
- 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
|
|---|
| ทรัพยากรสำหรับแอปเสริม (Open Resources) | - Memory: 150 MB
- Smart RAM: 2200 MB
- eMMC: 1288 MB
|
|---|
| พลังประมวลผล AI (Computing Power) | 2.5 TOPS |
|---|
| แพลตฟอร์มเปิด HEOP (Open Capability) | HEOP 2.0 OpendevSDK |
|---|
| เฟรมเวิร์ก Deep Learning (Deep Learning Structure) | Caffe, PyTorch, TensorFlow |
|---|
| ภาษาโปรแกรม (Programming Language) | C, C++ |
|---|
| แพลตฟอร์มเปิด AI (AI Open Platform) | - 1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).
- 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).
- (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ratio exception detection.
- (2) Classification: Region exception status detection, full analysis rule.
- (3) Mixed: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule; area overlap ratio counting, area overlap ratio exception detection.
- (4) Picture Comparison: Area status change detection.
- (5) OCR: OCR-triggered capture.
- (6) OVD: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ratio exception detection.
- 3. Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
- 4. Built-in models for PPE detection (hard hat and reflective clothing).
|
|---|
| เหตุการณ์พื้นฐาน (Basic Event) | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), glass break detection, scream detection, gunshot and explosion sound detection, crying sound detection |
|---|
| เหตุการณ์อัจฉริยะ (Smart Event) | - Line crossing detection
- intrusion detection
- region entrance detection
- region exiting detection
|
|---|
| การตอบสนองเหตุการณ์ (Linkage) | - Upload to FTP/NAS/memory card
- notify surveillance center
- send email
- trigger alarm output
- trigger recording
- trigger capture
- audible warning
- HTTP custom alarm
|
|---|
| ตรวจจับหลายประเภทเป้าหมาย (Multi-target-type Detection) | - Supports dynamic mosaic mask
- Supports ShotN technology
- Supports simultaneous detection and capture of human body, face, and vehicle
- Gets 7 face features
- Gets 13 vehicle features
- Gets 2 human body features
- Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
- Supports license plate recognition
|
|---|
| จับภาพใบหน้า (Face Capture) | - Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second
- Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°
- Uploads face with background and closed-up face pictures
- Supports best shot and quick shot for capture mode
- Supports dynamic mosaic mask
- Gets 7 face features
|
|---|
| เปรียบเทียบใบหน้า (Face Comparison) | - Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total
- Supports face library encryption
|
|---|
| วิเคราะห์พฤติกรรม (Activity Analysis) | Support the detection of person smoking or making phone calls and trigger alarm. The detection attributes include head and shoulders, hands, faces, making phone calls, and smoking. |
|---|
| นับจำนวนคน (People Counting) | - Supports Multi-Dimension People Counting
- Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.)
- Supports real-time uploading and uploading by statistic cycle
- Supports generating daily, weekly, monthly or annually reports
- Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval
- Supports face feature deduplication
- Supports people flow data replenishment
- Reverse counting alarm will be triggered when the target leaves the detection area in the direction opposite to the set direction, Supports Face Mode and Clothing Mode
|
|---|
| จัดการคิว (Queue Management) | - Supports up to 8 detection regions, and independent arming schedule and linkage method
- Supports 2 detection modes: regional people queuing-up, waiting time detection
- Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
- Supports raw data export for further analysis
- Supports real-time data uploading and scheduled data uploading
- Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
- Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Supports combined rule settings for Regional People Counting and Waiting Time Detection.
- Mode 1: Alarm can be independently triggered if any one of the event alarm conditions is met.
- Mode 2: Alarm can be triggered only when the number of people meets the alarm threshold and at least one person's waiting time meets the threshold.
|
|---|
| แผนที่ความหนาแน่น (Heat Map) | - A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.
- Two report types are available, space heat map and time heat map line chart.
|
|---|
| ป้องกันพื้นที่รอบนอก (Perimeter Protection) | - Line crossing, intrusion, region entrance, region exiting
- Support alarm triggering by specified target types (human and vehicle)
- Support combined event alarm triggering
|
|---|
| เมตาดาต้า (Metadata) | - Intrusion detection
- line crossing detection
- region entrance detection
- region exiting detection
- face capture
- multi-target-type detection
|
|---|
| นับคนในพื้นที่ (Regional People Counting) | - Supports up to 8 detection regions, and independent arming schedule and linkage method
- Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
- Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
- Supports searching real-time number of people
- People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
- Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
- Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
|
|---|
| ตรวจจับการอยู่ประจำจุด (On/Off Duty Detection) | - Supports up to 8 detection regions, and independent arming schedule and linkage method
- Supports 2 detection modes: absence detection, on/off duty detection
- Supports parameter settings: person on duty, absence duration
|
|---|
| ค้นหาวิดีโอ AcuSeek (AcuSeek) | Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers. |
|---|
| ตรวจจับอุปกรณ์ PPE (PPE Detection) | - Detects hard hat and reflective clothing, triggering alarm when not worn.
- Detects people not wearing hard hat. Supported hat colors: red, orange, yellow, blue, white, and others.
|
|---|
| การใช้งานฟังก์ชัน AI (General) | Supports scheduled-switch of smart applications. Supports enabling 2 smart applications at the same time. |
|---|
| โปรโตคอล (Protocols) | - TCP/IP
- ICMP
- HTTP
- HTTPS
- FTP
- DHCP
- DNS
- DDNS
- RTP
- SRTP
- RTSP
- RTCP
- PPPoE
- NTP
- UPnP
- SMTP
- SNMP
- IGMP
- 802.1X
- QoS
- IPv4
- IPv6
- UDP
- Bonjour
- WebSocket
- WebSockets
- MQTT/MQTTS
- RTMP
- Support X.509 authentication
- Support802.1xEAP-GTC and MSCHAP V2; 802.1xEAP 1.2 supports a maximum 32-bit key.
|
|---|
| ดูสดพร้อมกัน (Simultaneous Live View) | Up to 20 channels |
|---|
| API / ONVIF | ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
|---|
| ผู้ใช้งาน (User/Host) | - Up to 32 users
- 3 user levels: administrator, operator, and user
|
|---|
| ความปลอดภัยเครือข่าย (Security) | - Password protection
- complicated password
- HTTPS encryption
- 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5)
- watermark
- IP address filter
- basic and digest authentication for HTTP/HTTPS
- WSSE and digest authentication for Open Network Video Interface
- RTP/RTSP OVER HTTPS
- Control Timeout Settings
- Security Audit Log
- TLS 1.2
- TLS 1.3
- TPM 2.0 (FIPS 140-2 level 2)
- AES128/256
|
|---|
| สตรีมลื่นไหล (Smooth Streaming) | Yes |
|---|
| จัดเก็บบนเครือข่าย (Network Storage) | - NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Cloud Storage
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
|
|---|
| ซอฟต์แวร์/แอป (Client) | iVMS-4200, Hik-Connect, Hik-Central |
|---|
| เว็บเบราว์เซอร์ (Web Browser) | - Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
|
|---|
| เอาต์พุตวิดีโอ (Video Output) | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
|---|
| พอร์ตเครือข่าย (Ethernet Interface) | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
|---|
| หน่วยความจำในตัว (On-Board Storage) | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
|---|
| อินพุต/เอาต์พุตสัญญาณเตือน (Alarm I/O) | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
|---|
| ปุ่มรีเซ็ต (Reset Key) | Yes |
|---|
| แหล่งจ่ายไฟ (Power) | - three-core terminal block
- 12 VDC ± 20%, 1.88 A, max. 22.56 W
- 24 VAC ± 20%, 1.57 A, max. 21.5 W
- PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
|
|---|
| วัสดุ (Material) | Aluminum alloy body |
|---|
| ขนาด (Dimension) | Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8") |
|---|
| ขนาดบรรจุภัณฑ์ (Package Dimension) | 425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1") |
|---|
| น้ำหนัก (Weight) | Approx. 2330 g (5.14 lb.) |
|---|
| น้ำหนักรวมบรรจุภัณฑ์ (With Package Weight) | Approx. 3575 g (7.88 lb.) |
|---|
| สภาพการเก็บรักษา (Storage Conditions) | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
|---|
| สภาพการทำงาน (Operating Conditions) | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
|---|
| ภาษาเมนู (Language) | 33 languages incl. English and Thai |
|---|
| ฟังก์ชันทั่วไป (General Function) | - Heartbeat
- anti-banding
- one-key reset
- mirror
- password protection
- flash log
|
|---|
| ฮีตเตอร์ (Heater) | Yes |
|---|
| ไล่ฝ้า (Demist) | Yes |
|---|
| การขยายอุปกรณ์ (Device Management) | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces. Supports adding network microphone and speaker. |
|---|
| มาตรฐาน EMC (EMC) | - CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- RCM: AS/NZS CISPR 32: 2015
- IC: ICES-003: Issue 7
- KC: KN32: 2015, KN35: 2015
|
|---|
| มาตรฐานความปลอดภัย (Safety) | - CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- LOA: IEC/EN 60950-1
|
|---|
| มาตรฐานสิ่งแวดล้อม (Environment) | - CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
|
|---|
| มาตรฐานการป้องกัน (Protection) | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
|---|
| อื่น ๆ (Other) | PVC FREE |
|---|
| ความปลอดภัยไซเบอร์ (Cyber Security) | - IEC62443-4-1 ML2
- EUCC
- CC: EAL3
|
|---|
| มุมมองภาพ (Field of View) | horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1° |
|---|
| ระยะการมองตามการใช้งาน (OODPCVS) | - Wide: Overview: 75.0 m, Outline: 37.5 m, Discern: 18.8 m, Perceive: 12.0 m, Characterize: 6.0 m, Validate: 3.0 m, Scrutinize: 1.0 m
- Tele: Overview: 186.2 m, Outline: 93.1 m, Discern: 46.6 m, Perceive: 29.8 m, Characterize: 14.9 m, Validate: 7.4 m, Scrutinize: 2.5 m
|
|---|
| ระยะเวลารับประกัน | 5 ปี |
|---|
