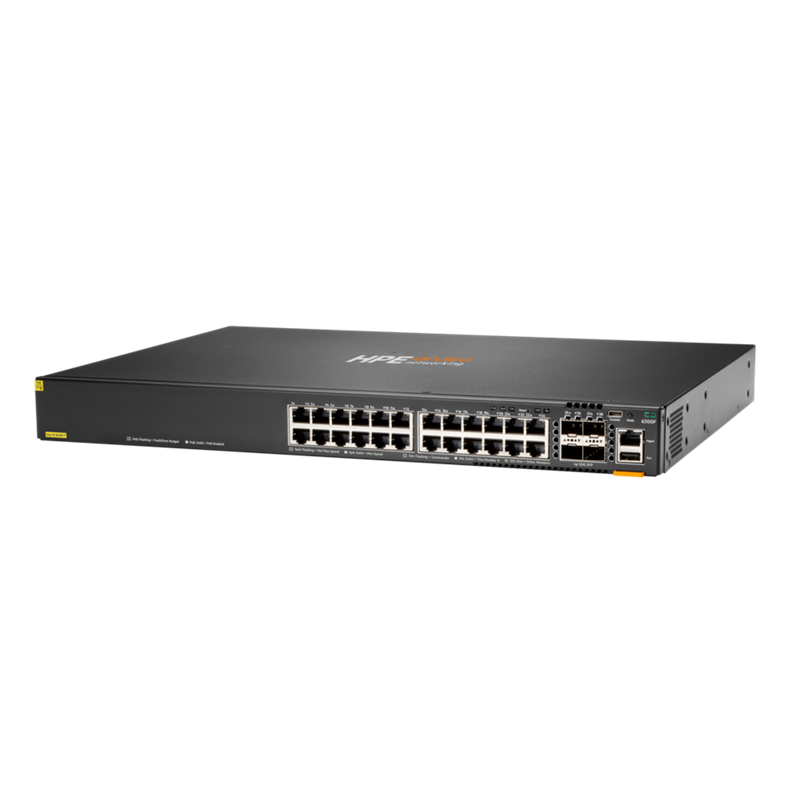

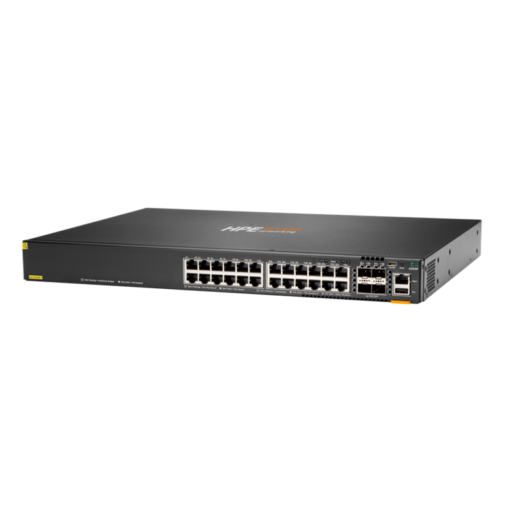

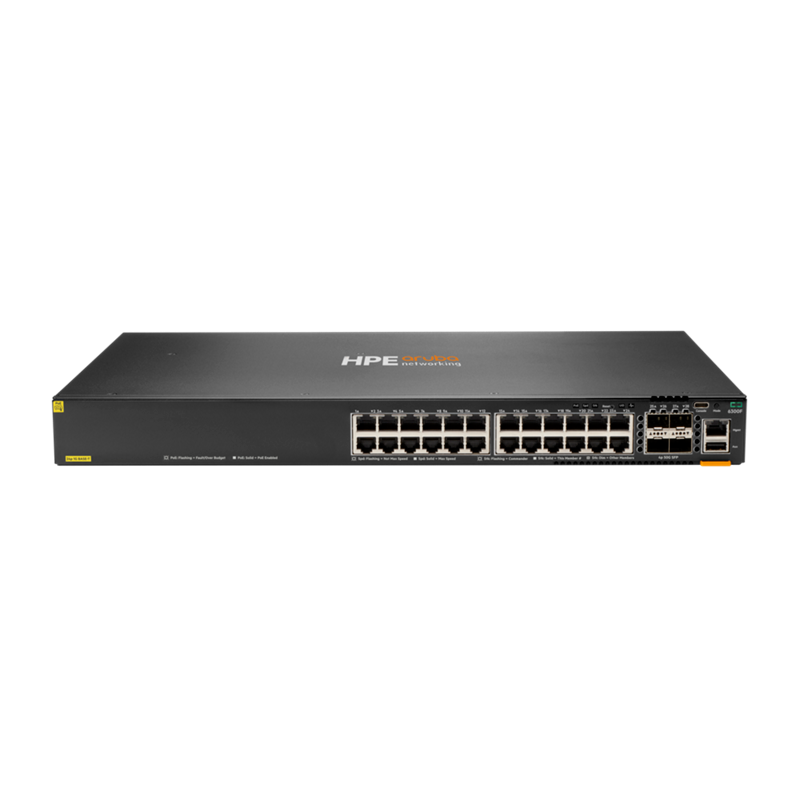

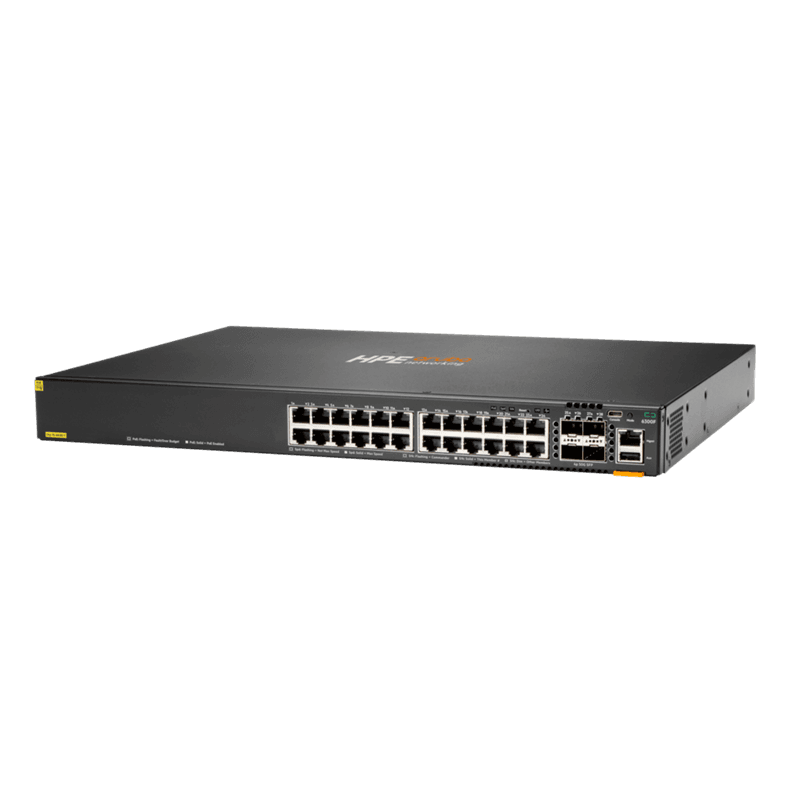

HPE Aruba 6300F 24G CL4 PoE 4SFP56 Switch (24 x 1000Base-T PoE+, 4 x 10/25/50G SFP56, 370W) [JL666A]

Power consumption Idle: 52W

100% Traffic Rate: 67W

Input voltage Fixed PSU: 100V‑120V/200V‑240V

Ports 24-port 10/100/1000 BaseT ports supporting up to 30W per port;

4x 1G/10G/25G/50G* SFP ports;

Supports PoE Standards IEEE 802.3af, 802.3at;

1x USB‑C Console Port;

1x OOBM port;

1x USB Type A Host port

Notes:

*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Latency 1Gbps: 2.28μSec,

10Gbps: 1.46μSec,

25Gbps: 1.90μSec,

50Gbps: 3.49μSec

Switching capacity 448 Gbps

Stacking capabilities Up to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches

Throughput 334 Mpps

Memory and processor Quad Core Arm Cortex™ A72 @ 1.8GHz

8 GB DDR4, 32 GB eMMC

8 MB, 16 MB, or 32 MB Shared Packet Buffer Memory, depending on model and configuration

PoE capability Max PoE Power: 370W

Management features HPE Aruba Networking Central Network Management

HPE Aruba Networking Management Software (AirWave)

HPE Aruba Networking Switch Multi-Edit Software

Command-line interface

SNMP v2c/v3

RMON

Warranty Limited lifetime warranty. See the warranty duration .

Detailed product description CX 6300F 24-port 1 GbE Class 4 PoE and 4-port SFP56 switch

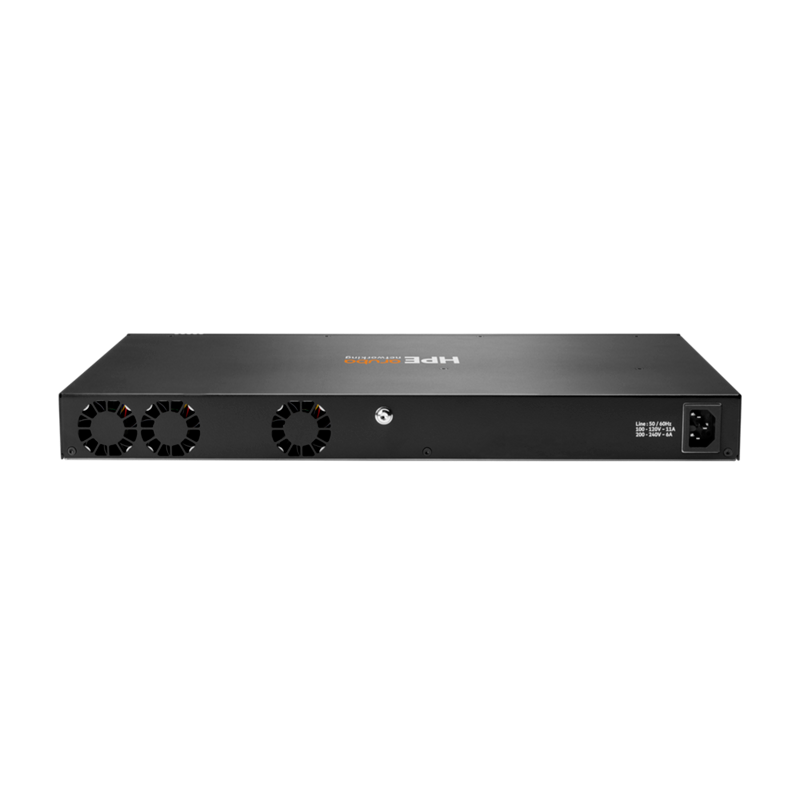

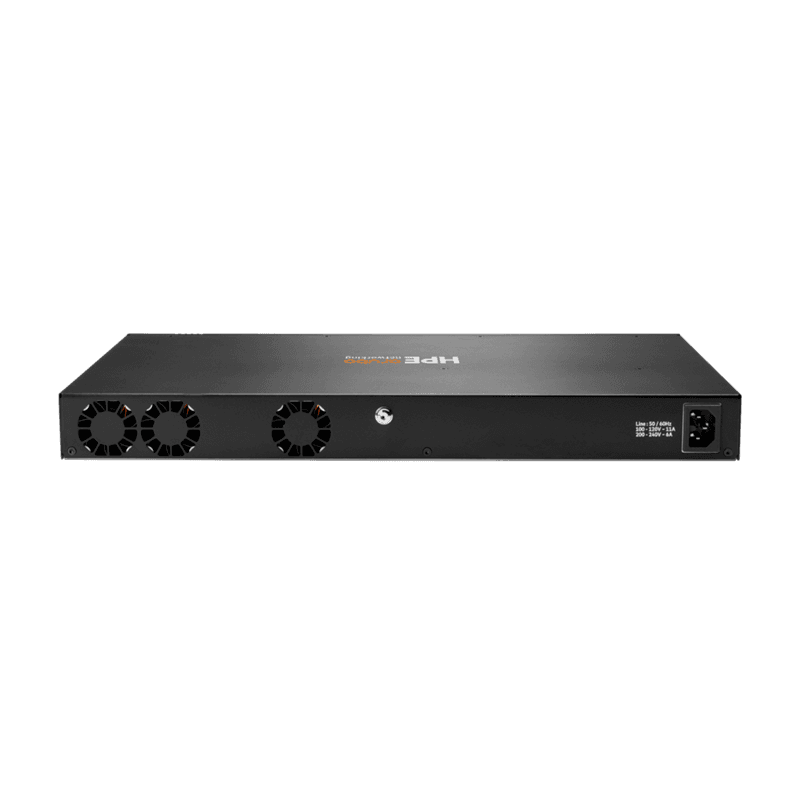

Includes Non-Pluggable, Internal PSU behind Sheetmetal Chassis Frame

Includes Non-Pluggable, Internal Fans behind Sheetmetal Chassis Frame

Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50 G Transceiver

1U – Height

Weight 4.95 kg (10.91 lbs)

Dimensions 4.4 x 44.2 x 32.7 cm (1.73 x 17.4 x 12.9 in)
