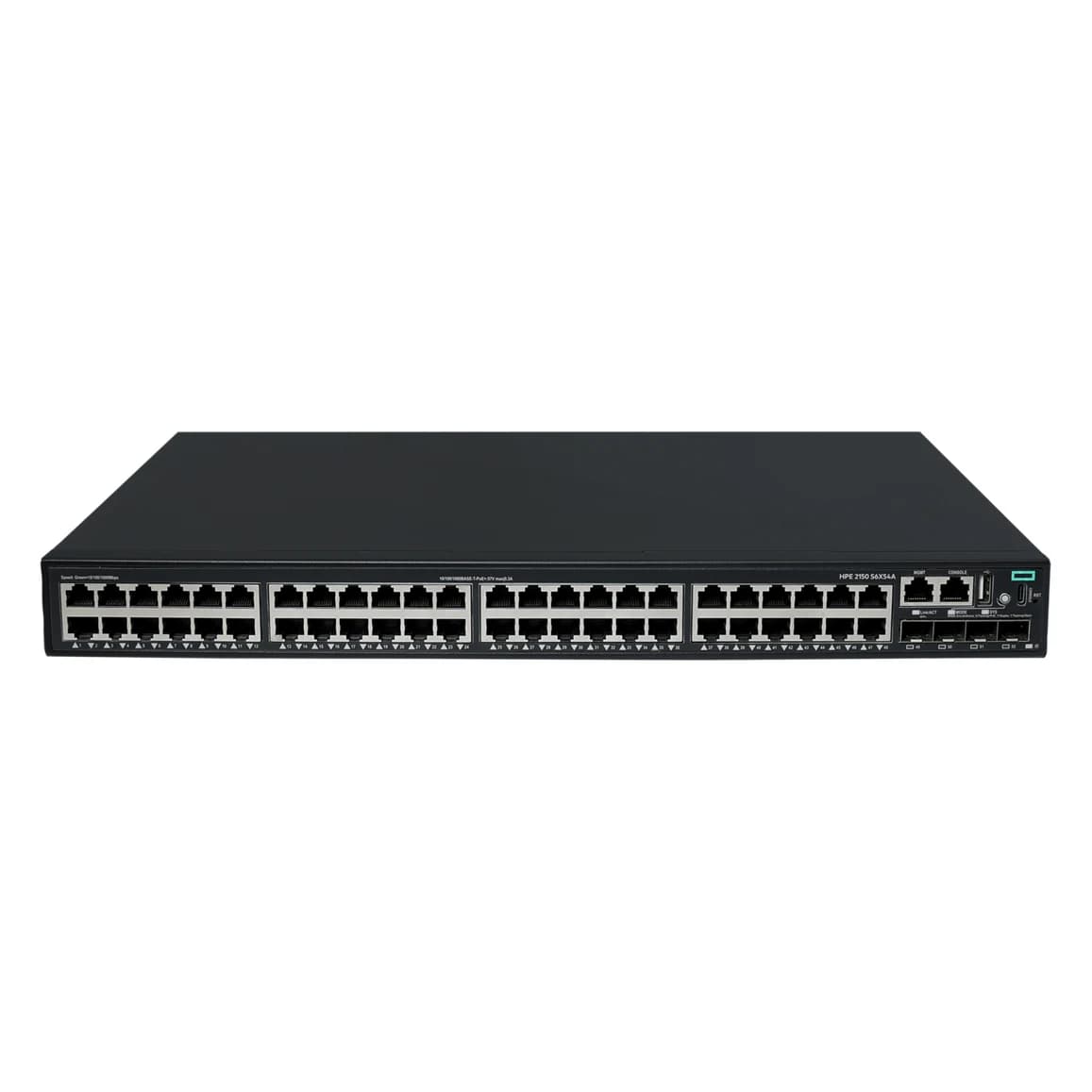

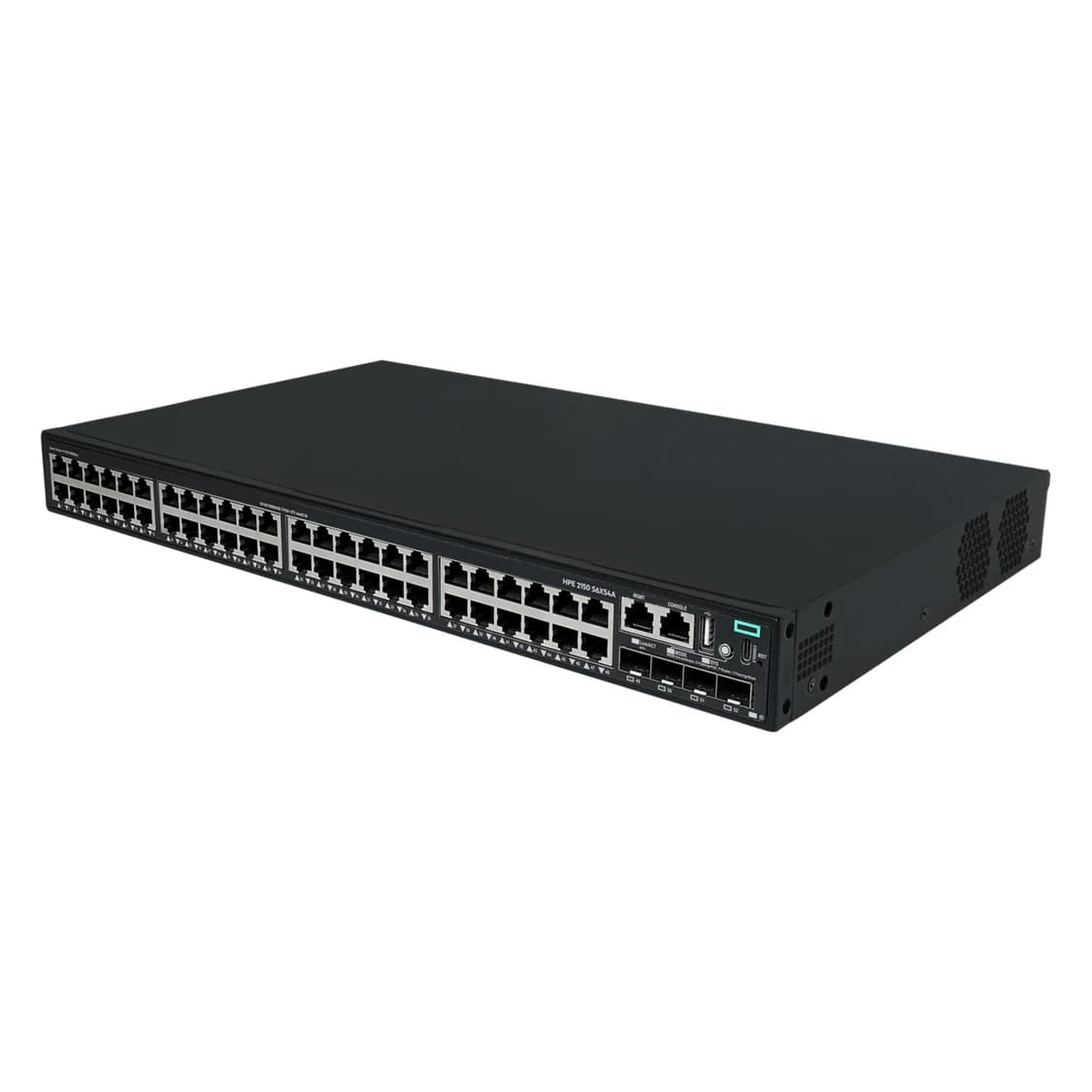

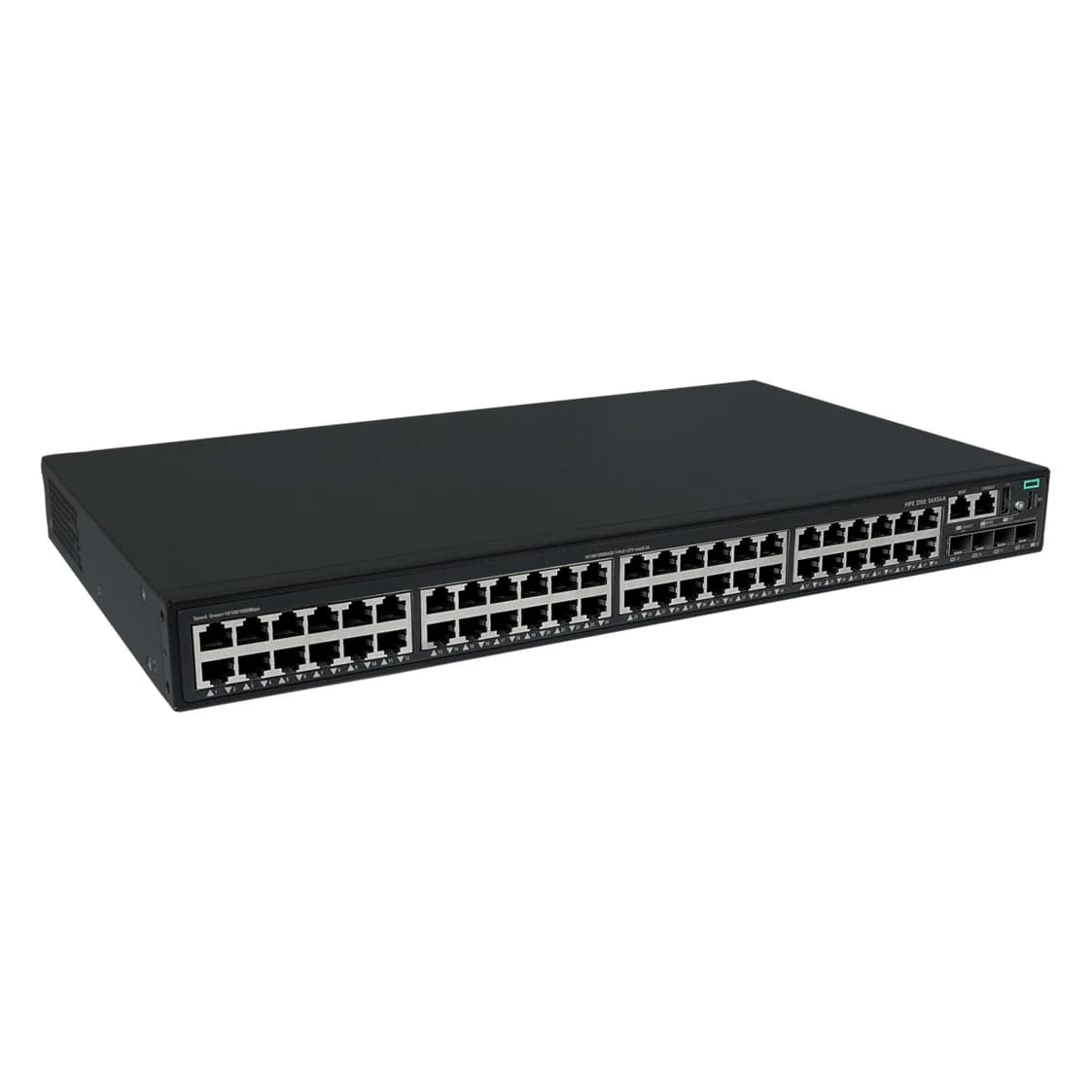

| รุ่น / SKU | S6X54A |
|---|
| พอร์ต Gigabit (RJ45) | 48x 10/100/1000BASE-T PoE+ |
|---|
| พอร์ต SFP+ | 4x 1G/10GBASE-X SFP+ |
|---|
| พอร์ตจัดการ (Management Port) | - 1x RJ45 Console
- 1x OOBM
- 1x USB Type C
|
|---|
| CPU | ARM 1.2GHz @ Dual Core |
|---|
| หน่วยความจำ (RAM) | |
|---|
| Packet Buffer | 1.5MB |
|---|
| Switching Capacity | 176Gbps (Forwarding Capacity) |
|---|
| Forwarding Rate | - 131Mpps (Throughput)
- average latency GE <5us, 10GE <3us
|
|---|
| Stacking | IRF (Intelligent Resilient Fabric) — up to 9 members |
|---|
| MAC Address Table | 16K |
|---|
| จำนวนเส้นทาง (Routes) | - IPv4 routes: 1500
- IPv6 routes: 512
- ARP: 1024
- IPv6 ND: 512
|
|---|
| พอร์ต PoE | - 48x 10/100/1000BASE-T PoE+ (IEEE 802.3at, Class 4, up to 30W per port)
- Fast PoE
- Perpetual PoE
- PoE watchdog
- prestandard PoE support
- auto PoE power allocation (LLDP/LLDP-MED)
|
|---|
| กำลังไฟ PoE รวม (PoE Budget) | 770W |
|---|
| ระบบปฏิบัติการ | Comware (HPE Networking Comware Switch) |
|---|
| การจัดการ (Management) | - Fully managed, stackable Layer 3 access switch
- Web GUI
- CLI
- CW Dashboard
- IMC (Intelligent Management Center)
- Airwave
- SNMP manager
- REST API
|
|---|
| ฟีเจอร์การจัดการ | - Embedded CW Dashboard at no additional cost (device role: Topology Master (TM) and Topology Client (TC); config backup, software version management, switch replacement)
- SNMP v1/v2c/v3
- RMON1/RMON2
- sFlow (RFC 3176)
- TFTP/SFTP/SCP
- IPv6 management
- Virtual Cable Test
|
|---|
| VLAN | - IEEE 802.1Q — 4,094 VLAN IDs, 512 VLANs simultaneously
- QinQ (802.1ad) & Selective QinQ
- Voice VLAN
- Guest VLAN
- Private VLAN
- Management VLAN
- MVRP
|
|---|
| Spanning Tree | - STP (IEEE 802.1D)
- RSTP (802.1w)
- MSTP (802.1s)
- PVST+
- RPVST+
- BPDU tunneling
|
|---|
| IGMP / Multicast | - IGMP v1/v2/v3
- IGMP snooping
- PIM snooping
- MLD v1/v2
- MLD snooping
- MVR/MVR+
- 500 IGMP groups
- 500 MLD groups
|
|---|
| ฟีเจอร์ L2 อื่น ๆ | - 10GbE port aggregation (LACP)
- Port mirroring (4 groups) + RSPAN
- Smart Link (100ms failover)
- RRPP (<50ms)
- PBB (802.1ah)
- Ethernet OAM (802.3ah)
- DLDP
- Dying Gasp
- Jumbo frames up to 9 KB
- 802.3x flow control
- Auto-MDIX
- EEE (802.3az)
- LLDP/LLDP-MED/LLDP-CDP
|
|---|
| Dynamic Routing | - RIP (RIPv1/v2, RIPng)
- OSPF (OSPFv1/v2, OSPFv3)
- Policy Based Routing (IPv4/IPv6)
|
|---|
| ฟีเจอร์ L3 อื่น ๆ | - IPv4/IPv6 static routing
- IPv4/IPv6 dual stack
- VRRP/VRRPe
- Multi-VRF CE (VRF-Lite), 32 VRF
- 32 switched virtual interfaces
- BFD
- DHCP server/client/relay
- DNS client/server
- ARP (static, gratuitous, proxy)
- UDP helper
|
|---|
| QoS | - Classifier-based QoS (L2/L3/L4)
- SP, WRR, SP+WRR queuing
- CAR traffic policing
- broadcast control
- ACL logging
- flexible buffer configuration
- IPv6 QoS
|
|---|
| ACL | - 1024 ACL entries (Ingress/Egress)
- hardware TCAM-based L2–L4 filtering
- global, VLAN, port and IPv6 ACL
- per-user ACL
|
|---|
| ความปลอดภัย | - IEEE 802.1X, MAC-based & Web authentication
- RADIUS/HWTACACS (TACACS+)
- Secure Boot
- SSHv2/SSL/HTTPS/TLS/SNMPv3
- Control Plane Policing (DoS)
- Dynamic ARP protection
- DHCP snooping (Option 82)
- IP Source Guard
- port security
- port isolation
- BPDU protection
- root guard
|
|---|

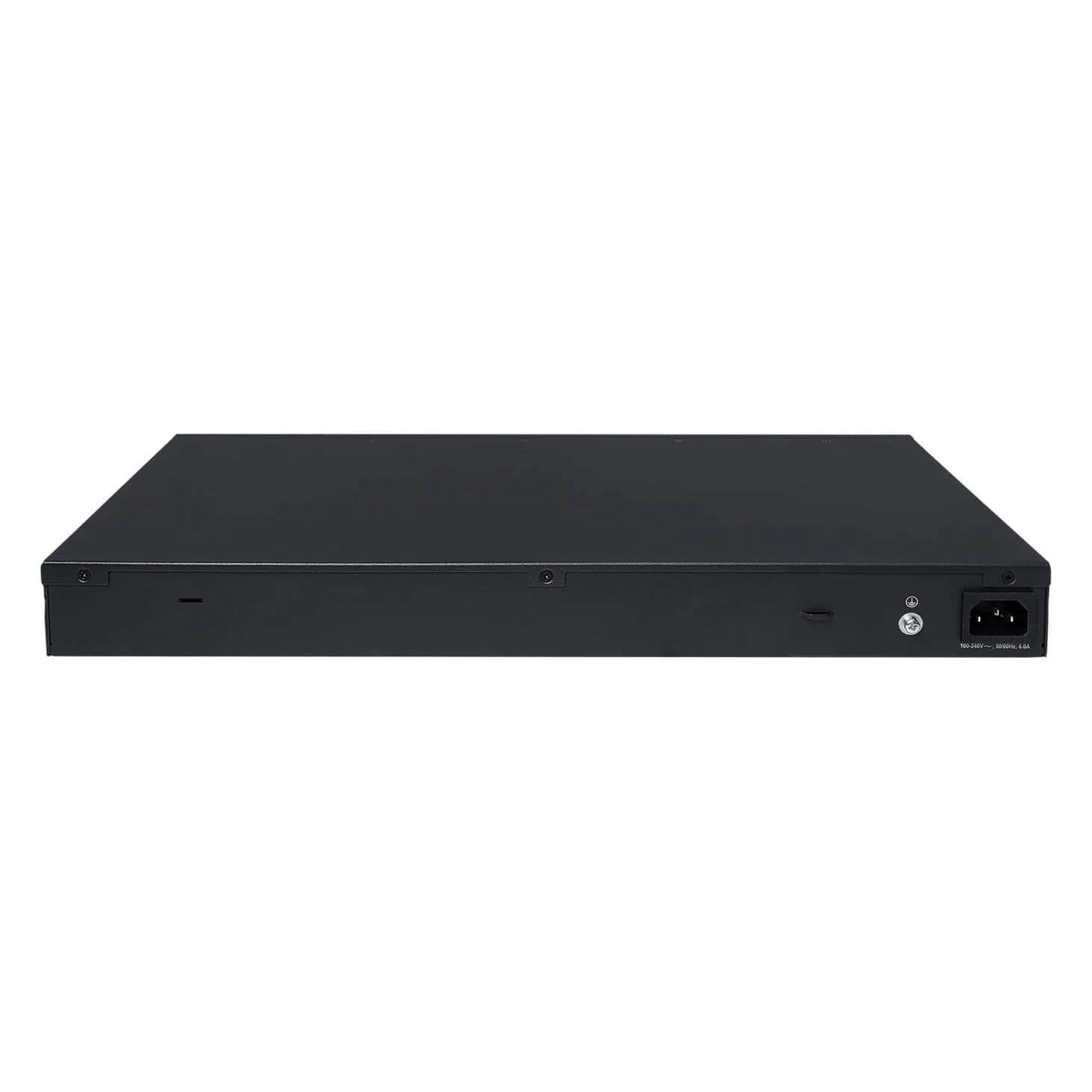

| ไฟเลี้ยง (Power Supply) | - Fixed (built-in)
- AC: 90 to 290V
- built-in 6 kV surge protection
|
|---|
| กำลังไฟสูงสุด | - Idle: 35W
- Typical: 56W
- Full Load: 969W (PoE 770W)
|
|---|
| การระบายความร้อน | - 2 fans
- acoustic 32.9/60.0dB (ISO 7779)
|
|---|
| ขนาด (สูง x กว้าง x ลึก) | 440mm×260mm×44mm |
|---|
| น้ำหนัก | ≤4.2kg |
|---|
| การติดตั้ง | - 1U
- Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
|
|---|
| อุณหภูมิใช้งาน | - –5°C to 50°C (23°F to 122°F)
- non-operating: –40°C to 70°C (–40°F to 158°F)
|
|---|
| ความชื้นใช้งาน | 5% to 95%, noncondensing (operating and non-operating) |
|---|
| มาตรฐานรับรอง | - Safety: UL 60950-1
- IEC 60950-1
- IEC 62368-1
- EN 62368-1/A11
- CAN/CSA-C22.2 No. 60950-1
- EN 60825-1/-2
- FDA 21 CFR Subchapter J
- RoHS
- EMC: FCC Part 15 Class A
- VCCI Class A
- CISPR 22 Class A
- EN 55022 Class A
- CISPR 24
- EN 55024
- EN 300 386
- IPv6 Ready certified
|
|---|
| ระยะเวลารับประกัน | 5 ปี |
|---|
