| รุ่น / SKU | S0M81A |
|---|

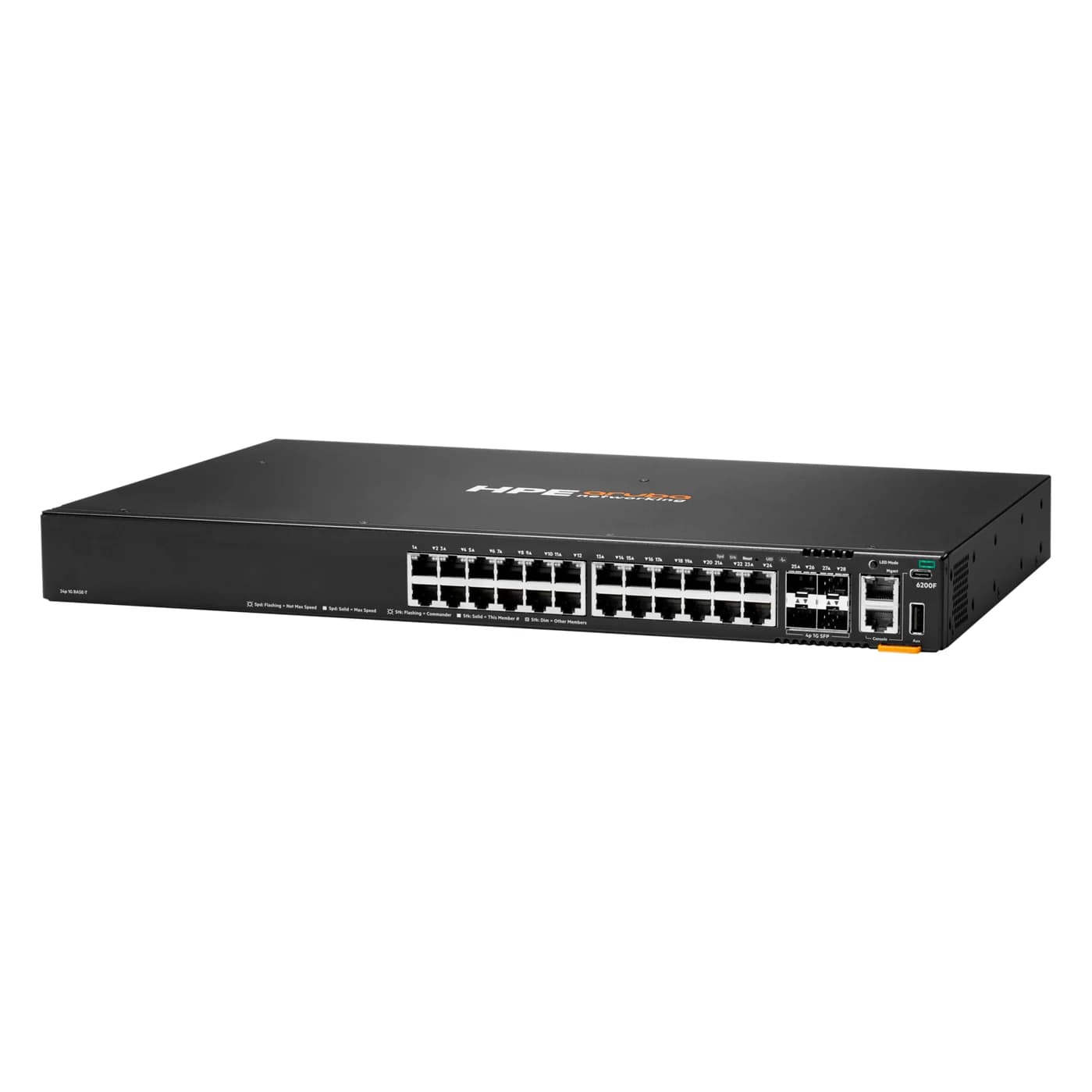

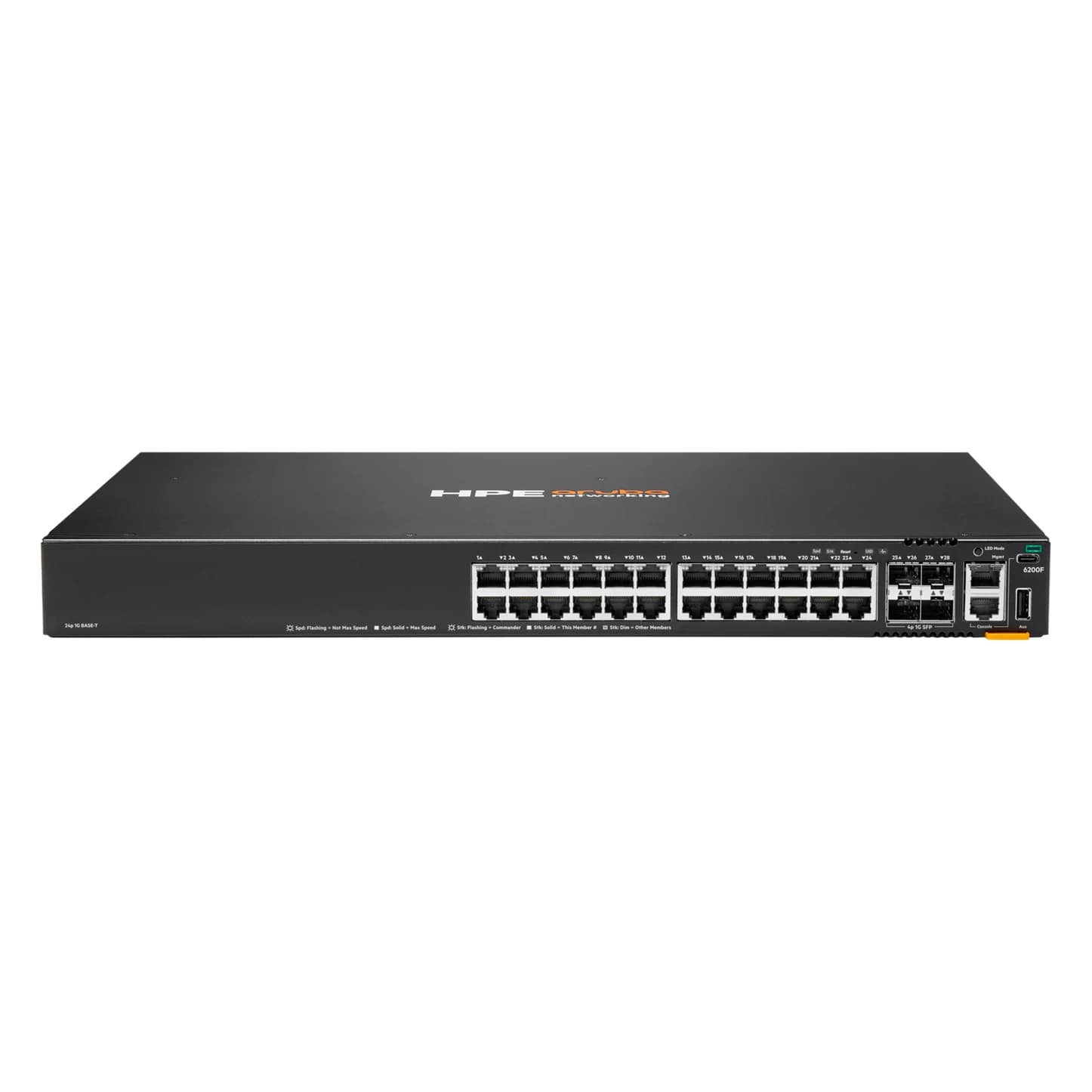

| พอร์ต Gigabit (RJ45) | 24x 10/100/1000BASE-T ports |
|---|
| พอร์ต SFP | 4x 100M/1G SFP ports |
|---|
| พอร์ตจัดการ (Management Port) | - 1x OOBM
- 1x USB-C Console Port
- 1x RJ-45 Console Port
- 1x USB Type-A Host port
|
|---|
| CPU | Quad Core ARM Cortex A72 @ 1.8 GHz |
|---|
| หน่วยความจำ (RAM) | - 8 GB DDR4
- Flash: 16 GB eMMC
- Packet buffer: 6 MB
|
|---|
| Switching Capacity | Up to 56 Gbps |
|---|
| Forwarding Rate | Up to 41.7 Mpps |
|---|
| Stacking | - VSF, up to 8 members
- Stacking bandwidth: 4 Gbps
- Max. stacking distance up to 10 kms with long range transceivers
|
|---|
| MAC Address Table | 32,768 |
|---|
| จำนวนเส้นทาง (Routes) | - IPv4 unicast routes: 2,048
- IPv6 unicast routes: 1,024
|
|---|
| ACL Entries | - Ingress IPv4/IPv6/MAC: 5,120 / 1,280 / 5,120
- Egress IPv4/IPv6/MAC: 2,048 / 512 / 2,048
|
|---|
| ระบบปฏิบัติการ | HPE Aruba Networking CX Switch Operating System (AOS-CX) |
|---|
| การจัดการ (Management) | - HPE Aruba Central (cloud-based or on-premises)
- CX Mobile App
- Network Analytics Engine (NAE)
- REST API
- CLI
- SNMP v2c/v3
- sFlow
- IPFIX
- RMON
- Multi-Edit (separate licence)
- optional term-based CX Advanced Feature Pack
|
|---|
| VLAN | - IEEE 802.1Q (4094 VLAN IDs, 2K VLANs simultaneously)
- IEEE 802.1v protocol VLANs
- MVRP
- Private VLAN
- QinQ
- Auto VLAN creation
- voice VLAN via RADIUS/LLDP-MED
|
|---|
| Spanning Tree | - IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
- RPVST+ (compatible with PVST+)
- STP BPDU port protection
- STP root guard
|
|---|
| Link Aggregation | - IEEE 802.3ad LACP — up to 48 LAGs, up to 16 links per LAG
- static or dynamic groups
- user-selectable hashing algorithm
|
|---|
| ฟีเจอร์ L2 อื่น ๆ | - IGMP v1/v2/v3 snooping (IGMP groups: 1,024)
- MLD v1/v2 (MLD groups: 1,024)
- Port mirroring (ingress/egress, 4 groups)
- LLDP / LLDP-MED
- CDPv2
- UDLD
- Smart link
- VXLAN
- BPDU tunnelling
- storm protection
- Jumbo frames up to 9198 bytes
- IEEE 802.3az EEE
|
|---|
| Dynamic Routing | - Static IPv4/IPv6 routing (with ECMP)
- RIPv2 / RIPng
- single-area (Access) OSPFv2 / OSPFv3
- PIM Sparse / Dense / Source-Specific multicast routing
|
|---|
| ฟีเจอร์ L3 อื่น ๆ | - Switched virtual interfaces (dual stack): 256
- VRRP (IPv4/IPv6)
- dual stack IPv4/IPv6
- DHCP server / relay / smart relay
- mDNS gateway
- route maps
- proxy ARP
- IPv6 RA guard, ND snooping, dynamic IPv6 lockdown
|
|---|
| QoS | - Strict priority (SP) and Deficit Weighted Round Robin (DWRR) queuing
- IEEE 802.1p
- CoS by IP address/ToS/L3 protocol/TCP-UDP port/DiffServ
- per-port ingress rate limiting
- Egress Queue Shaping (EQS)
|
|---|
| 802.1X / Authentication | - IEEE 802.1X
- MAC-based authentication
- Web authentication (Captive Portal on ClearPass)
- up to 32 concurrent 802.1X/Web/MAC sessions per port
- RADIUS
- RadSec
- TACACS+
|
|---|
| ความปลอดภัย | - IPv4/IPv6 ACLs (L2–L4, per-port or per-VLAN)
- identity-driven ACL
- TPM
- FIPS 140-2 validated cryptography
- Dynamic Segmentation
- Control Plane Policing
- Dynamic ARP protection
- Dynamic IP lockdown
- port security
- SSHv2 / SSL / SNMPv3
|
|---|

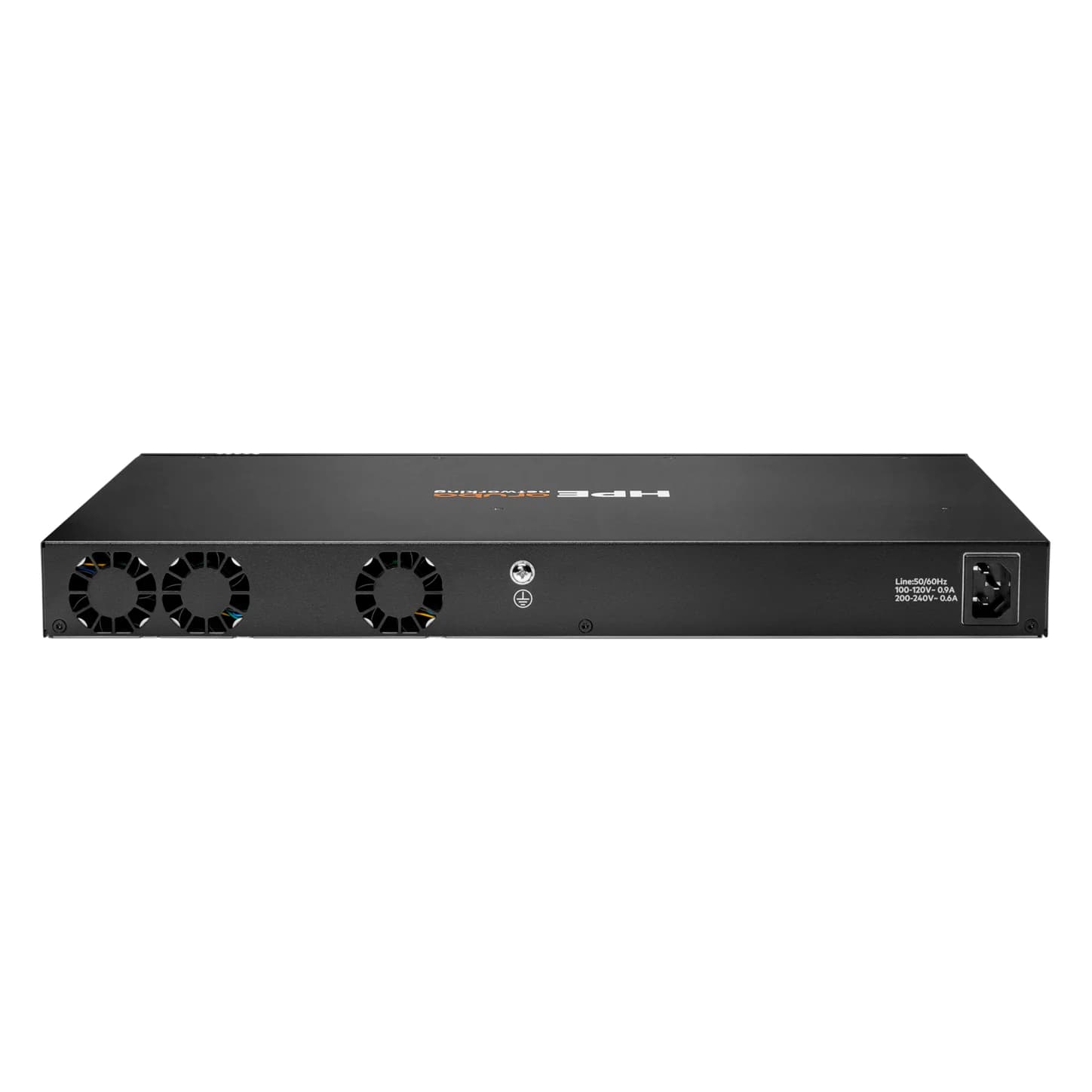

| ไฟเลี้ยง (Power Supply) | Fixed power supply (no redundant PSU — hot-swappable power supplies are only on CX 6200M models) |
|---|
| แรงดันไฟเข้า | - 100V-120V/200V-240V, 50Hz/60Hz
- Current 0.9A/0.6A
|
|---|
| กำลังไฟสูงสุด | - Power consumption (230 VAC): Hibernation (0 rpm fan): 7W
- Idle: 29W
- 100% Traffic Rate: 44W
- Max heat dissipation 150 BTU/hr (158 kJ/hr)
|
|---|
| การระบายความร้อน | - Fixed fans
- Primary airflow: front and side to back
- Acoustic: Sound Power LWAd = 5.1 Bel, Sound Pressure LpAm (Bystander) = 35.1 dB
|
|---|
| ขนาด (สูง x กว้าง x ลึก) | (H) 4.37 cm x (W) 44.25 cm x (D) 28.45 cm (1.72" x 17.42" x 11.2") |
|---|
| น้ำหนัก | 3.77 kg (8.32 lbs) |
|---|
| การติดตั้ง | - 1U
- Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
- Horizontal surface mounting only
- 2-post rack kit included
|
|---|
| อุณหภูมิใช้งาน | 32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate 1°C for every 1,000 ft from 5,000 ft to 10,000 ft |
|---|
| ความชื้นใช้งาน | 5% to 95% @ 104°F (40°C) non-condensing |
|---|
| มาตรฐานรับรอง | - UL 62368-1 3rd Ed.
- IEC/EN 62368-1
- CAN/CSA C22.2 No. 62368-1:19
- FCC 47 CFR Part 15B Class A
- EN 55032 Class A
- VCCI-CISPR 32 Class A
- CISPR 32 Class A
- EN 55035 / CISPR 35
- RoHS EN 63000:2018
|
|---|
| ระยะเวลารับประกัน | 5 ปี |
|---|
