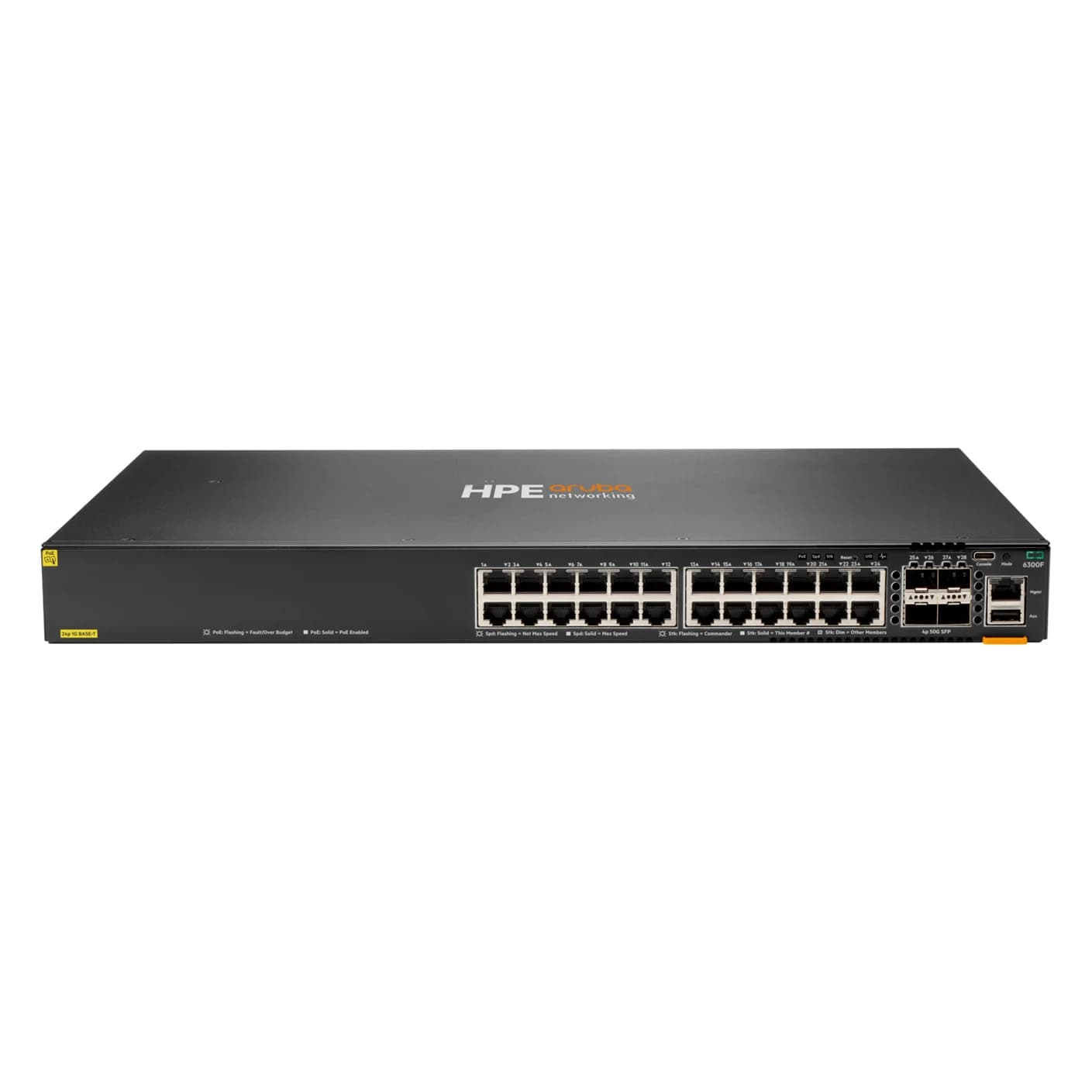

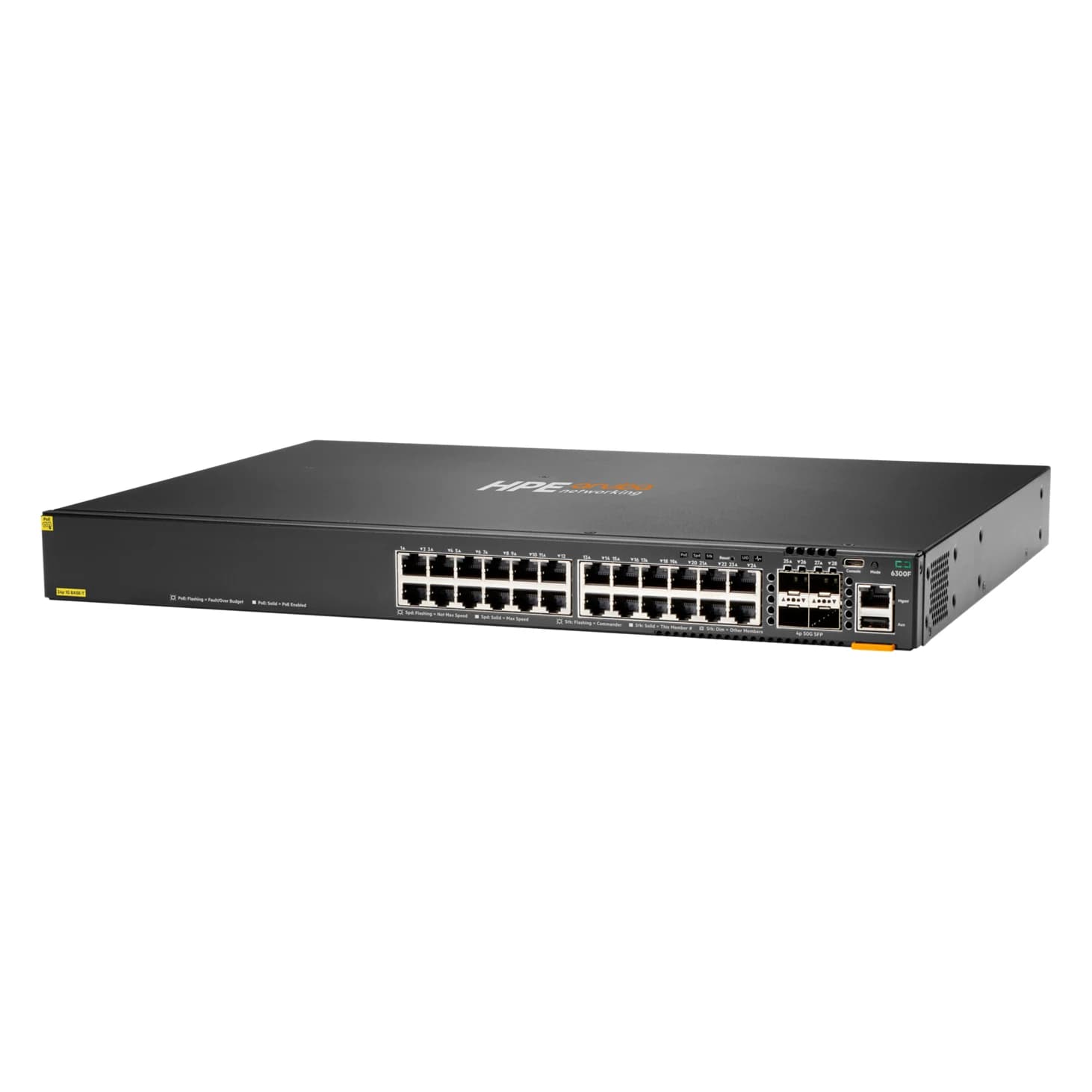

| รุ่น / SKU | JL666A |
|---|
| พอร์ต Gigabit (RJ45) | - 24x 10/100/1000BASE-T PoE+ (Class 4) ports, up to 30W per port
- Auto-MDIX
|
|---|
| พอร์ต SFP56 | 4x 1G/10G/25G/50G SFP56 uplink ports (50G for use with 50G DACs for interconnect and VSF stacking) |
|---|
| พอร์ตจัดการ (Management Port) | - 1x USB-C console port
- 1x OOBM port
- 1x USB Type A host port
|
|---|
| CPU | Quad Core ARM Cortex A72 @ 1.8GHz |
|---|
| หน่วยความจำ (RAM) | - 8 GB DDR4
- Flash: 32 GB eMMC
|
|---|
| Packet Buffer | 8 MB packet buffer memory |
|---|
| Switching Capacity | - 448 Gbps / 334 Mpps (model)
- System: 880 Gbps / 660 Mpps
|
|---|
| Latency | - Average (LIFO, 64-byte packets): 1Gbps 2.28μs
- 10Gbps 1.46μs
- 25Gbps 1.90μs
- 50Gbps 3.49μs
|
|---|
| Stacking | - VSF up to 10 members (chain or ring, front-plane; mix with CX 6300F/6300M)
- 200 Gbps stacking bandwidth (400 Gbps at full duplex)
- up to 10 km with long-range transceivers
- not on 1G ports
|
|---|
| MAC Address Table | 32,768 |
|---|
| จำนวนเส้นทาง (Routes) | - IPv4 unicast 61,000
- IPv6 unicast 61,000
- IPv4/IPv6 multicast 8,192 / 8,192
|
|---|
| จำนวน VLAN | 4094 VLAN IDs (IEEE 802.1Q) |
|---|
| ACL Entries | - Ingress IPv4/IPv6/MAC 20,480/5,120/20,480
- Egress 8,192/2,048/8,192
|
|---|
| พอร์ต PoE | - 24x 10/100/1000BASE-T PoE+ (IEEE 802.3at Class 4)
- Always-on PoE
- Quick PoE
- pre-standard PoE detection
|
|---|
| กำลังไฟ PoE รวม (PoE Budget) | Max PoE power: 370W |
|---|
| กำลังไฟ PoE สูงสุดต่อพอร์ต | Up to 30W per port (PoE+) |
|---|
| ระบบปฏิบัติการ | HPE Aruba Networking CX Switch Operating System (AOS-CX) |
|---|
| การจัดการ (Management) | - Managed Layer 3
- CLI
- built-in REST API
- Web GUI (SSL)
- SNMP v2c/v3
- RMON
- sFlow
- IPFIX
- gNMI
- CX Mobile App
- Multi-Edit (separate license)
- ZTP
|
|---|
| แพลตฟอร์มคลาวด์ | - HPE Aruba Networking Central (cloud or on-premises; Foundation/Advanced subscription)
- HPE Mist Wired Assurance (requires HPE Mist subscription and AOS-CX 10.18.1000)
|
|---|
| ฟีเจอร์การจัดการ | - Network Analytics Engine (NAE) with Time Series Database
- embedded CX Foundation license (optional term-based CX Advanced Feature Pack)
- VSF ISSU / standalone ISSU
- dual flash images
- PTP (IEEE 1588)
- IP SLA
|
|---|
| Spanning Tree | - IEEE 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- RPVST+ (PVST+ compatible)
- BPDU protection
- root guard
|
|---|
| Link Aggregation | - IEEE 802.3ad LACP: up to 256 LAGs, up to 8 links per LAG
- static or dynamic
- VSX 2-member cluster
|
|---|
| ฟีเจอร์ L2 อื่น ๆ | - IGMP v1/v2/v3 & MLD v1/v2 snooping (4,096 IGMP / 8,192 MLD groups)
- Port mirroring, 4 groups
- LLDP/LLDP-MED
- VXLAN/EVPN
- QinQ
- MVRP
- ERPS
- UDLD
- Jumbo frames 9198 bytes
|
|---|
| Dynamic Routing | - Static IPv4/IPv6
- OSPFv2/OSPFv3
- BGP-4 / MP-BGP
- RIPv2/RIPng
- ECMP
- Policy-based routing
- PIM-SM/SSM/DM
- MSDP
|
|---|
| ฟีเจอร์ L3 อื่น ๆ | - 256 VRF
- 1,024 SVIs (dual stack)
- VRRP
- BFD
- DHCP server/relay
- GRE
- mDNS gateway
- IPv6 dual stack with RA guard, DHCPv6 protection, ND snooping
|
|---|
| QoS | - 8 queues (IEEE 802.1p, 8 priority levels)
- Strict priority & DWRR
- Layer 4 prioritization
- rate limiting
- Egress Queue Shaping
|
|---|
| ความปลอดภัย | - IPv4/IPv6/MAC ACLs
- IEEE 802.1X, MAC & Web authentication (up to 32 sessions per port)
- RADIUS/TACACS+/RadSec
- TPM
- FIPS 140-2 validated cryptography
- Dynamic Segmentation
- DHCP protection
- Dynamic ARP protection
- Control Plane Policing
|
|---|

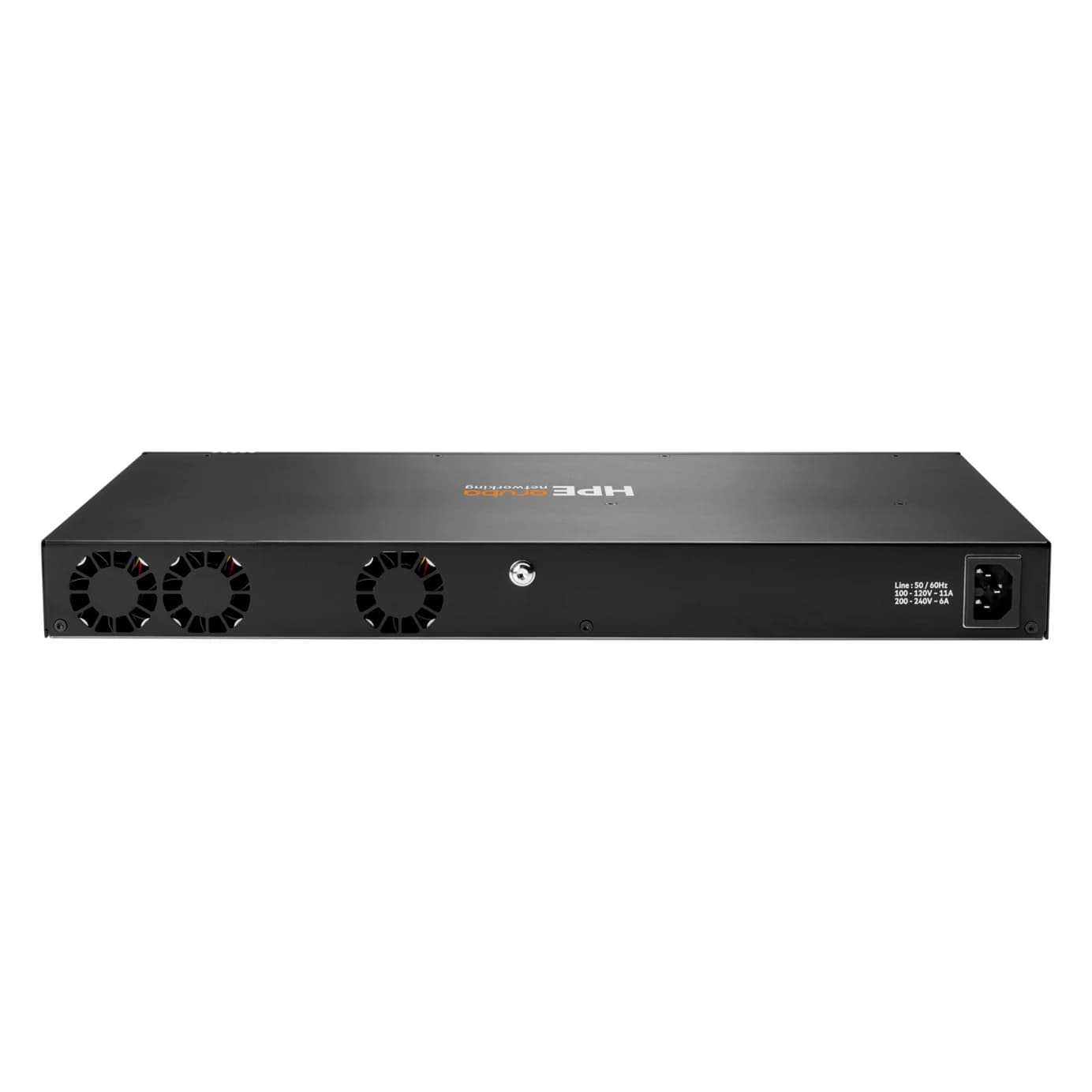

| ไฟเลี้ยง (Power Supply) | - Internal (fixed) power supply (950W)
- AC 100V-120V/200V-240V, 50-60 Hz, 11A/6A
- no redundant PSU (fixed power supplies in CX 6300 “F” models)
|
|---|
| กำลังไฟสูงสุด | - 100% traffic rate: 67W
- Idle: 52W (230VAC)
|
|---|
| การระบายความร้อน | - Fixed fans
- Primary airflow: front and side-to-back
- Sound power LWAd = 5.0 Bel, sound pressure LpAm (bystander) = 32.3 dB
|
|---|
| ขนาด (สูง x กว้าง x ลึก) | 4.39 x 44.2 x 32.7 cm (1.73 x 17.4 x 12.9 in) |
|---|
| น้ำหนัก | 4.95 kg (10.91 lbs) |
|---|
| การติดตั้ง | - Compact 1U
- mounts in an EIA-standard 19 in. telco rack or equipment cabinet
- horizontal surface mounting only
- 2-post rack kit included
|
|---|
| อุณหภูมิใช้งาน | - 0°C to 45°C (32°F to 113°F) up to 5,000 ft
- 0°C to 40°C (32°F to 104°F) 5,001–10,000 ft
- excursion to 55°C (131°F) for short periods
|
|---|
| มาตรฐานรับรอง | - Safety: EN/UL/CSA/IEC 60950-1
- Emissions: EN 55032 Class A, FCC part 15 Class A, ICES-003 Class A, VCCI Class A, CISPR 32 Class A
- Immunity: EN 55024 / EN 55035
- Laser: IEC 60825-1 Class 1
- RoHS (EN 50581:2012), WEEE
|
|---|
| ระยะเวลารับประกัน | 5 ปี |
|---|
