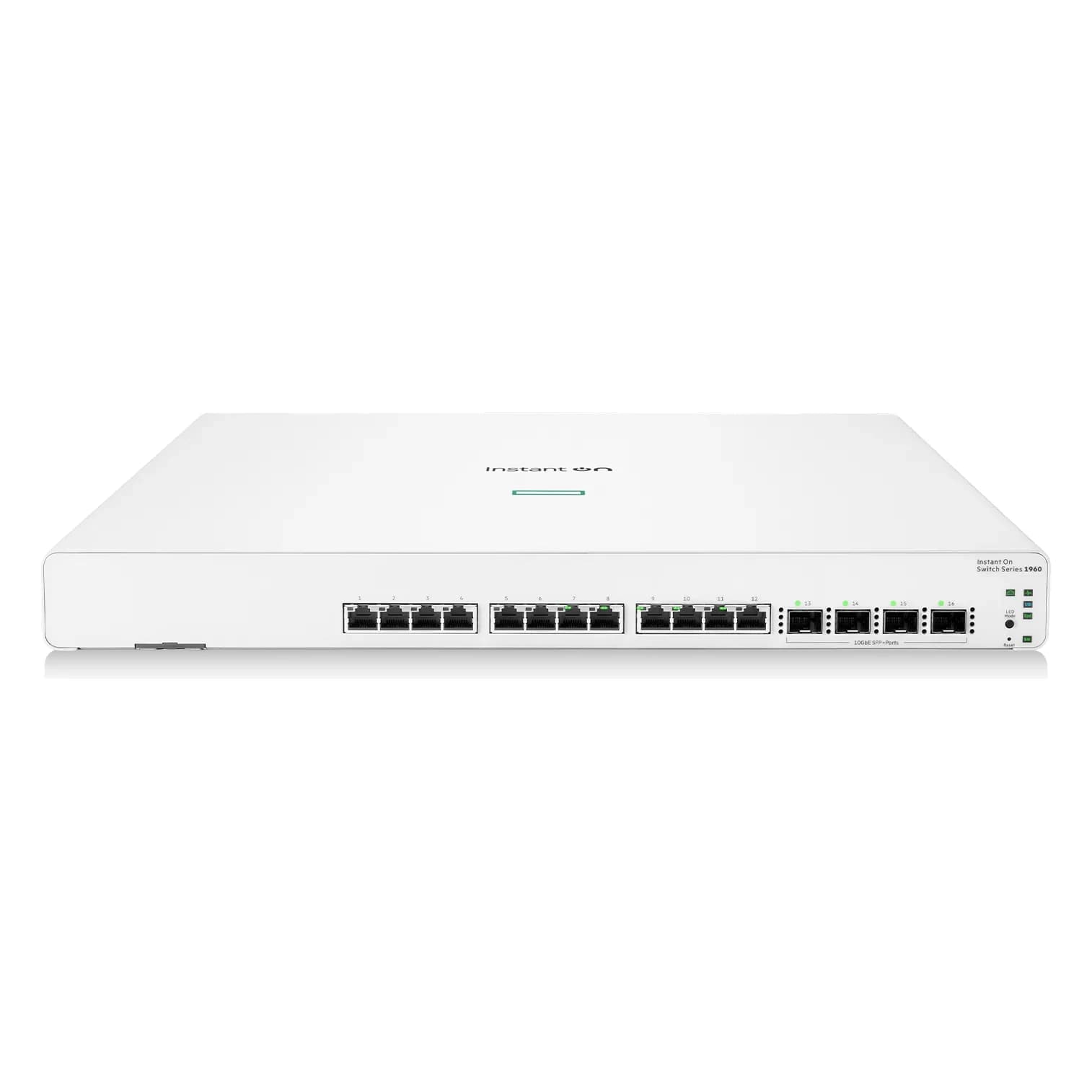

Name: HPE Networking Instant On 1960 12XGT 4SFP+ Switch (JL805A)
Brand: HPE
SKU: JL805A
Price: 59588.30 THB
Availability: InStock

รุ่น / SKU

JL805A

พอร์ต 10G (RJ45)

12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3an 10GBASE-T)

พอร์ต SFP+

4 SFP+ 10GbE ports

CPU

Single Core ARMv7 Cortex-A9 @2Ghz

หน่วยความจำ (RAM)

1GB DDR3
512MB NAND flash
Packet buffer size: 3.0 MB

Switching Capacity

320 Gbps

Forwarding Rate

238 Mpps

Latency

100 Mb: < 7.4 uSec
1000 Mb: < 4.2 uSec
10000 Mb: < 1.1 uSec

Stacking

True Stacking of up to 4 Instant On 1960 switches (ring or chain; access and aggregation can be mixed — hybrid stacking) over Cat 6A, fiber or DAC
local or cloud-managed stacking
single management IP
maximum stacking capacity 80 Gbps

MAC Address Table

16,000 entries

ช่องทางการจัดการ

Instant On mobile app
Instant On cloud-based web portal
local Web GUI (up to 5 HTTP/HTTPS sessions)
SNMPv1, v2c and v3 (device management: Instant On Cloud; Web browser; SNMP Manager)

แพลตฟอร์มคลาวด์

HPE Networking Instant On Cloud — mobile app and cloud web portal, multi-site remote management, site inventory and topology view, scheduled firmware updates, two-factor authentication

License ที่ต้องใช้

ไม่ต้องใช้ License — No extra licensing or subscription fees; all features included in the price of the hardware

VLAN

Up to 512 VLANs (aggregation switch), VLAN ID range 2-4092
Auto voice VLAN
Management VLAN ID
RADIUS-assigned VLANs

Spanning Tree

IEEE 802.1D STP
802.1w RSTP
802.1s MSTP (MSTP on local web only)
BPDU filtering
Loop protection

ฟีเจอร์ L2 อื่น ๆ

IGMP v1/v2/v3 and MLD v1/v2 snooping
LLDP and LLDP-MED
Port mirroring (port or VLAN)
Jumbo frames up to 9216 bytes
Flow control
Link flap prevention
Protected ports
Auto recovery
IEEE 802.3az EEE

Static Route

Static IPv4 routing: up to 512 static routes and 32 VLAN routing interfaces (aggregation model)
ARP table
DHCP relay
DHCP server (IPv4)

IPv6

IPv6 host
IPv6 static routing (up to 512 routes)
MLD snooping
IPv6 ACL/QoS
IPv6 DHCP relay
IPv6 features configured on local web GUI only

QoS

Traffic prioritization by DSCP or IEEE 802.1p
CoS: 802.1p/DSCP to 8 queues, Strict Priority (SP) or Weighted Round Robin (WRR)
Global trust mode
Traffic shaping (per-port egress)
Ingress rate limiting
Instant On AP and voice auto-prioritization

ACL

100 inbound IPv4 and MAC ACLs with up to 1024 ACEs (aggregation switch)

ความปลอดภัย

IEEE 802.1X port access control
RADIUS authentication (primary/backup) and accounting
Port security
DHCP snooping and IP Source Guard
ARP attack prevention
Automatic DoS protection
Global storm control
TPM-based security
HTTPS/SSL

ไฟเลี้ยง (Power Supply)

Internal power supply
100-127VAC / 200-240VAC, 50Hz/60Hz
Current 1.3A/0.4A

กำลังไฟสูงสุด

Maximum power rating 100-127V: 130W
200-220V: 160W
Idle power 100-127V: 60W
200-220V: 80W

การระบายความร้อน

Variable speed fans (energy-efficient cooling)
Acoustics LWAd = 4.0 Bel

ขนาด (สูง x กว้าง x ลึก)

350.5(d) x 442.5(w) x 43.95(h) mm — maker order D x W x H

น้ำหนัก

9.6 lb (4.3 kg)

การติดตั้ง

EIA-standard 19 in. telco rack or equipment cabinet (2-post rack kit included)
table-top
wall-mount with ports facing up or down
under-table using the brackets provided

อุณหภูมิใช้งาน

0-40°C, 0-10,000 ft (altitude up to 10,000 ft / 3 km)
relative humidity 15% to 95% @ 104°F (40°C) non-condensing

MTBF

88.8 years

มาตรฐานรับรอง

EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN 55032:2015/CISPR 32 Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
EN 55035/CISPR 35

ระยะเวลารับประกัน

5 ปี
