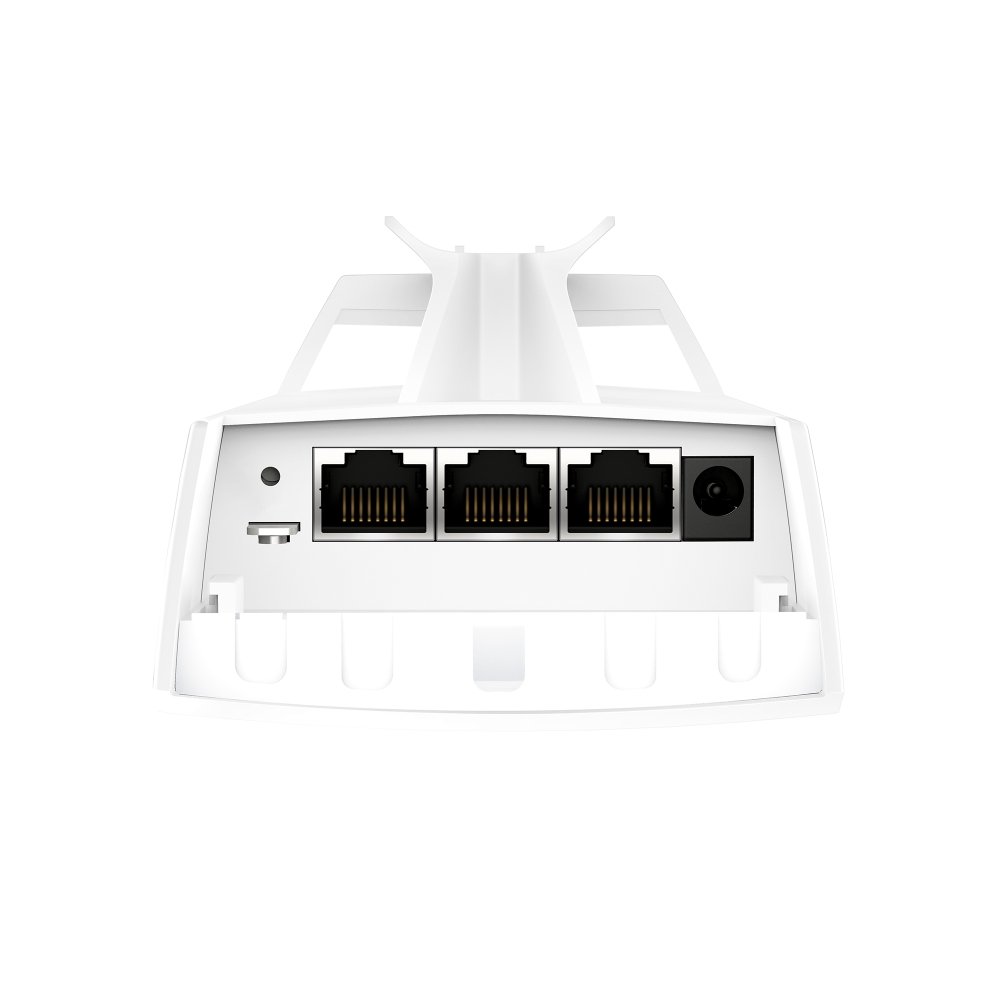

- Interface
- 3x Gigabit Ethernet Ports
- Button
- Reset
- Power Supply
- 12V DC / 24V Passive PoE (Passive PoE adapter included.)
- Power Consumption
- 11.5W
- Dimensions ( W x D x H )
- 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
- Antenna Type
- Internal 2×2 Dual-polarized directional MIMO antennas
- 5 GHz
- 11.0 dBi
- Weatherproof Enclosure
- IP65
- Mounting
- Pole mounting (Accessories included)
- Coverage
- 5000m(16400ft) 5
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac
- Frequency
- 5 GHz
- Signal Rate
- 5 GHz: Up to 867 Mbps
- Wireless Functions
- • Mesh *4
- MU-MIMO
- 5G 2×2 MU-MIMO DL
- Load Balance
- Beamforming
- Airtime Fairness
- Multiple SSIDs
- 8
- Wireless Statistics
- Wireless Schedule
- Reboot Schedule
- RADIUS Accounting
- MAC Authentication
- Static IP/Dynamic IP
- Wireless Security
- • VLAN
- Access Control
- Rogue AP Detection
- Captive Portal Authentication *4
- Maximum number of MAC Filter
- 4,000
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise
- Transmission Power
- • CE:
- <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, EIRP)
- Omada App
- Yes
- Restore & Backup
- Yes
- Firmware update via Web
- Yes
- NTP
- Yes
- Centralized Management
- • Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- SSH
- Yes
- Web-based Management
- Yes
- Certification
- CE, RoHS
- Package Contents
- • EAP215-Bridge KIT
- Passive PoE Adapter
- Power Cord
- Installation Guide
- Mounting Kit
- Environment
- • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
- Storage Temperature
- -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity
- 10%–90% non-condensing;
- Storage Humidity
- 5%–90% non-condensing
- รหัสสินค้า (SKU)
- EAP215-BRIDGE
