- Interface
- 1× 2.5 Gigabit PoE+ Port
- Button
- Reset
- Power Supply
- 802.3at PoE
- 12 V / 2 A DC (Power adapter not included)
- Dimensions ( W x D x H )
- 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna Type
- Internal Omni
- 2.4 GHz: 4× 4 dBi
- 5 GHz: 4× 5 dBi
- Bluetooth
- V5.2
- Mounting

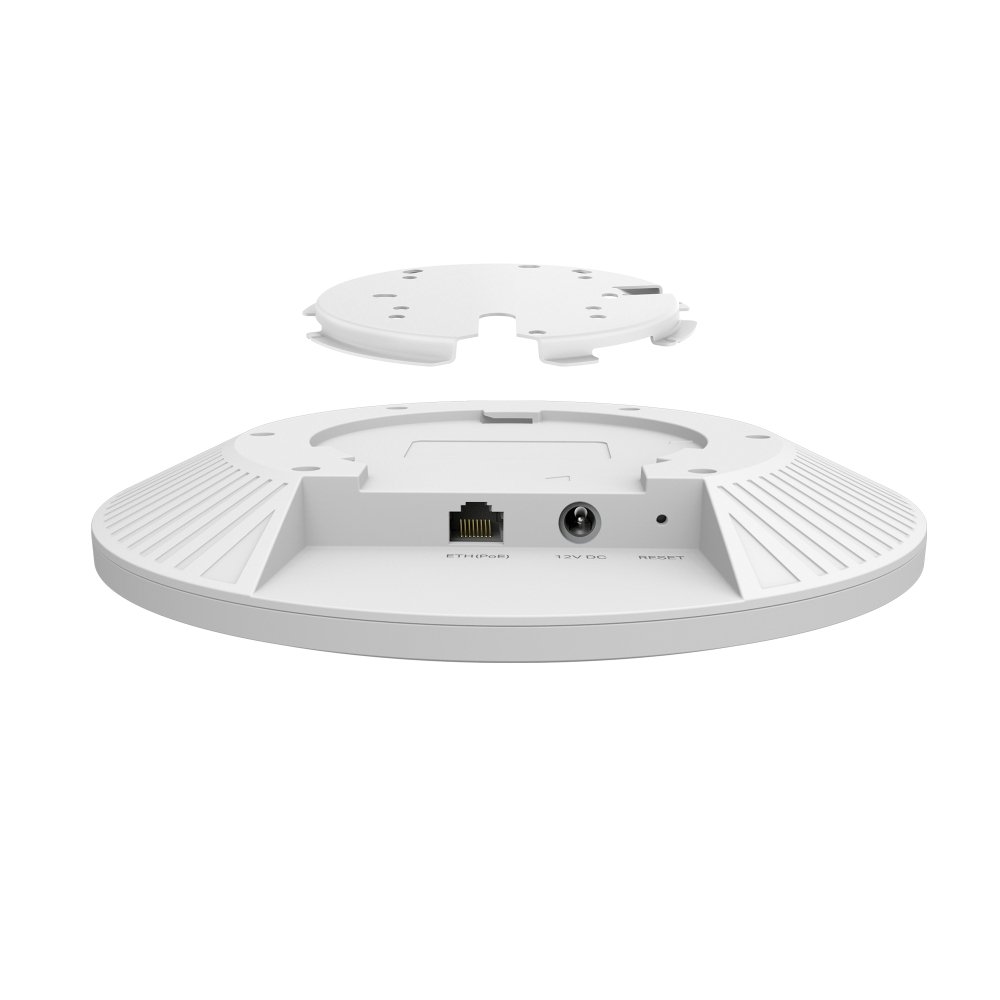

- Ceiling / Wall / Junction Box Mounting (Kits included)
- Coverage
- 185㎡ (2000ft²)
- Concurrent Clients
- 510+
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 1148 Mbps
- Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- CE: <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, EIRP)
- <28 dBm(5 GHz, EIRP)
- Omada App
- Yes
- Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH
- Yes
- Web-based Management
- HTTP/HTTPS
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Require the use of Omada Cloud-Based Controller.
- Certification
- CE,FCC,RoHS
- Package Contents
- EAP683 UR
- Ceiling/Wall/Junction Mounting Kits
- Installation Guide
- Cable Compartment Cover
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
