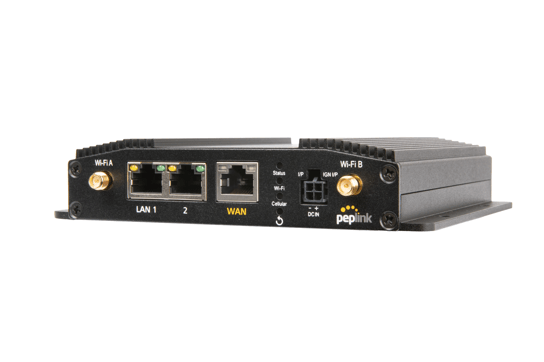

- WAN Interface
- 1x 10/100/1000/2500M Ethernet
- LAN Interface
- 2x 10/100/1000M Ethernet
- Wi-Fi Interface
- Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6 2×2 MU-MIMO Wi-Fi WAN and/or AP
- SpeedFusion Features
- Hot Failover, Smoothing, Bandwidth Bonding
- Number of SpeedFusion VPN Peers
- 2 / 5
- Router Throughput
- 1Gbps
- SpeedFusion Throughput (No Encryption)
- 400 Mbps
- SpeedFusion Throughput (256-bit AES)
- 200 Mbps
- Recommended Users
- 1-150
- AP Controller
- Standard
- Maximum Number of AP Supported
- 30 / 50
- Cellular Data Rate (Downlink / Uplink)
- 5G: 3.4 Gbps / 900Mbps, CAT-20: 1.6 Gbps / 200 Mbps

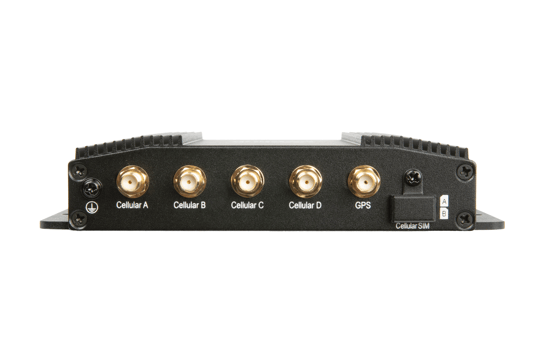

- Antenna Connectors
- 4x SMA Cellular Connectors,
- 2x RP-SMA Wi-Fi Antenna Connectors,
- 1x SMA GPS Antenna Connector
- Power Input
- AC Adapter: AC Input 100V-240V / DC Output
- 12V,
- 10V – 30V DC
- Power Consumption
- 8W (nominal), 19W (max.)
- Dimensions
- 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm
- Weight
- 1.5 pounds / 680 grams
- Operating Temperature
- -40° – 149°F / -40° – 65°C
- Humidity
- 15% – 95% (non-condensing)
- Certifications
- FCC, CE, RoHS,
- E-Mark,
- EN61373 Shock and Vibration Resistance,
- EN50155 Railway Applications,
- Electronic Equipment used on Rolling Stock
- EN61000 Electromagnetic Compatibility,
- EN45545-2 Railway applications – Fire protection

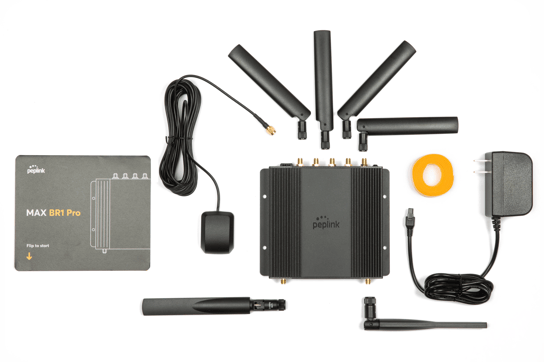

- Package Content
- 1x BR1 Pro 5G,
- 4x LTE/5G Antennas (ACW-235),
- 2x Dual Band Wi-Fi Antennas (ACW-341),
- 1x GPS Active Antenna (ACW-232),
- 1x 12V 2A 4 Pin Power Supply (ACW-632)
- SIM Options
- Nano-SIM (4FF),
- Peplink eSIM,
- BYO eSIM (2 profiles)
- Warranty
- 1-Year Limited Warranty
- รหัสสินค้า (SKU)
- MAX-BR1-PRO-5GN-T-PRM
