2.4GHz 300Mbps 12dBi Outdoor CPE
| รุ่น | CPE220 |
|---|---|
| Management Features | Discovery and Remote Management via Pharos Control application | HTTP/HTTPS Web-based management | System Log | SNMP Agent(v2c) | Ping Watch Dog | Dynamic DDNS | SSH Server |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, | MAC OS, NetWare, UNIX or Linux. | Note: We recommend you to use one of following Web browsers for an improved user | experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 24Kc |
| หน่วยความจำ | 64MB DDR2 RAM, 8MB Flash |
| Input | 100-240VAC, 50/60Hz |
| เสาอากาศ | Built-in 12dBi 2x2 Dual-polarized Directional Antenna | Beam Width: 60° (H-Plane) / 30° (E-Plane) | Note: For more details, please refer to datasheet |
| มาตรฐานไร้สาย | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) | Up to 144.4Mbps (20MHz,Dynamic) | Up to 72.2Mbps (10MHz,Dynamic) | Up to 36.1Mbps (5MHz,Dynamic) |
| Frequency | 2.4~2.483GHz | Note: Available operating frequency may vary depending on the limitations | of the countries or regions in which the device is used. |
| Wireless Configurations | Pharos MAXtream TDMA Technology | 802.11b/g/n Modes | Selectable Channel Width: 5/10/20/40MHz | Automatic Channel Selection | Transmission Power Control | Dynamic Frequency Selection (DFS) | WDS Enable/Disable | Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | SSID Broadcast Enable/Disable | Multi-SSID with VLAN Tagging (AP mode only) | Distance/ACK Timeout Setting | Wireless MAC Address Filter | Wireless Advanced: | > Beacon Interval/RTS Threshold/Fragmentation | >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |

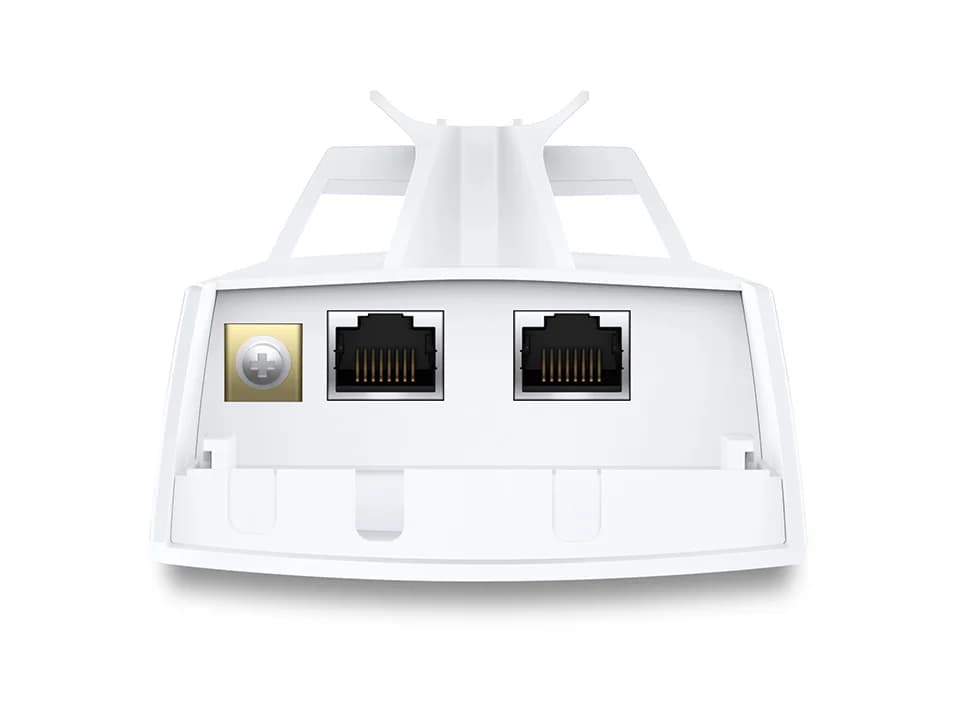

| พอร์ตเชื่อมต่อ | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)1 10/100Mbps Shielded Ethernet Port (LAN1)1 Grounding Terminal1 Reset Button |
| Interfaces | 1 AC Jack with Earth Ground1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)1 10/100/1000Mbps Shielded Ethernet Port (Data) |
| Max. Power Consumption | 10.8 Watts Max | Note: When deployed using Passive PoE, the power drawn from the power source will | be higher by some amount depending on the length of the connecting cable. |
| Transmission Power | 30dBm/1000mw (Adjustable power by 1dBm)Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| Power Status LEDs | Green |
| Protection | 15KV ESD Protection | 6KV Lightning Protection |
| Button | Remote Reset Button |
| ขนาด (กว้าง × ลึก × สูง) | 11×3.1×2.1 inch (276×79×60 mm) |
| Dimensions(W x D x H) | 85.8×43.9×31.9 mm |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| Certification | CE, FCC, RoHS, IPX5 |
| อุปกรณ์ในกล่อง | Outdoor Wireless CPE24V 0.5A Passive PoE AdapterPole Mounting StrapsAC Power CordInstallation Guide |
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~95% non-condensing |
| แหล่งจ่ายไฟ | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) | Voltage range: 16-27VDC |
| Enclosure | Outdoor ASA stabilized plastic material | IPX5 waterproof Certification |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| System Tools | Wireless Signal Quality Indicators: | Signal Strength/Noise/Transmit CCQ/CPU/Memory | Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP | Spectrum Analyzer | Speed Test | Ping | Traceroute |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications | Hardware watch dog |
| Output | 24VDC, 0.5A Max+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >80% |
| ระยะเวลารับประกัน | 3 ปี |
