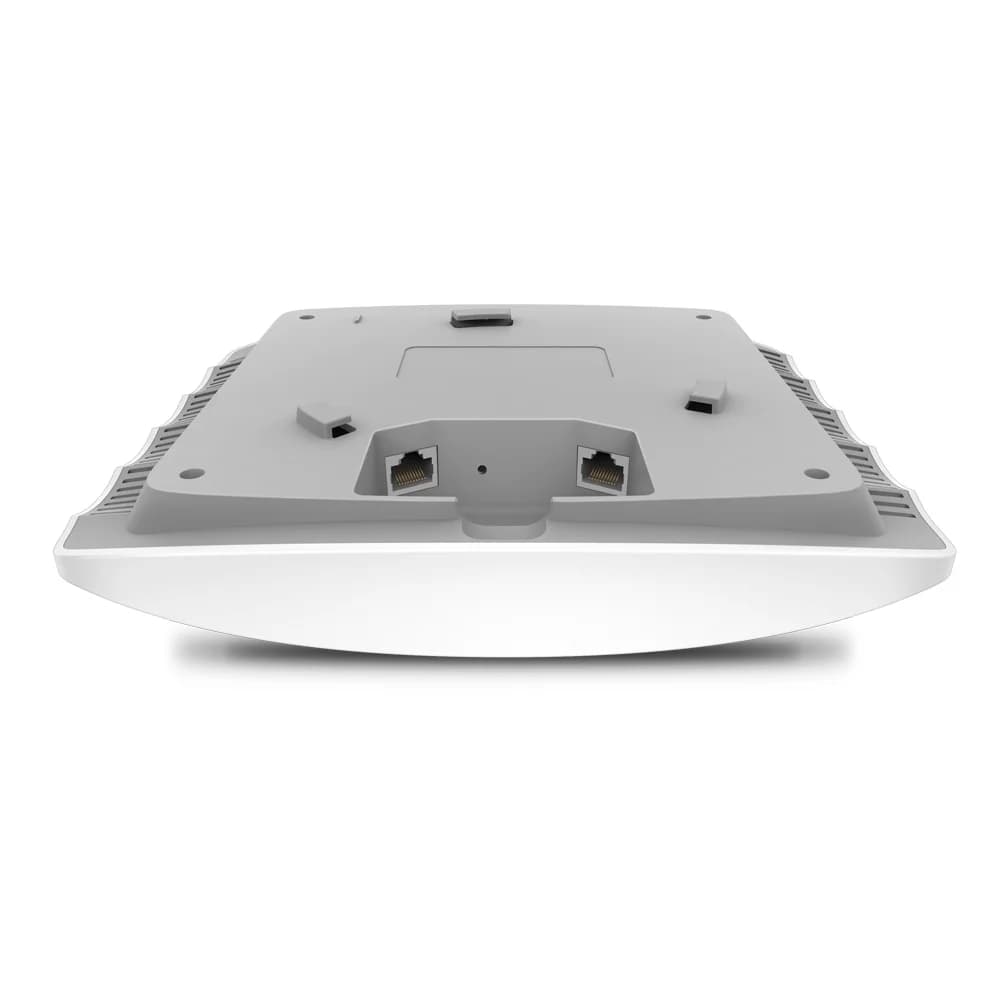

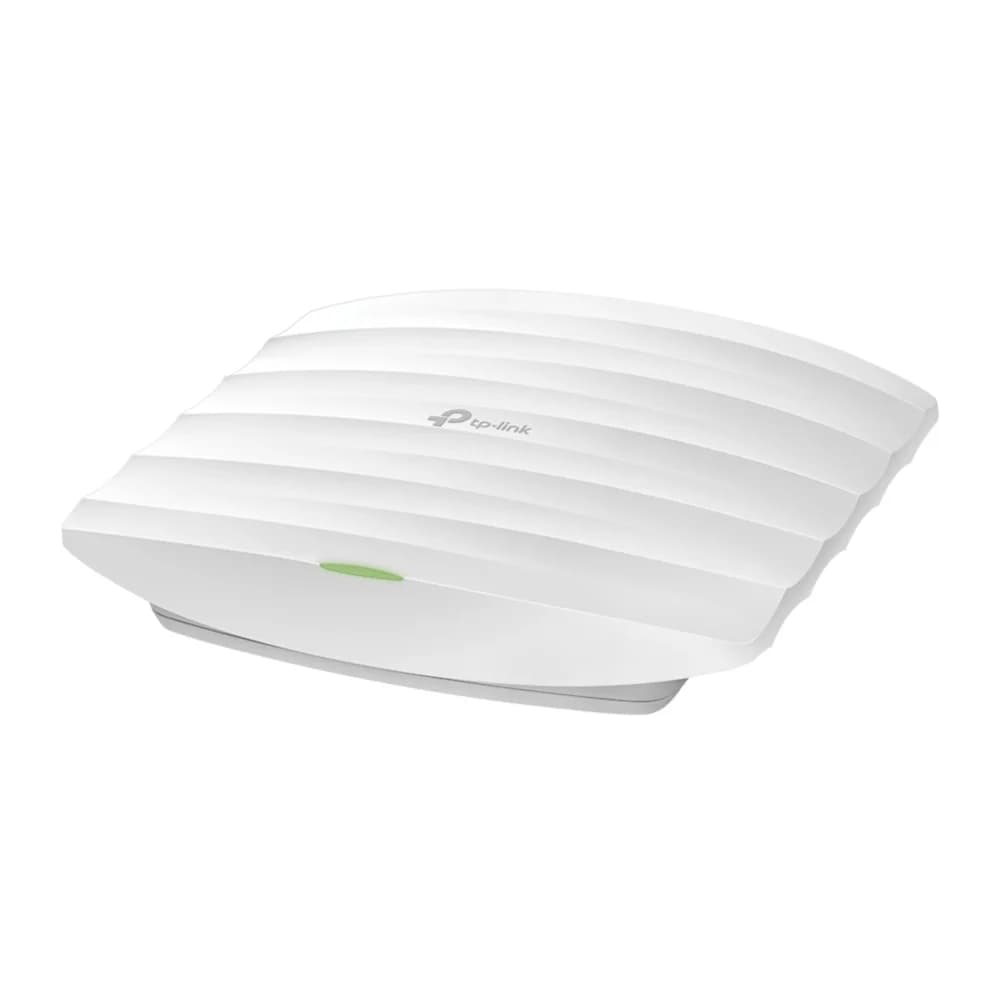

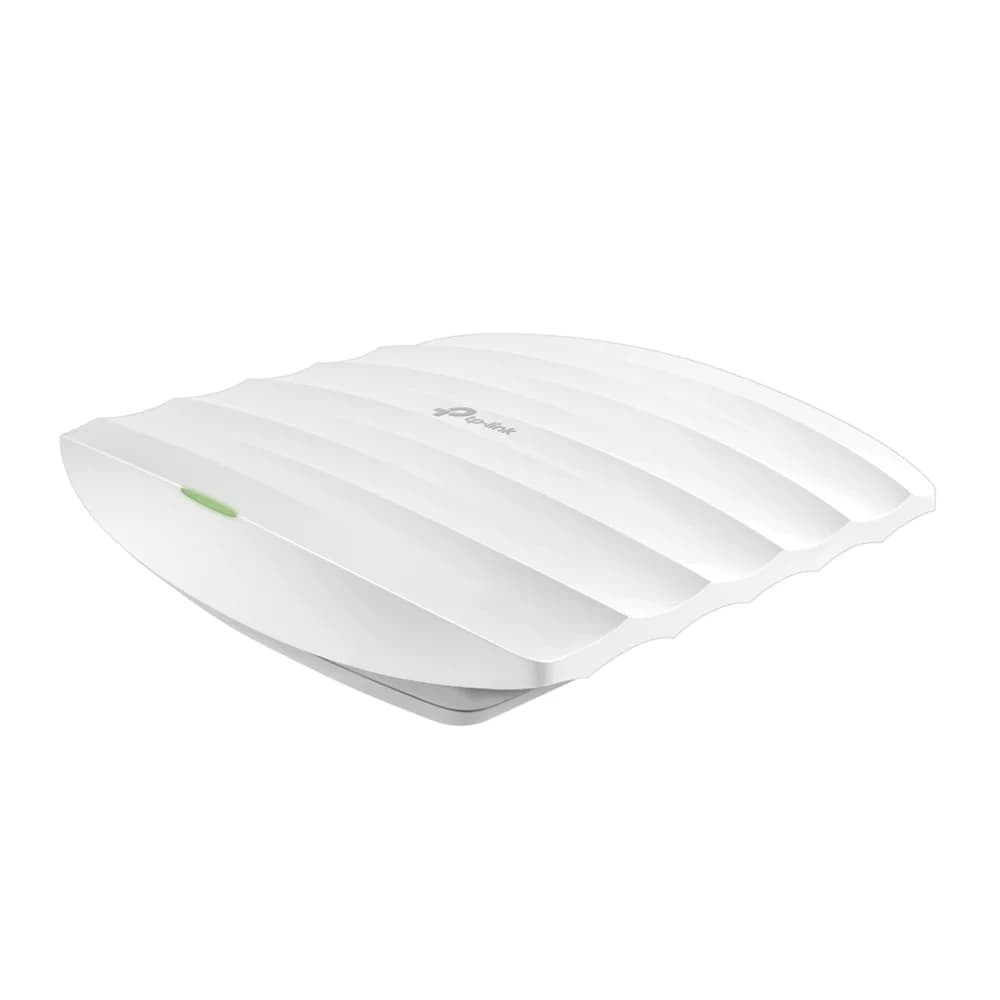

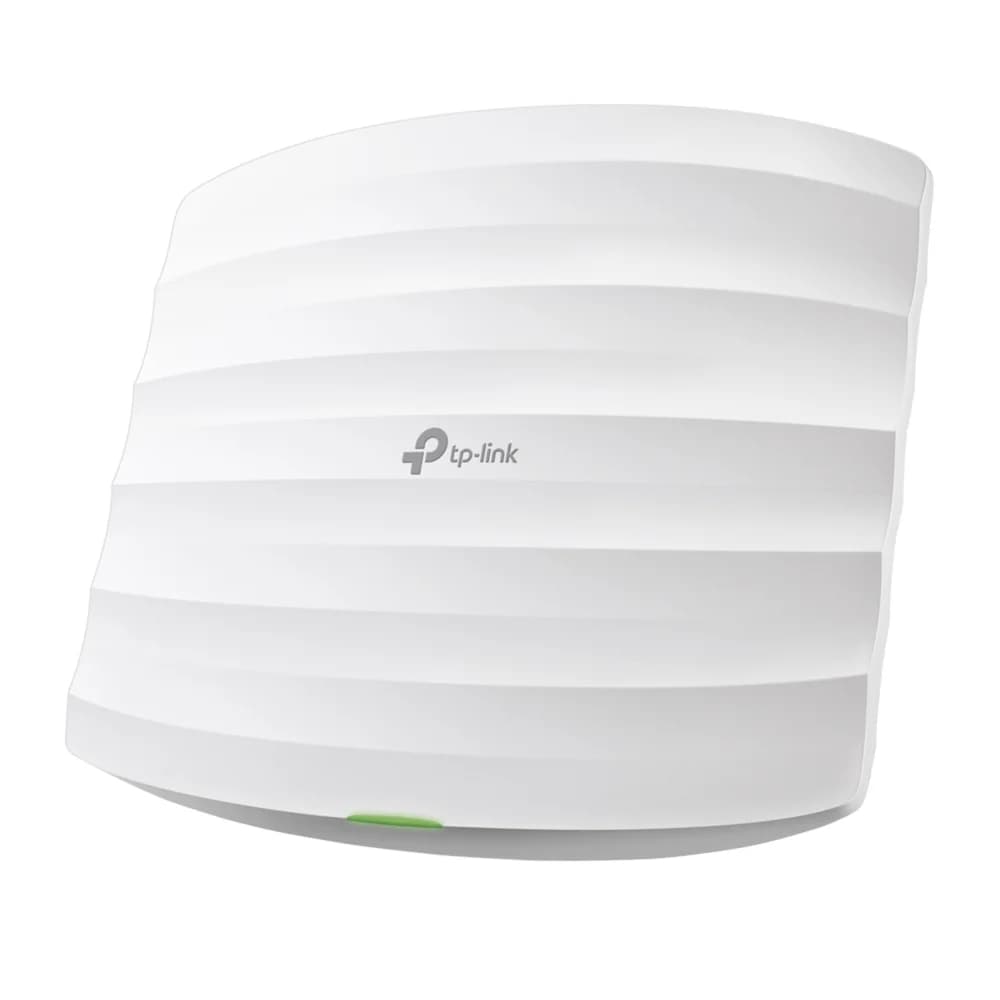

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
| รุ่น | EAP245 |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Management MAC Access Control | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| เสาอากาศ | Internal Omni• 2.4 GHz: 3× 3.5 dBi• 5 GHz: 3× 4 dBi |
| Concurrent Clients | 220+*** |
| มาตรฐานไร้สาย | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Wireless Functions | • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz, 7 for 5GHz)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • Seamless Roaming*• Omada Mesh*• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| ความปลอดภัยไร้สาย | • Captive Portal Authentication*• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise,• WPA-PSK / WPA2-PSK |
| พอร์ตเชื่อมต่อ | 2 × Gigabit RJ45 Ports (One port supports IEEE802.3at PoE, another port supports Passive PoE Out)△ |
| Max. Power Consumption | EU: 15.2 WUS: 16.3 W |
| Transmission Power | • CE：≤20 dBm (EIRP @2 GHz)≤23 dBm (EIRP @5 GHz Band1&2)≤28 dBm (EIRP @5 GHz Band3)• FCC:≤24 dBm (2.4 GHz)≤24 dBm (5 GHz) |
| Physical Security Lock | Yes |
| Button | Reset |
| ขนาด (กว้าง × ลึก × สูง) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Certification | CE, FCC |
| อุปกรณ์ในกล่อง | • AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245• Gigabit 48V Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| แหล่งจ่ายไฟ | • 802.3at PoE• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Coverage | 140㎡(1500 ft²)§ |
| Signal Rate | • 5 GHz: Up to 1300 Mbps• 2.4 GHz: Up to 450 Mbps |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
