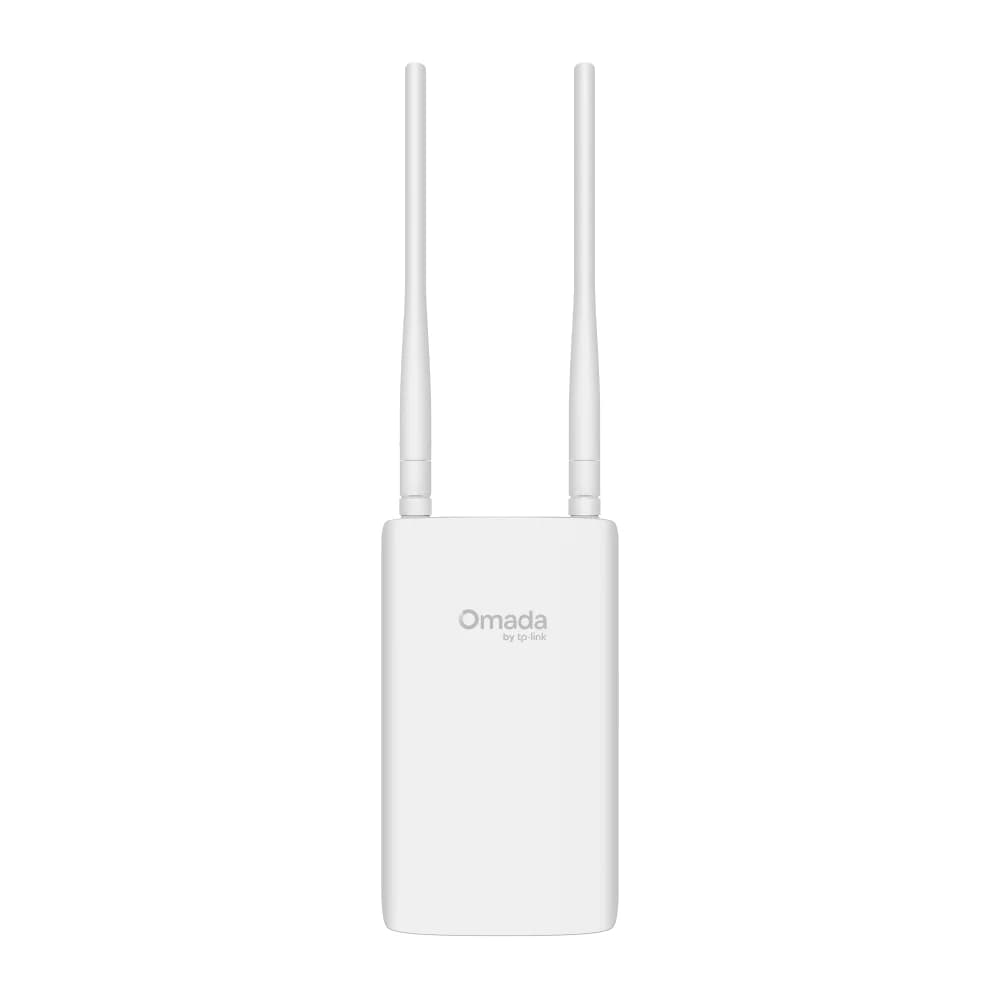

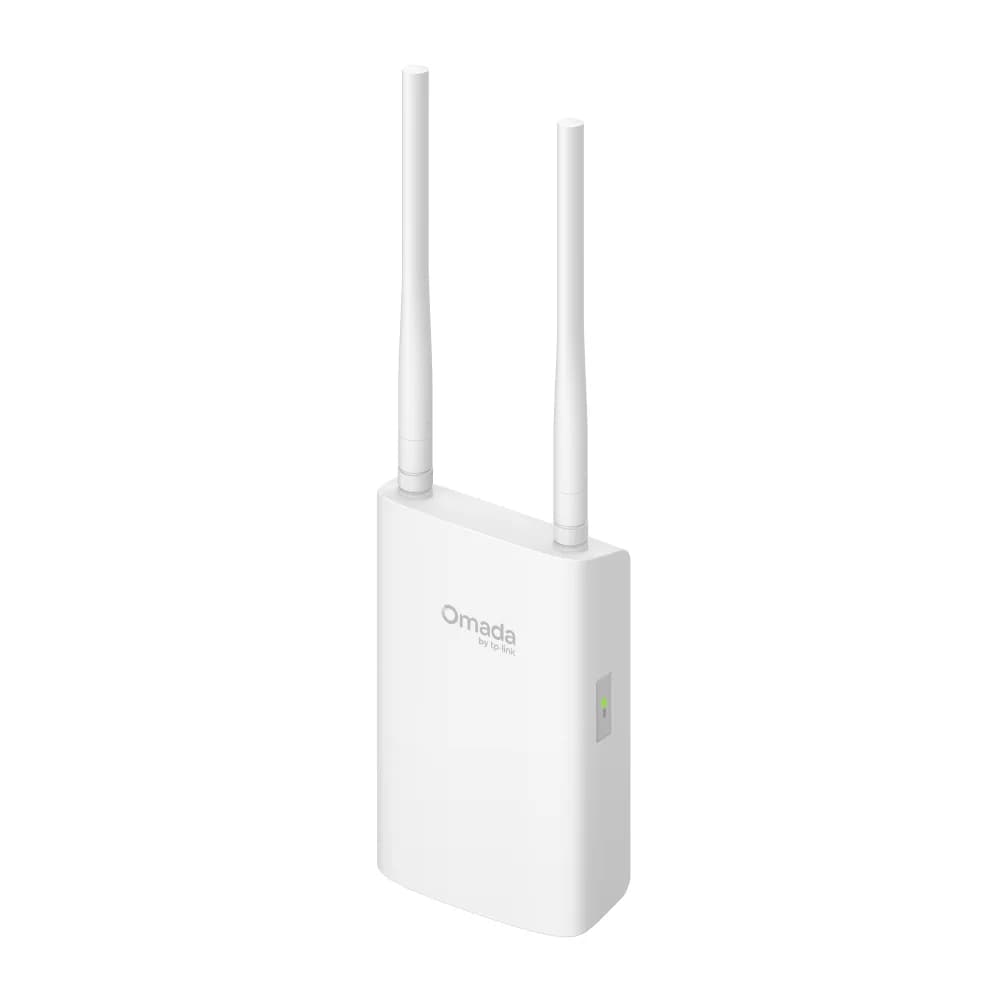

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
| รุ่น | EAP603-Outdoor |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller• Omada Software Controller• Omada Central (Cloud-Based)• Omada App |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| เสาอากาศ | Wi-Fi• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas*Note: The gains above are the single-antenna peak gains.IoT• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas |
| Bluetooth | Yes |
| มาตรฐานไร้สาย | 5 GHz: IEEE 802.11a/n/ac/ax2.4 GHz: IEEE 802.11b/g/n/ax |
| Frequency | • 5 GHz• 2.4 GHz |
| Wireless Functions | • Maximum number of BSSIDs: 16 (8 on each band)• Maximum number of associated STAs: 250+• Guest Network• ACS (Automatic Channel Selection)• Airtime Fairness• Band Steering• 802.11 Rate Control• Rogue AP Detection• URL Filtering• WLAN Optimization• Lock to AP• SSID/Client Rate Limit• Load Balance• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ • Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)• QoS (Quality of Service) |
| ความปลอดภัยไร้สาย | • ACL• MAC Filter• 802.1X Authentication• MAC-Based Authentication• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None• Radius Accounting• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 |

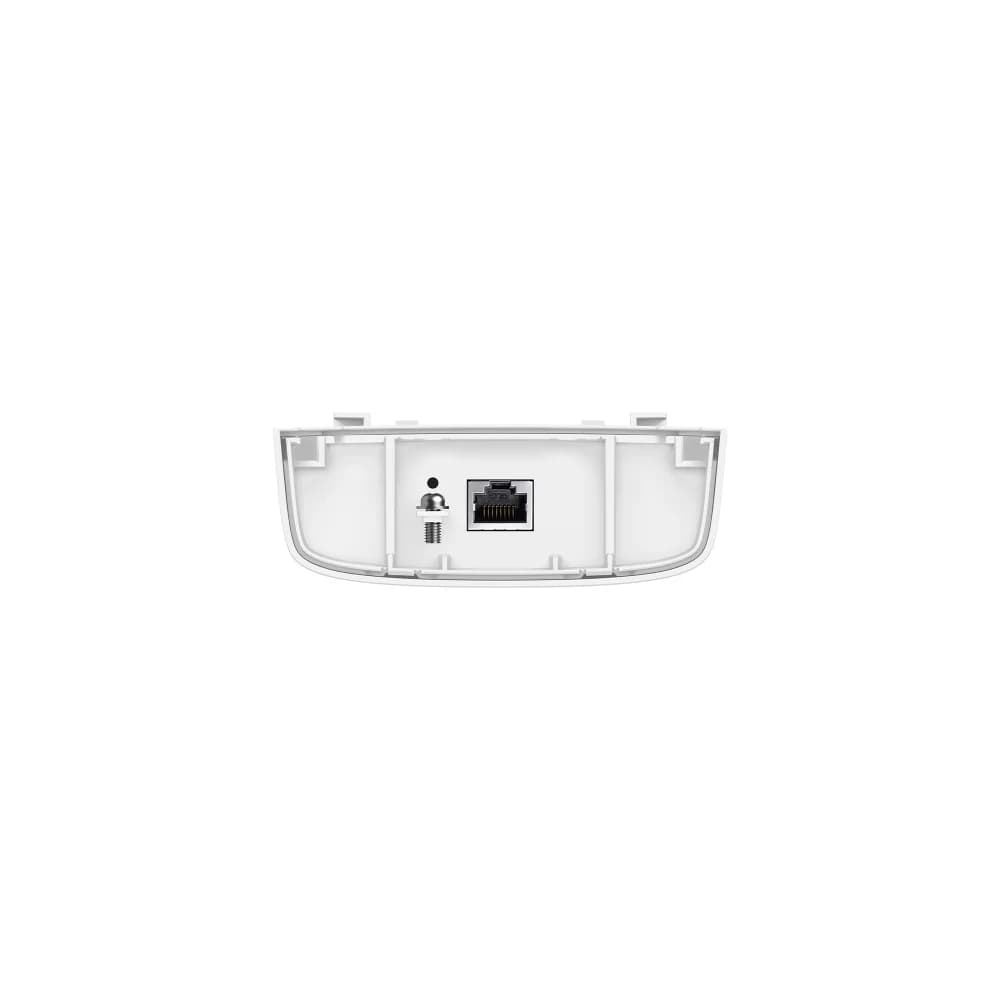

| พอร์ตเชื่อมต่อ | • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in• 1× Grounding Termina |
| Max. Power Consumption | • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc.• Idle mode: 4.8W(PoE) |
| Transmission Power | Maximum transmit power:CE (ERIP)• 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power)• 2.4 GHz: 25 dBm • 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3Minimum transmit powerCE (ERIP)• 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3FCC (Conducted Power)• 2.4 GHz: 4 dBm • 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3Adjustable power increment: 1 dBm*Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations |
| Button | 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| ขนาด (กว้าง × ลึก × สูง) | • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) |

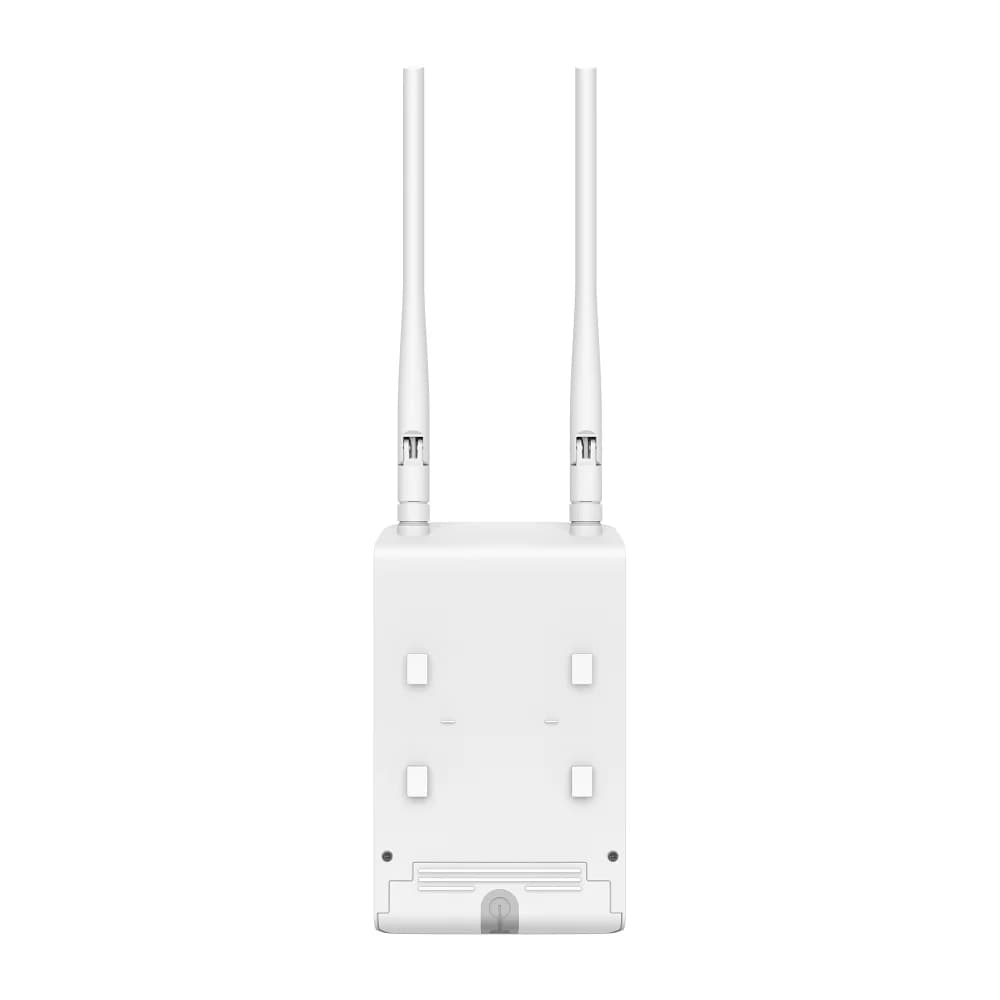

| Mounting | • Pole Mount (Kits included)• Wall Mount (Kits included) |
| Certification | CE, FCC |
| อุปกรณ์ในกล่อง | • EAP603-Outdoor• Passive PoE Adapter• Power Cord• Installation Guide• Mounting Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
| แหล่งจ่ายไฟ | • 802.3at PoE• 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only) |
| Weatherproof Enclosure | IP66 for Wall MountIP65 for Pole Mount |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Coverage | • 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m) |
| Signal Rate | • 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps*Note: Country-Specific Restriction Apply |
| ระยะเวลารับประกัน | 3 ปี |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
