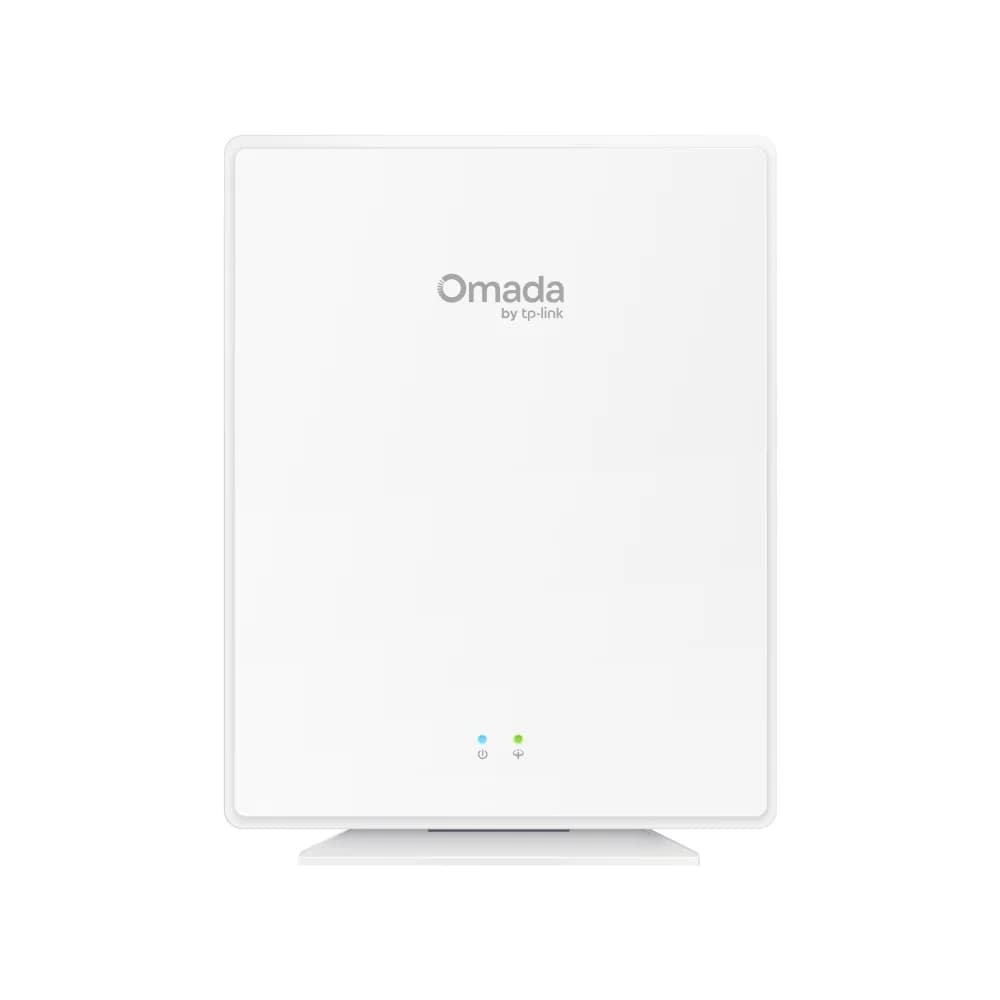

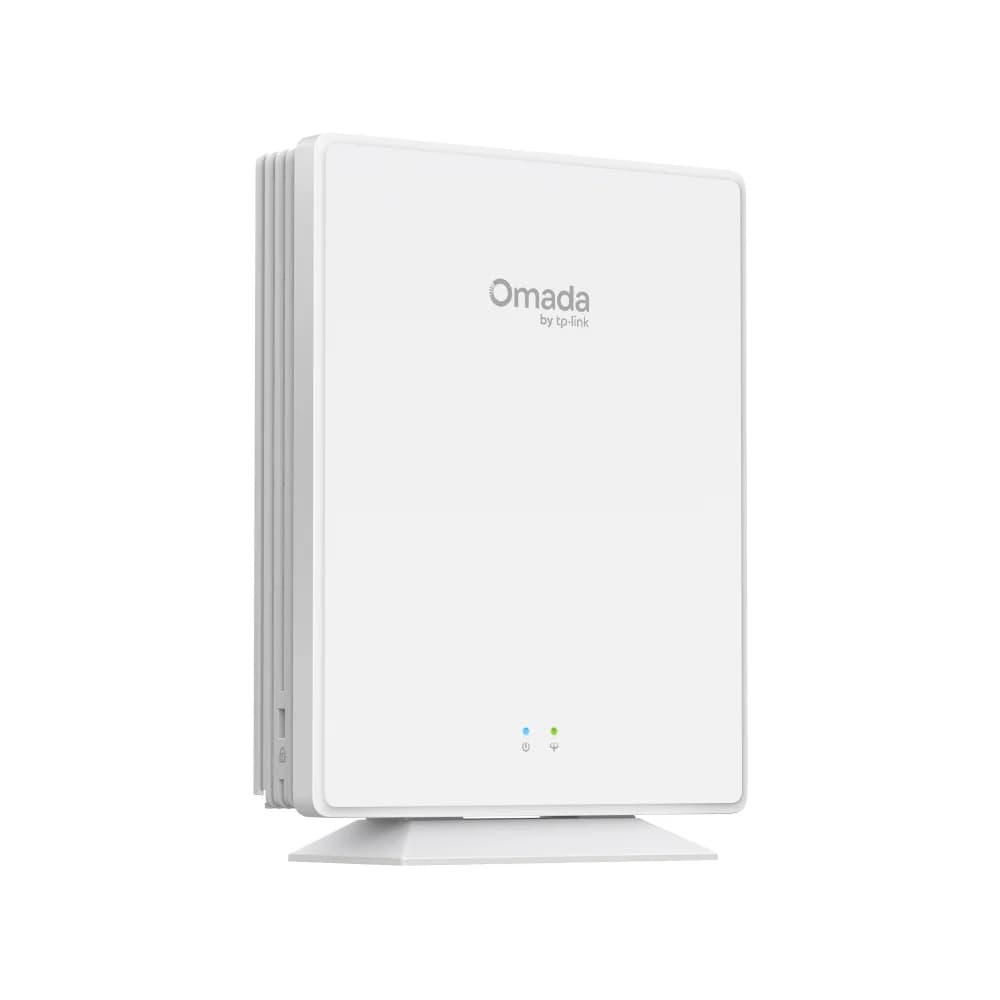

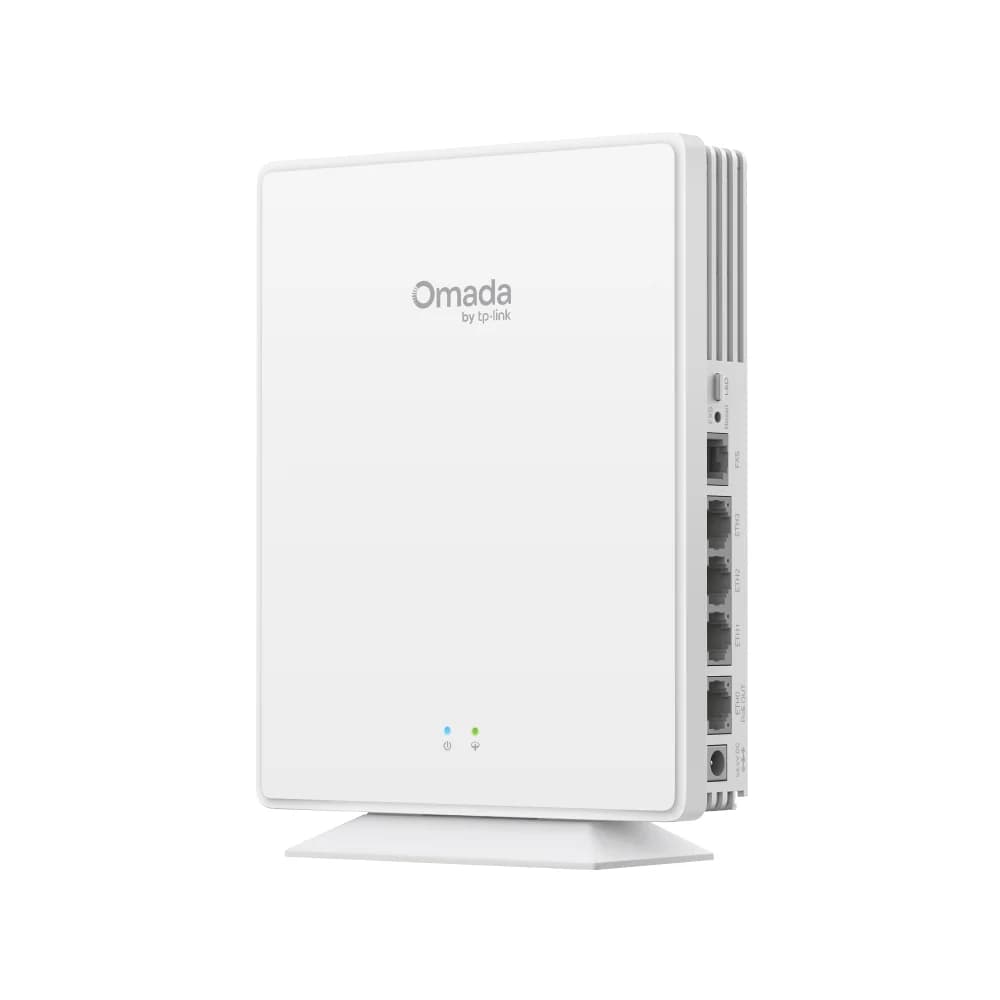

Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
| รุ่น | EAP610GP-Desktop |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| เสาอากาศ | Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 4.5 dBi |
| Concurrent Clients | 120+* |
| มาตรฐานไร้สาย | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO‡• HE80 (80 MHz Bandwidth)‡• OFDMA‡• Mesh#• Seamless Roaming §• Multiple SSIDs (16 SSIDs, 8 on each band)• Enable/Disable SSID Broadcast• Enable/Disable Wireless Radio• Guest Network• Automatic Channel Assignment• Beamforming• Rate Limit• Band Steering• Load Balance• Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule and Statistics• Static IP/Dynamic IP |
| ความปลอดภัยไร้สาย | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN • Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |

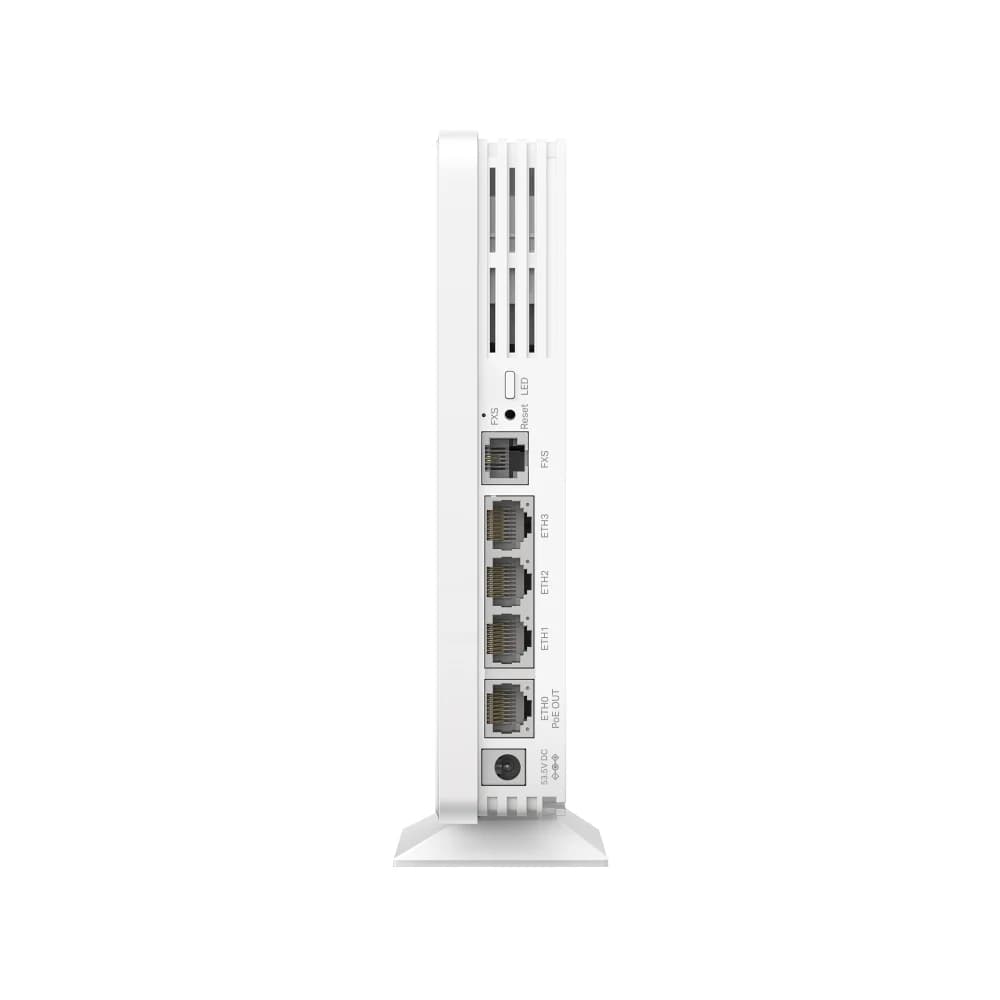

| พอร์ตเชื่อมต่อ | • 1x GPON Port • 1x FXS Port• 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out) |
| GPON Interface | • Port Type: SC-APC• Standards and Protocols: ITU-984.x, G.988, Class B+• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)• Fiber Type: 9/125 um Single mode• Max. Cable Length: 20 km |
| Max. Power Consumption | 17.3W (PoE Out Off) |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<27 dBm(5 GHz, band3, EIRP)• FCC: <25 dBm (2.4 GHz)<25 dBm (5 GHz) |
| Button | • Reset• LED |
| Weight | 492g |
| ขนาด (กว้าง × ลึก × สูง) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |

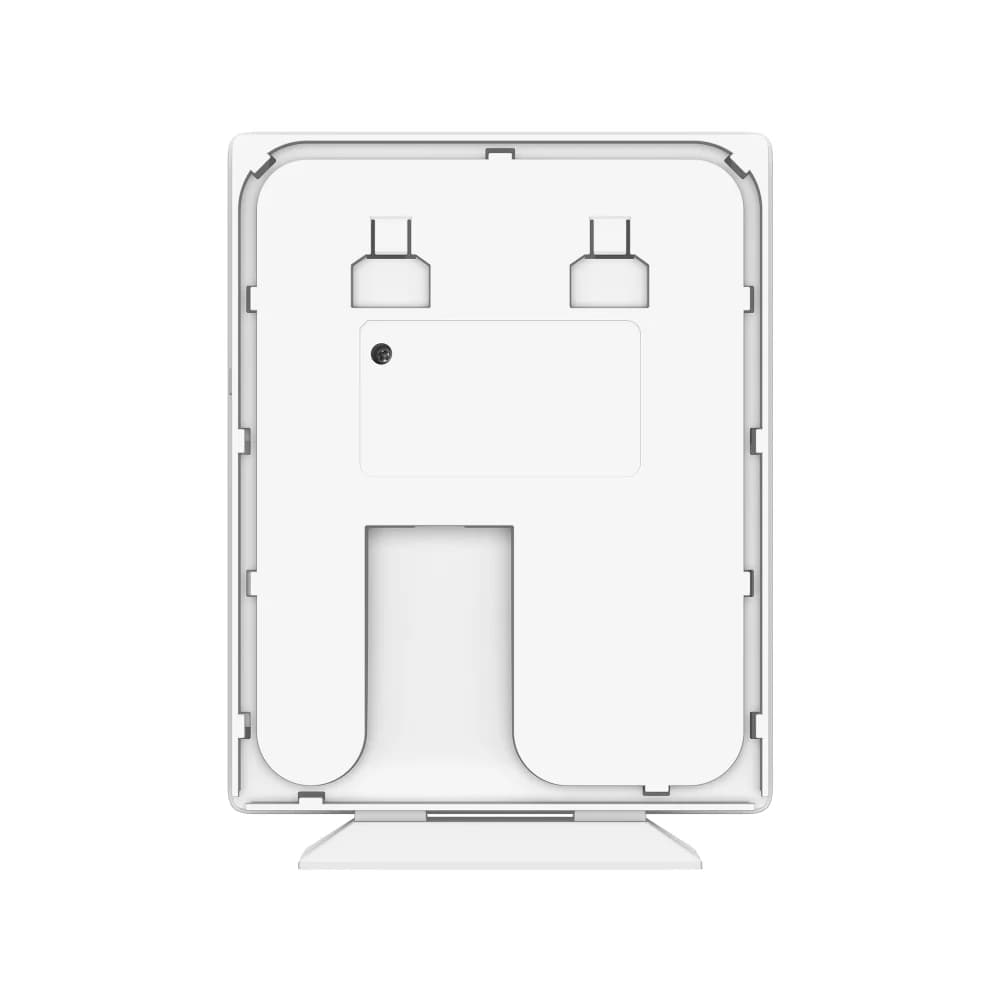

| Mounting | Desktop / Wall mouting (Kits included) |
| Certification | CE, FCC, IC |
| อุปกรณ์ในกล่อง | • EAP610GP-Desktop• Desktop/Wall Mounting Kit• Power Adapter• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| แหล่งจ่ายไฟ | 53.5V/0.81A DC |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Coverage | 140㎡(1500ft²)** |
| Signal Rate | • 5 GHz: 1201 Mbps†• 2.4 GHz: 574 Mbps |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
