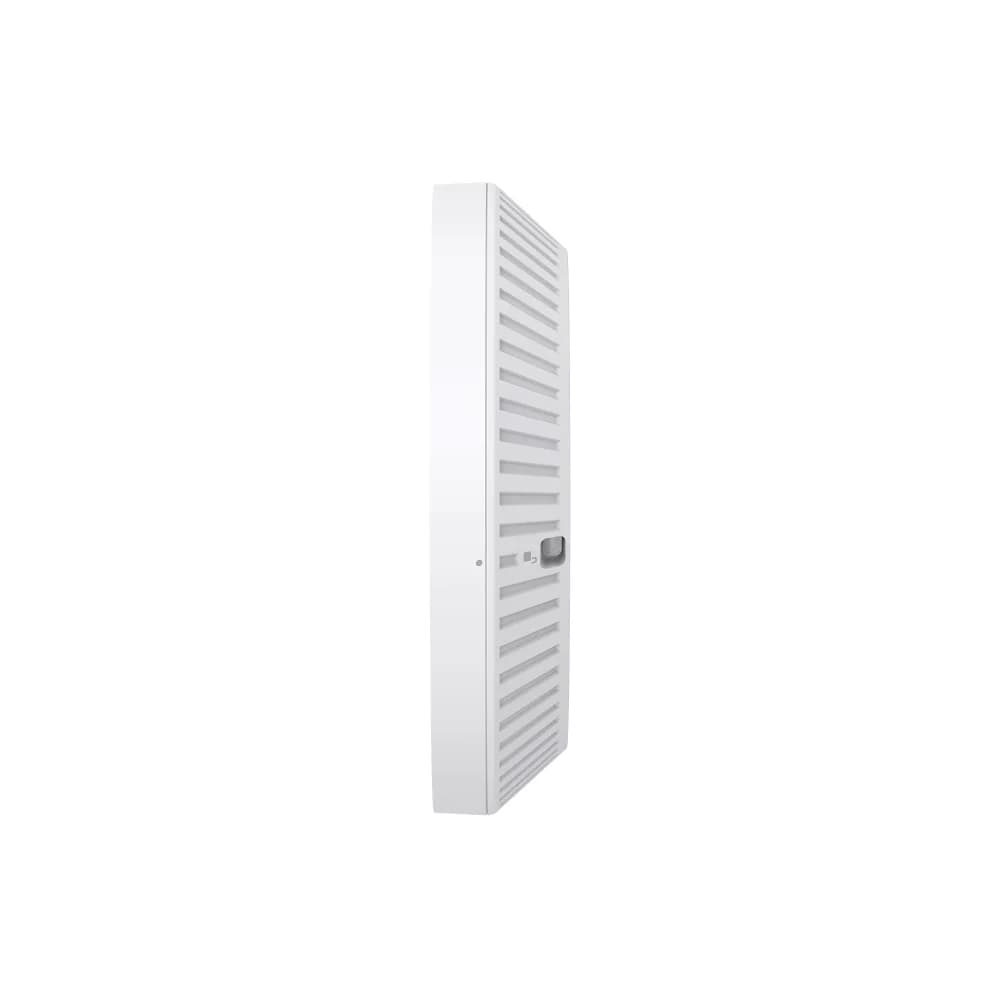

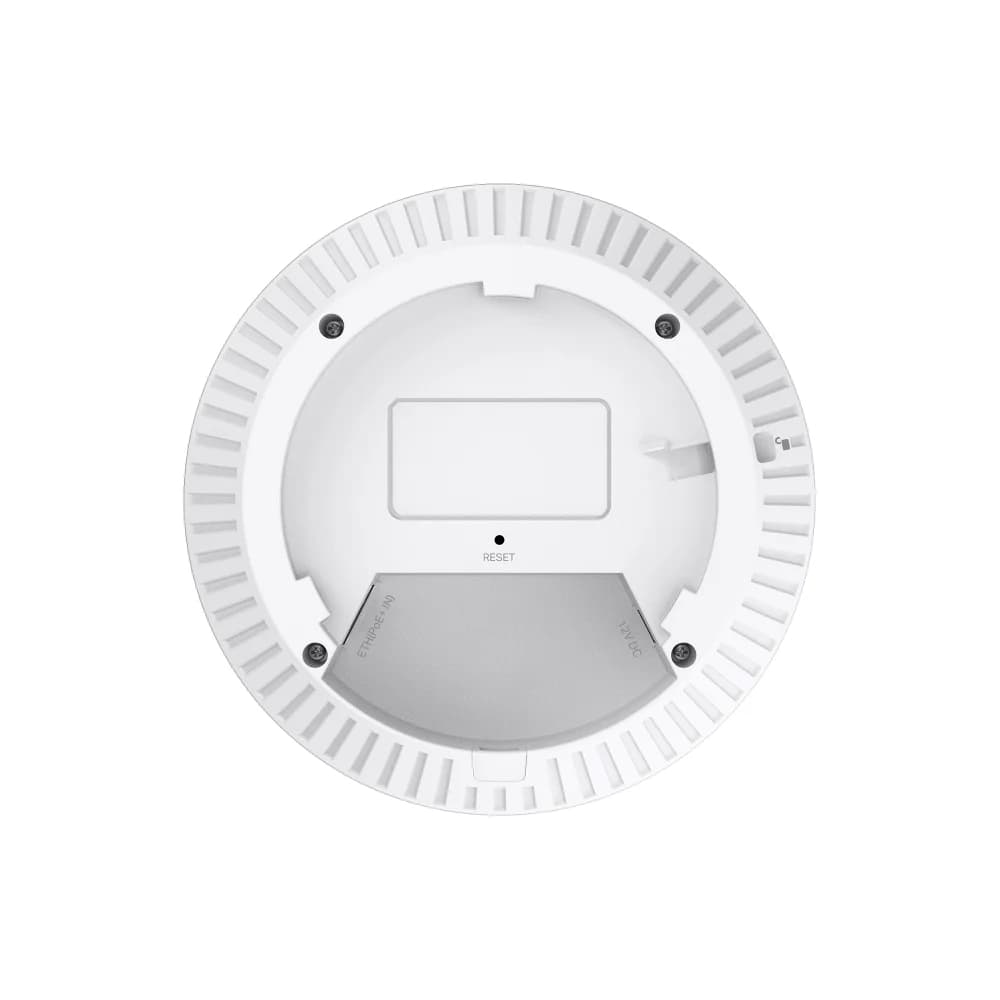

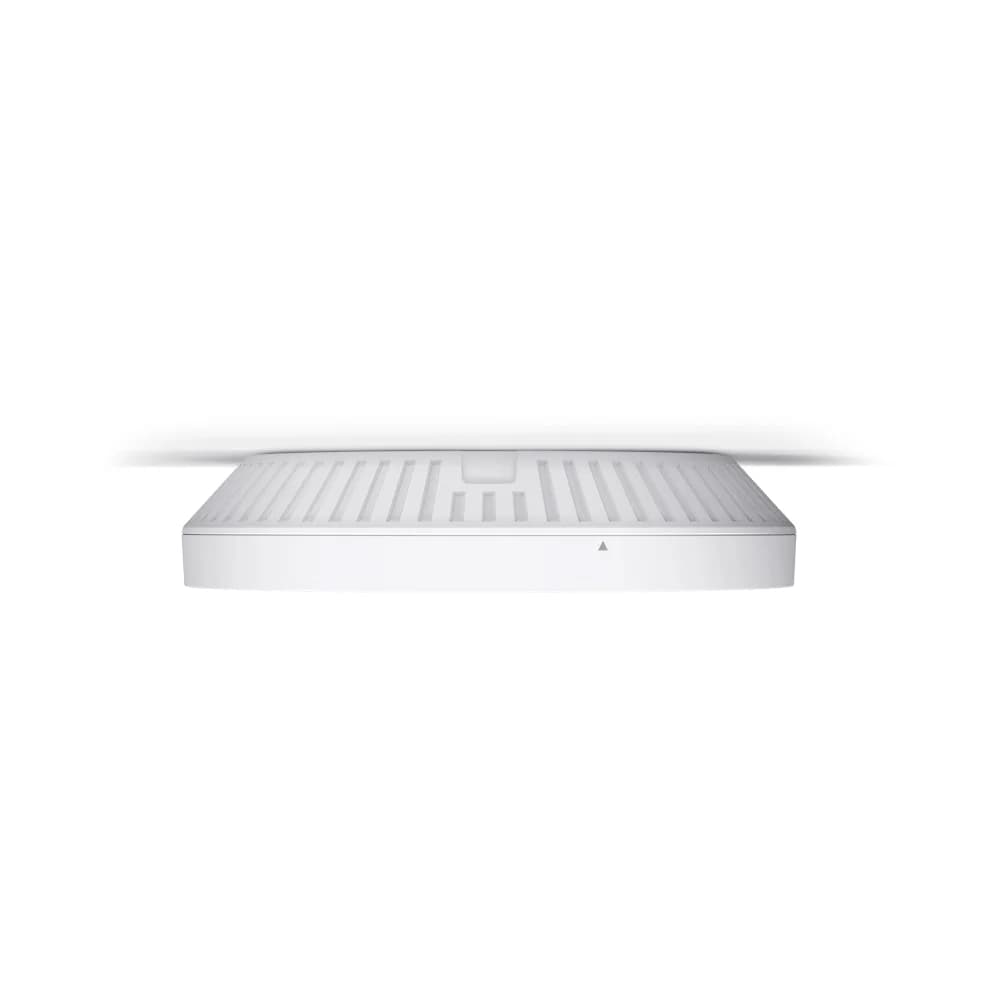

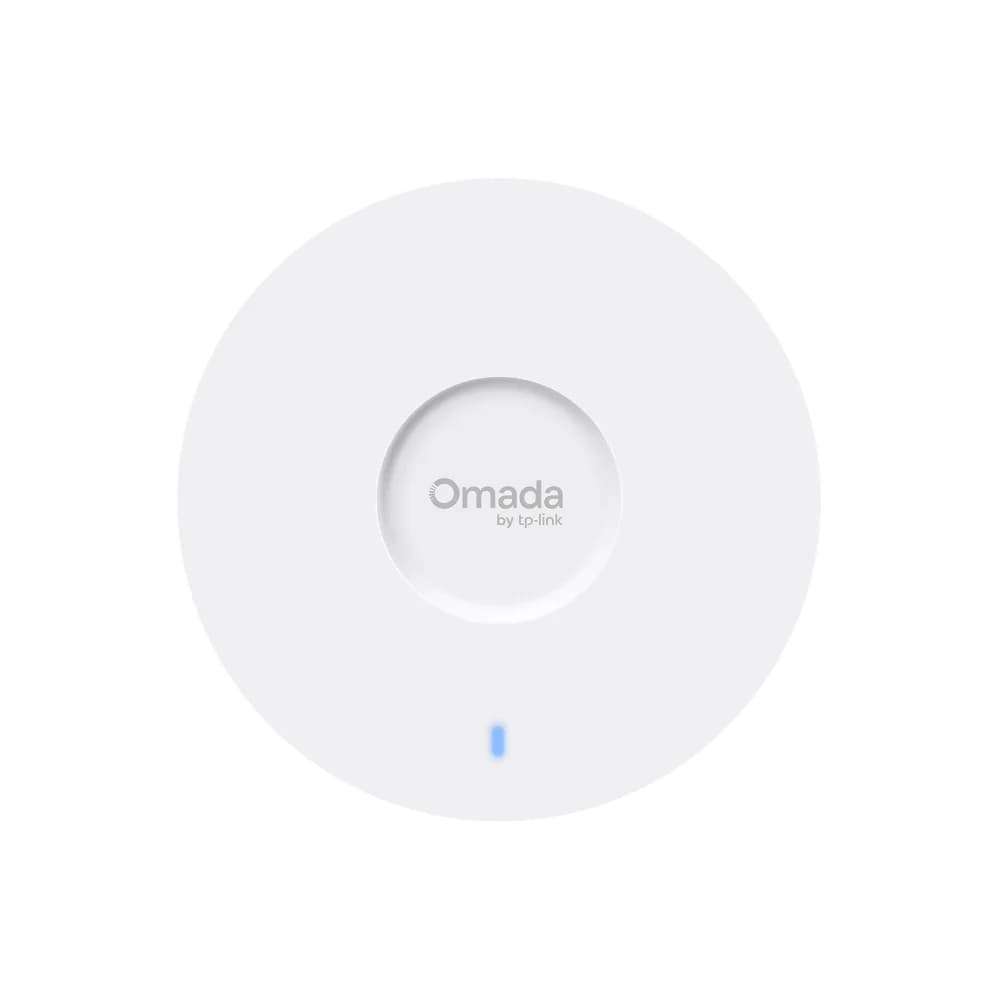

AX3000 Ceiling Mount WiFi 6 Access Point
| รุ่น | EAP650 |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Management MAC Access Control | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| เสาอากาศ | Internal Dual-Band Antennas• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |
| Bluetooth | V5.2 |
| Concurrent Clients | 250+** |
| มาตรฐานไร้สาย | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • HE160 (160 MHz Bandwidth)‡• Seamless Roaming △• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| ความปลอดภัยไร้สาย | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| พอร์ตเชื่อมต่อ | 1× Gigabit Ethernet Port |
| Max. Power Consumption | • EU: 13.7 W• US: 15.5 W |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)6-22 dBm5 GHz, U-NII-1, U-NII-2A, EIRP)6-27 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-26 dBm (2.4 GHz)4-24 dBm (5 GHz, U-NII-1)4-25 dBm (5 GHz, U-NII-2A, U-NII-2C, U-NII-3) |
| Button | Reset |
| Weight | • Main Unit: 0.38 kg (0.838 lb)• Mounting Bracket: 0.054 kg (0.119 lb)• Shipping Unit: 0.85kg(1.87lbs) |
| ขนาด (กว้าง × ลึก × สูง) | • Main Unit: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)• Shipping Unit: 9.7 × 9.0 × 2.6 in (245 × 228 × 65 mm) |

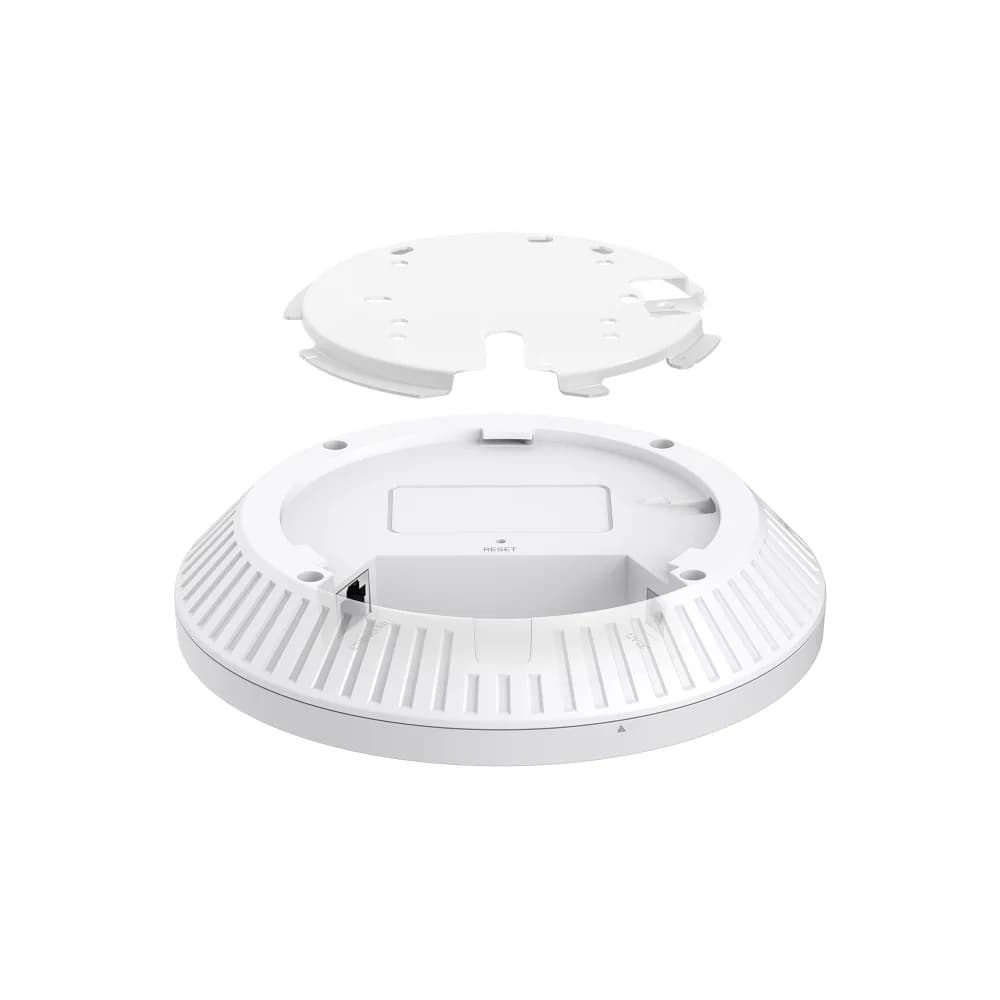

| Mounting | • Ceiling / Wall / Junction Box / T-Bar Mounting (Kits included) |
| Certification | CE, FCC |
| อุปกรณ์ในกล่อง | • EAP650• Power Adapter• Mounting Kits• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| แหล่งจ่ายไฟ | • 802.3at PoE• 12V DC (Power Adapter included)(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)• 48V Passive PoE |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Coverage | 1500 ft² (140㎡)* |
| Signal Rate | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 574 Mbps |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
