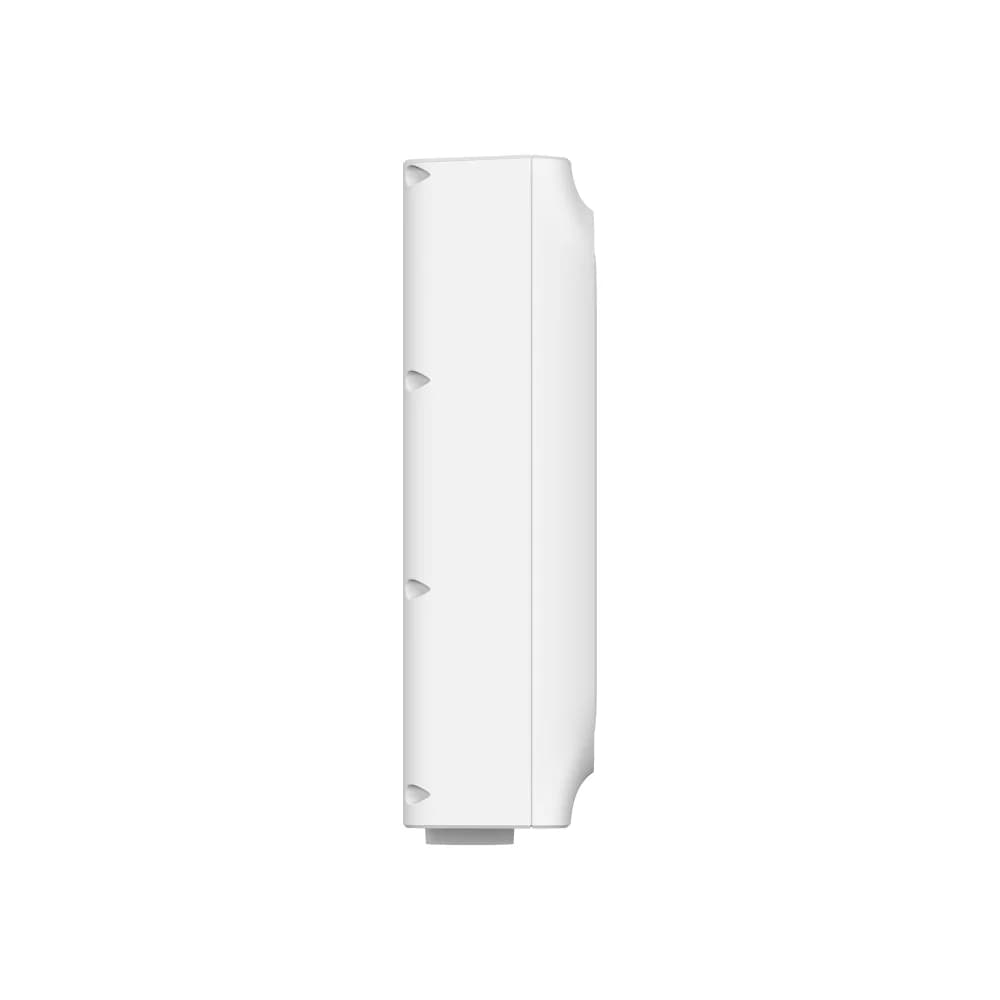

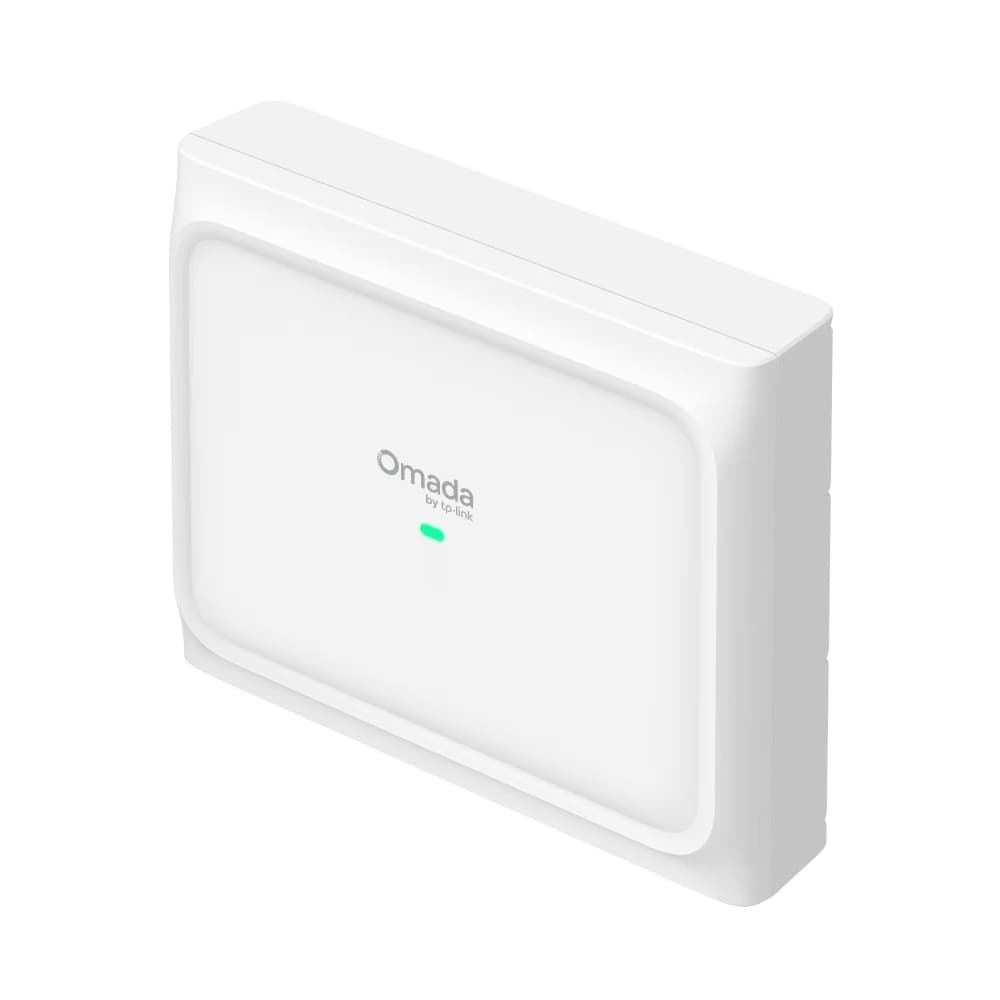

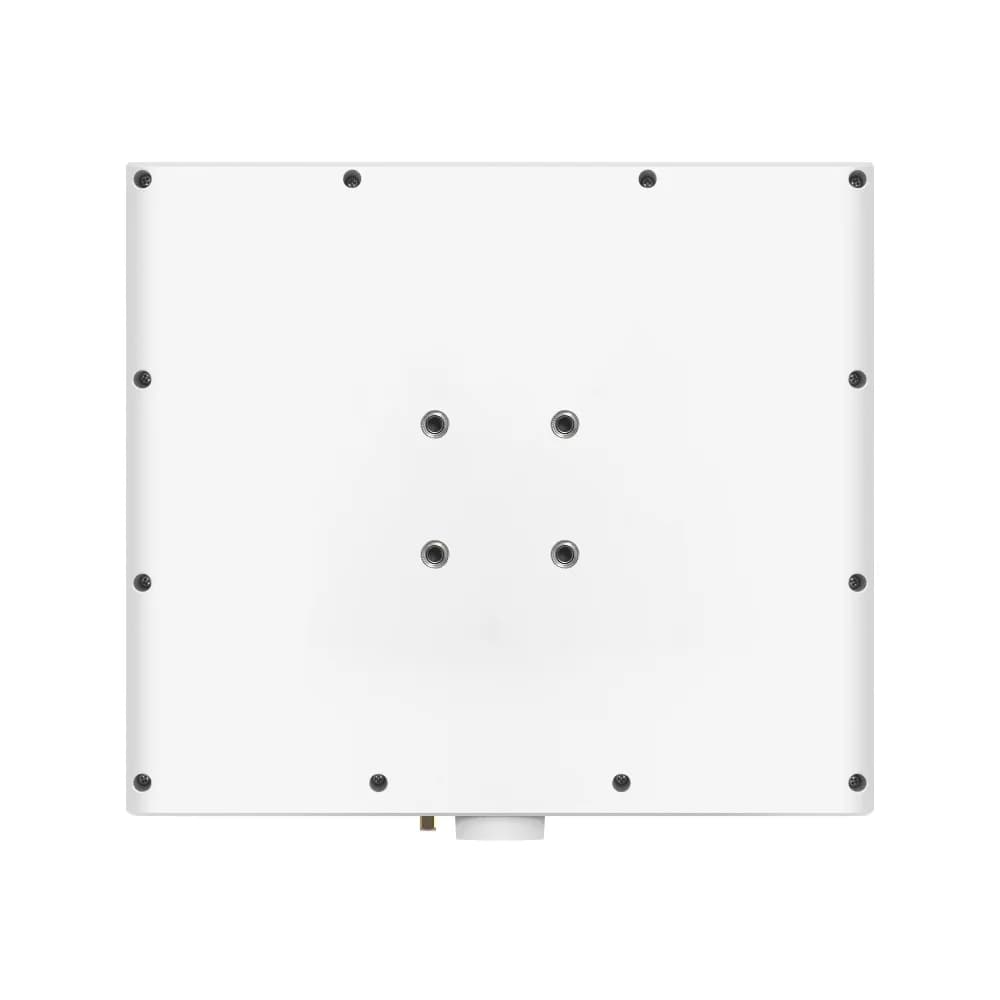

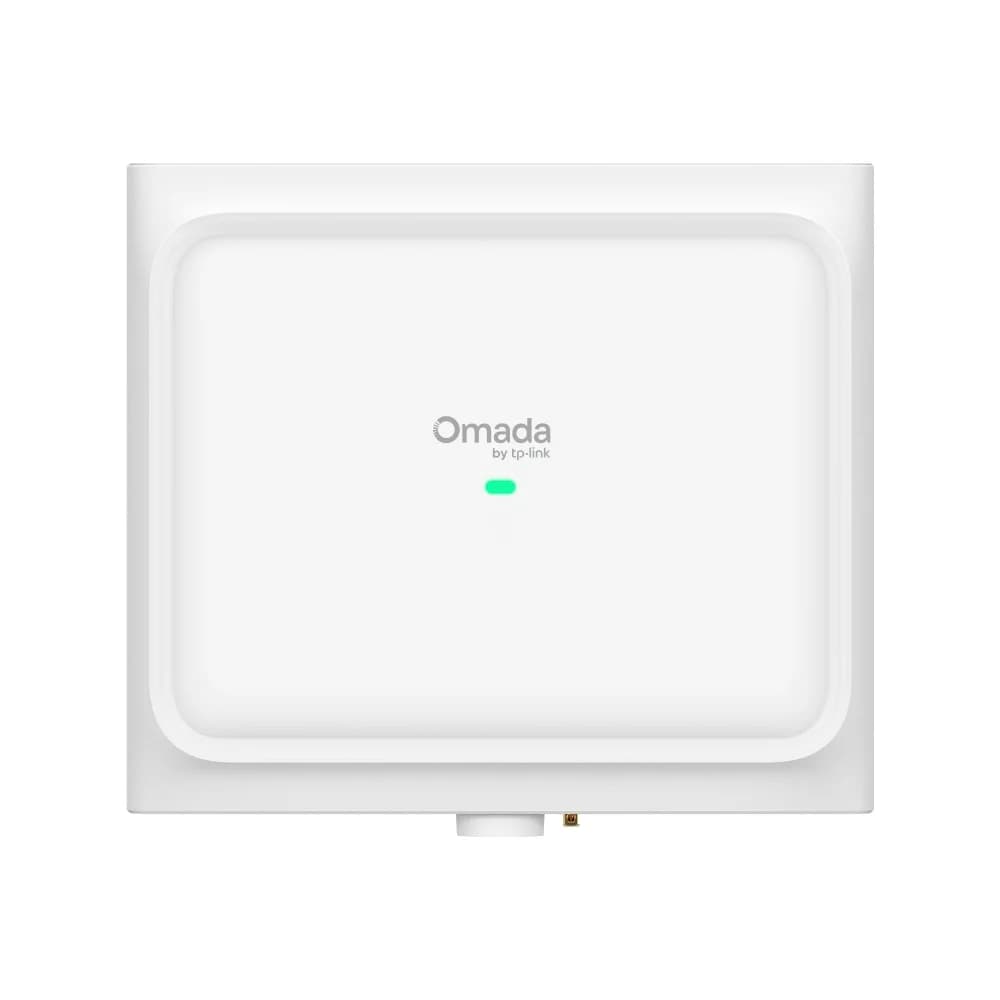

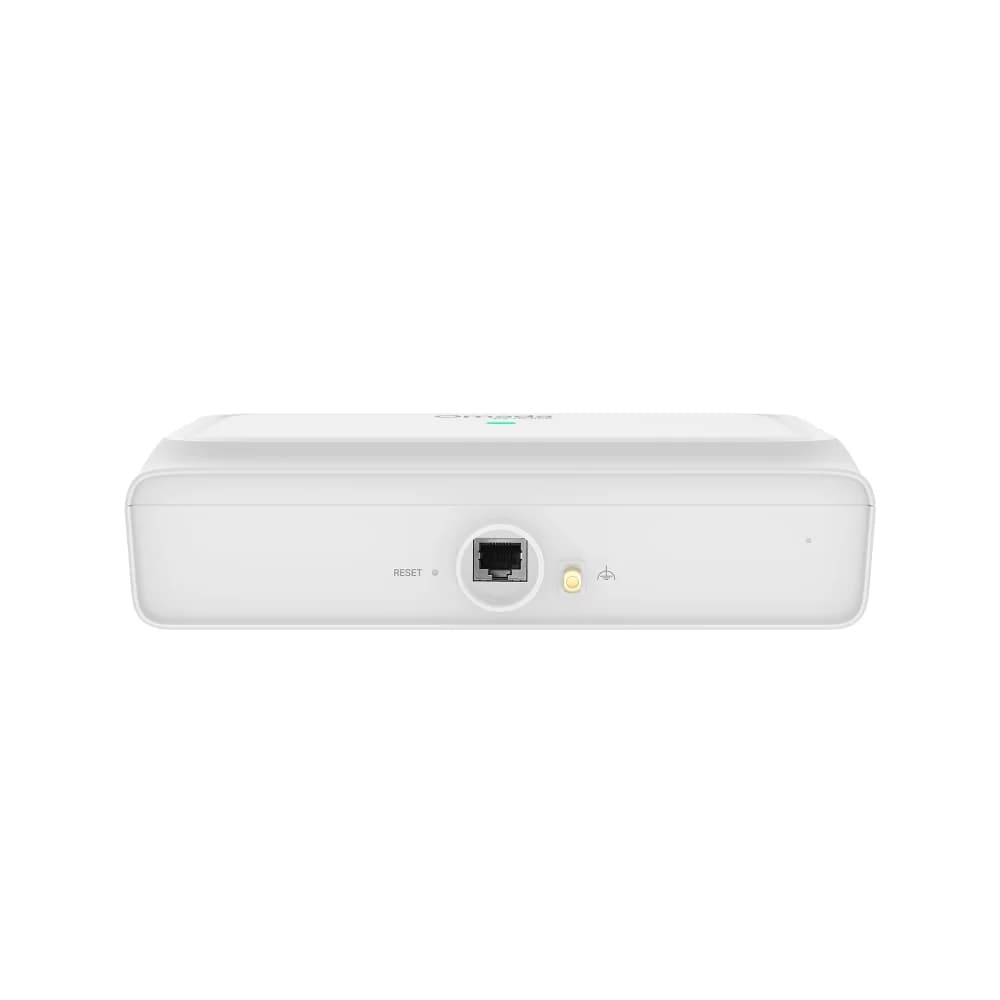

Directional AX3000 Indoor/Outdoor WiFi 6 Access Point
| รุ่น | EAP650 D30-Outdoor |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller• Omada App |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| เสาอากาศ | Built-in Directional Antennas: • 2.4 GHz: 2× 12 dBi• 5 GHz: 2× 15 dBiBeamwidth: 30° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Concurrent Clients | 250+** |
| มาตรฐานไร้สาย | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Wireless Functions | • 1024-QAM• DL/UL OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 on each band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO• Omada Mesh§• Seamless Roaming(802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule• Wireless Statistics• Static IP/Dynamic IP |
| ความปลอดภัยไร้สาย | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| พอร์ตเชื่อมต่อ | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE) |
| Transmission Power | • EU: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
| Button | Reset |
| ขนาด (กว้าง × ลึก × สูง) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Mounting | Wall/Pole/Ceiling Mount |
| Certification | CE, FCC |
| อุปกรณ์ในกล่อง | • Access Point EAP650 D30-Outdoor• Mounting Kits• Installation Guide• Waterproof Kit |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| แหล่งจ่ายไฟ | • 802.3at PoE• 48V Passive PoE |
| Weatherproof Enclosure | IP68 |
| Restore & Backup | Yes |
| NTP | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)† |
| ระยะเวลารับประกัน | 3 ปี |
