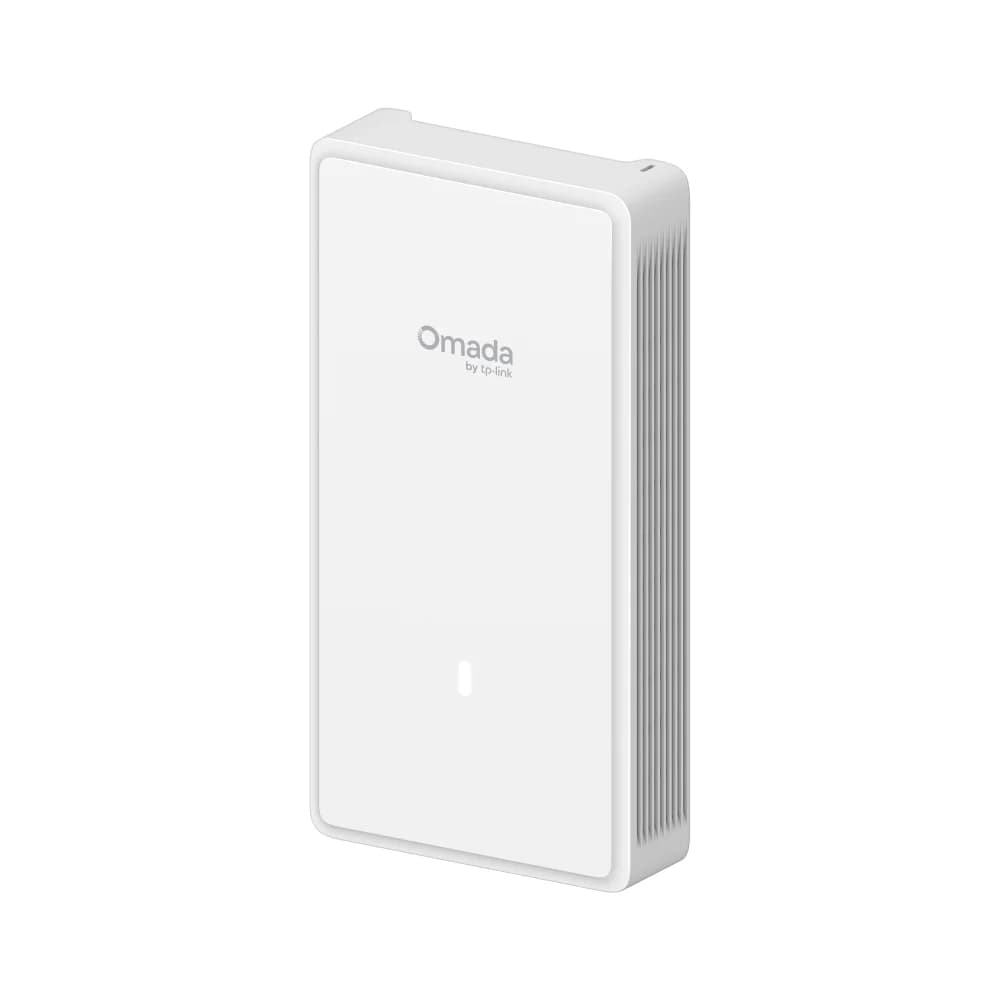

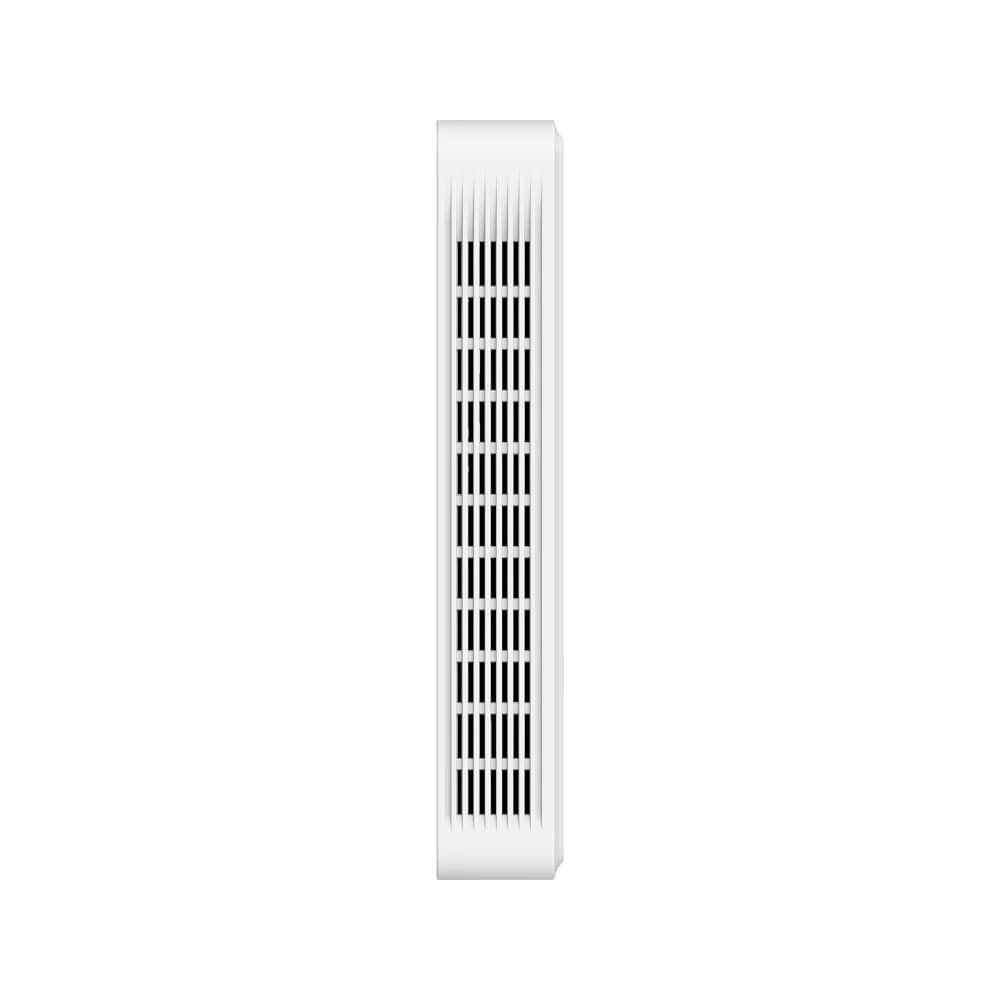

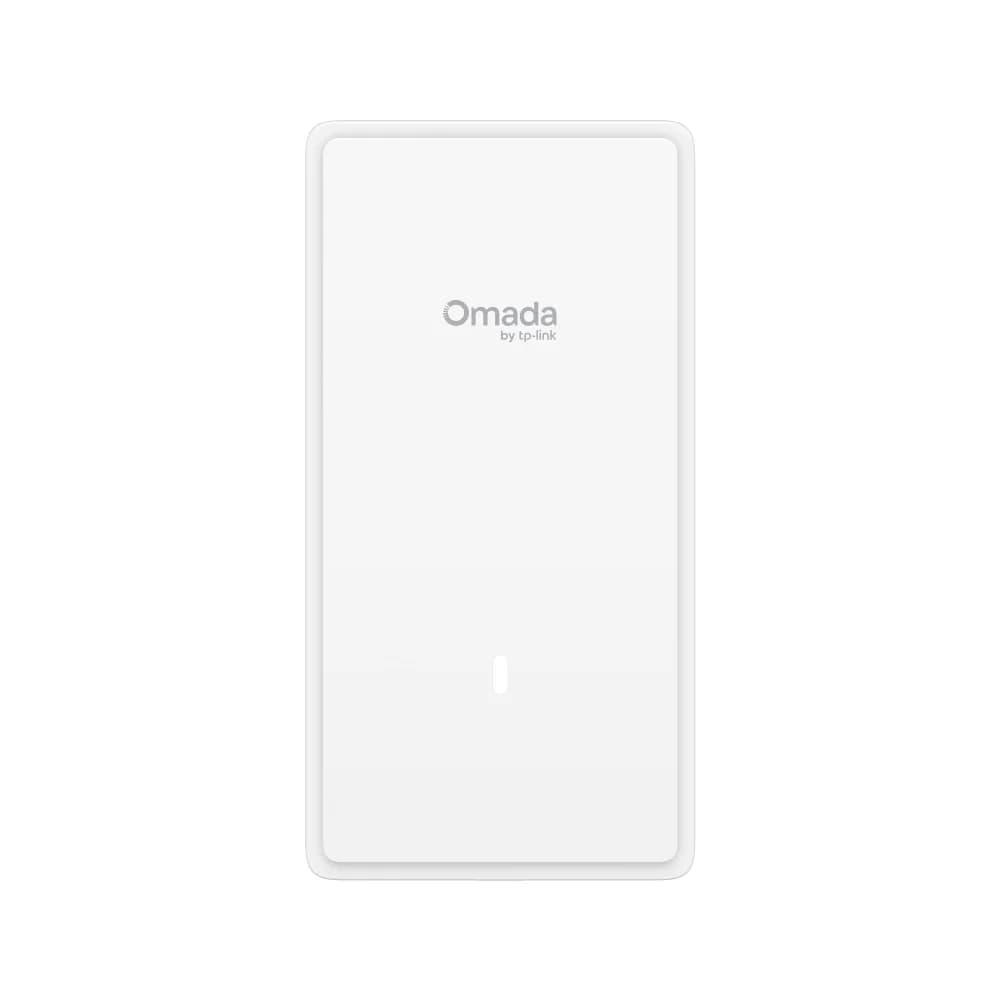

BE5000 Wall Plate Wi-Fi 7 Access Point
| รุ่น | EAP725-Wall |
|---|---|
| Omada App | Yes ( V4.24 and above) |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada Controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| เสาอากาศ | • 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 5 dBi• Bluetooth: 1 × 1 dBi(Note: The gains above are the single-antenna peak gains) |
| Bluetooth | V5.2 |
| Concurrent Clients | 250+* |
| มาตรฐานไร้สาย | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | • MLO‡• 4K-QAM‡• Multi-RUs‡• 240 MHz Bandwidth‡• 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming§• Beamforming• Rate Limit (Based on SSID/Client)• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP |
| ความปลอดภัยไร้สาย | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |

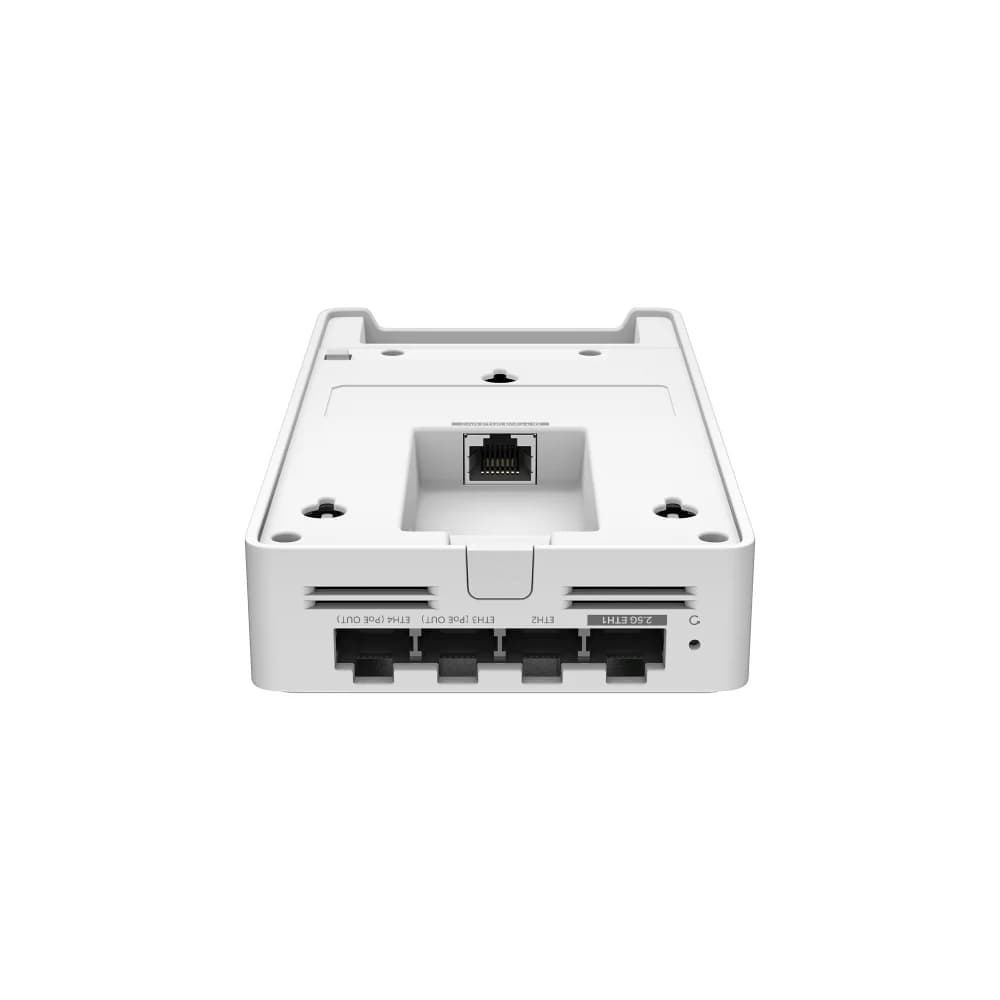

| พอร์ตเชื่อมต่อ | • Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.)# |
| PoE Out | With 802.3bt Input:• Supports dual PoE or single PoE+ output, with a 30W total power budget.With 802.3at Input:• Supports dual PoE output, with a 7W total power budget.• Limitation: If both ports are connected, one port will shut down automatically if either exceeds 3.5W. |
| Max. Power Consumption | 46.8W with 30W PoE Out (Requires 802.3bt PoE++ Input) |
| Transmission Power | 4-23 dBm (2.4GHz)4-24 dBm (5GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM) |
| Physical Security Lock | Yes |
| Button | Reset |
| ขนาด (กว้าง × ลึก × สูง) | 6.6 × 3.4 × 1.1 in (167.8 × 86 × 28 mm) |

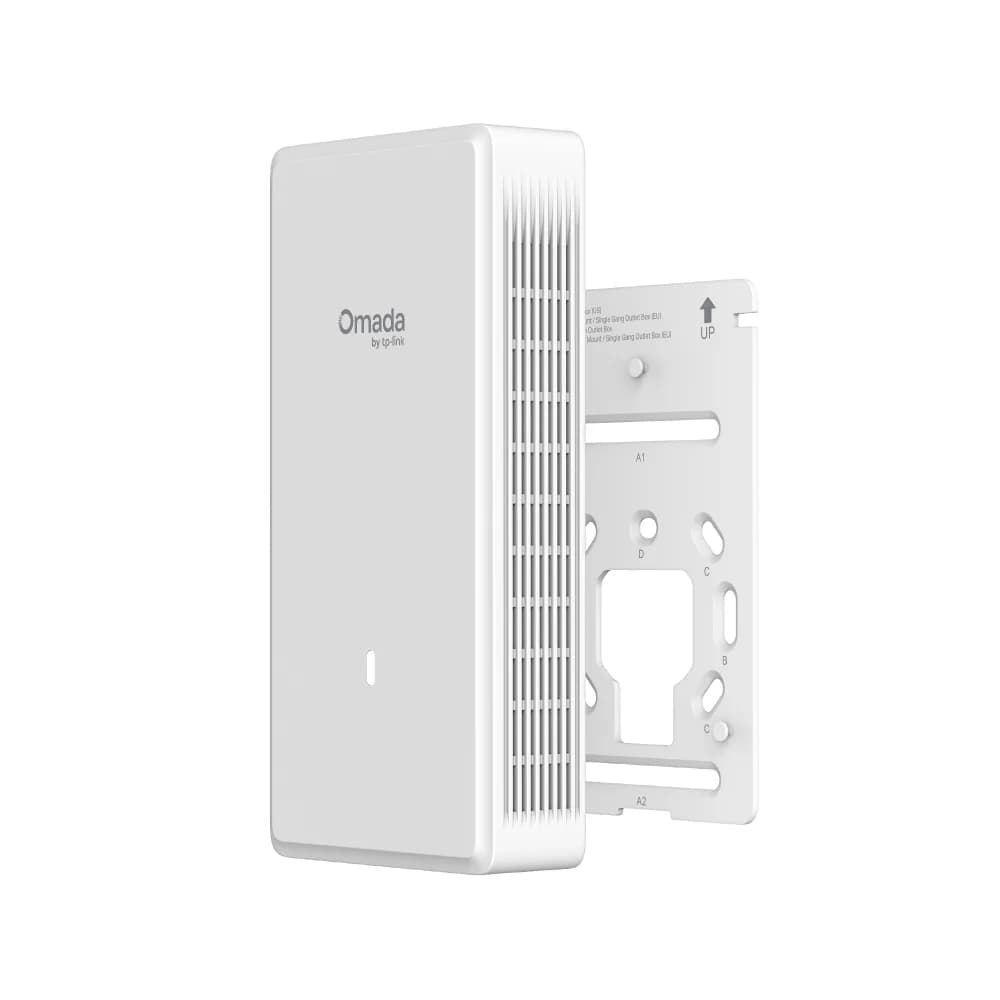

| Mounting | Junction Box / Wall Mounting (Kits included) |
| Certification | FCC/CE/NCC/VCCI/JRF/BSMI/WFA |
| อุปกรณ์ในกล่อง | • EAP725-Wall• Installation Guide• Mounting Kits |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -30–70 ℃ (-22–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing• Operating &Storage Altitude: up to + 2000 m (6561 feet) |
| แหล่งจ่ายไฟ | 802.3at/bt PoE |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Coverage | 970 ft² (90 ㎡)** |
| Signal Rate | • 5 GHz: Up to 4323 Mbps†• 2.4 GHz: Up to 688 Mbps† |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
