- Interface
- 1× 2.5G Ethernet Port
- Button
- Reset
- Power Supply
- 802.3at PoE or 12V/2.5A DC
- Power Consumption
- • 24.05 W (For PoE);
- 20.92 W (For DC)
- Dimensions ( W x D x H )
- 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna Type
- • 2.4 GHz: 2× 4.0 dBi
- 5 GHz
- 2× 5.0 dBi
- 6 GHz
- 2× 5.0 dBi
- Bluetooth
- 1 × 4.0 dBi, Bluetooth 5.2
- *Firmware update may be required.

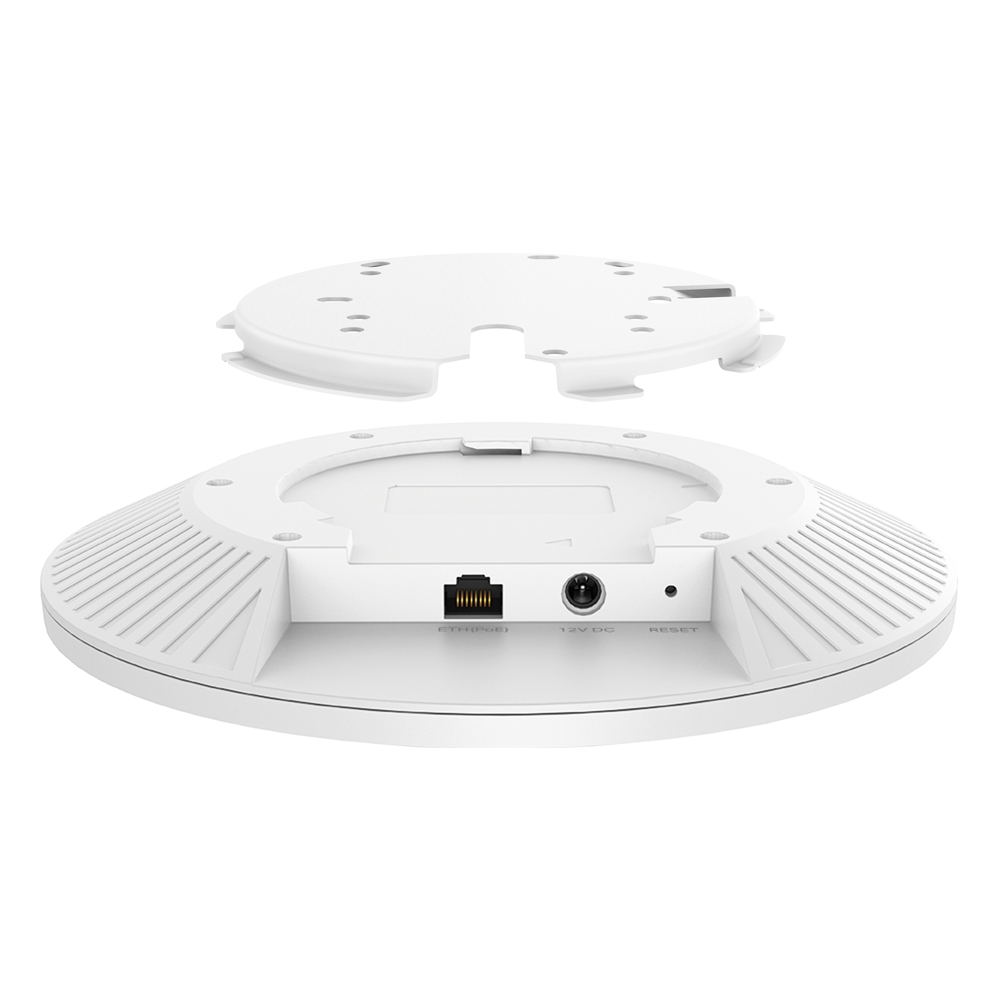

- Mounting
- Ceiling / Wall Mounting (Kits Included)
- Coverage
- 140㎡(1500 ft²) §
- Wireless Client Capacity
- 380+ **
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency
- 6 GHz, 5 GHz, and 2.4 GHz
- Signal Rate
- 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz) †
- Wireless Functions
- • MLO ‡
- 4K-QAM ‡
- Seamless Roaming(802.11k/v/r)
- MU-MIMO ‡
- EHT320 ‡
- Mesh △
- BSS Coloring ‡
- OFDMA ‡
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS
- 24(8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
- Wireless Security
- • Captive Portal Authentication △
- Access Control
- Maximum number of MAC Filter
- 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, band 1&band 2, EIRP)
- < 28 dBm (5 GHz, band 3, EIRP)
- < 23dBm (6 GHz, EIRP)
- Omada App
- Yes
- Centralized Management
- • Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- Yes
- Web-based Management
- Yes
- Certification
- CE, FCC, RoHS, IC
- Package Contents
- • EAP772
- Installation Guide
- Ceiling/Wall Mounting Kit
- Note
- Power Adapter is NOT included.
- Environment
- • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- Storage Temperature
- -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity
- 10%–90% non-condensing;
- Storage Humidity
- 5%–90% non-condensing;
