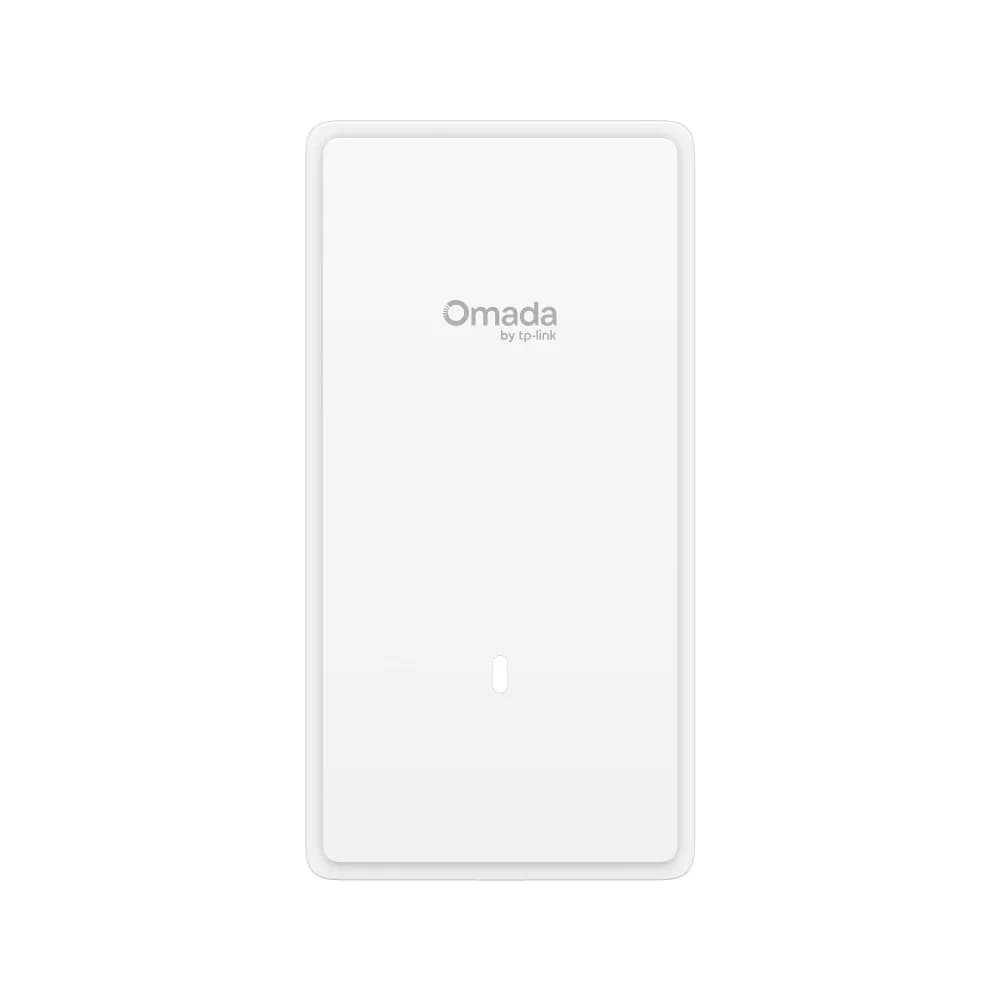

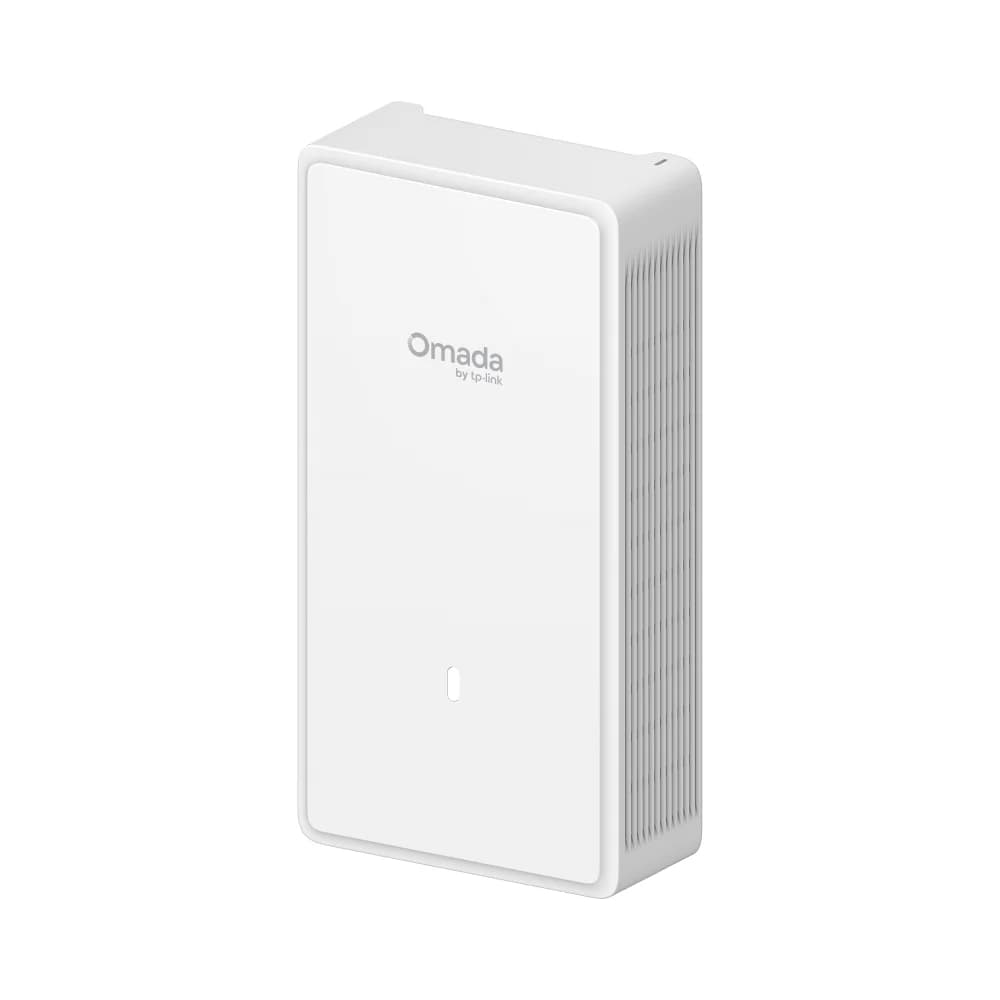

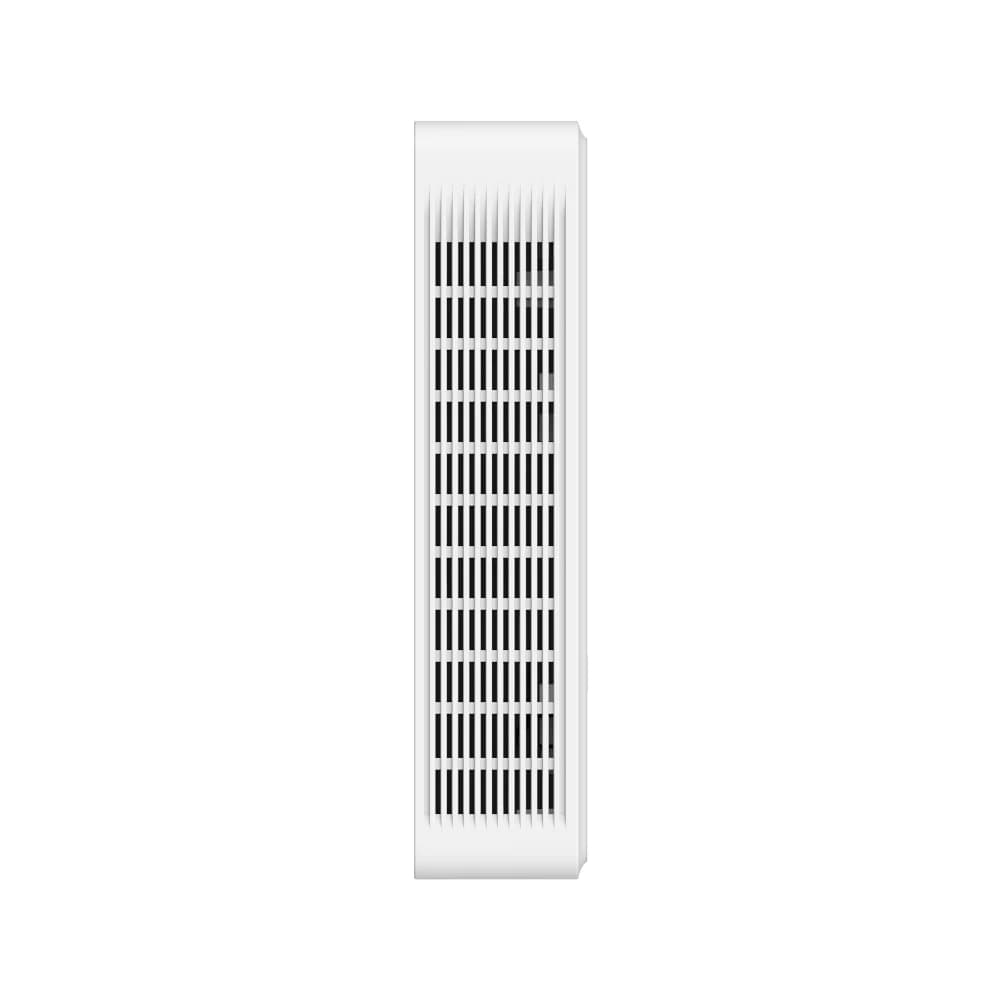

BE9300 Wall Plate Wi-Fi 7 Access Point
| รุ่น | EAP775-Wall |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of an Omad Controller. |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| เสาอากาศ | 6× Internal Antennas• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 5.5 dBi• 6 GHz: 2× 5.5 dBi |
| Bluetooth | V5.2 |
| Concurrent Clients | 380+** |
| มาตรฐานไร้สาย | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Wireless Functions | • MLO‡• 4K-QAM‡• Multi-RUs‡• 320 MHz Bandwidth‡• 24 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming△• Beamforming• Rate Limit (Based on SSID/Client)• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP |
| ความปลอดภัยไร้สาย | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |

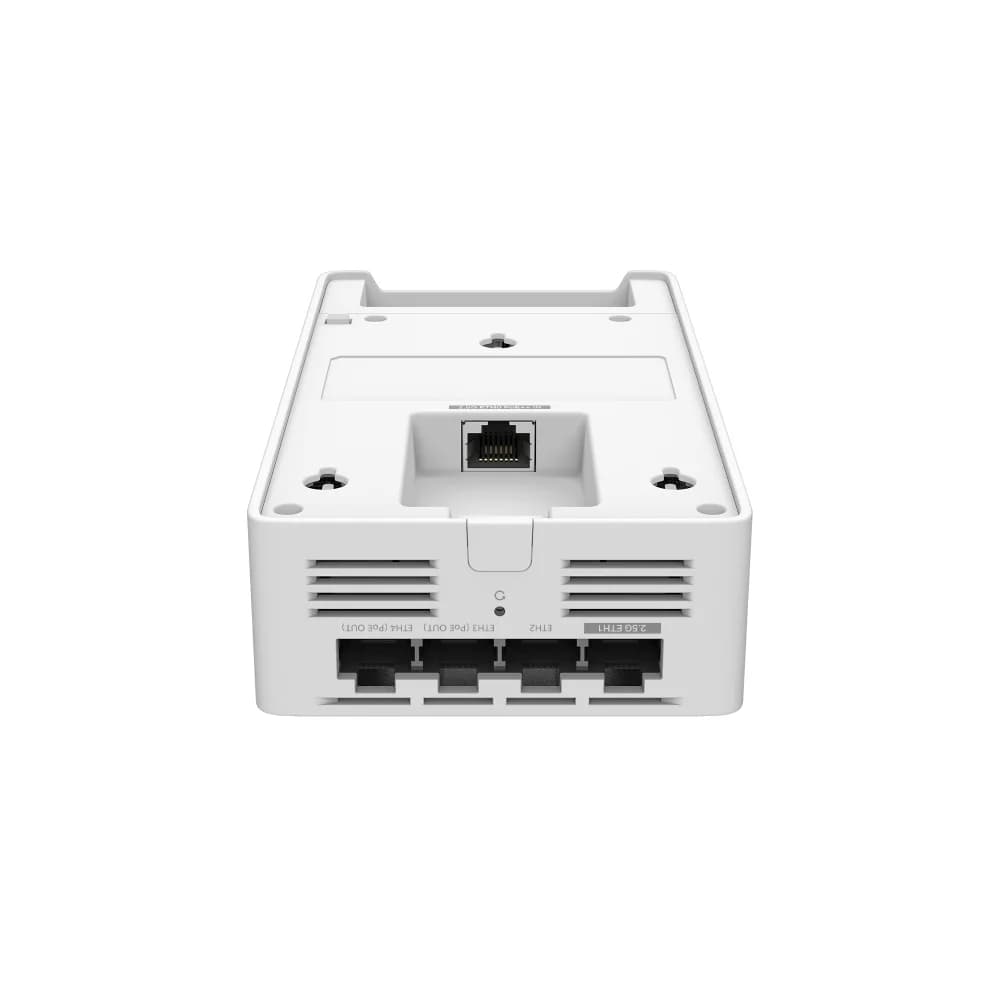

| พอร์ตเชื่อมต่อ | • Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.) |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input. |
| Max. Power Consumption | 43.35W（with 25W PoE Out) |
| Transmission Power | 6-20 dBm (2.4 GHz, EIRP)6-23 dBm (5 GHz, U-NII-1, U-NII-2A, EIRP)6-27.5 dBm (5 GHz, U-NII-2C, EIRP)6-23 dBm (6 GHz,EIRP) |
| Physical Security Lock | Yes |
| Button | Reset |
| ขนาด (กว้าง × ลึก × สูง) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |

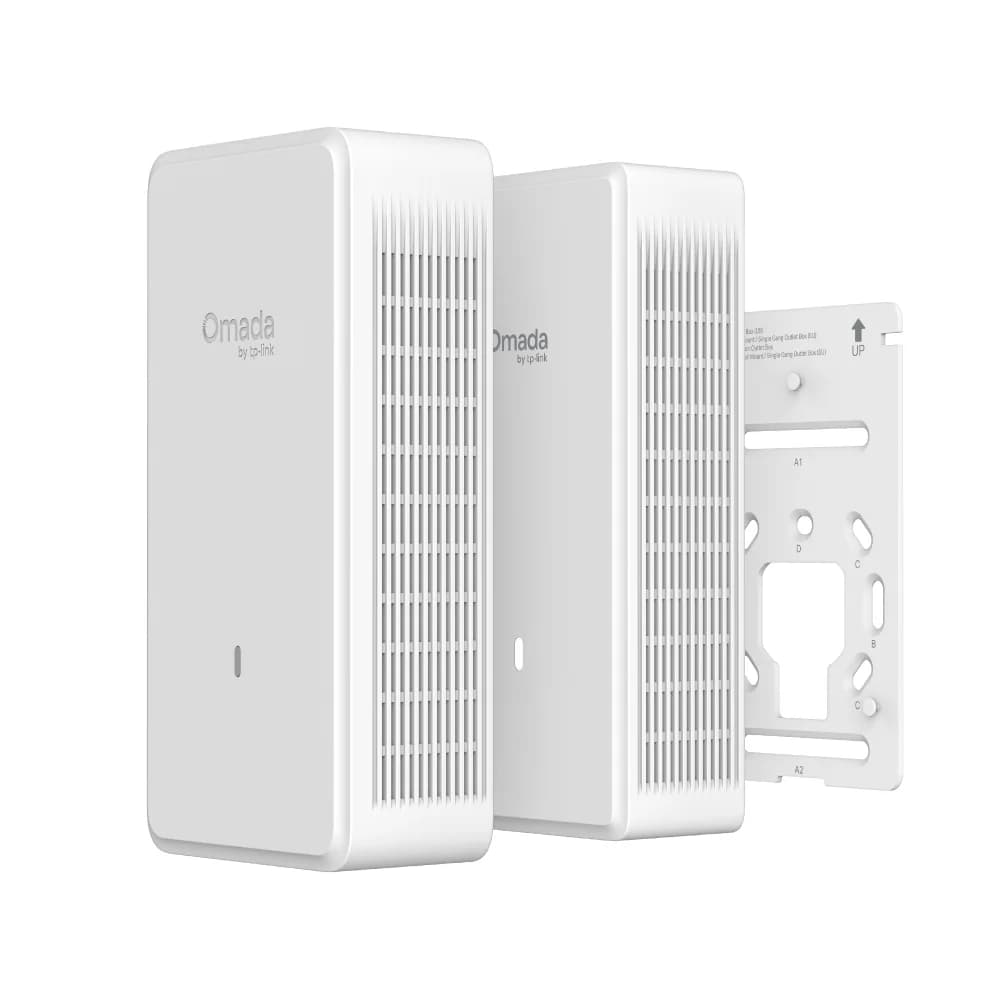

| Mounting | Wall Mounting (Kits included) |
| Certification | • Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B• FCC/CE/NCC/VCCI/JRF/BSMI |
| อุปกรณ์ในกล่อง | • EAP775-Wall• Paintable Cover• Installation Guide• Mounting Kits |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| แหล่งจ่ายไฟ | 802.3at/bt PoE |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Coverage | 1050 ft² (100 m²)* |
| Signal Rate | • 6 GHz: Up to 5765 Mbps• 5 GHz: Up to 2882 Mbps• 2.4 GHz: Up to 688 Mbps |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
