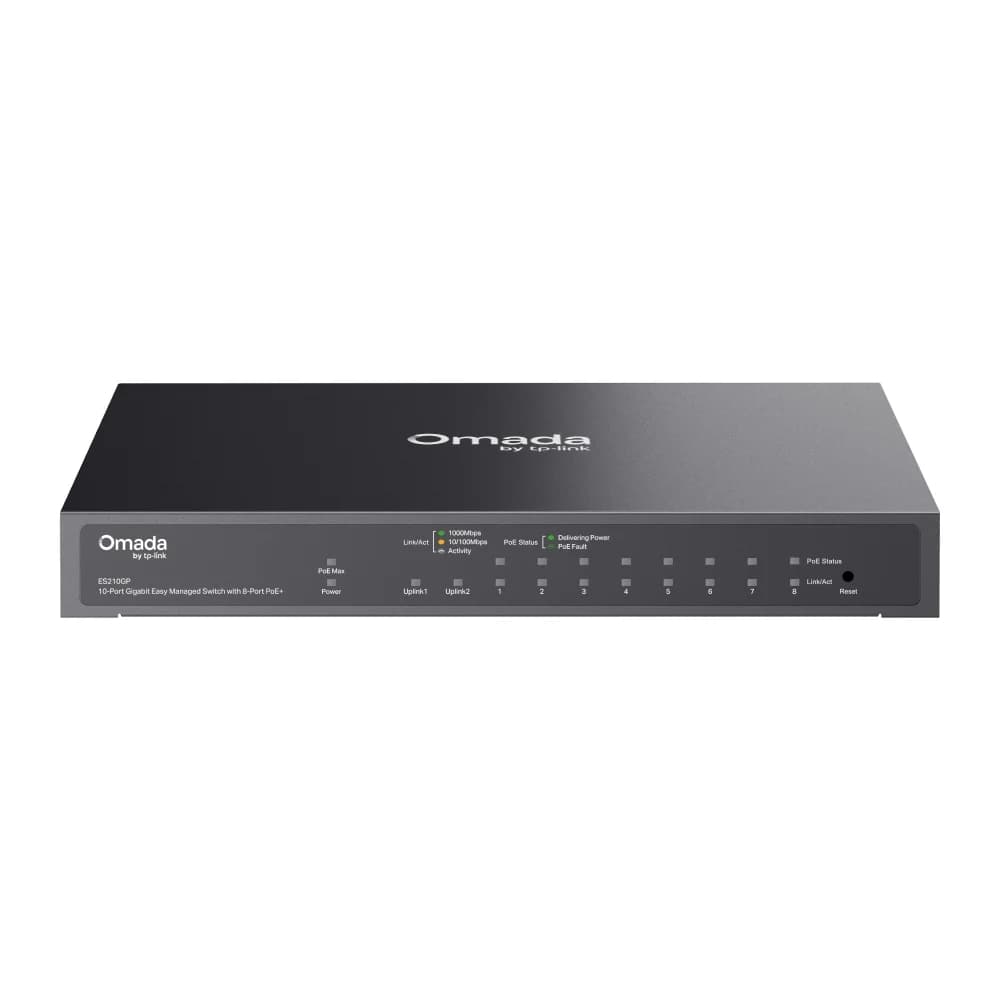

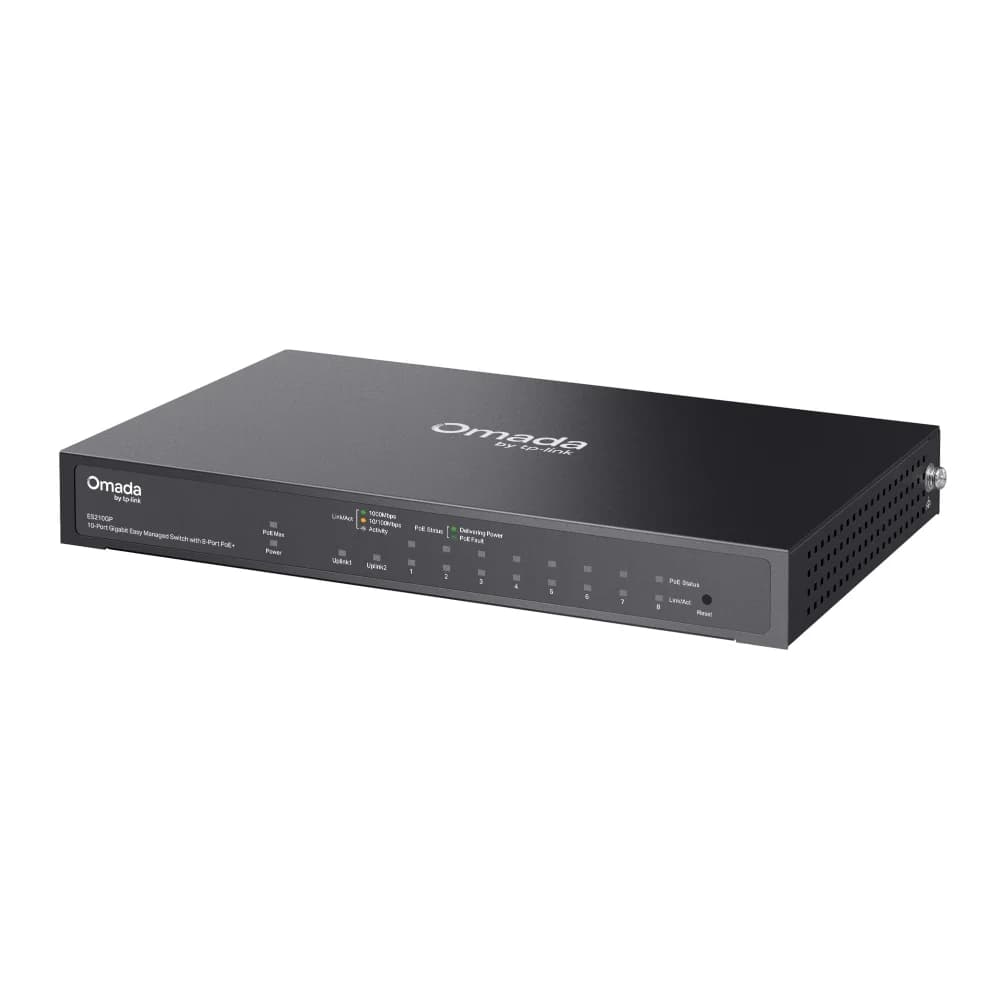

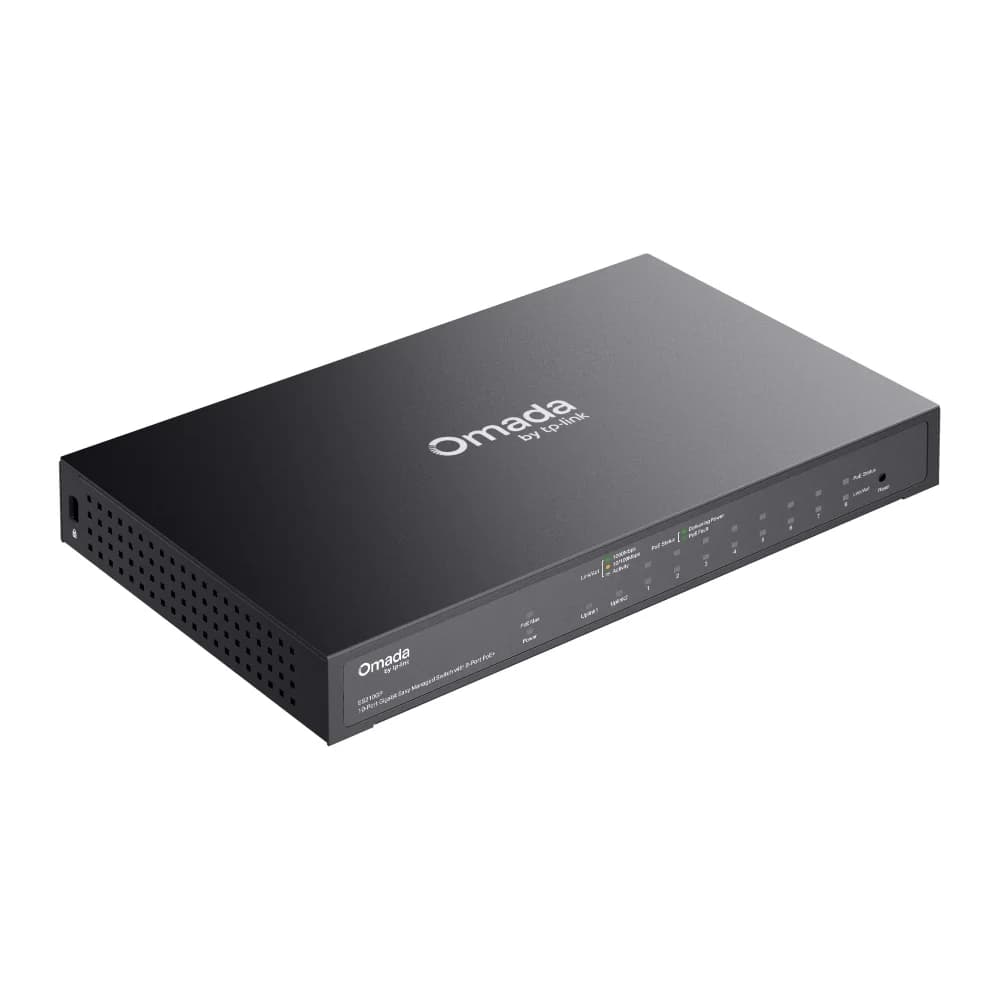

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
| รุ่น | ES210GP |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later)• Omada Hardware Controller (Requires built-in version 6.1.0 or later)• Omada Software Controller (Requires built-in version 6.1.0 or later) |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • HTTPS/HTTP• DHCP Client• Cable Diagnostics• ONVIF***• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| MAC Address Table | 8K |

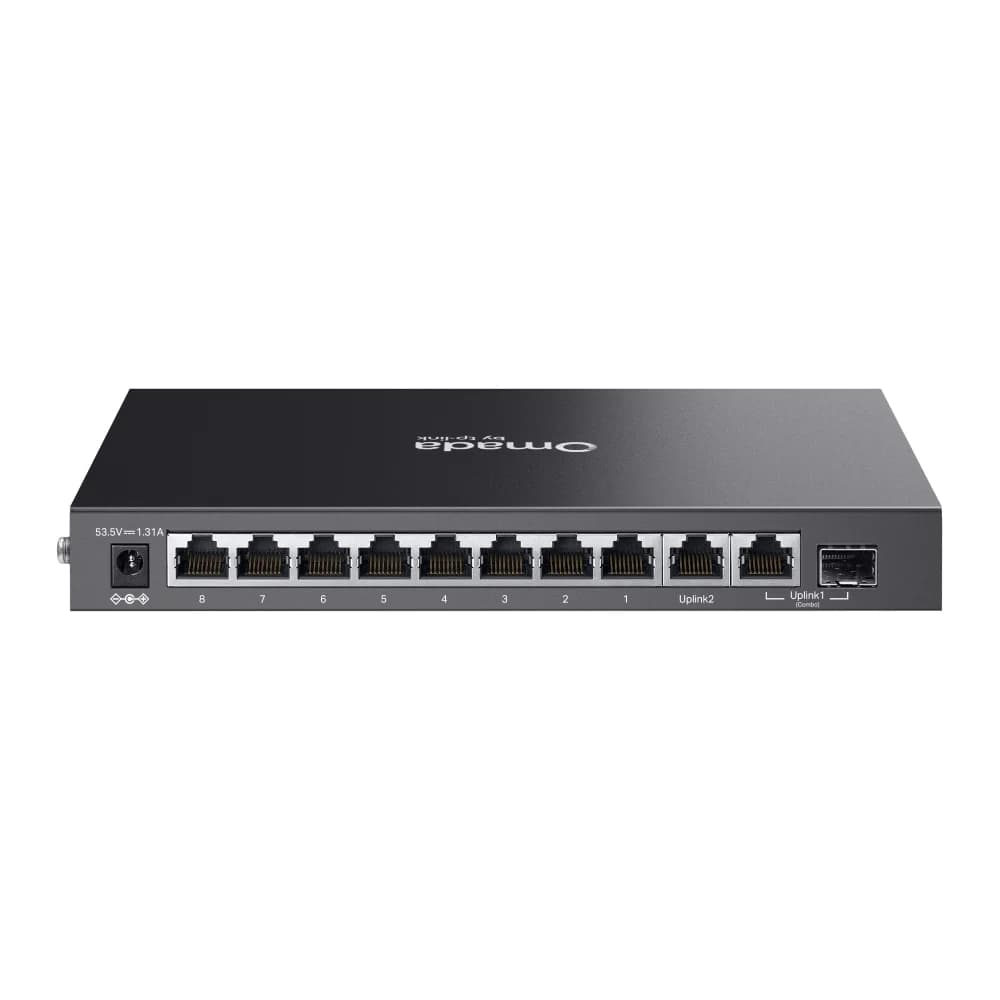

| พอร์ตเชื่อมต่อ | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+)• 1× 10/100/1000 Mbps RJ45 Port• 1× Gigabit SFP/RJ45 Combo Port• Auto-Negotiation/Auto MDI/MDIX |
| พอร์ต PoE | • Standard: 802.3af/at PoE+ compliant• PoE Ports: 8 ports• PoE Budget: 63W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery‡• Up to 250m PoE transmission distance** |
| Physical Security Lock | √ |
| Surge Protection | ±6kV |
| L2 Features | • Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 6 ports per group• Port Isolation• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• IEEE 802.3az EEE |
| VLAN | • 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Fan Quantity | Fanless |
| ขนาด (กว้าง × ลึก × สูง) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Certification | FCC, CE |
| อุปกรณ์ในกล่อง | • ES210GP• Power Adapter• Power Cord• Mounting Feet• Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |

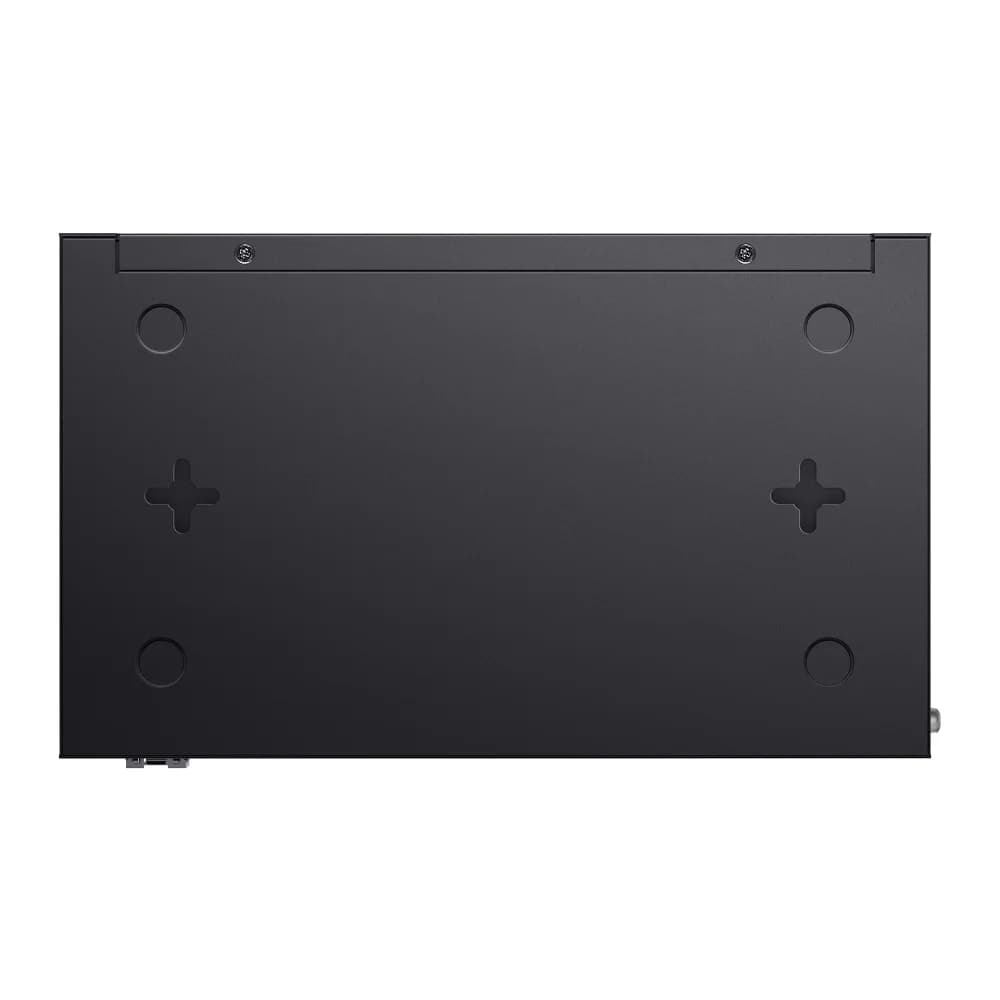

| Installation | • Desktop• Wall Mount |
| แหล่งจ่ายไฟ | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) |
| ความสามารถในการสวิตช์ | 20 Gbps |
| อัตราส่งต่อแพ็กเก็ต | 14.88 Mpps |
| Quality of Service | • Port-based/802.1p/DSCP QoS△• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave / Report Suppression |
| Transmission Method | Store-And-Forward |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
