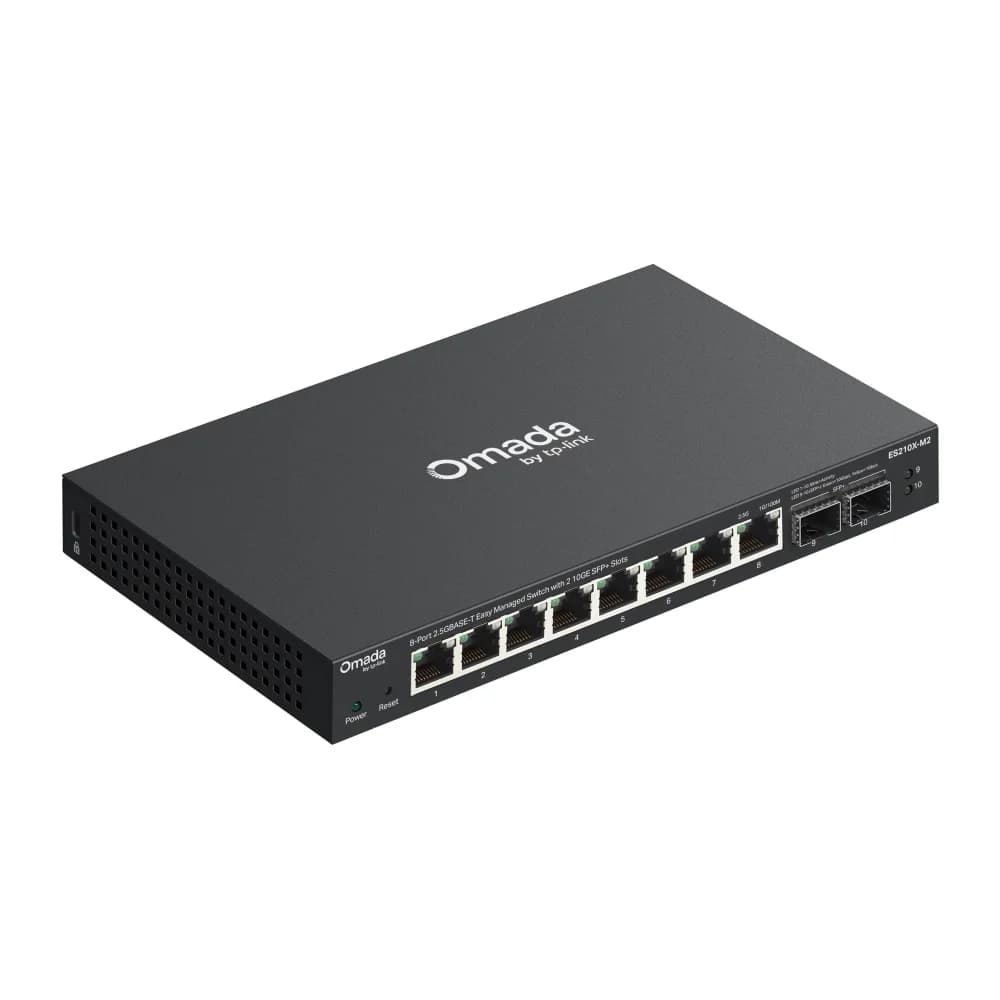

Omada 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots
| รุ่น | ES210X-M2 |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| MAC Address Table | 16K |
| พอร์ตเชื่อมต่อ | • 8× 2.5 Gbps RJ45 Ports• 2× 10 Gbps SFP+ Slots• Auto-Negotiation/Auto MDI/MDIX |
| Physical Security Lock | √ |
| Surge Protection | ±6 kV |
| L2 Features | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Fan Quantity | Fanless |
| ขนาด (กว้าง × ลึก × สูง) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Certification | FCC, CE |
| อุปกรณ์ในกล่อง | • ES210X-M2• Power Adapter• Rubber Feet• Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
| Installation | • Desktop• Wall Mount |
| แหล่งจ่ายไฟ | AC/DC Adapter (Input: 100-240V AC; Output: 12V DC/1.5A) |
| ความสามารถในการสวิตช์ | 80 Gbps |
| อัตราส่งต่อแพ็กเก็ต | 59.52 Mpps |
| Quality of Service | • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| Transmission Method | Store-And-Forward |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
