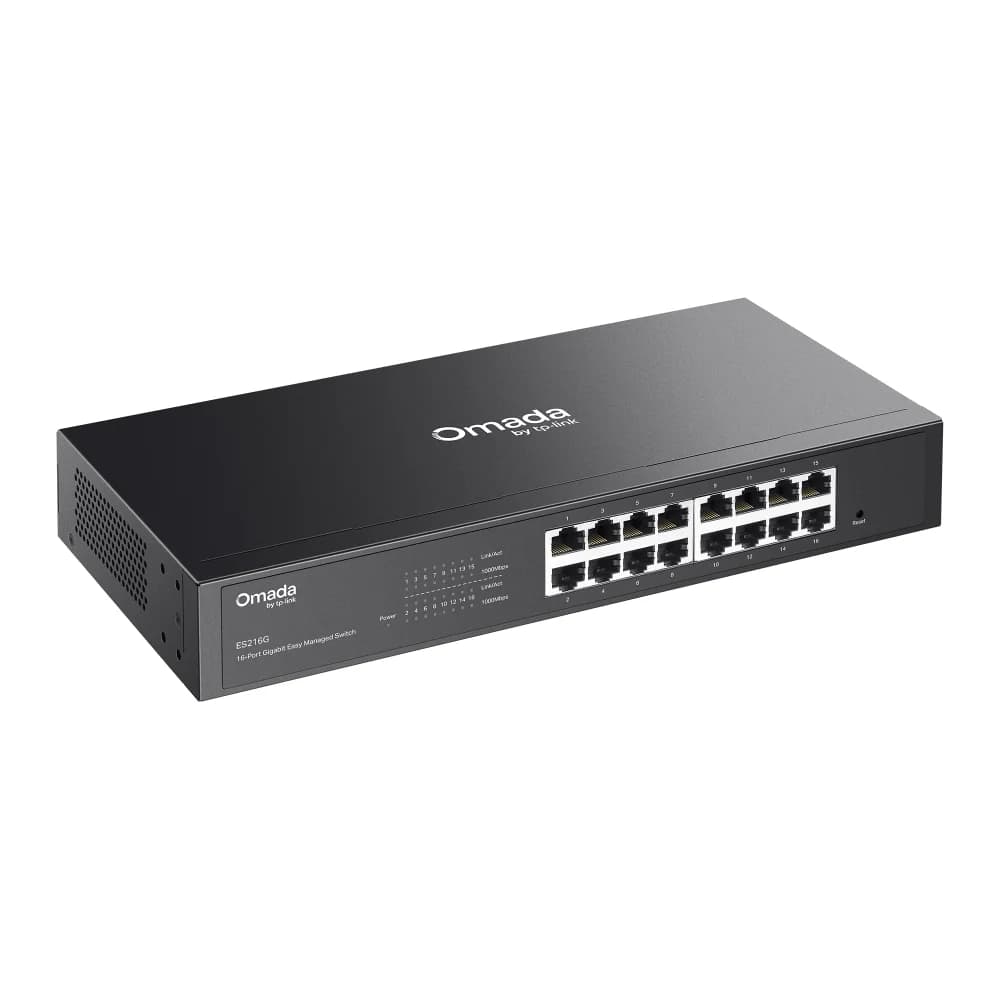

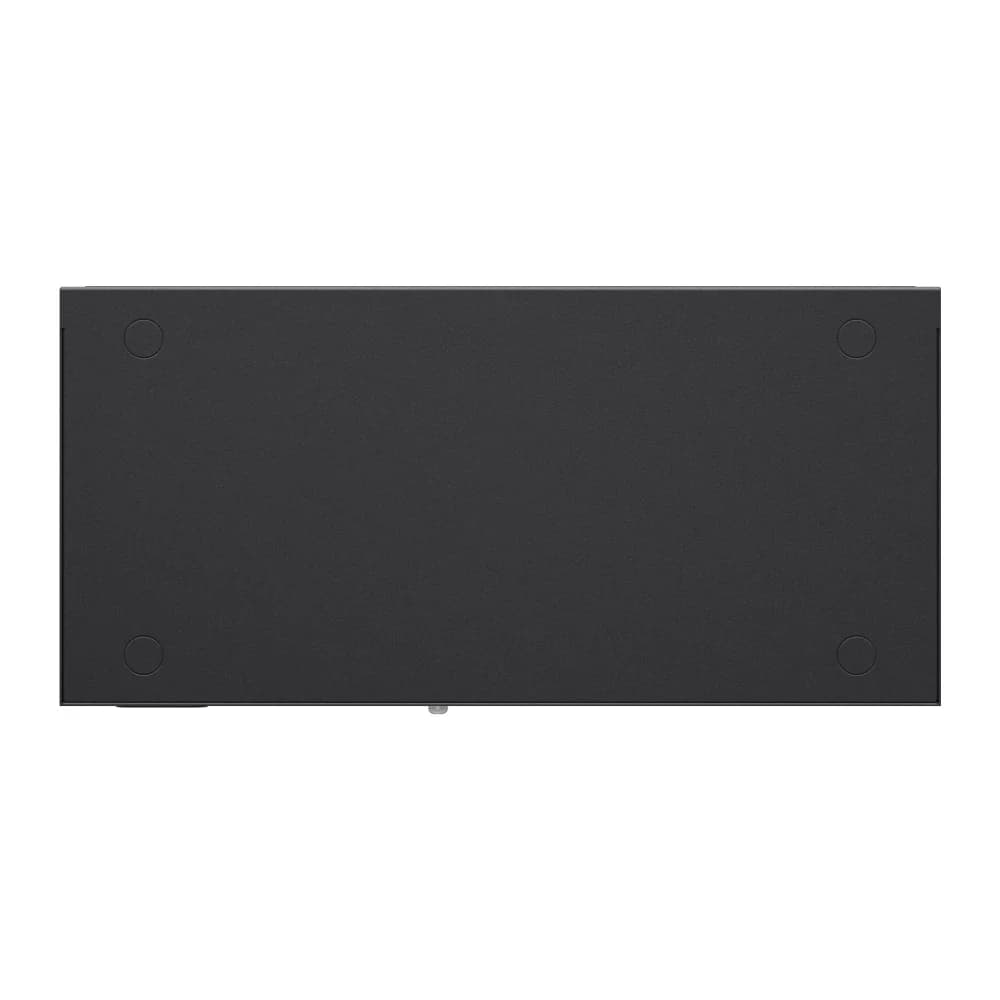

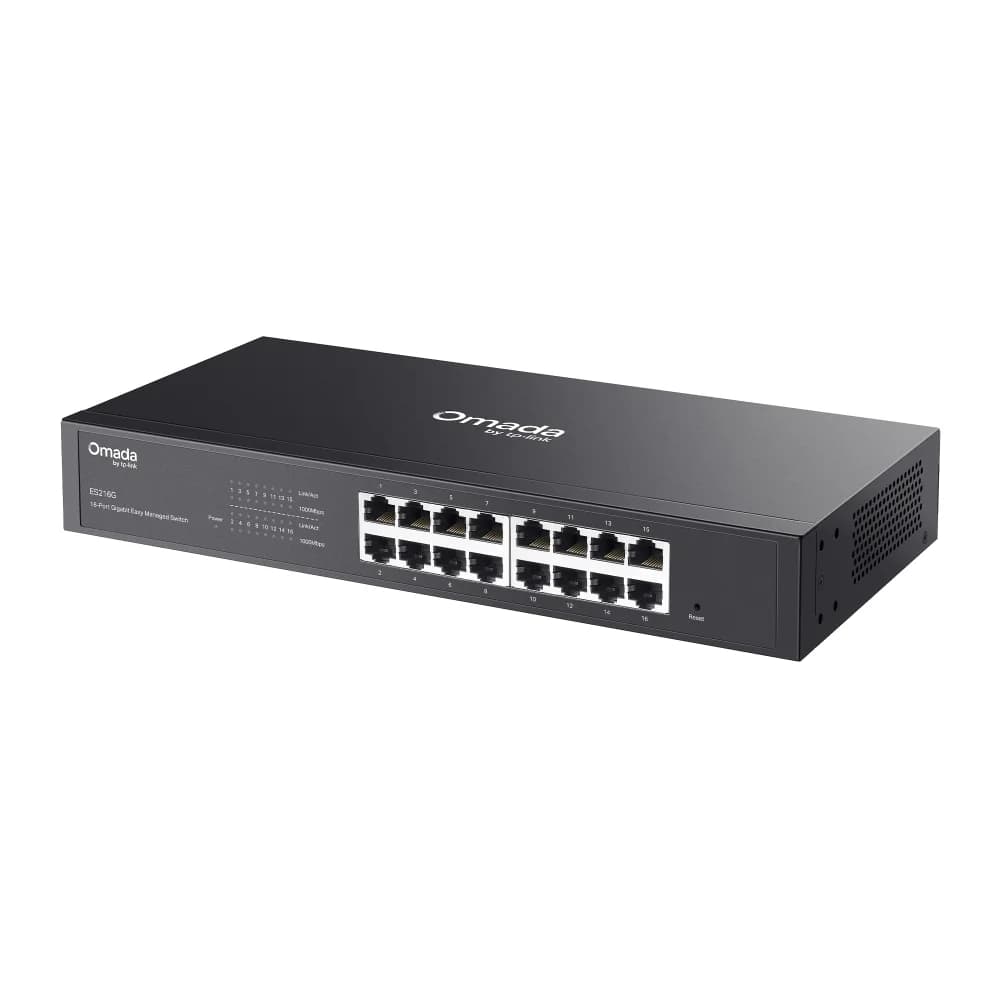

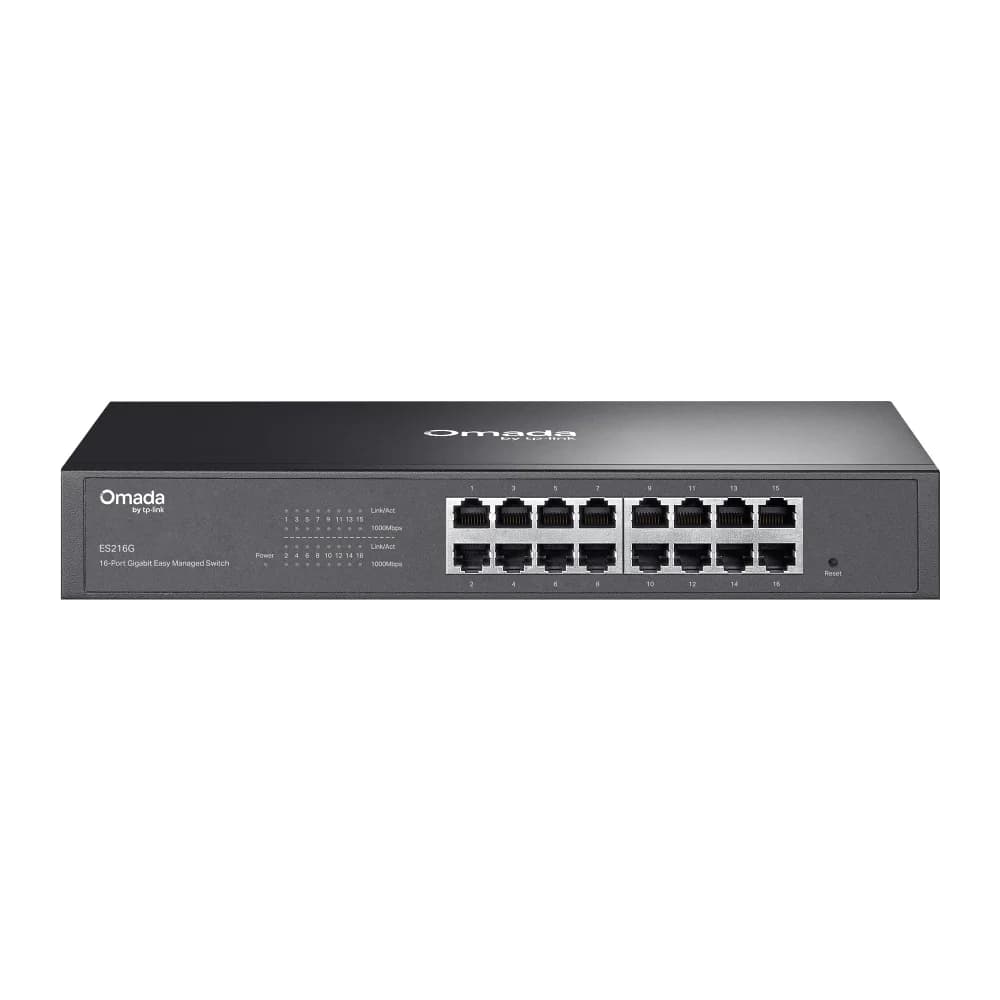

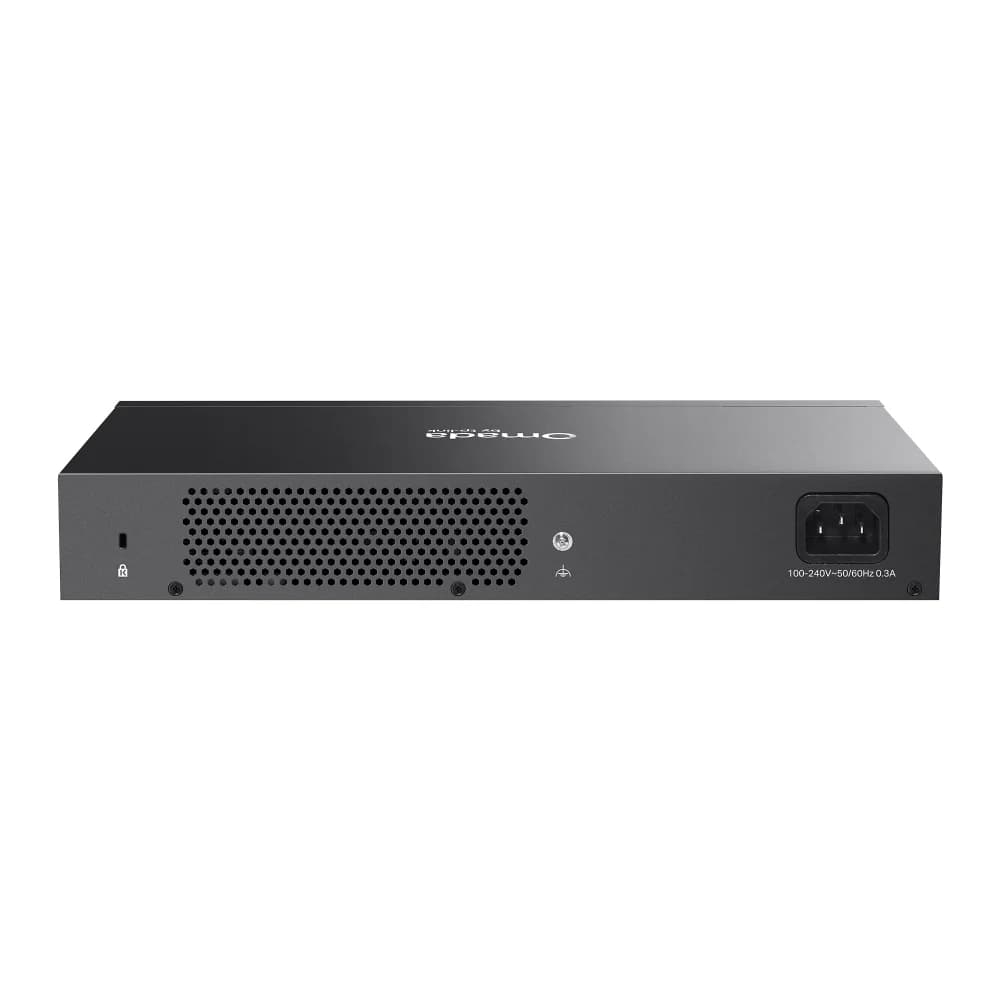

Omada 16-Port Gigabit Easy Managed Switch
| รุ่น | ES216G |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| MAC Address Table | 8K |
| พอร์ตเชื่อมต่อ | • 16× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX |
| Physical Security Lock | √ |
| Surge Protection | ±6kV |
| L2 Features | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Fan Quantity | Fanless |
| ขนาด (กว้าง × ลึก × สูง) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Certification | FCC, CE |
| อุปกรณ์ในกล่อง | • ES216G• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide |
| Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
| Installation | • Desktop• Rackmountable |
| แหล่งจ่ายไฟ | 100-240 V~50/60 Hz |
| ความสามารถในการสวิตช์ | 32 Gbps |
| อัตราส่งต่อแพ็กเก็ต | 23.8 Mpps |
| Quality of Service | • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| Transmission Method | Store-And-Forward |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
