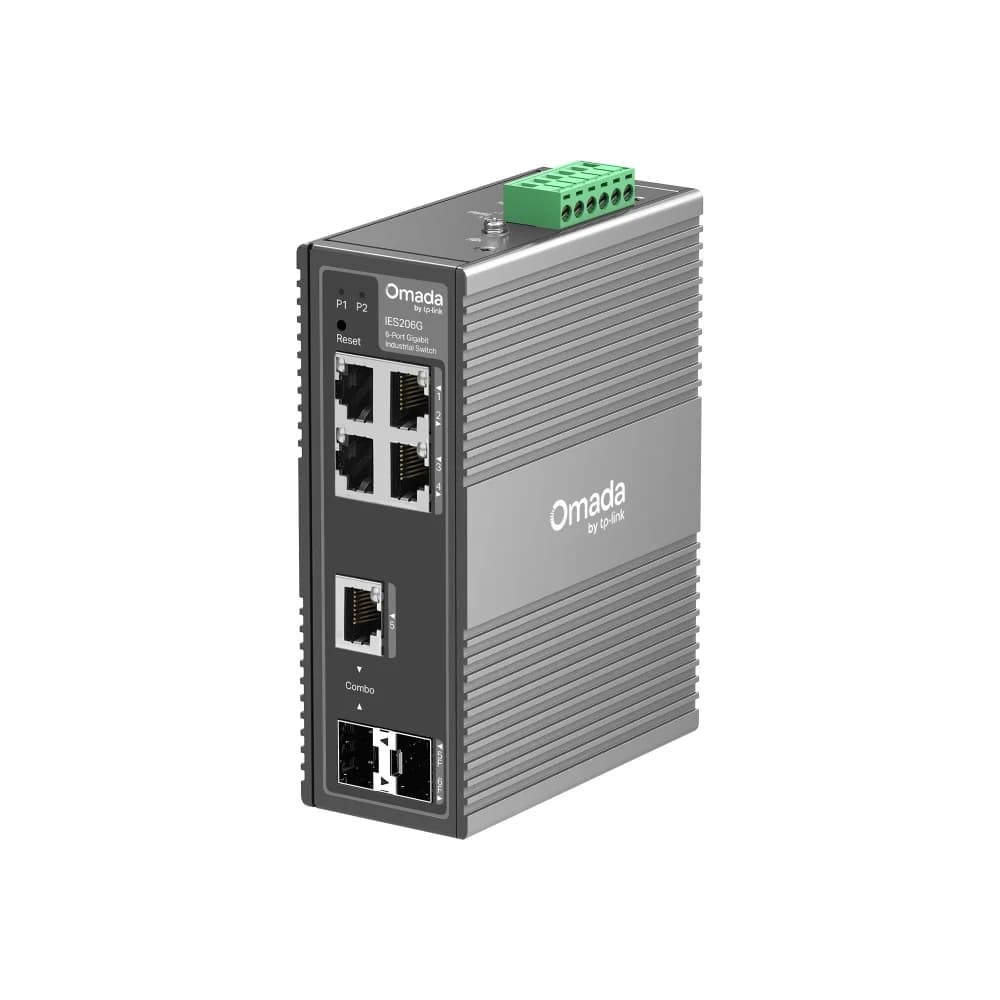

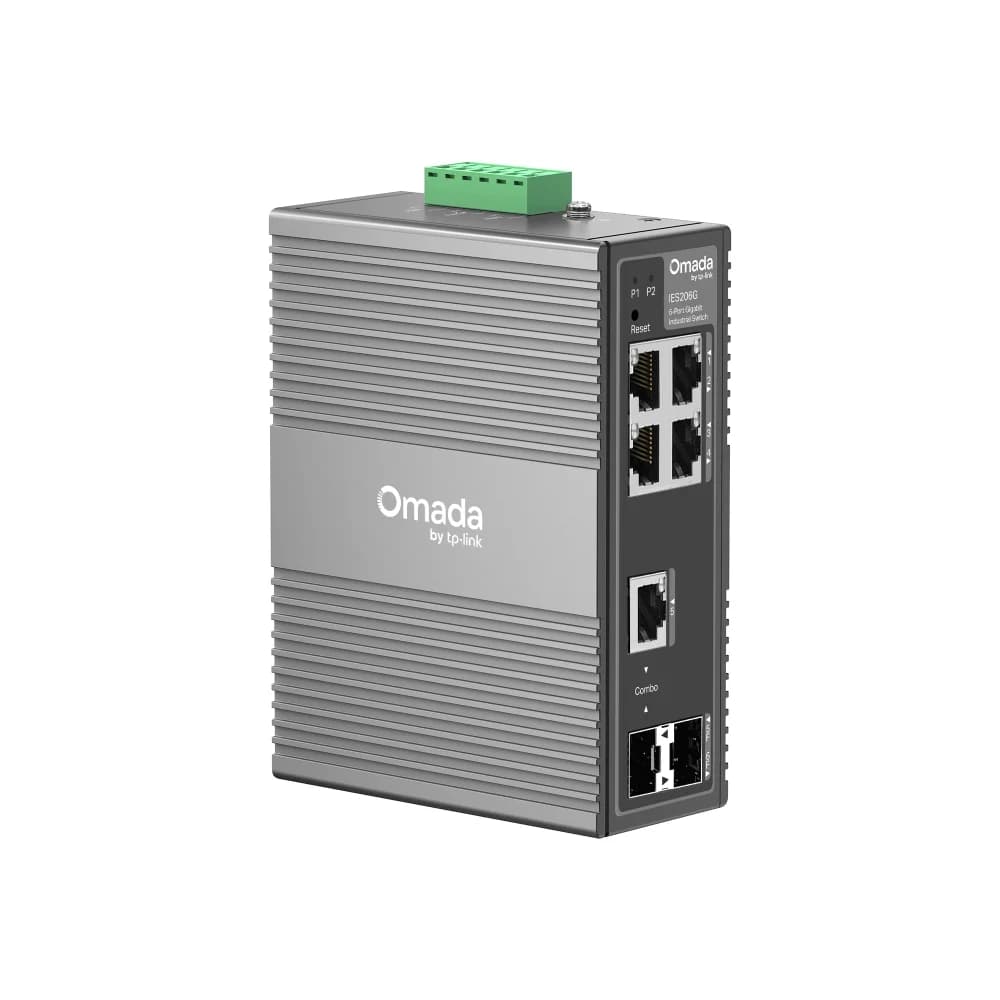

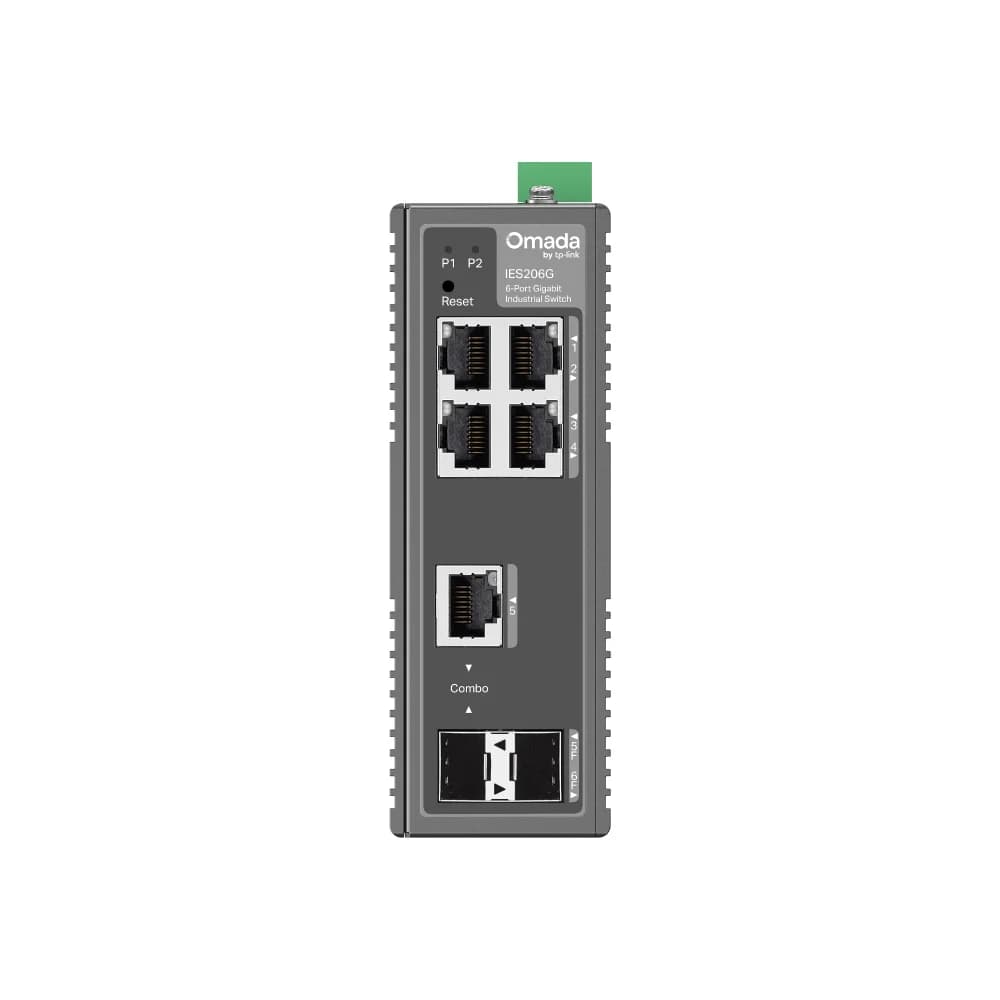

Omada 6-Port Gigabit Industrial Easy Managed Switch
| รุ่น | IES206G |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| MAC Address Table | 8K |
| พอร์ตเชื่อมต่อ | • 4× 10/100/1000 Mbps RJ45 Ports• 1× Gigabit SFP/RJ45 Combo Slot• 1× Gigabit SFP Slot• Auto-Negotiation/Auto MDI/MDIX |
| Surge Protection | • ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports |
| L2 Features | • Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w) |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Fan Quantity | Fanless |
| ขนาด (กว้าง × ลึก × สูง) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
| Certification | FCC, CE |
| อุปกรณ์ในกล่อง | • IES206G• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide |
| Environment | • Operating Temperature: -40℃~75℃ (-40℉~167℉)• Storage Temperature: -40℃~85℃ (-40℉~185℉)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing |
| Installation | • DIN-rail mounting• Wall mounting |

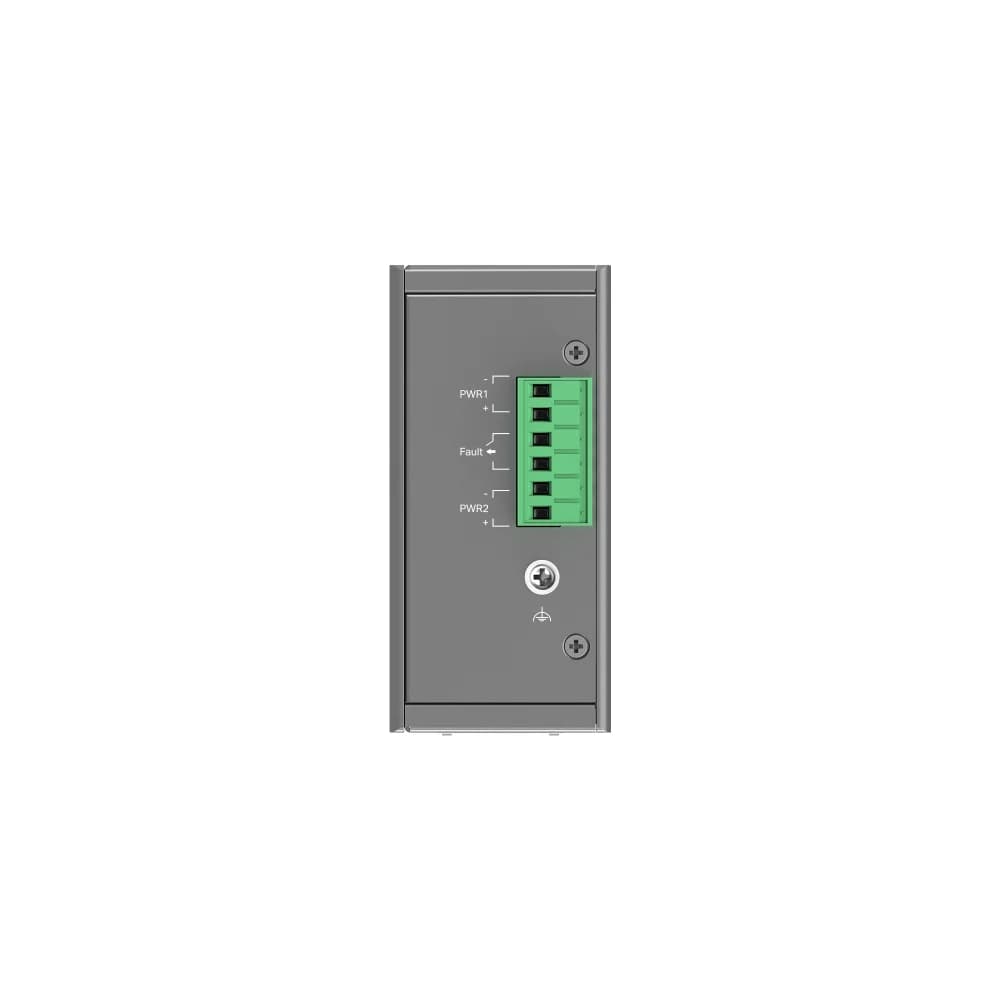

| แหล่งจ่ายไฟ | 9.6-60V 1+1 Redundant DC Power Input |
| ความสามารถในการสวิตช์ | 12 Gbps |
| อัตราส่งต่อแพ็กเก็ต | 8.93 Mpps |
| Quality of Service | • 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| Transmission Method | Store-And-Forward |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
