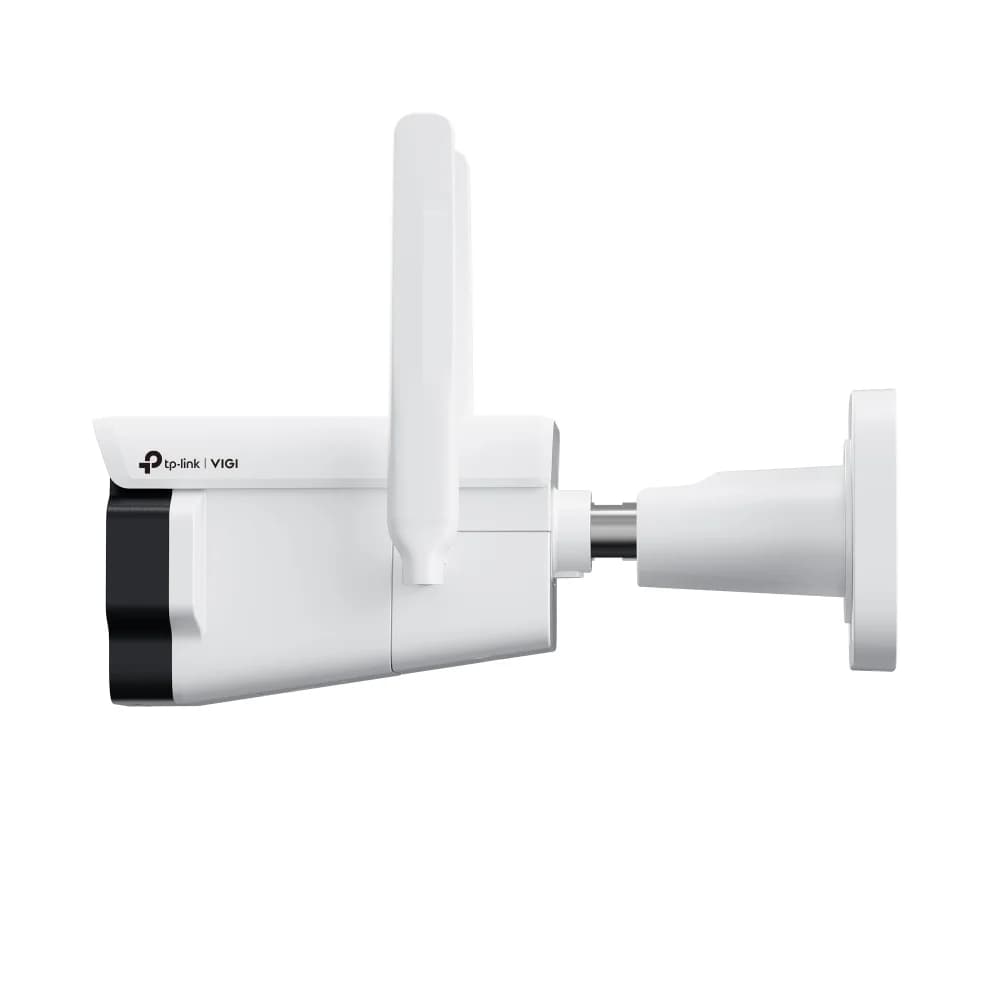

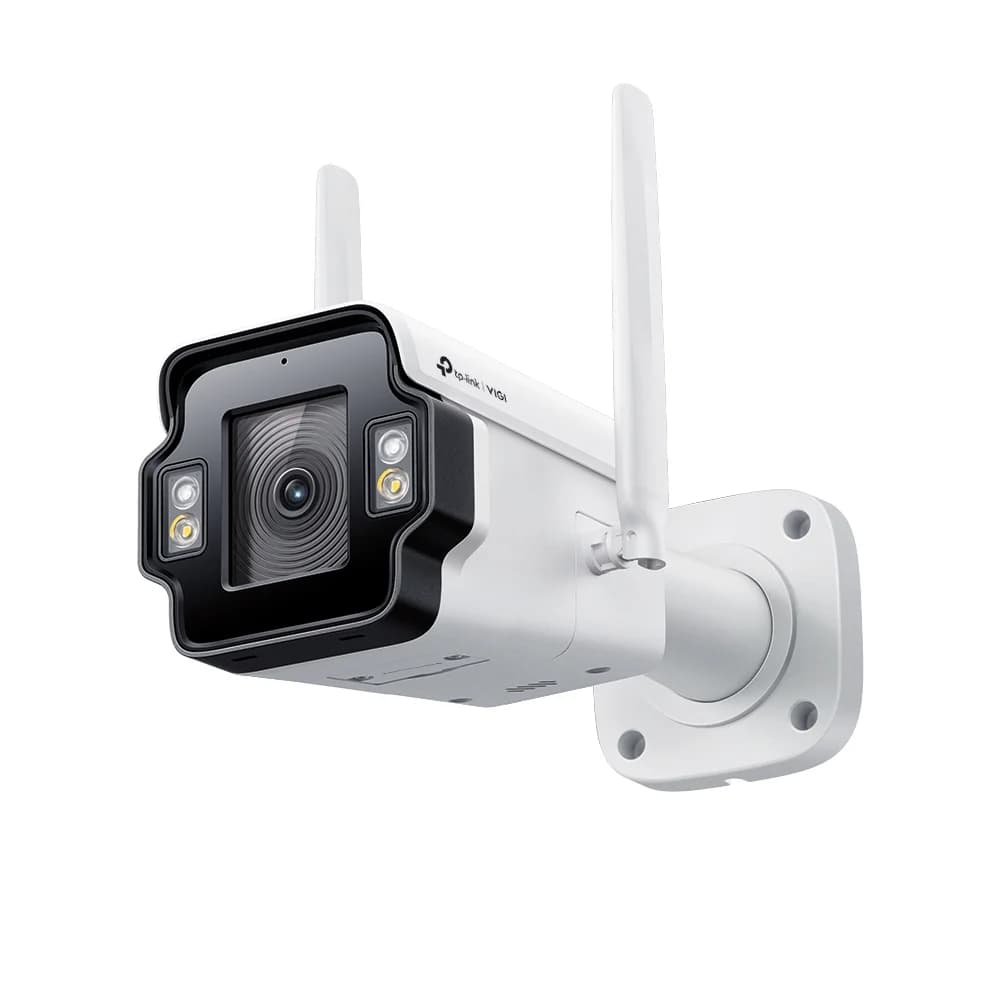

VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
| รุ่น | InSight S345-4G |
|---|---|
| Type | Fixed Focal Lens |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Audio Input | Yes (Built-in Microphone) |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB* |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Wide Dynamic Range | 120dB |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Frequency | EU:• LTE-FDD: B 1/3/5/7/8/20/28• LTE-TDD: B 38/40/41• WCDMA: B 1/5/8US:• LTE-FDD: B 2/4/5/12/13/14/66/71 |
| เสาอากาศ | • Quantity: 2• Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna• Gain:EU:Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHzAnt2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHzUS:Ant1&Ant2: 0.8dBi@690~960MHz, 3dBi@1710~2690MHz |
| Uplink and Download Data Rate | Uplink: 50 Mbps, Downlink: 150 Mbps |

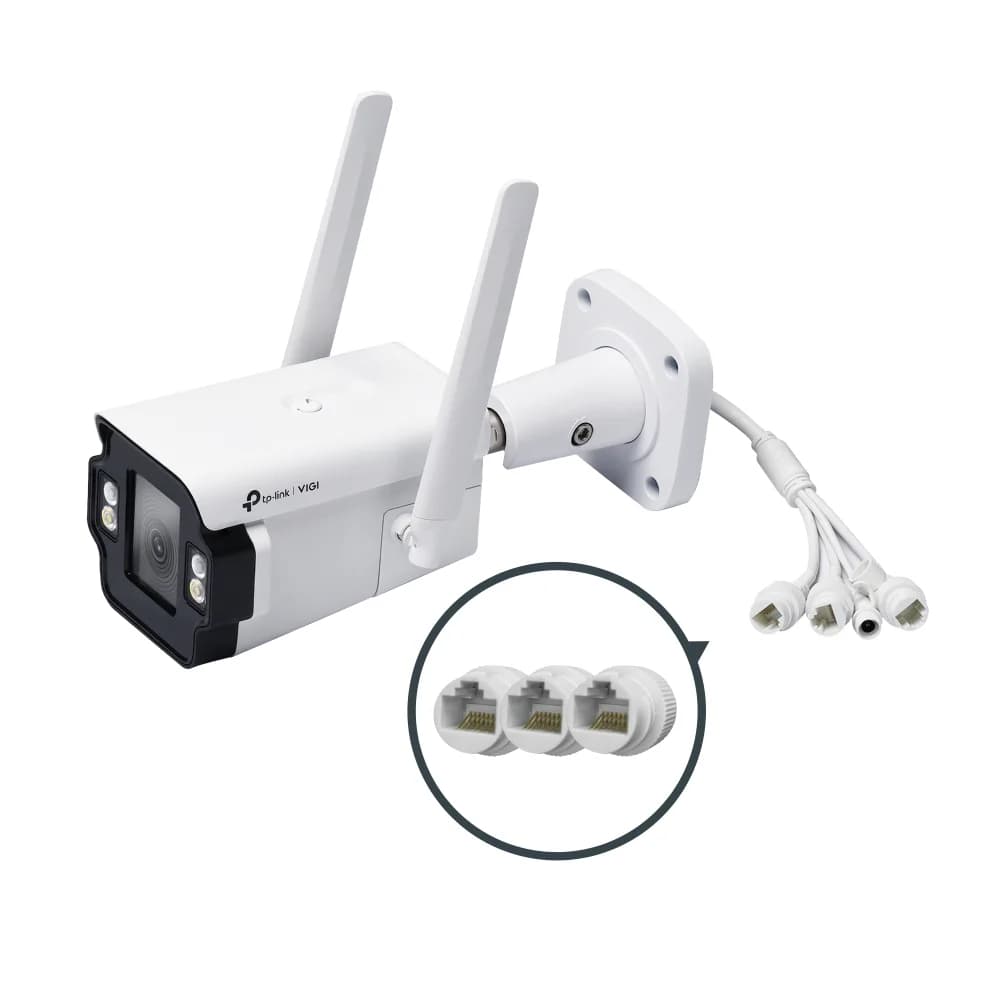

| Network Interface | 3 RJ45 10/100M LAN Ports |

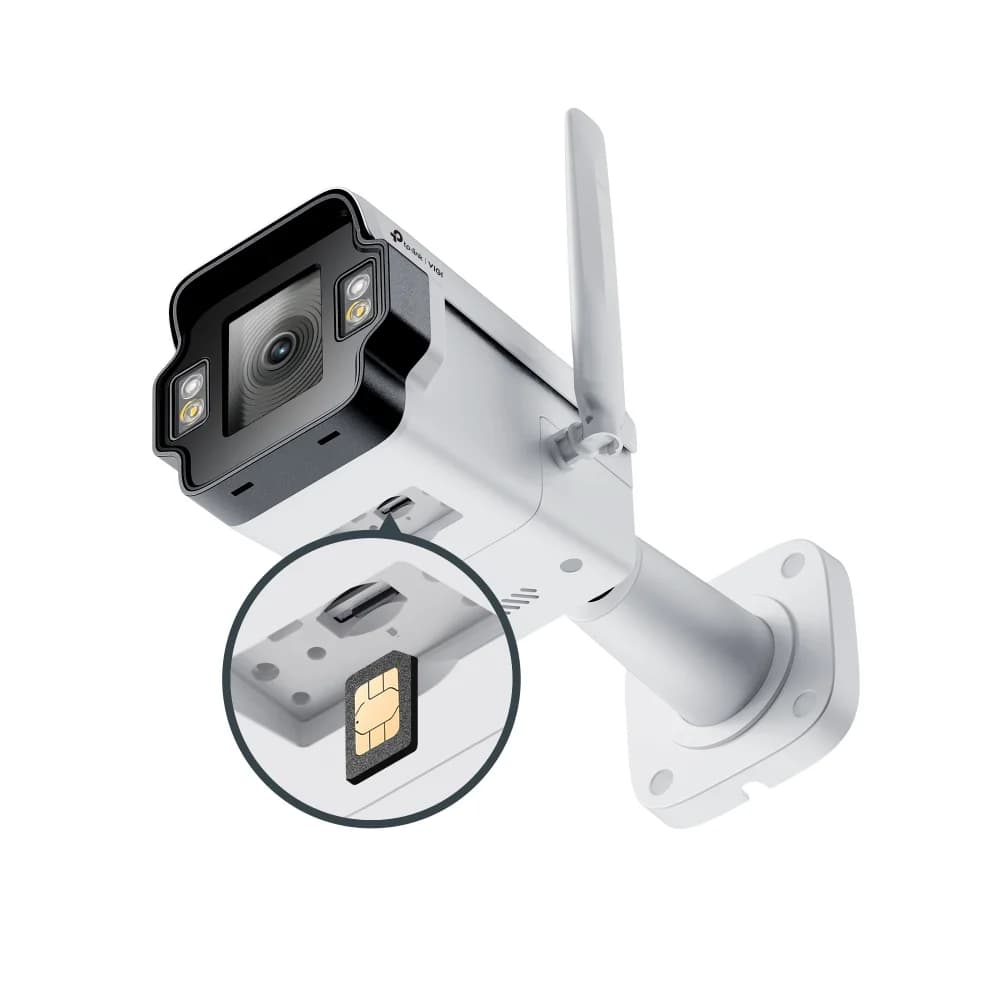

| Built-in Nano-SIM Card Slot | Yes |
| Audio Communication | Two-Way Audio |
| Audio Output | Yes (Built-in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| กำลังไฟ | DC Power Port |
| เลนส์ที่จำหน่าย | 4 มม. |
| เซนเซอร์ภาพ | EU: • 1.0: 1/2.7“ Progressive Scan CMOS• 1.20: 1/2.65“ Progressive Scan CMOSUS: 1/2.9“ Progressive Scan CMOS |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| FOV | EU: • 1.0: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°• 1.20: Horizontal FOV: 81°, Vertical FOV: 43.9°, Diagonal FOV: 96.39°US: Horizontal FOV: 86°, Vertical FOV: 43°, Diagonal FOV: 95° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft)Observe: 33 m (108 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft) |
| Illuminator Type | • 2× IR LED• 2× White LED |
| Illuminator Distance | • IR LED: 50 m (164 ft)• White LED: 30 m (98 ft) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ความละเอียดสูงสุด | 2688x1520 |
| Main Stream | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication |
| Alarm Linkage | • Memory Card Video Recording• Push Notifications• Active Defence-Sound Alarm• Active Defence-Light Alarm• Upload to FTP server• Send to Alarm Server• Email Alarm |
| Alarm | N/A |
| Reset Button | Yes |
| Protection | IP66 Weatherproof |
| Environment Noise Filtering | Yes |
| Material | Metal |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| อุปกรณ์ในกล่อง | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories• Power Adapter |
| Net Weight | 1.09 Kg |
| Product Dimensions (L x W x H) | 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas) |
| Certifications | EU: CE CB NCC RCM NTRA KC IP66 RoHS ONVIFUS: FCC IC IP66 ONVIF PTCRB T-Mobile Verizon AT&T |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| ระยะโฟกัส | 4 มม. |
| Aperture | F1.6 |
| ช่วงปรับมุม | • Pan: 0° to 360°• Tilt: 0° to 90°• Rotate: 0° to 360° |
| การบีบอัดวิดีโอ | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Image Settings | • Mirror• Rotation• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White balance• Prevent overexposure to infrared light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6 (only for EU version), ARP, SMTP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Cloud | Yes |
| Standard | EU:LTE-TDD/LTE-FDD/WCDMAUS: LTE-FDD |
| SIM Type | Nano SIM* (US version supports data-only SIM card) |
| Category | 4 |
| Smart Event | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception (Illegal Login) |
| แหล่งจ่ายไฟ | DC• 12V DC/1 A, 5.5 mm Coaxial Power Plug• Recommended Power Supply:T120100-2C1 (for EU Regions)ErP Information• Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.1 W. |
| ระยะเวลารับประกัน | 3 ปี |
