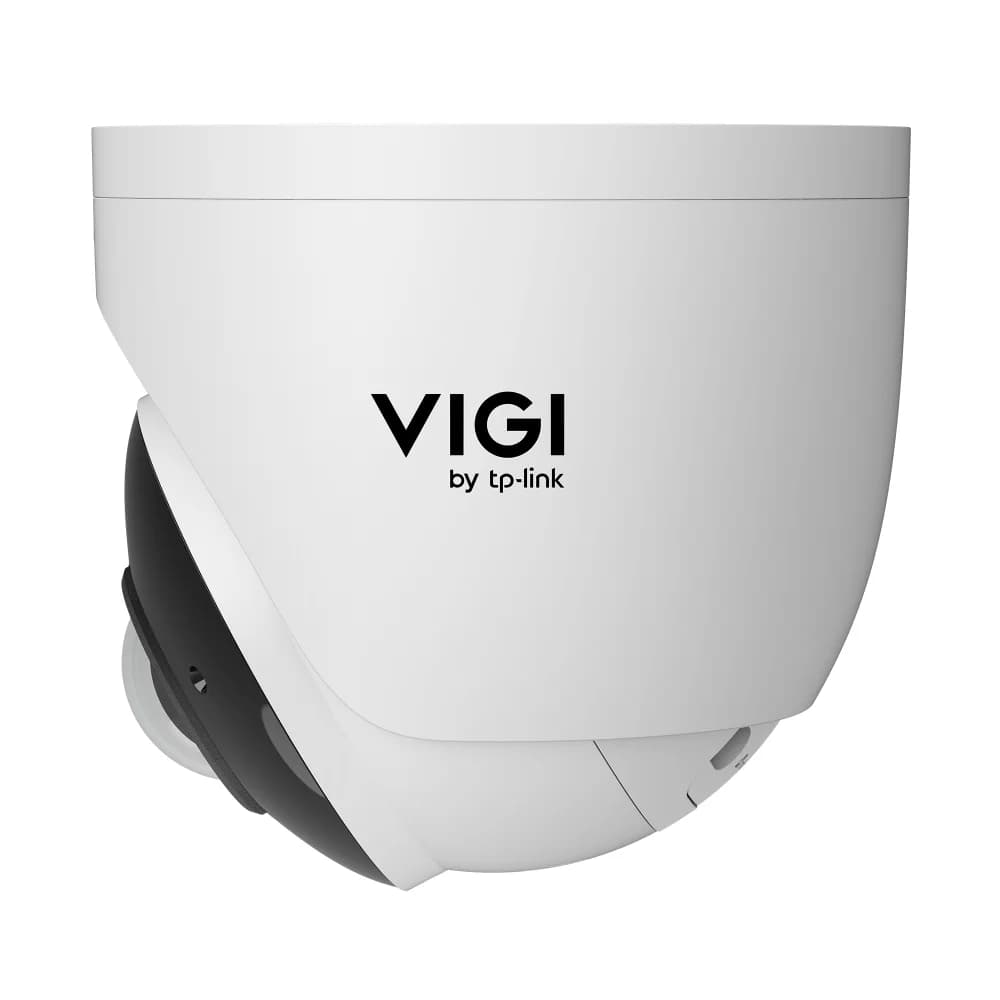

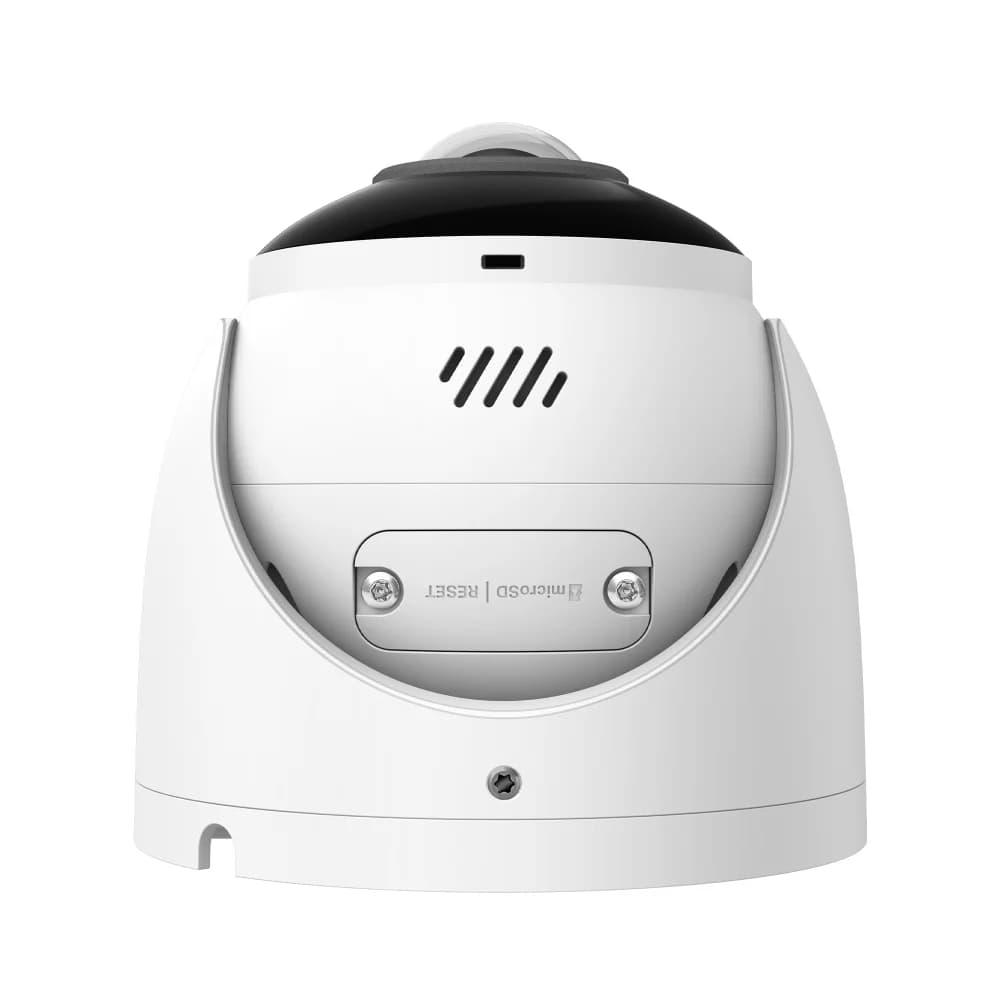

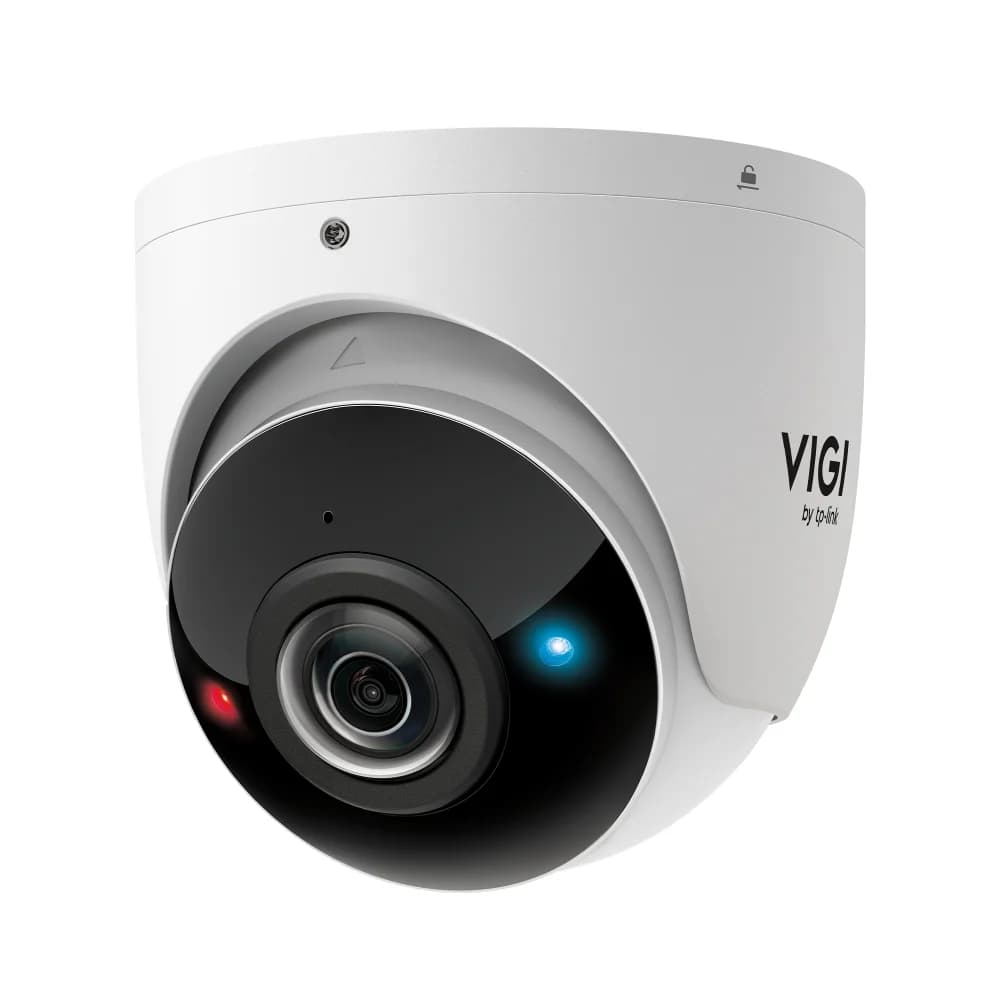

Name: TP-Link InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera
Brand: TP-Link
Price: 5339.30 THB
Availability: InStock

รายละเอียดสินค้า

รุ่น	InSight S485PI
Type	Fixed Focal Lens
Web Browser	Google Chrome® 57 and aboveFirefox® 52 and aboveSafari® 11 and aboveMicrosoft® Edge 91 and above
Audio Input	Built-in MicrophoneAudio In Interface
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Storage Humidity	95% or Less (Non-condensing)
Wide Dynamic Range	120 dB
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Audio Communication	Two-Way Audio
Audio Output	Built-in SpeakerAudio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Audio Bit Rate	64 Kbps(G.711 alaw)
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out
กำลังไฟ	DC Power Port
เซนเซอร์ภาพ	1/2.7“ Progressive Scan CMOS
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
FOV	1.65mm:• Horizontal FOV: 180°• Vertical FOV: 86°• Diagonal FOV: 180°
Lens Mount	M12
DORI Distance	1.65mm• Detect: 144.36 ft (44 m)• Observe: 60.15 ft (18.33 m)• Recognize: 28.87 ft (8.8 m)• Identify: 14.44 ft (4.4 m)
IR LED	Quantity: 4Range: 65.62 ft (20 m)†Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ความละเอียดสูงสุด	3840x2160
Main Stream	• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720Note:• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848x480,704x576, 640x480, 640x360,352x288, 320x240• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Bit Rate	Main Stream: 256 Kbps to 8 MbpsSub-Stream: 64 Kbps to 1024 Kbps
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm Linkage	• Memory Card Video Recording• Upload to FTP Server• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm
Alarm	1 Alarm In, 1 Alarm OutRed-Blue Warning Lights
Reset Button	Yes
Protection	IP67 Waterproof, IK10 Vandal Proof
Environment Noise Filtering	Yes
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity	95% or Less (Non-condensing)
อุปกรณ์ในกล่อง	VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories
Material	Metal
Net Weight	0.76 Kg
Product Dimensions (L x W x H)	4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)
Certifications	CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR light
ระยะโฟกัส	1.65 mm
Aperture	F2.0
ช่วงปรับมุม	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
การบีบอัดวิดีโอ	Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Image Settings	• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Region
OSD Setting	Yes
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Cloud	Yes
Smart Event	• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)• Alarm Input Device
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡
แหล่งจ่ายไฟ	• 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, class 4, Max. 21 W
ระยะเวลารับประกัน	3 ปี
