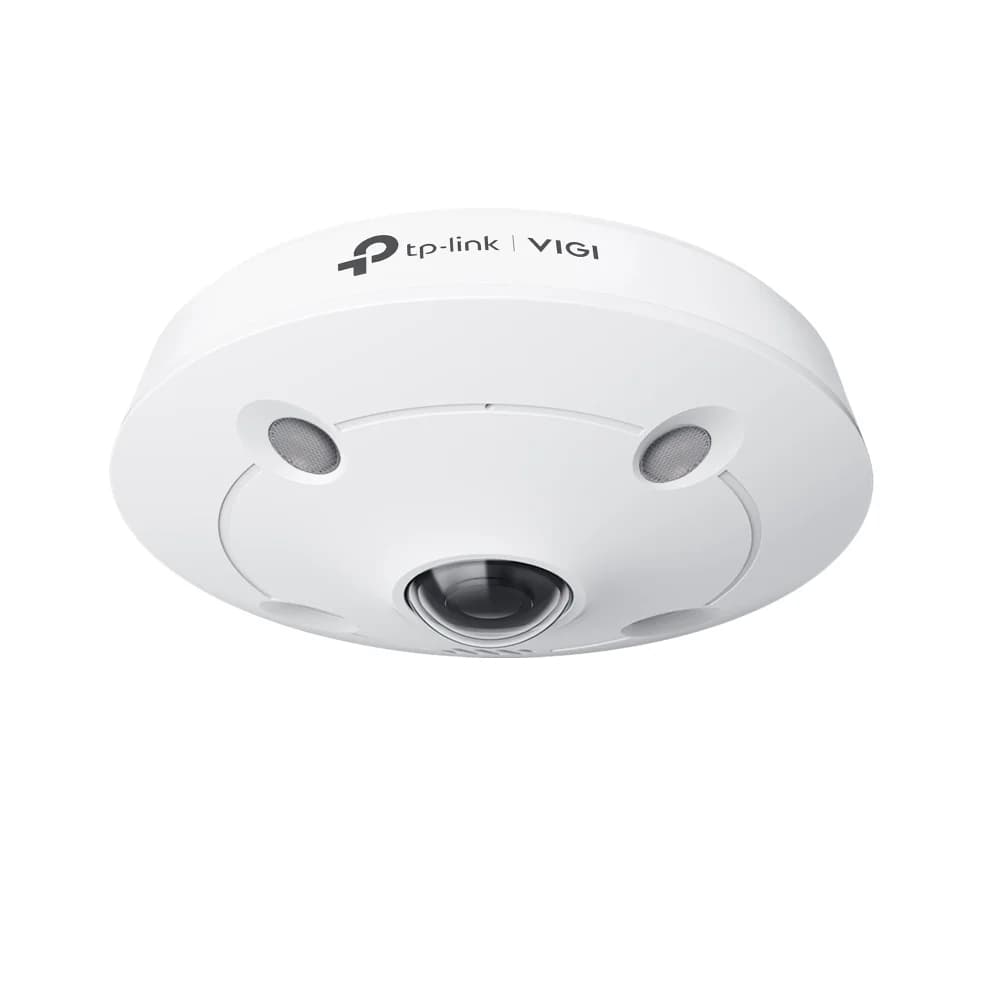

VIGI 5MP IR Fisheye Network Camera
| รุ่น | InSight S655I |
|---|---|
| Type | Fixed Focal Lens |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Audio Input | Yes (Built-in Microphone) |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Wide Dynamic Range | 120 dB |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Audio Communication | Two-Way Audio |
| Audio Output | Yes (Built-in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| กำลังไฟ | DC Power Port |
| เซนเซอร์ภาพ | 1/2.7” Progressive Scan CMOS |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| FOV | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° |
| Lens Mount | M12*P0.5 |
| DORI Distance | Detect: 28.8 m (94 ft)Observe:12 m (39 ft)Recognize: 5.7 m (19 ft)Identify: 2.8 m (9 ft) |
| Display Mode | On VIGI VMS:• Ceiling Mount:Fisheye, AR Dewarp, 180 Panorama, 360 Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ• Wall Mount:Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZOn VIGI App:• Ceiling Mount: Fisheye, 180 Panorama, 360 Panorama, Fisheye+3PTZ, 4PTZ, Cylinder, AR Dewarp• Wall Mount: Fisheye, 360 Panorama Unwrap, Fisheye+3PTZ, 4PTZ, 2PTZ, AR Dewarp |
| Illuminator Type | 4× IR LED |
| Illuminator Distance | 10 m (33 ft) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ความละเอียดสูงสุด | 2560x1920 |
| Main Stream | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2560x1920, 2256x1696, 2048x1536, 1280x960• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If WDR is on, the frame rate only supports up to 15fps. |
| Sub-Stream | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:640x480, 320x240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If WDR is on, the frame rate only supports up to 15fps. |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication |
| Alarm Linkage | • Memory Card Video Recording• Upload Capture to FTP• Push Notifications• Active Defence-Sound Alarm• Email Alarm• Send to Alarm Server |
| Reset Button | Yes |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Environment Noise Filtering | Yes |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| อุปกรณ์ในกล่อง | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | • 0.44 Kg (without Mounting Accessories)• 0.48 Kg (with Mounting Accessories) |
| Product Dimensions (L x W x H) | 5.2 × 5.2 × 2.2 in (132 × 132 × 56 mm) |
| Certifications | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR light |
| ระยะโฟกัส | 1.44 mm |
| Aperture | F2.0 |
| Installation | Ceiling Mount; Wall Mount; Pendant Mount§ |
| ช่วงปรับมุม | N/A |
| การบีบอัดวิดีโอ | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Image Settings | • Mirror• Rotation• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White balance• Prevent overexposure to infrared light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Cloud | Yes |
| Smart Event | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Abnormal Sound Detection |
| Basic Event | • Motion Detection• Video Tampering Detection• Exception (Illegal Login) |
| แหล่งจ่ายไฟ | • 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.14W |
| ระยะเวลารับประกัน | 3 ปี |
