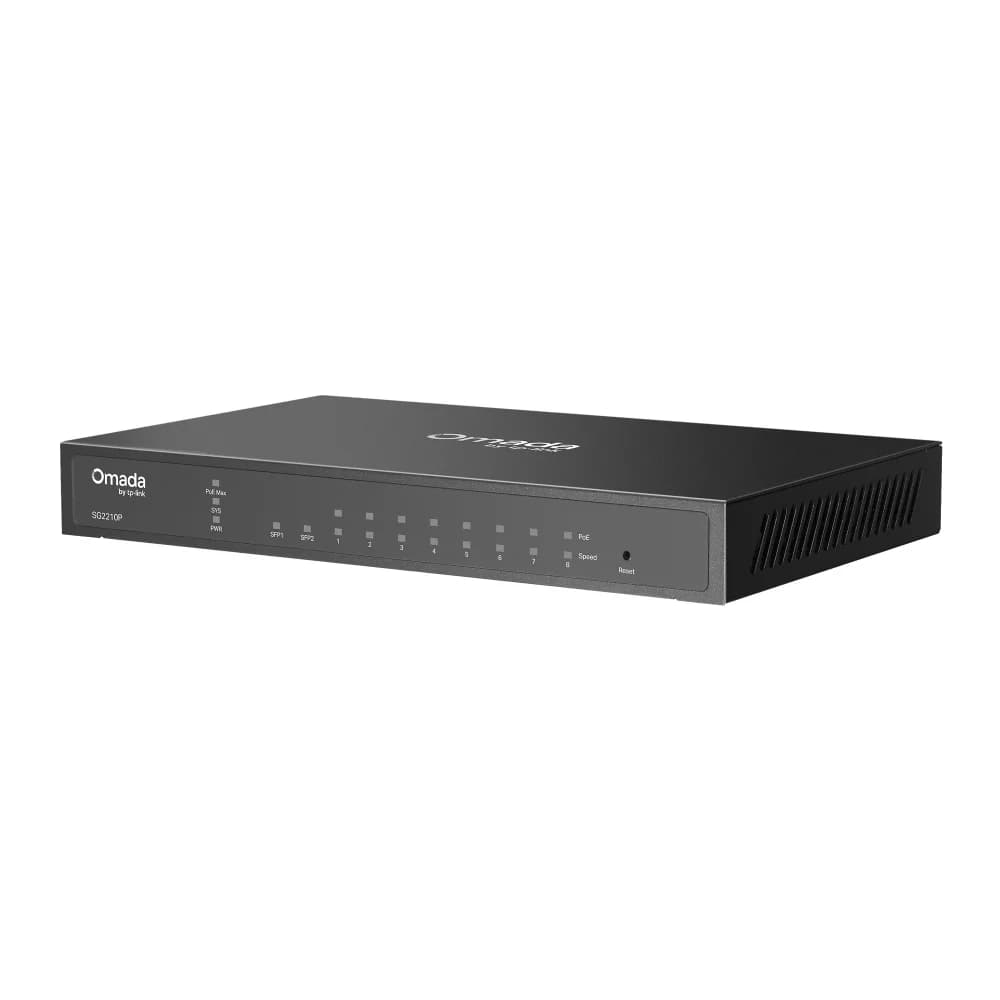

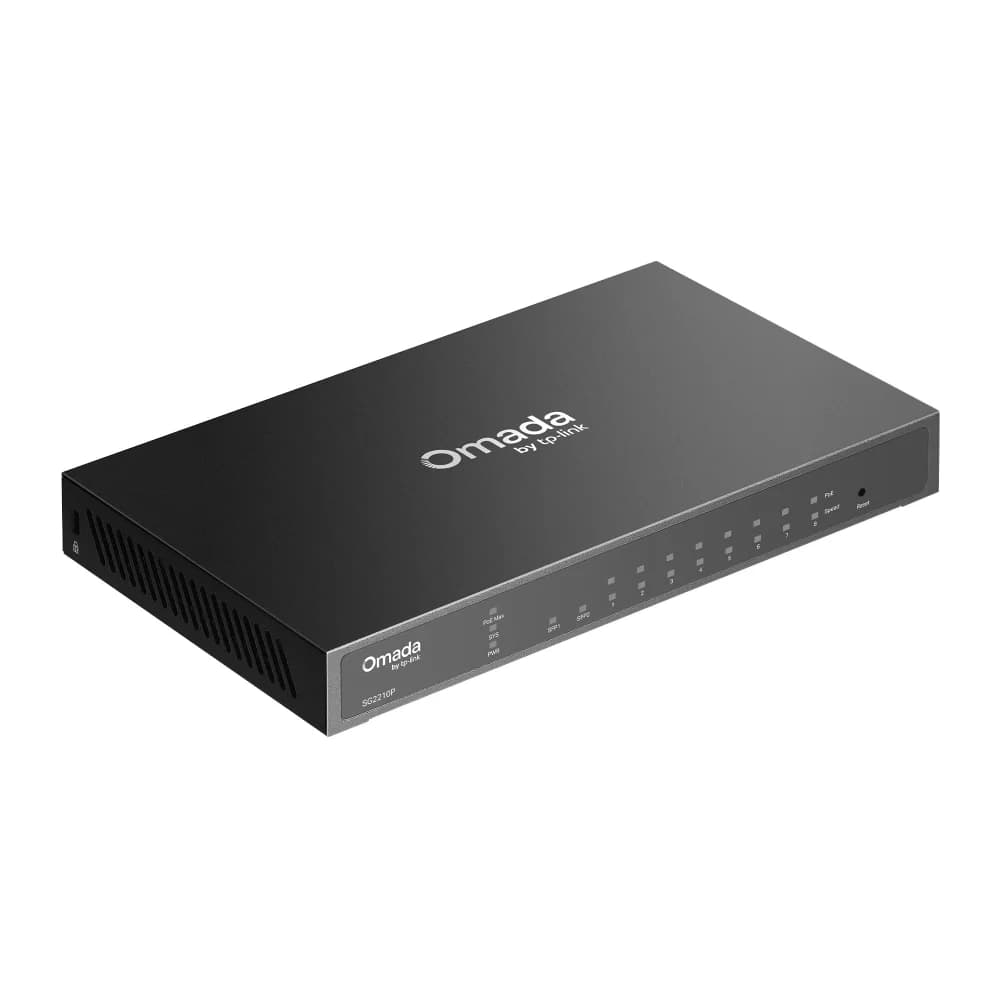

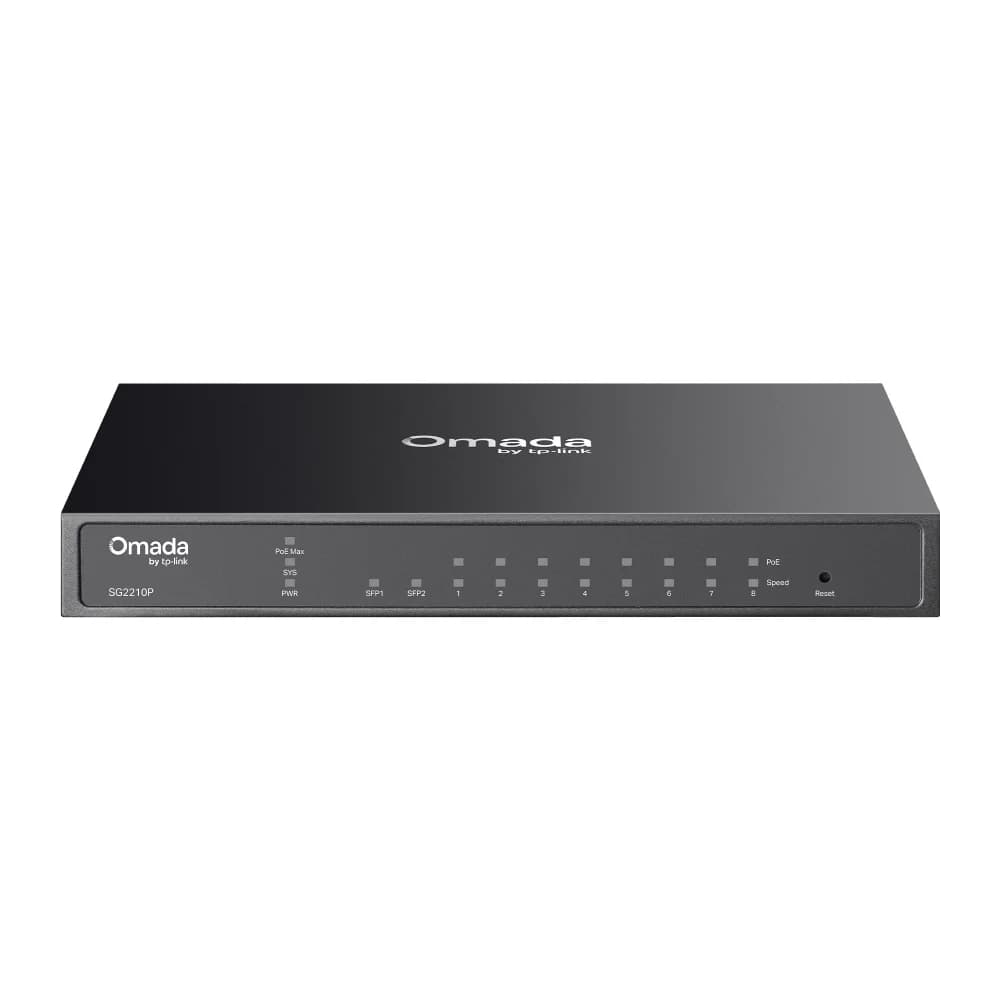

Omada Access 10-Port Gigabit Switch with 8-Port PoE+
SKU SG2210P
รับประกัน ตลอดอายุการใช้งานก่อน VAT
รวม VAT 7% ฿3,413.30
| รุ่น | SG2210P |
|---|---|
| IPv6 | • IPv6 Static Routing and ACL• IPv4/IPv6 Dual Stack• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log• Dying Gasp• ONVIF• Digital Diagnostic Monitoring (DDM) |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| MAC Address Table | 8K |

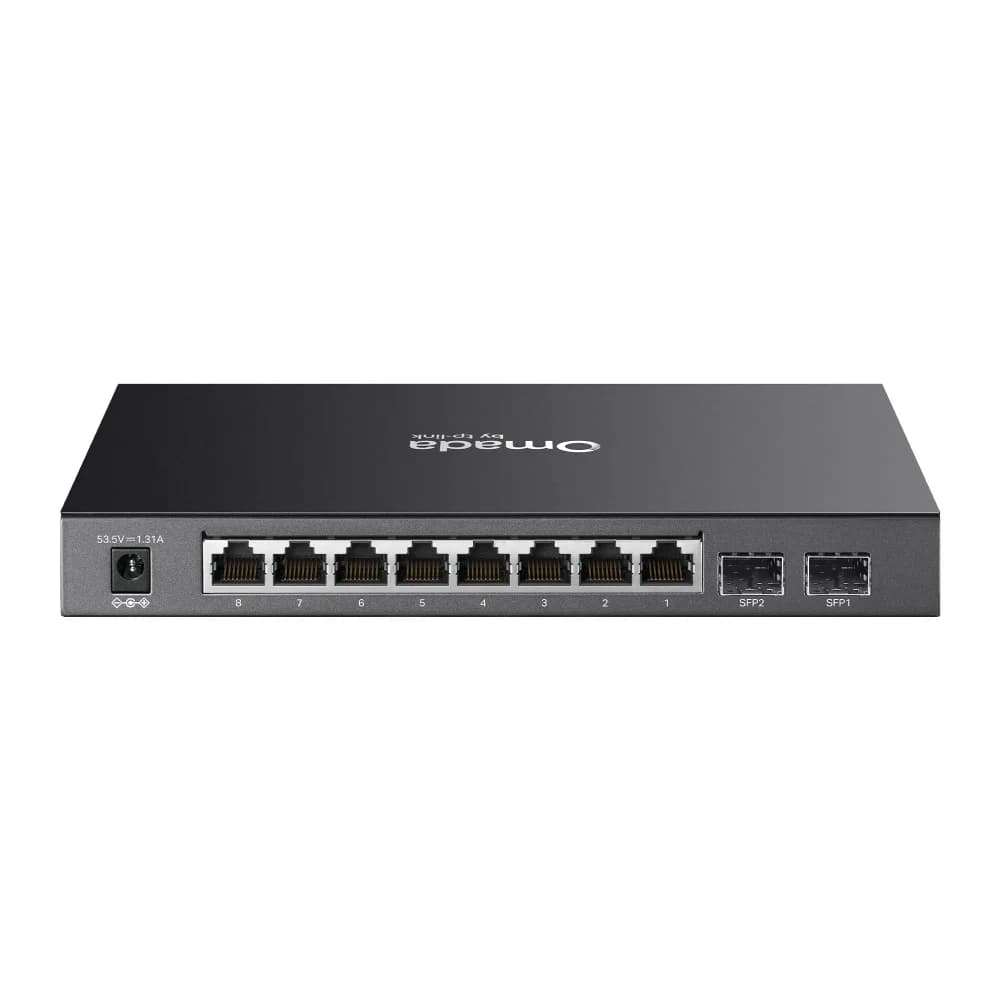

| พอร์ตเชื่อมต่อ | • 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)• 2× 100/1000 Mbps SFP Slots |
| พอร์ต PoE | • Standard: 802.3af/at compliant• PoE Ports: 8 Ports• Power Supply: 61 W*• Fast PoE & Perpetual PoE |
| Max. Power Consumption | • 71.4 W (220 V/50 Hz @ 25 °C) (with 61 W PD connected)• 72.8 W (110 V/60 Hz @ 25 °C) (with 61 W PD connected) |
| Physical Security Lock | √ |
| Surge Protection | ±6 kV |
| L2 and L2+ Features | • 32 IPv4/IPv6 Interfaces• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED |
| Advanced Features | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule† |
| VLAN | • VLAN Group- Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN |
| Security | • AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• DHCP Filter• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control |
| Fan Quantity | Fanless |
| ขนาด (กว้าง × ลึก × สูง) | 8.2×4.9×1.0 in (209×126×26 mm) |

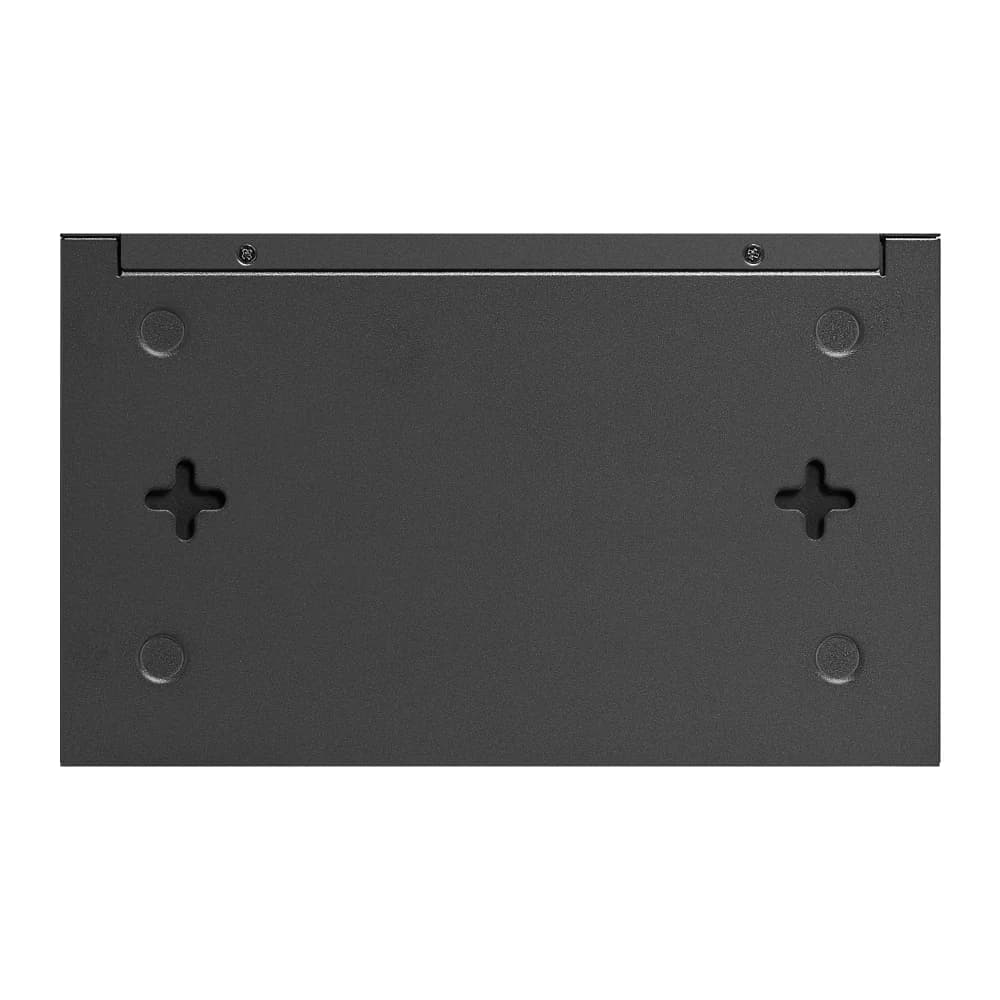

| Mounting | Desktop / Wall-Mounting |
| Certification | CE, FCC |
| อุปกรณ์ในกล่อง | • SG2210P Switch• Power Adapter• Power Cord• Mounting Feet• Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉);• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
| แหล่งจ่ายไฟ | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) |
| Max Heat Dissipation | • 242.83 BTU/hr (220 V/50 Hz @ 25 °C) (with 61 W PD connected)• 247.35 BTU/hr (110 V/60 Hz @ 25 °C) (with 61 W PD connected) |
| ความสามารถในการสวิตช์ | 20 Gbps |
| อัตราส่งต่อแพ็กเก็ต | 14.88 Mpps |
| Quality of Service | • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode- SP (Strict Priority)- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port/Flow based Rating Limit• Smoother Performance• Storm Control- Multiple Control Modes(kbps/ratio)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Multicast Listener Discovery (MLD) Snooping• Limited IP Multicast (256 profiles and 16 entries per profile) |
| Access Control List | • Support up to 230 entries• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark• ACL Rules Binding - Port Binding - VLAN Binding |
| MIBs | • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9) |
| หมายเหตุ | จำหน่ายตามรหัสรุ่น ไม่รับรองเลขเวอร์ชันฮาร์ดแวร์ที่จัดส่ง; หากต้องการฟังก์ชันหรือความเข้ากันได้เฉพาะ กรุณายืนยันก่อนสั่งซื้อ |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
