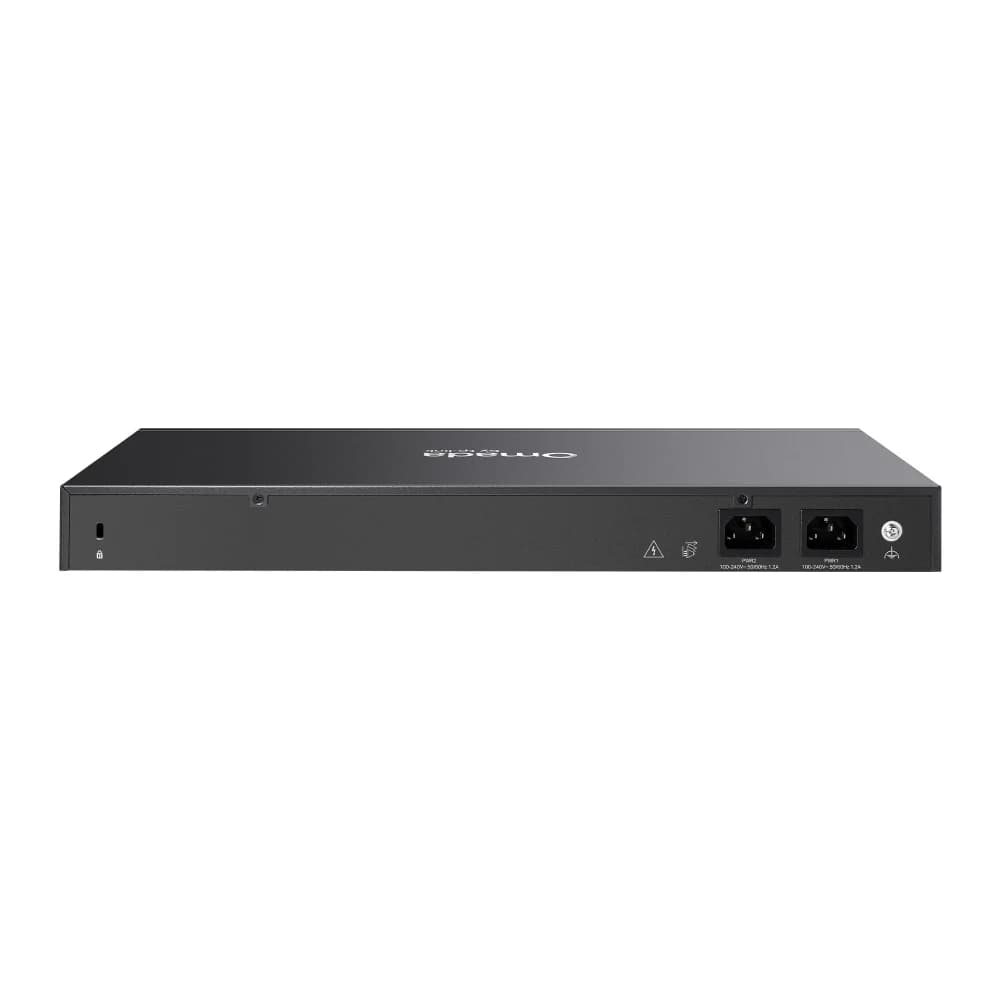

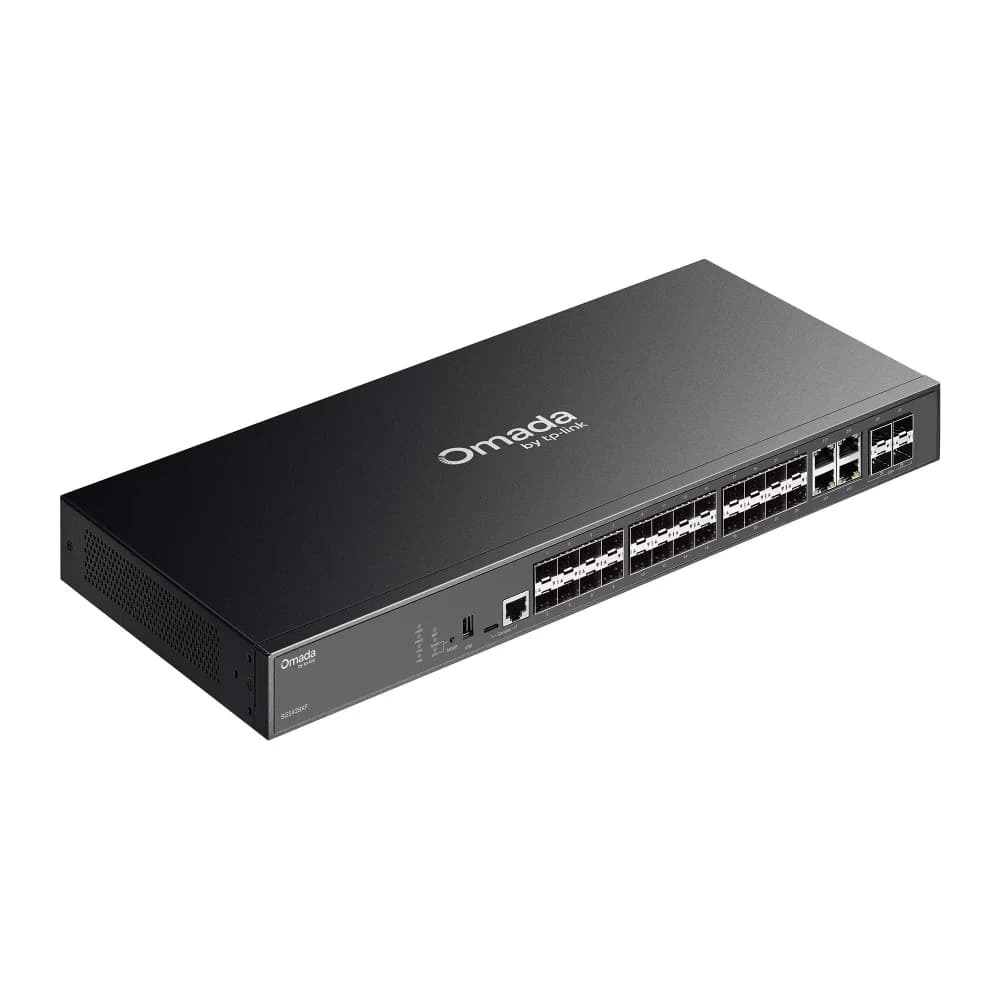

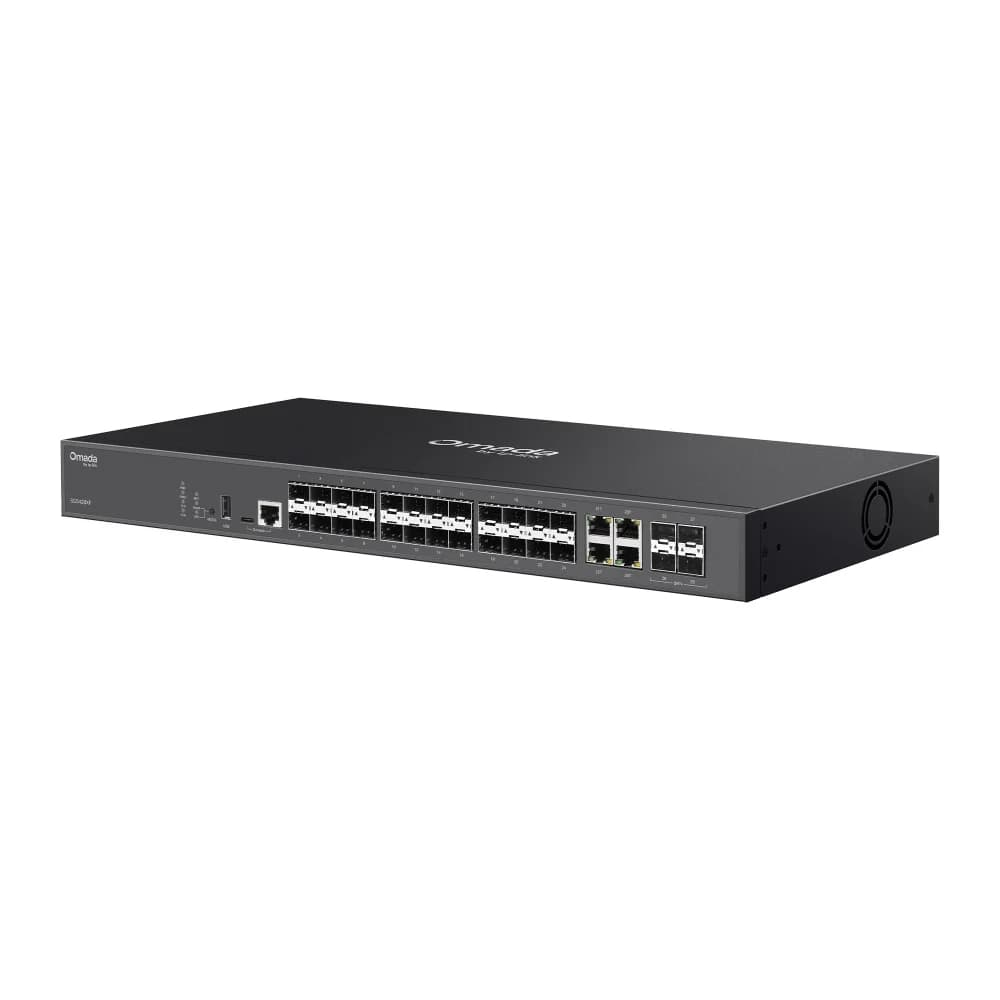

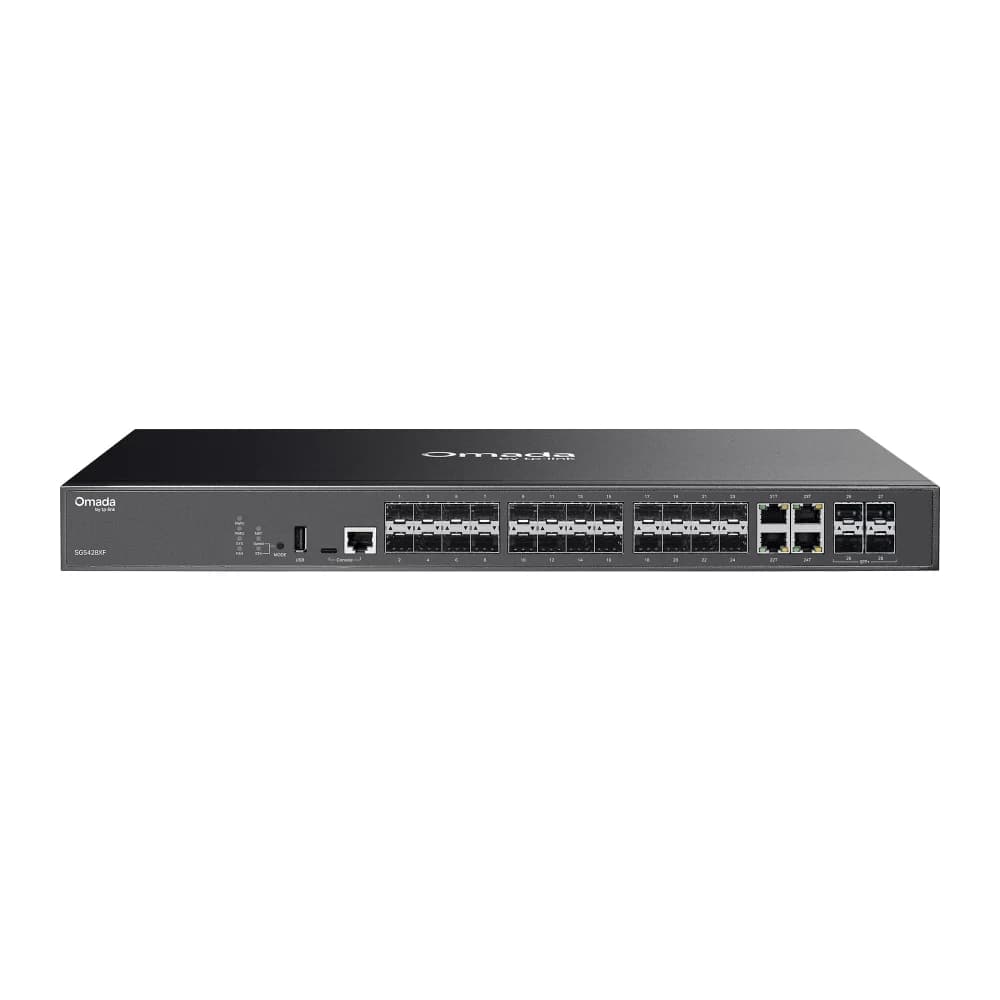

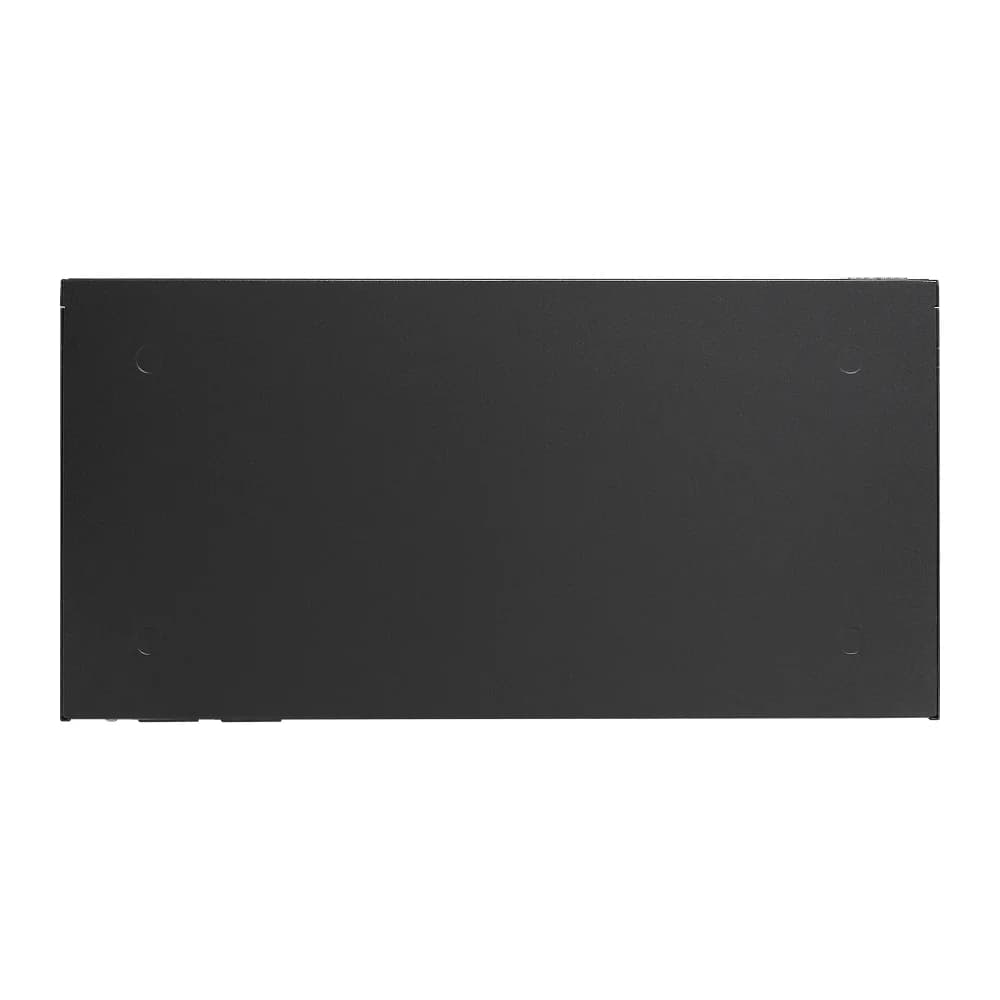

Omada 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
| รุ่น | SG5428XF |
|---|---|
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log• IEEE 802.3az Energy Efficient Ethernet (EEE) |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | • Stacking Number: 4• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)• Stacking Bandwidth: Up to 80 Gbps (4 stacking ports) |
| MAC Address Table | 16 K |
| L3 Features | • IP Interfaces:- IPv4: Max 512, IPv6: Max 512• Static Routing- IPv4: Max 512, IPv6: Max 128• Host Route Table: Max 1,024 entries• RIP: Version v1/v2, Max 1,796• OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450• Static ARP: 512 static entries• Dynamic ARP: 2,048 dynamic entries• Proxy ARP• DHCP Server:- Max 64 IP Pools- Max 8,000 Leases- Max 1,000 Manual Binding Entries• DHCP Relay:- Relayed Interface- Relayed VLAN• VRRP v2/v3 |
| พอร์ตเชื่อมต่อ | • 20× 100/1000 Mbps SFP Slots• 4× Gigabit RJ45/SFP Combo Ports• 4× 1/10 Gbps SFP+ Slots*• 1× USB 2.0 Port• 1× RJ45 Console Port• 1× USB Type-C Console Port |
| Max. Power Consumption | • 28.3 W (220V/50Hz @ 25 °C)• 28.98 W (110V/60Hz @ 25 °C) |
| L2 and L2+ Features | • Link Aggregation• Spanning Tree Protocol• Port-based and VLAN-based Loopback Detection• 802.3x Flow Control• ERPS• Mirroring• RSPAN• MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP)• DDM• sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN)• 802.1Q Tagged VLAN• MAC VLAN Entries: 60• Multicast VLAN• Management VLAN• VLAN VPN (QinQ): Max 256 entries• GVRP• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries• Voice VLAN• Private VLAN |
| Security | • Port Isolation• CPU-Defend• ARP Inspection (Dynamic ARP Inspection)• DoS Defend• IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Scanning- ARP Detection- IPv4 Source Guard• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Snooping- ND Detection- IPv6 Source Guard• DHCP Filter• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support• AAA (including TACACS+)• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv2• IP/Port/MAC-based access control |
| Fan Quantity | 1 Fan |
| ขนาด (กว้าง × ลึก × สูง) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Mounting | Rackmountable |
| อุปกรณ์ในกล่อง | • SG5428XF Switch• Power Cords• Console Cable• Mounting Brackets• Rubber Feet• Screws• Installation Guide |
| Environment | • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| แหล่งจ่ายไฟ | 100-240 V~50/60 Hz |
| Max Heat Dissipation | • 96.503 BTU/hr (220V/50Hz @ 25 °C)• 98.822 BTU/hr (110V/60Hz @ 25 °C) |
| ความสามารถในการสวิตช์ | 128 Gbps per Unit |
| อัตราส่งต่อแพ็กเก็ต | 95.23 Mpps |
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control - Rate Limit - Storm Control• Voice VLAN • User-Defined OUI • Smoother Performance• Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
