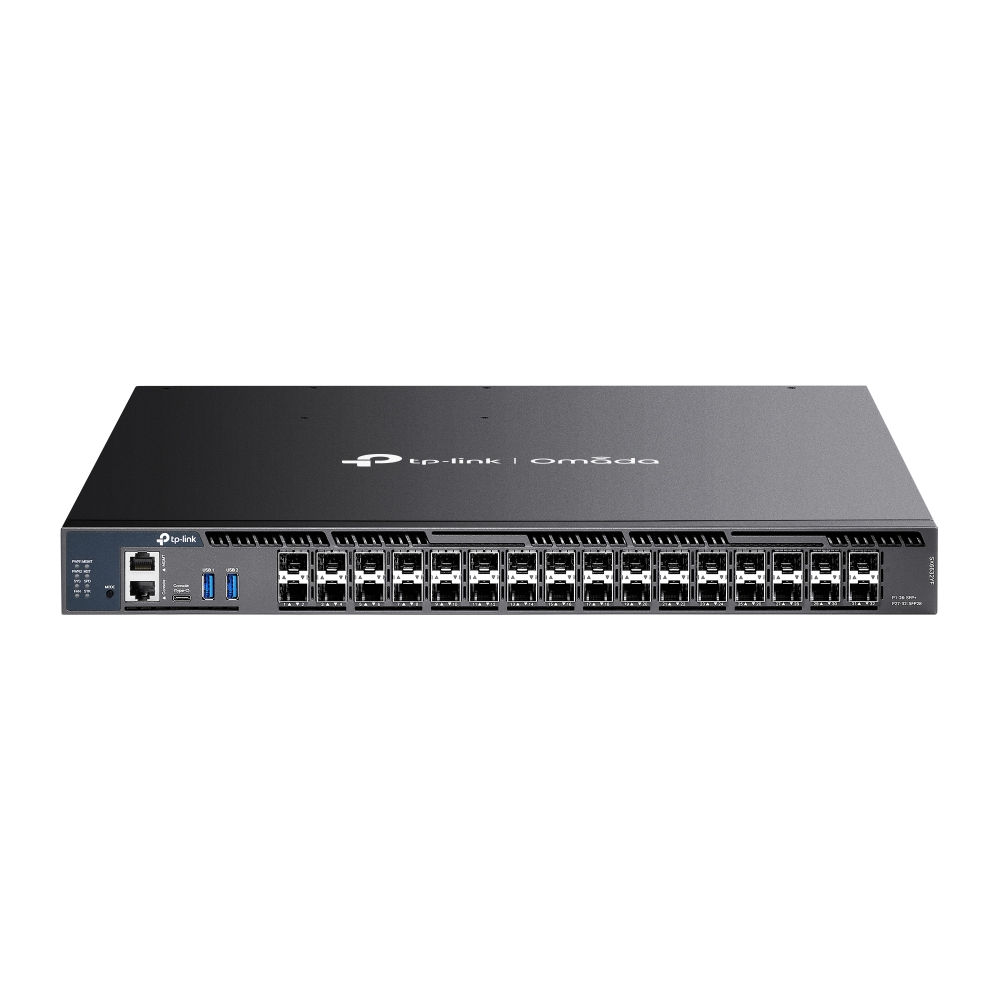

- Interface
- • 6× 10/25G SFP28 Slots
- 26× 1/10G SFP+ Slots
- 2× USB 3.0 Ports
- 1× RJ45 Console Port
- 1× USB Type C Console Port
- 1× RJ45 Management Port

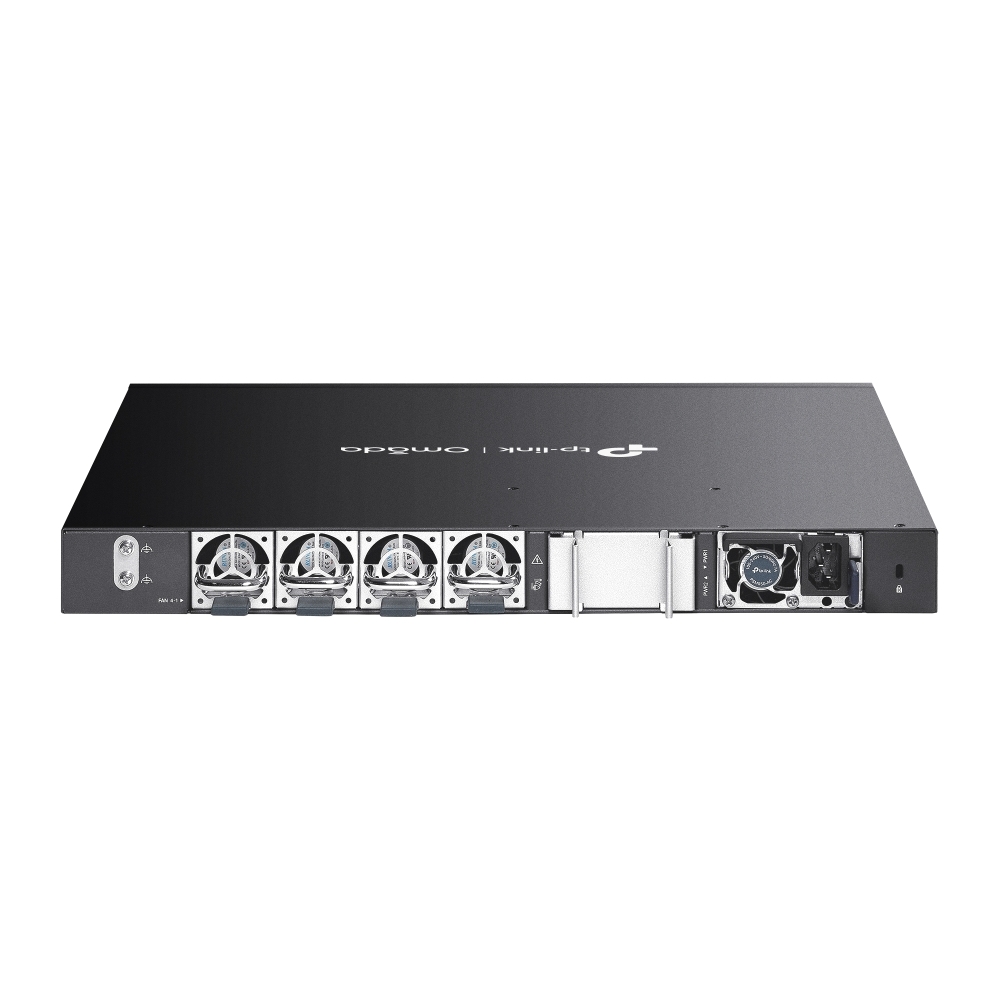

- Fan Quantity
- Four field-replaceable and hot-swappable fans (N+1 redundant)
- Physical Security Lock
- √
- Power Supply
- Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
- *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
- Power Consumption
- 86.7 W (110 V/60 Hz)
- Dimensions ( W x D x H )
- 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
- Mounting
- Rack Mountable
- Max Heat Dissipation
- 295.85 BTU/hr (110 V/60 Hz)
- Switching Capacity
- 820 Gbps
- Stacking
- • Stacking Number: 8
- Stacking Port
- 25G SFP28
- Stack Bandwidth
- Up to 300 Gbps (6 stack ports)
- Packet Forwarding Rate
- 610.1 Mpps
- MAC Address Table
- 128 K
- Packet Buffer Memory
- 8 MB
- Jumbo Frame
- 9 KB
- Quality of Service
- • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Strom Control
- User-Defined OUI
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
- Advanced Features
- • Automatic Device Discovery †
- Batch Configuration †
- Batch Firmware Upgrading †
- Intelligent Network Monitoring †
- Abnormal Event Warnings †
- Unified Configuration †
- Reboot Schedule † ISP Features
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow
- PPPoE ID Insertion
- VLAN
- • VLAN Group (802.1q VLAN)
- Max 4K VLAN Groups
- 802.1Q Tagged VLAN
- MAC VLAN entries
- 200
- Multicast VLAN
- Management VLAN
- Protocol VLAN
- Protocol Template 16, Protocol VLAN 12 entries
- VLAN VPN
- VLAN Mapping
- VLAN Replace
- Voice VLAN
- Private VLAN
- Omada App
- Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
- • Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
- Cloud Access
- Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features
- • Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- Package Contents
- • SX6632YF Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
- System Requirements
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
- Environment
- • Operating Temperature:
- 5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
- 5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
- 5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
- Operating Humidity
- 10–90% RH non-condensing
- Storage Humidity
- 5–90% RH non-condensing
