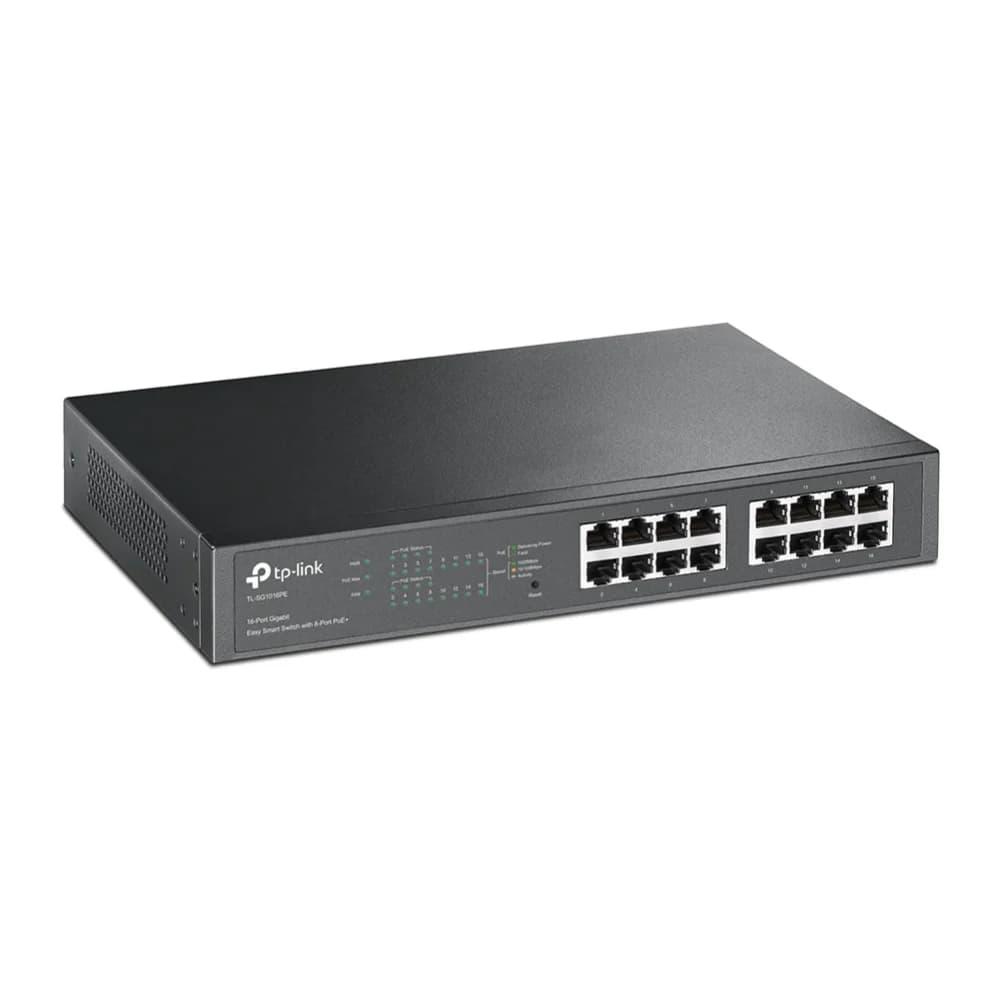

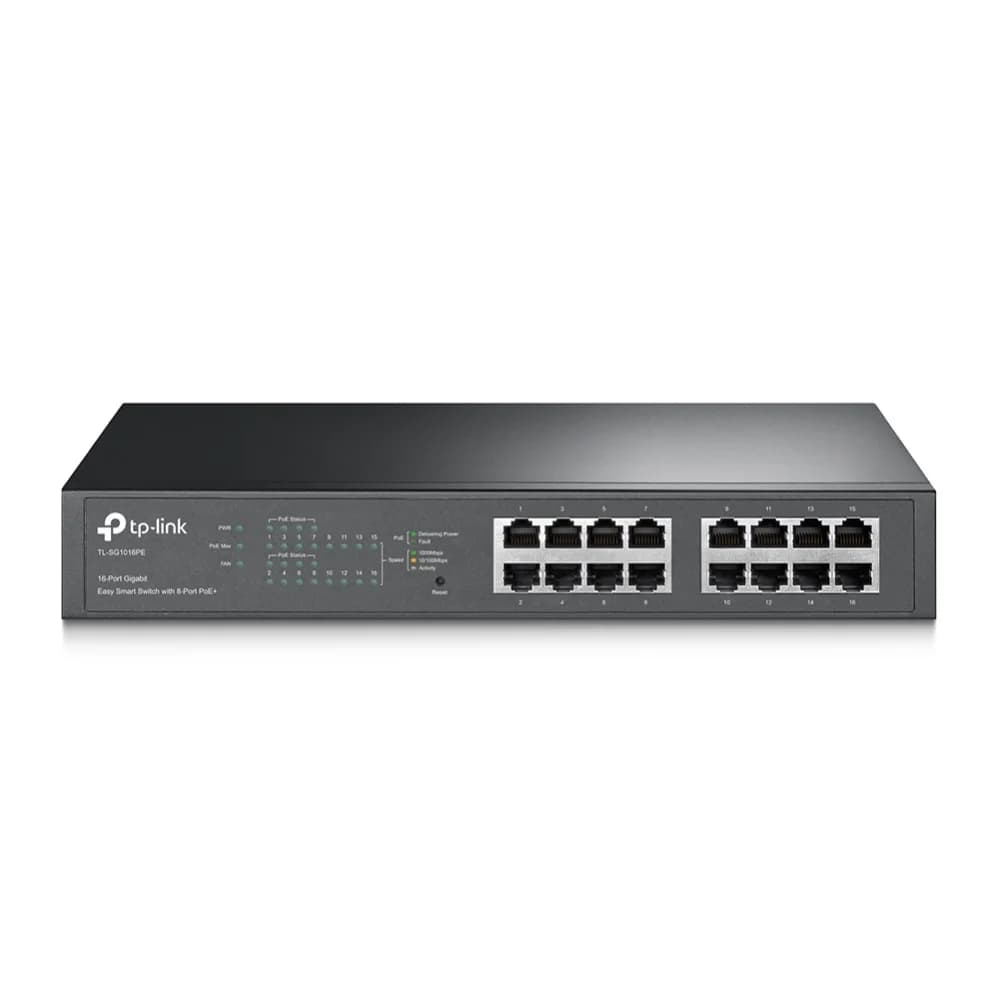

16-Port Gigabit Easy Smart Switch with 8-Port PoE+
| รุ่น | TL-SG1016PE |
|---|---|
| Management Features | Web-based GUIEasy Smart Configuration Utility |
| System Requirements | Microsoft® Windows® for running Utility |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| พอร์ตเชื่อมต่อ | 16× 10/100/1000 Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) |
| พอร์ต PoE | Standard: 802.3 af/at compliantPoE Ports: Port 1 to Port 8PoE Power Budget: 150 W |
| Max. Power Consumption | 8.8 W (220 V/50 Hz with no PD connected)172.26 W (220 V/50 Hz with 150 W PD connected) |
| PoE | PoE ManagementExtend Mode PoE Auto Recovery |
| Physical Security Lock | Yes |
| L2 Features | IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN |
| Fan Quantity | 1 |
| ขนาด (กว้าง × ลึก × สูง) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Mounting | Rack Mountable/ Desktop |
| Certification | FCC, CE, RoHS |
| อุปกรณ์ในกล่อง | TL-SG1016PEPower CordInstallation GuideRackmount KitRubber Feet |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉)Storage Temperature: -40–70 ℃ (-40–158 ℉)Operating Humidity: 10–90% non-condensingStorage Humidity: 5–90% non-condensing |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Max Heat Dissipation | 30.01 BTU/h (220 V/50 Hz with no PD connected)587.41 BTU/h (220 V/50 Hz with 150 W PD connected) |
| ความสามารถในการสวิตช์ | 32 Gbps |
| อัตราส่งต่อแพ็กเก็ต | 23.8 Mbps |
| Quality of Service | Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control |
| Transmission Method | Store-And-Forward |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
