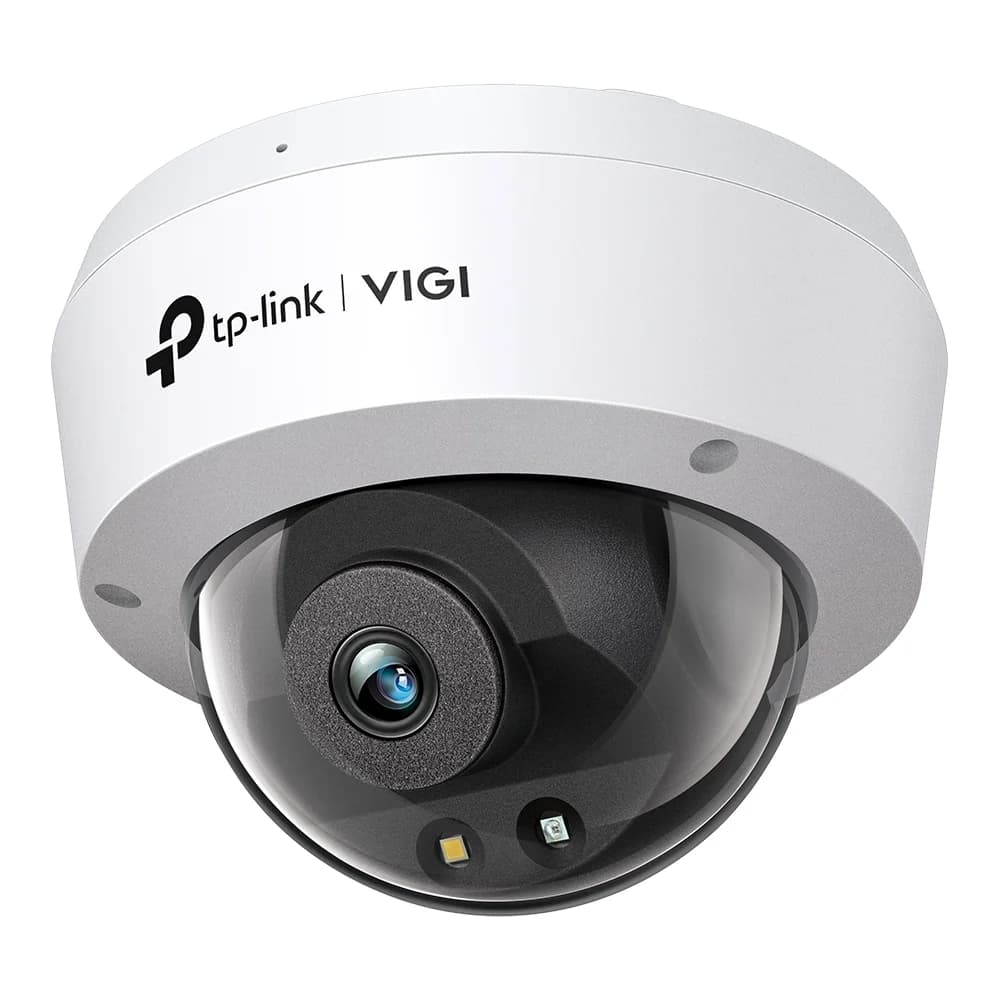

VIGI 5MP Full-Color Dome Network Camera
| รุ่น | VIGI C250 |
|---|---|
| Type | Fixed Focal Lens |
| Web Browser | Google Chrome® 57 and aboveFirefox® 52 and aboveSafari® 11 and aboveMicrosoft® Edge 91 and above |
| Audio Input | Yes (Built-in Microphone) |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Wide Dynamic Range | 120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Audio Communication | N/A |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
| กำลังไฟ | DC Power Port |
| เลนส์ที่จำหน่าย | 2.8 มม. |
| เซนเซอร์ภาพ | V1:1/2.7” Progressive Scan CMOSV1.20:1/2.65” Progressive Scan CMOS |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| FOV | V1:• 2.8mm: Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°• 4mm: Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°V1.20:• 2.8mm: Horizontal FOV: 108.3°, Vertical FOV: 59.9°, Diagonal FOV: 126.8°• 4mm: Horizontal FOV: 88.4°, Vertical FOV: 46°, Diagonal FOV: 105.9° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mmDetect: 64 m (209 ft)Observe: 27 m (89 ft)Recognize: 13 m (43 ft)Identify: 6 m (20 ft)4 mmDetect: 80 m (262 ft)Observe: 33 m (108 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft) |
| Illuminator Type | • 1× IR LED• 1× White LED |
| Illuminator Distance | 30 m (98 ft) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ความละเอียดสูงสุด | 2880 X 1620 |
| Main Stream | Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:848x480, 704x576, 640x480, 640x360, 352x288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | Main Stream: 256 Kbps to 6 MbpsSub-Stream: 64 Kbps to 512 Kbps |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication |
| Alarm Linkage | • Memory Card Video Recording• Upload to FTP server• Push Notifications• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm• Send to Alarm Server |
| Alarm | N/A |
| Reset Button | Yes |
| Protection | IP67, IK10 |
| Environment Noise Filtering | Yes |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| อุปกรณ์ในกล่อง | VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.52 Kg |
| Product Dimensions (L x W x H) | Φ4.5 × 3.4 in (Φ115 × 85.7 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| ระยะโฟกัส | 2.8 มม. |
| Aperture | 2.8 mm: F1.64 mm: F1.6 |
| ช่วงปรับมุม | Pan: 0° to 360°, Tilt: 0° to 85° |
| การบีบอัดวิดีโอ | Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile△ |
| H.265+ | Main Stream Supported△ |
| Image Settings | • Mirror• Rotation• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White balance• Prevent overexposure to infrared light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Cloud | Yes |
| Smart Event | • Intrusion Detection• Line-Crossing Detection• People Detection• Vehicle Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• Abnormal Sound Detection• Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login) |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| แหล่งจ่ายไฟ | DC• 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug• Recommended Power Supply:T120100-2C1 (for EU Regions)PoE• PoE: 802.3af/at, class 0, Max. 8 WErP Information• Power consumption in networked standby when all wired network ports are connected: 2 W. |
| ระยะเวลารับประกัน | 3 ปี |
