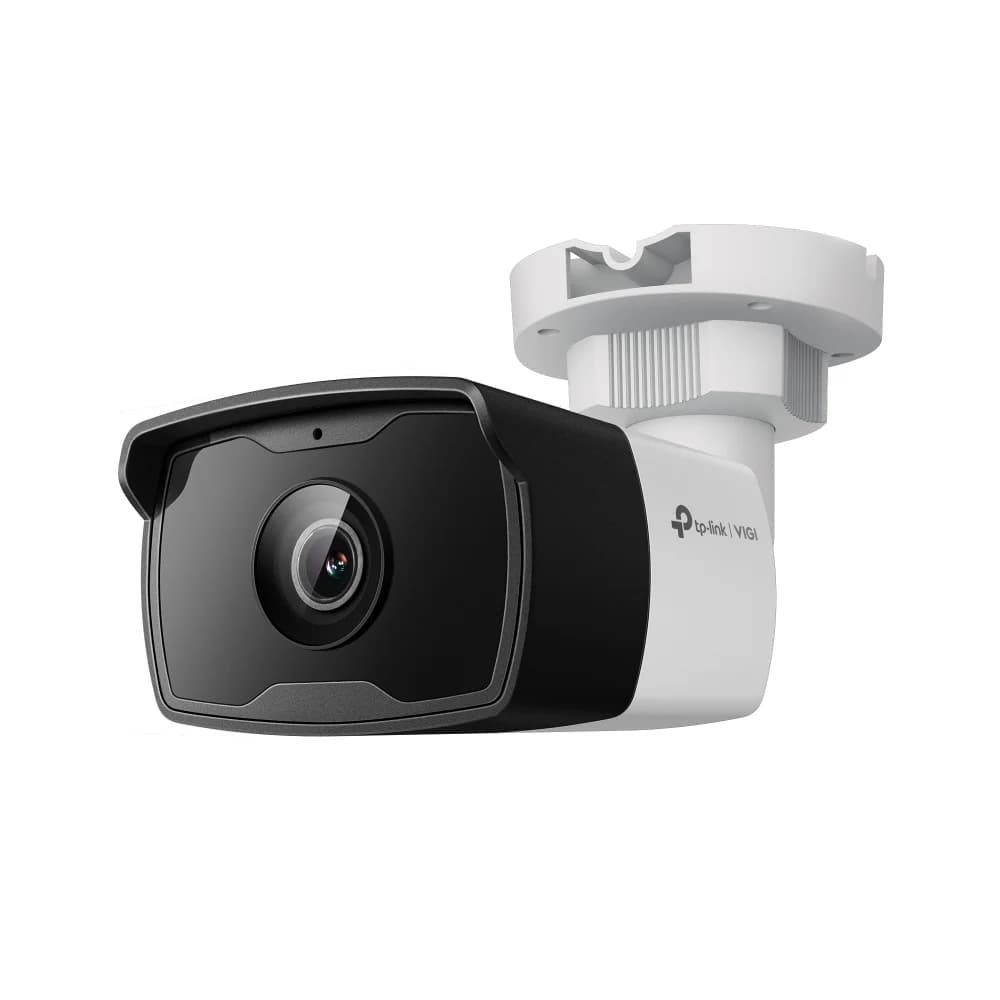

VIGI 2MP Outdoor IR Bullet Network Camera
| รุ่น | VIGI C320I |
|---|---|
| Type | Fixed Focal Lens |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Audio Input | Yes (Built-in Microphone) |
| On-board Storage | N/A |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Wide Dynamic Range | DWDR |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Audio Communication | N/A |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
| กำลังไฟ | N/A |
| เลนส์ที่จำหน่าย | 2.8 มม. / 6 มม. |
| เซนเซอร์ภาพ | 1/3” Progressive Scan CMOS |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| FOV | • 2.8 mm:Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°• 4 mm: Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°• 6 mm:Horizontal FOV: 49.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7° |
| Lens Mount | M12 |
| DORI Distance | • 2.8 mm:Detect: 45 m (149 ft)Observe:19 m (62 ft)Recognize: 9 m (30 ft)Identify: 5 m (15 ft)• 4 mm:Detect: 60 m (198 ft)Observe: 25 m (83 ft)Recognize: 12 m (40 ft)Identify: 6 m (20 ft)• 6 mm:Detect: 91 m (297 ft)Observe: 38 m (124 ft)Recognize: 18 m (59 ft)Identify: 9 m (30 ft) |
| IR LED | • Quantity: 2• Range: 50m• Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ความละเอียดสูงสุด | 1920 × 1080 |
| Main Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:1920x1080, 1280x960, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:704x576, 640x480, 352x288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm Linkage | Message Push |
| Alarm | N/A |
| Reset Button | N/A |
| Protection | IP67 Waterproof |
| Environment Noise Filtering | Yes |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| อุปกรณ์ในกล่อง | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.43 Kg |
| Product Dimensions (L x W x H) | 3.1 × 7.4 × 2.9 in (78.50 × 188.03 × 71.55 mm) |
| Certifications | CE, NTRA, VCCI, BSMI |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| ระยะโฟกัส | 2.8 มม. / 6 มม. |
| Aperture | • 2.8 mm: F2. 2• 4 mm: F2.0• 6 mm: F2.0 |
| ช่วงปรับมุม | • Pan: 0° to 360°• Tilt: 0° to 90°• Rotation: 0° to 360° |
| White LED | N/A |
| การบีบอัดวิดีโอ | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Image Settings | • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance Adjustable by Client Software• Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Cloud | Yes |
| Smart Event | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned/Removal Detection• Abnormal Sound Detection• People Detection• Vehicle Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login) |
| แหล่งจ่ายไฟ | PoE: 802.3af/at, class 0, Max. 5.5 W |
| ระยะเวลารับประกัน | 3 ปี |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
