- Image Sensor
- 1/3.06” Progressive Scan CMOS
- Shutter Speed
- 1/3 to 1/10000 s
- Slow Shutter
- Yes
- Minimum Illumination
- 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism
- IR Cut Filter
- Day/Night Switch
- Unified/ Scheduled/ Auto
- Type
- Fixed Focal Lens
- Focal Length
- 4 mm
- Aperture
- F1.6
- FOV
- Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
- Lens Mount
- M12*0.5
- DORI Distance
- Detect: 80 m (262 ft)
- Observe
- 33 m (109 ft)
- Recognize
- 16 m (52 ft)
- Identify
- 8 m (26 ft)
- Pan/tilt Range
- Pan: 0° to 348°, Tilt: 0° to 120°
- Pan/tilt Speed
- • Pan Speed:
- Configurable from 8° to 44°/s; Preset Speed
- 44°/s
- Tilt Speed
- Configurable from 8° to 44°/s, Preset Speed 44°/s
- Manual Control Speed
- Configurable from 8° to 35°/s
- Presets
- 300
- Patrol Scan
- 8 patrols, up to 8 presets for each patrol
- Power-off Memory
- Yes;
- Auto restore to previous PTZ and lens status after power failure
- 3D Positioning
- Yes
- Range
- • Pan: 0° to 348°
- Tilt
- 0° to 120°
- IR LED
- • Quantity: 2
- Range
- 30m
- Wavelength
- 850nm
- White LED
- • Quantity: 2
- Range
- 30m
- Illuminator On/Off Control
- Auto/Scheduled/Always on/Always off
- Max. Resolution
- 2560 X 1440
- Main Stream
- • Frame Rate:
- 50Hz
- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz
- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution
- 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
- Note
- If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Sub-Stream
- • Frame Rate:
- 50Hz
- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz
- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution
- 640×480, 352×288, 320×240
- Note
- If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Bit Rate Control
- CBR, VBR
- Video Compression
- • Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream
- H.265/H.264
- H.264 Type
- Main Profile/High Profile
- H.264+
- Main Stream Supported
- H.265 Type
- Main Profile
- H.265+
- Main Stream Supported
- Video Bit Rate
- • Main Stream: 256 Kbps to 3 Mbps
- Sub-Stream
- 64 Kbps to 512 Kbps
- Image Settings
- • Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure, WDR,
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
- Rotation (90°/270°)
- Image Enhancement
- BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range
- DWDR
- SNR
- ≥ 52 dB
- Image Parameters Switch
- Yes
- Privacy Mask
- Up to 4 Masks
- ROI
- 1 Region
- OSD Setting
- Yes
- Audio Communication
- Two-Way Audio
- Audio Input
- Yes
- Audio Output
- Yes
- Audio Compression
- Yes
- Audio Sampling Rate
- 8KHz
- Environment Noise Filtering
- Yes
- Audio Bit Rate
- 64 Kbps(G.711 alaw)
- Protocol
- • TCP/IP
- UDP
- ICMP
- HTTP
- HTTPS
- DHCP
- DNS
- RTSP
- NTP
- UPnP UDP
- SSL/TLS
- FTP/SFTP
- RTP
- IPv4
- ARP
- SMTP
- SNMP
- IEEE 802.1x
- ONVIF
- Yes
- API
- ONVIF
- Simultaneous Live View
- 2 Main Streams & 2 Sub-Streams
- Client
- VIGI App, VIGI Security Manager, Web UI
- Web Browser
- • Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
- Cloud
- Yes
- Security
- Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Standard
- LTE-TDD/LTE-FDD/WCDMA
- SIM Type
- Nano SIM
- Category
- 4
- Frequency
- • LTE-FDD: B 1/3/7/8/20/28
- LTE-TDD
- B 38/40
- WCDMA
- B 1/8
- Smart Event
- • Human & Vehicle Classification
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- People Detection
- Vehicle Detection
- Basic Event
- • Motion Detection
- Video Tampering Detection
- Exception (Illegal Login)
- Alarm Linkage
- • Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
- Linkage Method
- N/A
- Output Notification
- Message Push
- Network Interface
- 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Alarm
- N/A
- Reset Button
- Yes
- Power
- DC Power Port
- On-board Storage
- Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB

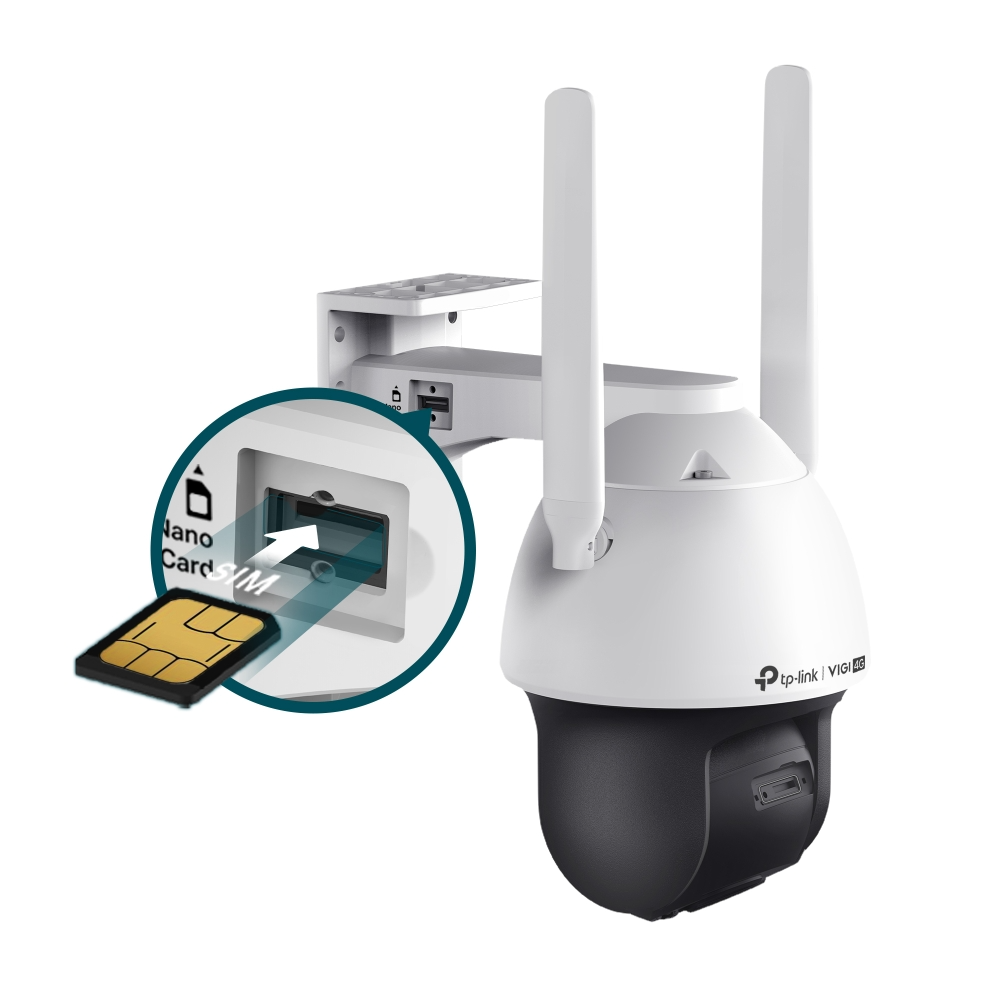

- Built-in Nano-SIM Card Slot
- Yes
- Built-in Microphone
- Yes; Records Anything Going on within a 15-ft Radius of the Camera
- Built-in Speaker
- Yes
- Audio
- N/A
- Operating Temperature
- -30–60 °C
- Storage Temperature
- -40–60 °C
- Operating Humidity
- 95% or Less (Non-Condensing)
- Storage Humidity
- 95% or Less (Non-Condensing)
- Package Content
- • VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Power Adapter
- Material
- Plastic
- Net Weight
- 0.69 Kg
- Gross Weight
- 1.16 Kg
- Power Supply
- 12V DC/1A, 5.5mm Coaxial Power Plug
- Antenna
- • Quantity: 2
- Type
- 690~960&1710~2690MHz Dipole Omni-Directional Antenna
- Gain
- Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
- Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
- Protection
- IP66
- Product Dimensions (L x W x H)
- 120 × 182 × 201 mm (excluding antennas)
- Certifications
- CE, RCM, BSMI, RoHS, NCC
- รหัสสินค้า (SKU)
- VIGI C540-4G(4MM)
- หมวดหมู่
- กล้อง IP
- ประเภทการจัดส่ง
- จัดส่งสินค้าจริง
