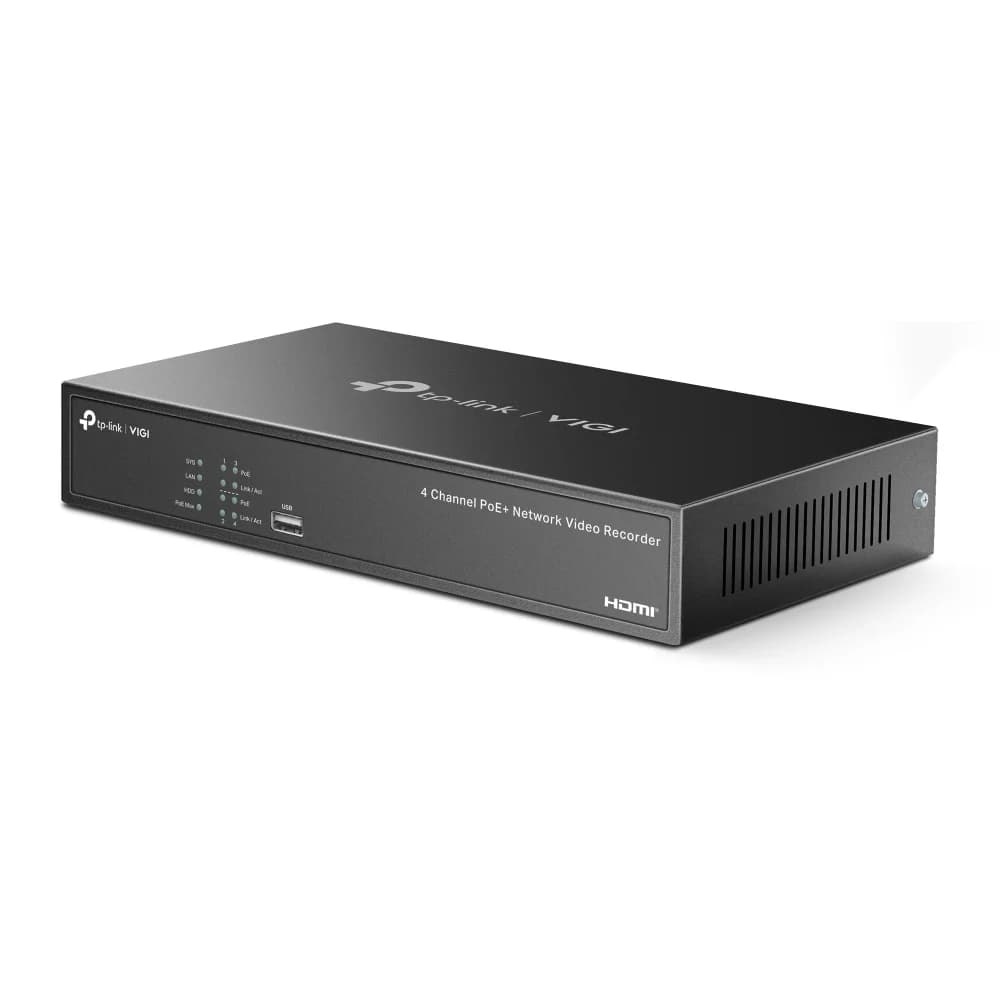

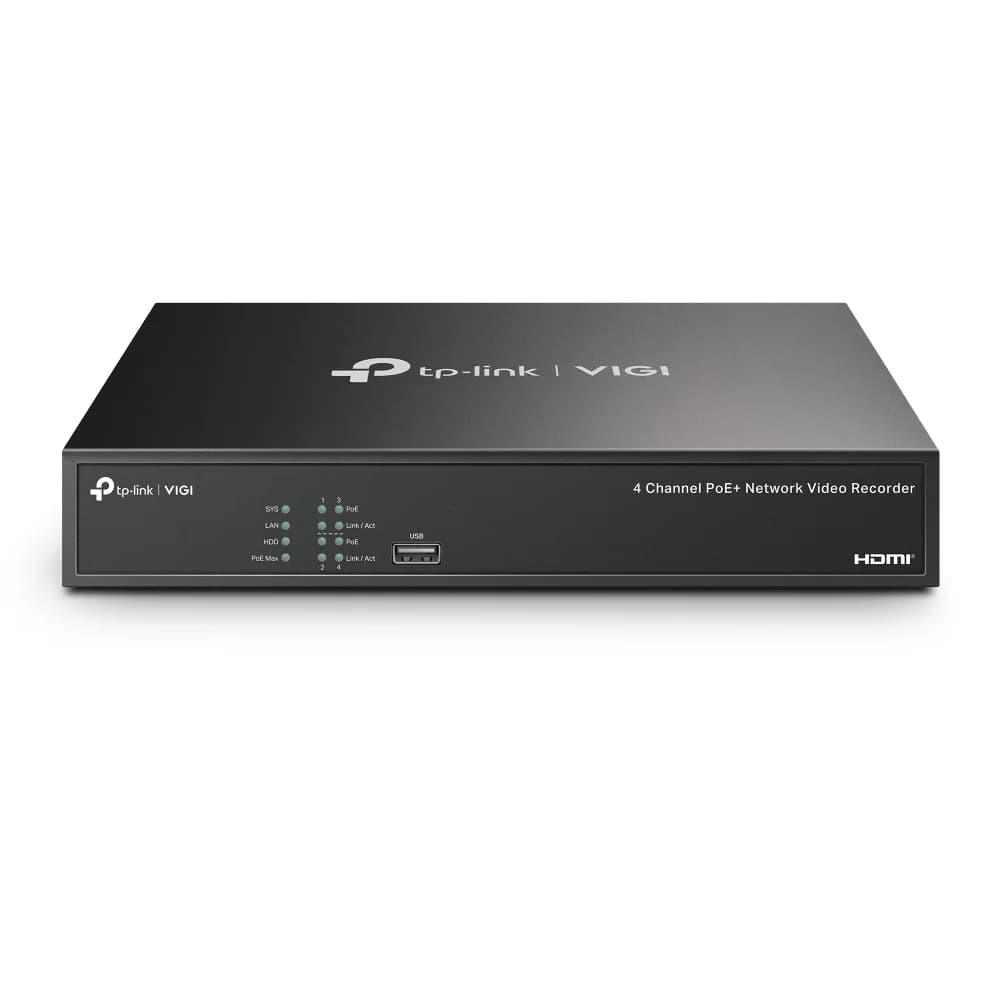

VIGI 4 Channel PoE+ Network Video Recorder
| รุ่น | VIGI NVR1004H-4P |
|---|---|
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T, CGI |
| Capacity | • Up to 10 TB Capacity for Each HDD• 1 × 2TB HDD Preinstalled |
| Storage Temperature | -40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Serial Interface | N/A |
| HDMI | 1 |
| พอร์ตเชื่อมต่อ | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Audio Compression | G.711A/G.711U/G.726 |
| Speaker | N/A |
| กำลังไฟ | 1× DC Jack |
| งบกำลังไฟ PoE | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| Max. Power Consumption | • 4.25 W (Without Disk)• 13.10 W (With Disk) |
| ช่องกล้อง IP | 4-Channel |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Multi-View Display | 1/4 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| VGA | 1 |
| Alarm In/Out | N/A |
| Reset Button | 1 |
| General Alarm | • Motion Detection• Video Tampering• Scene Change Detection• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human Detection• Abnormal Sound Detection• Smart FrameNote: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss• Offline and IP Conflict• Disk Exception• Login Exception |
| Alarm Linkage | • Recording• White Light Alarm• Buzzer• Log• Audible AlarmNote: The alarm function requires the use of a camera. |
| อุปกรณ์ในกล่อง | • VIGI Network Video Recorder• Power Adapter• HDD Screws• Rubber Feet• Mouse• Quick Installation Guide |
| Working Temperature | • NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉）• Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 9.7 × 5.8 × 1.8 in (246.2 × 148.2 × 45 mm) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| ฮาร์ดดิสก์ | ไม่รวมฮาร์ดดิสก์ |
| แบนด์วิดท์รับเข้า | 80 Mbps |
| แบนด์วิดท์ส่งออก | 60 Mbps |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| การบีบอัดวิดีโอ | H.265+/H.265/ H.264+/H.264 |
| Synchronous Playback | 4-Channel† |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP• 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Record Mode | • Manual Recording• Scheduling Recording• Motion Detection Recording |
| Playback Mode | • Instant Playback• Regular Playback• Tag Playback• Event Playback |
| Backup Mode | • Regular Backup• Video Clip Backup |
| Playback Function | • Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Full Screen• Video Clip• Export Clip• Digital Zoom• Lock Recording• Audio On/Off |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| eSATA | N/A |
| ช่องฮาร์ดดิสก์ SATA | 1 SATA Interface |
| Standard | 802.3at/af Compliant |
| แหล่งจ่ายไฟ | 53.5V DC/1.31A |
| ระยะเวลารับประกัน | 3 ปี |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
