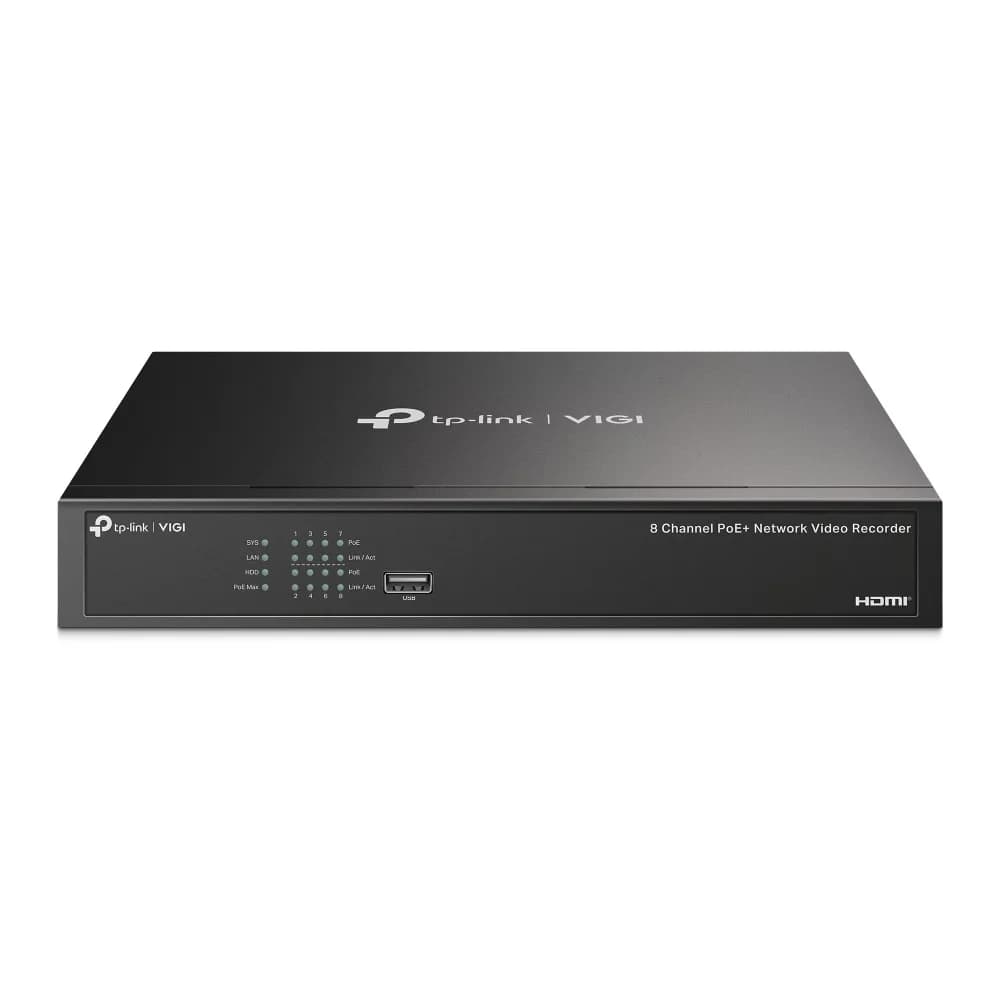

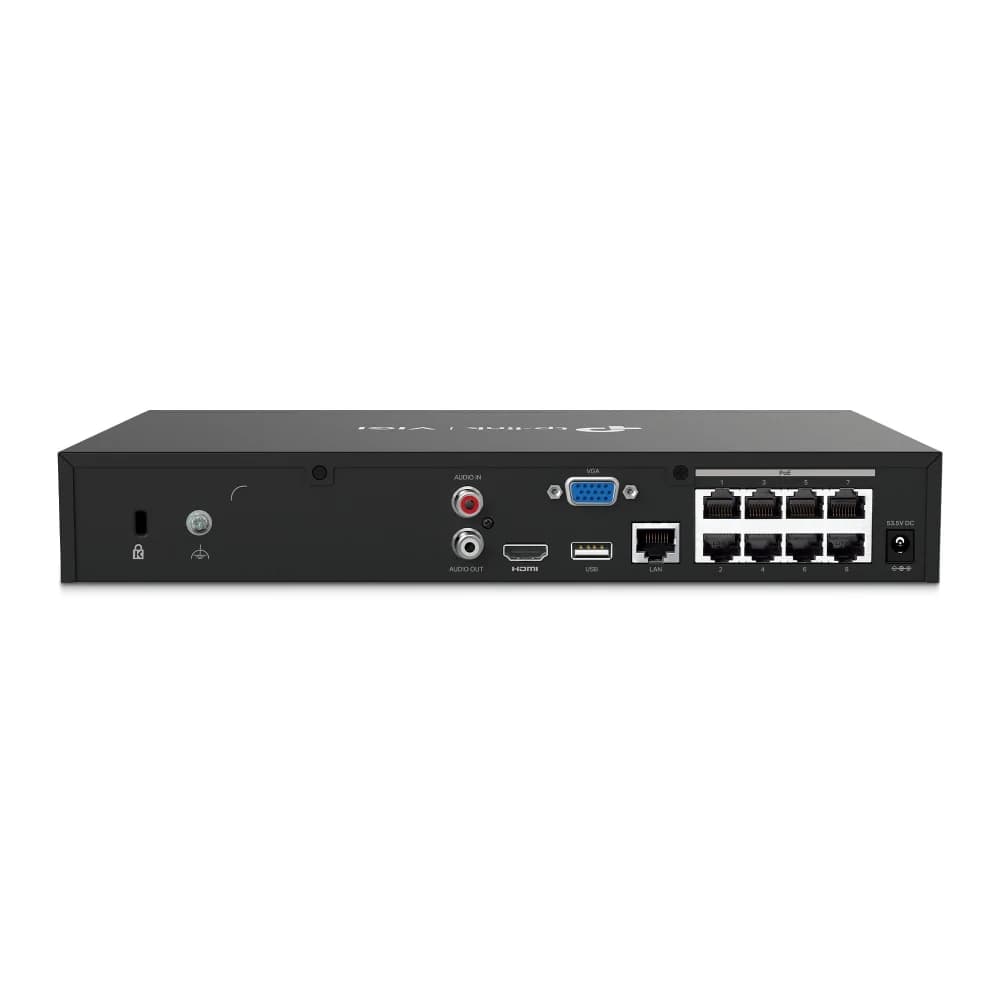

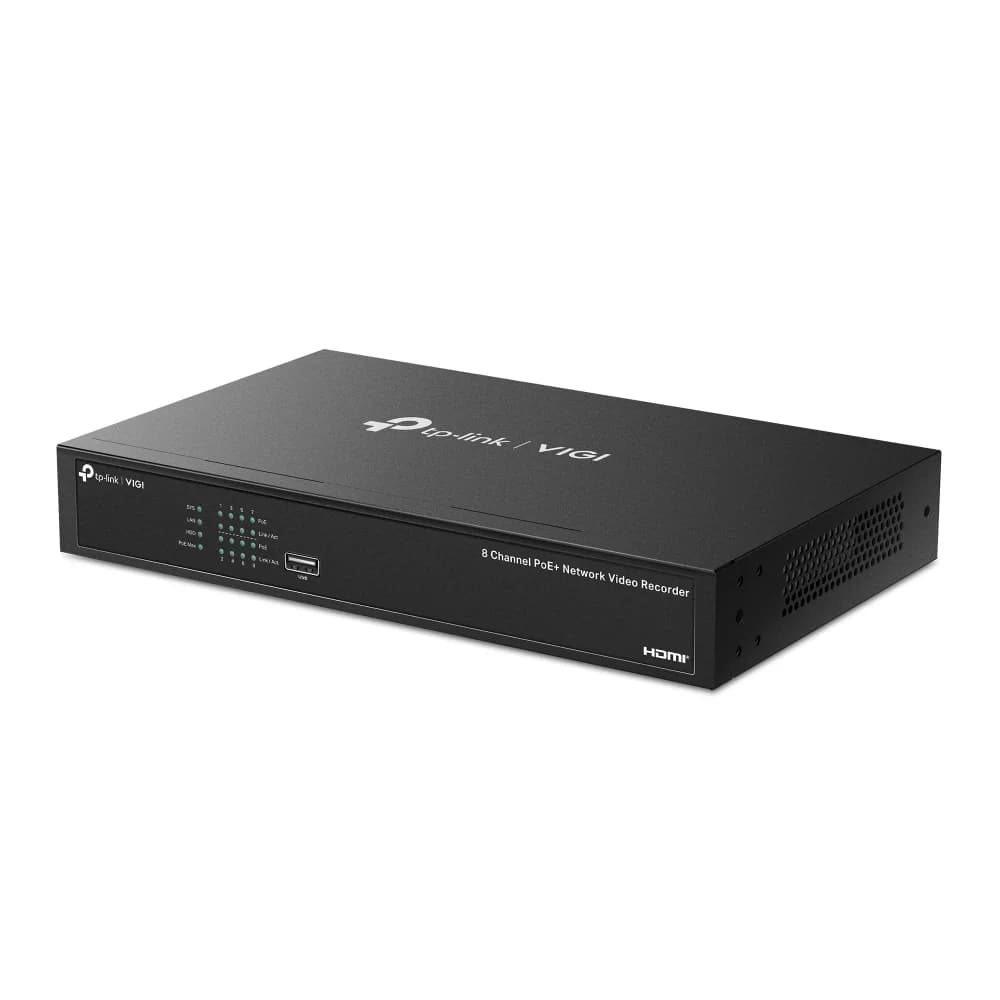

VIGI 8 Channel PoE+ Network Video Recorder
| รุ่น | VIGI NVR1008H-8P |
|---|---|
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T, CGI |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Serial Interface | N/A |
| HDMI | 1 |
| พอร์ตเชื่อมต่อ | 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Audio Compression | G.711A/G.711U/G.726 |
| Speaker | N/A |
| กำลังไฟ | 1× DC Jack |
| งบกำลังไฟ PoE | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| Max. Power Consumption | 2.38 W (without disk)12.94 W (with disk) |
| ช่องกล้อง IP | 8-Channel |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Multi-View Display | 1/4/6/8 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| VGA | 1 |
| Alarm In/Out | N/A |
| Reset Button | 1 |
| General Alarm | • Motion Detection• Video Tampering• Scene Change Detection• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human Detection• Abnormal Sound Detection• Smart FrameNote: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss• Offline and IP Conflict• Disk Exception• Login ExceptionNote: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording• White Light Alarm• Buzzer• Log• Audible AlarmNote: The alarm function requires the use of a camera. |
| อุปกรณ์ในกล่อง | • VIGI Network Video Recorder• Power Adapter• HDD Screws• Mouse• Mounting Brackets & Rubber Feet• Quick Installation Guide |
| Working Temperature | NVR: -10–55 °CPower Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 294 × 180 × 44 mm |
| Net Weight | 1.12 Kg |
| Gross Weight | 2.06 Kg |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| ฮาร์ดดิสก์ | ไม่รวมฮาร์ดดิสก์ |
| แบนด์วิดท์รับเข้า | 80 Mbps |
| แบนด์วิดท์ส่งออก | 60 Mbps |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| การบีบอัดวิดีโอ | H.265+/H.265/ H.264+/H.264 |
| Synchronous Playback | 8-Channel† |
| Capability | • 25fps:2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP• 30fps:4-ch @ 3MP, 2-ch @ 5MP |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, FullScreen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| eSATA | N/A |
| ช่องฮาร์ดดิสก์ SATA | 1 SATA Interface |
| Standard | 802.3at/af Compliant |
| แหล่งจ่ายไฟ | 53.5V DC/1.31A |
| ระยะเวลารับประกัน | 3 ปี |
